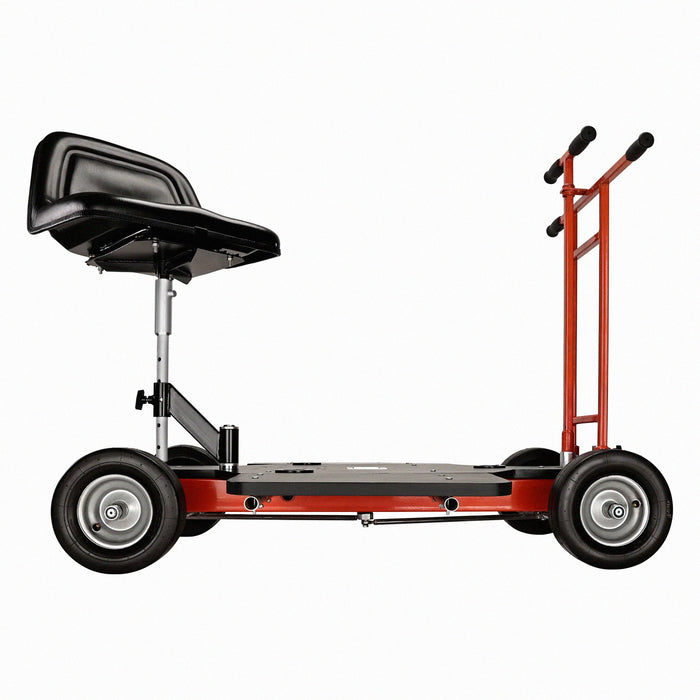

Proaim Quad-4 Pro Cinema Doorway Dolly



True Professional – Next Generation Cinema Doorway Dolly

Built-in Production Quality, Industry Proven Design & Engineering

Highly Customizable – Flexible Enough To Be Rigged For Any Production!

Accessible To Professionals Everywhere!

The New Quad-4 Doorway Dolly from Proaim is the Strongest Platform Dolly. It’s the next generation doorway dolly based on the industry proven design and engineering. The Quad Dolly offers you new possibilities concerning mobility and versatility for on stage and most production situations.

The New Quad-4 Dolly offers all-wheel steering which allows for greater turning flexibility and will turn in a tight 6 foot (2 meter) circle. The Dolly is constructed from Highest Grade Materials for Ultimate Strength and will Deliver Years of Reliable Support. It features pneumatic wheels, non-slip wooden platform, two removable side boards, switchable comfortable operator seat and push/pull steering bars. Payload capacity is over 500kg/1100lb. On this dolly; add crane, bazooka, tripod, slider, or whatever you can think of! Load it with gear to get to the location with ease!

Bazooka dolly system

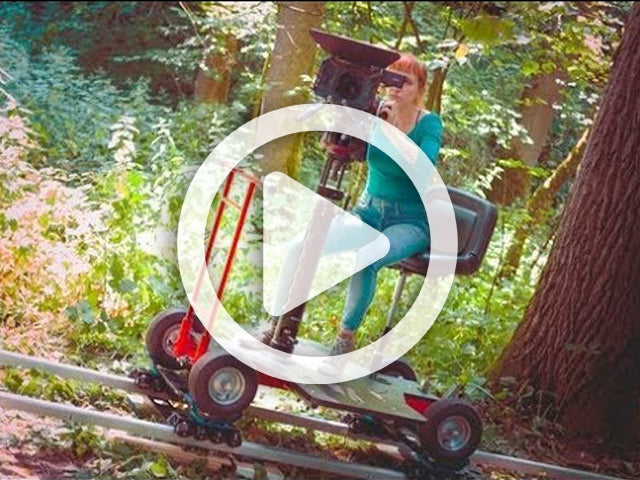

Video is for demonstration only
Actual Product may vary due to Product Improvements

Attention to Convenience

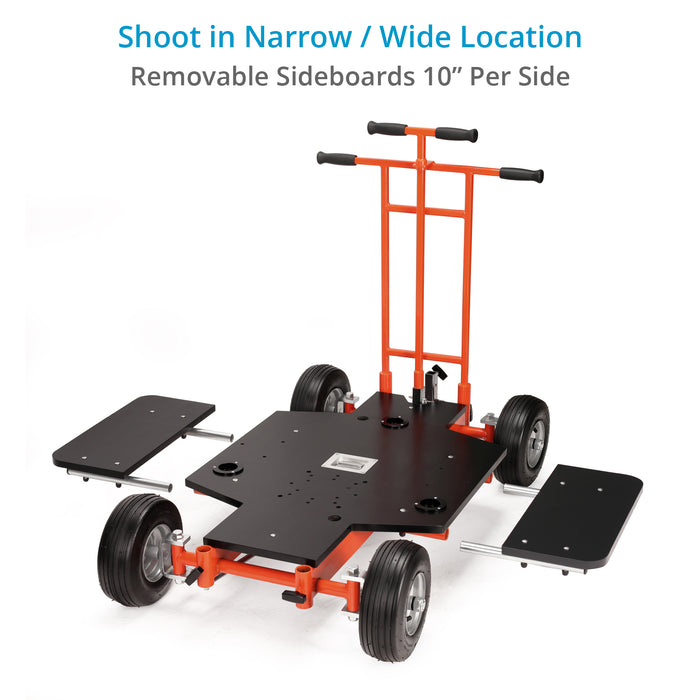

The improved wooden platform is fitted with a recessed camera tie-down and has non-slip, low-maintenance surface. The removable side boards add an extra 10” per side for increased platform width allowing the operator to resize the dolly; the way it’s convenient in different shooting conditions.

Dolly track system

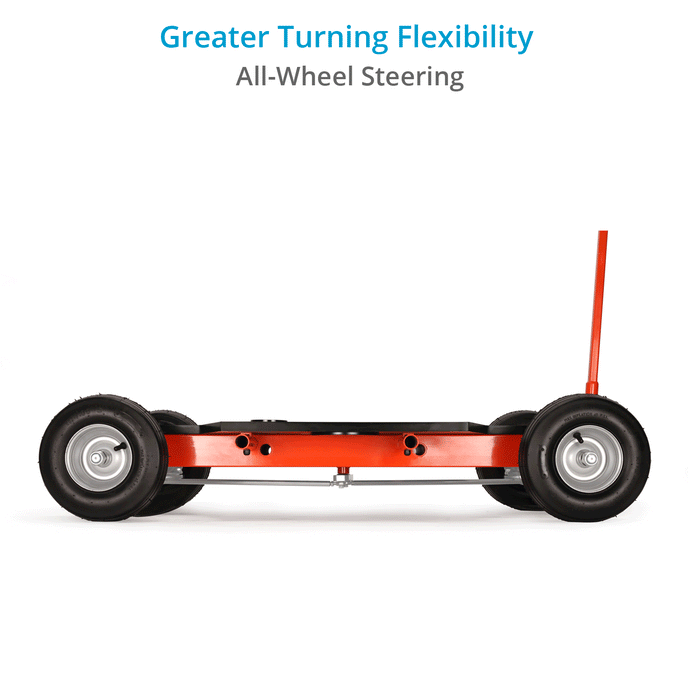

Round Steering

The all-wheel Steering provides full range of movement for greater turning flexibility with the capability of negotiating an extremely tight 6 foot (2 meter) circle. It can tilt down 340° for more convenience. It allows the dolly to move in smooth circles and is best suited when the dolly is on ground and on curve track.

Heavy duty dolly track with Bazooka

Steering Push bar allows rolling on ground with standard pneumatic rubber tyres while on the track with Skateboard Kit (purchased separately).

Bazooka with dolly

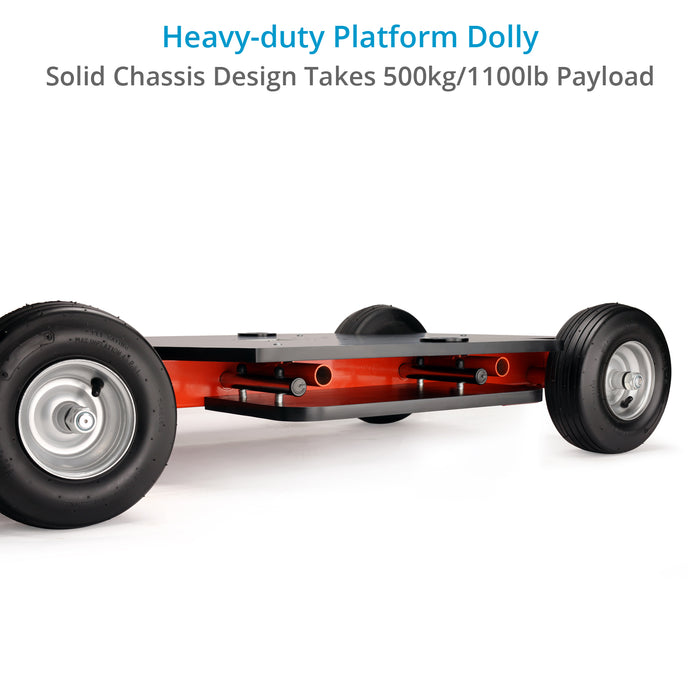

Robust Support

The wooden platform is attached to the steel tubing frame. It allows you to feel secure in its abilities in any circumstance. The well-designed and exceptionally constructed dolly is vigorously stable and can support camera setups/camera operators/carriage weight up to 500kg/1100lb.

dolly track system

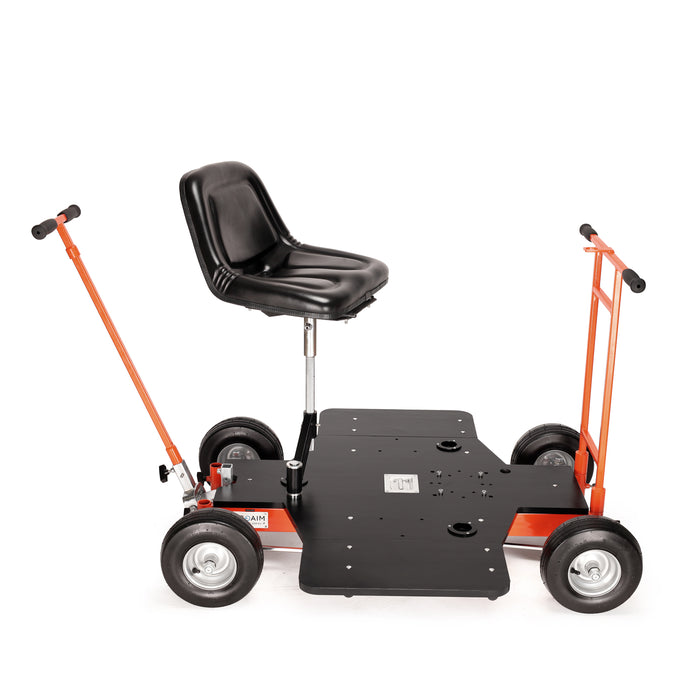

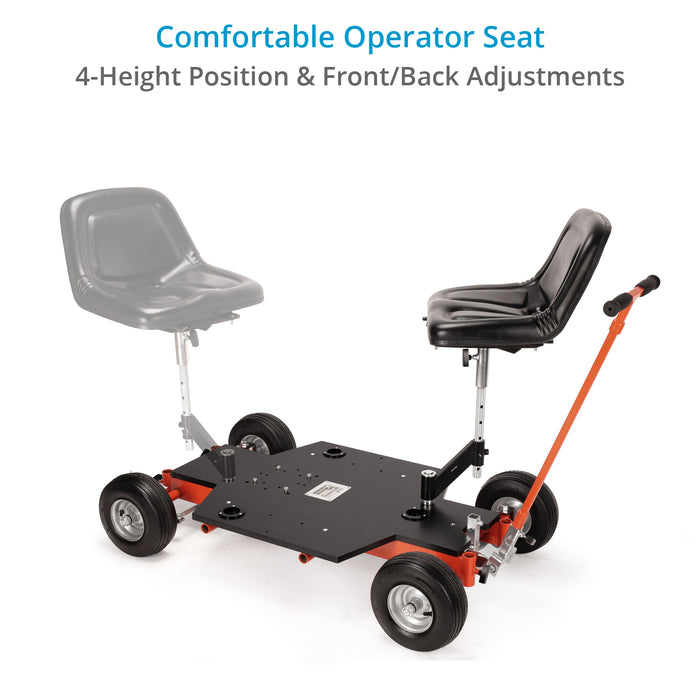

Comfortable Operator Seat

You can mount the seat directly onto the dolly and install it in four different positions. This gives you more choices for seating and achieving camera angles. The seat is also adjustable in forward/backward position for more comfort.

camera dolly


(Revised on 10-Mar-2018)

Proaim Quad-4 Pro Cinema Doorway Dolly with Telescopic Bazooka (DL-QDFW-01)

Offers myriad of camera mount configurations - it is known for its stable solid design and provides flexibility for camera positioning. The Telescopic Bazooka allows instant height adjustment, from 81cm-117cm / 32”-46”.

Dolly Bazooka track system

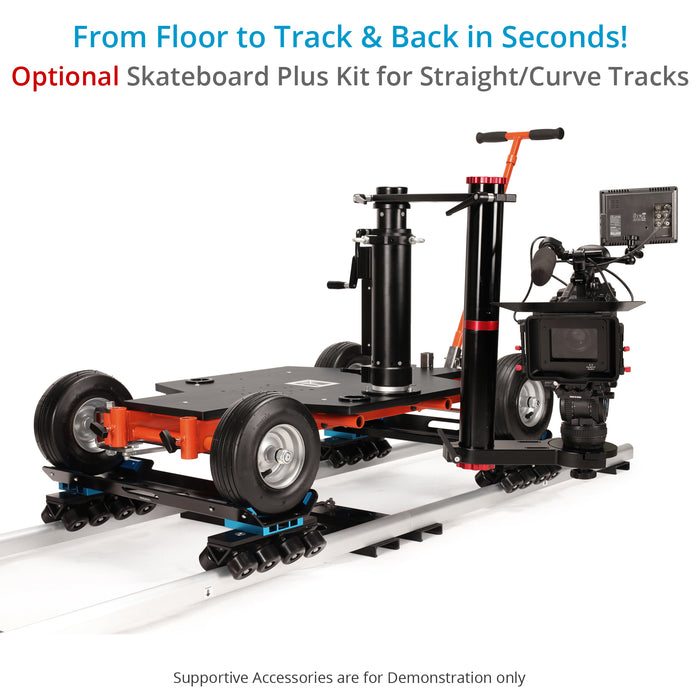

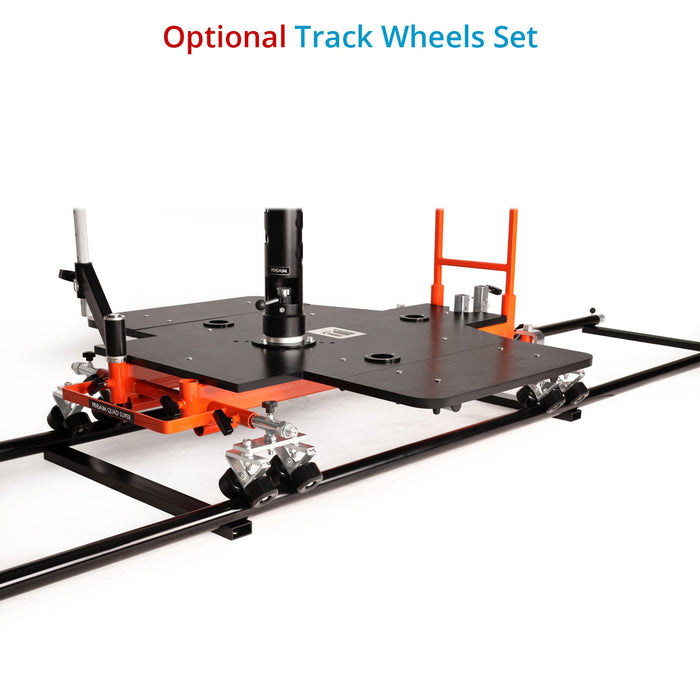

Proaim Skateboard Kit / Proaim Skateboard Plus Kit

For Straight/Curve Tracks

From Floor to Track and Back in Seconds!

Smooth Dolly Track Shots. 2 Channels with 32 Wheels. Perfect For Doorway Dollies.

Easily place dolly on Proaim Skateboard without having to remove the floor wheels.

Dolly Bazooka track system

Proaim Skateboard comes packed in Flight Transport Case

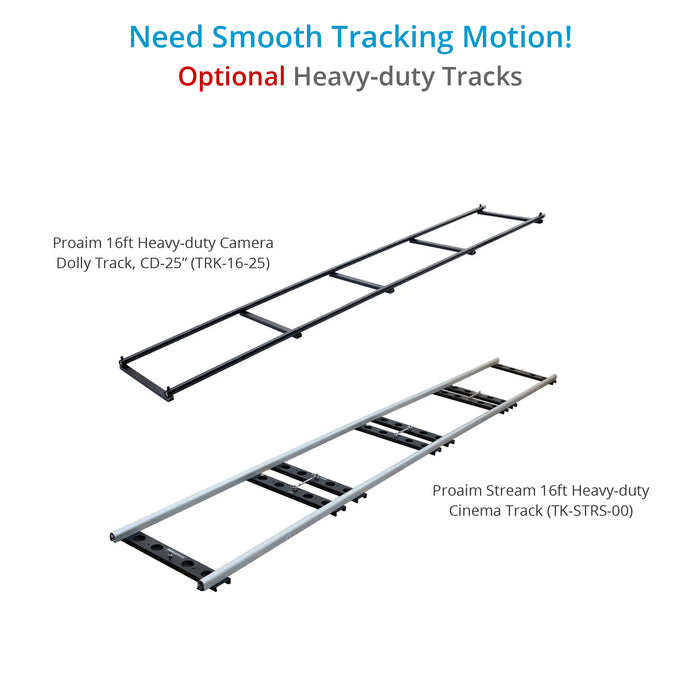

Proaim Stream 16ft Heavy-duty Cinema Track (TK-STRS-00)

For Heavy Dollies & Cranes

Capture the Action with Smooth Flowing Motion!

. Highest Grade Aluminum & Well Thought-out Design enables   using Heavy Dollies & Cranes.
. Precise manufacturing assures smooth track-to-track   transitions.
. Super fine finish enables very smooth and silent movements of   the dolly.
. Collapsible design allows quick assembly/disassembly saving   lots of Production time.
. Proaim Stream comes packed in Flight Transport Case.


The Supportive accessories are for demonstration purpose only.

- Load Capacity up to 500kg/1100lb
- Construction:
• Chassis: Solid Metal
• Platform: Wooden
- Wheel Size: Diameter-11”, Thickness -4”, Silver Steel Rim-5”
- Height from Ground: 21cm

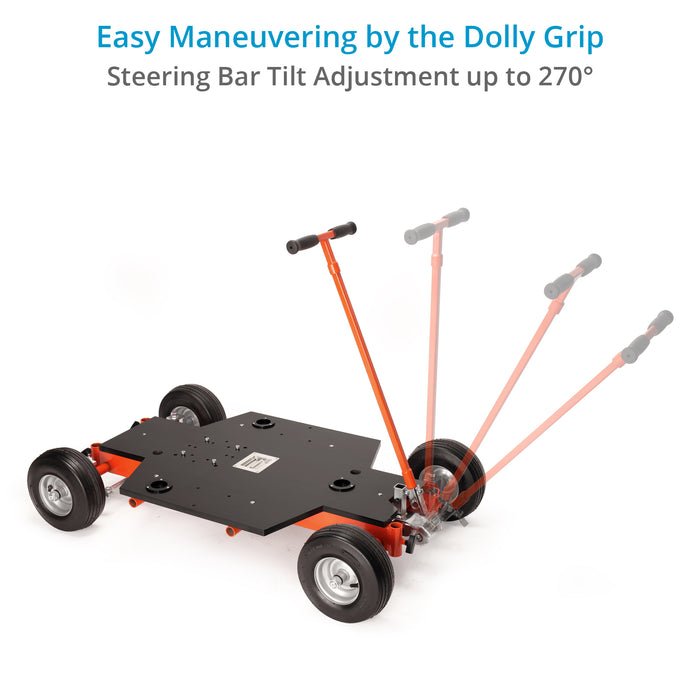

- Steering Bar can tilt down: 270°
- Compatible Track Distance: 24.5 -25’’
- Compatible Track Rail Diameter: 25-38mm
- Compatible Track: Proaim Stream Track (TK-STRS-00), (TRK-16-25)
- Product Weight (with packing):
• Box 1: 53.2kg / 117lb
• Box 2: 30.2 kg / 66.6lb
- Packing Dimensions:
• Box 1: 133 x 85 x 28 cm
• Box 2: 100 x 74 x 23 cm

BAZOOKA (included in DL-QDFW-01)
- Construction: High-Grade CNC Aluminum
- Max Height: 46”/117cm
- Min Height: 32”/81cm
- Weighing Capacity: 200kg/441lb
- Bowl: 100mm

TRACK (TK-STRS-00) (Optional)
- Construction: High-Grade CNC Aluminum
- Load Capacity: 1000kg/2200lb
- Total Length: 16ft
- Each Section: 4ft

TRACK (TRK-16-25) (Optional)
- Construction:  High Grade Aluminum
- Total length: 16ft
- Each Section: 4ft each
- Load capacity: 800kg/ 1763lb
- Central distance: 25" inches
- Track rails: 1.77" in diameter
- Weight of Product: 21.7kg/47.74lb

- Set of 2 Channels with 4*Wheels Set
- Construction: High-grade CNC Aluminum
- Total 32 Wheels: 8 Wheels per Set
- Compatible: Camera Dollies - 30″ width
- Track distance: 22.5" to 27” (Adjustment)
- Payload: up to 680kg/1500lb
- Product Weight: 15kg/33lb (7.5kg/16.5lb each channel)
- Flight Case Dimensions: LxWxH - 87x43x38cm
- Volume Weight: 30kg/66lb (with corrugated box)
- Gross weight: 32kg/70.4lb

Included for 1st combo

Included for 2nd combo

Proaim Quad-4 Doorway Dolly

Proaim Quad-4 Doorway Dolly



Steering Push/Pull Bar

Steering Push/Pull Bar

Telescopic Bazooka with Euro Plate (BZ-286-00)

100mm Height Riser (BA-267-00)
