Proaim Quad-4 Pro Cinema Dolly & Bazooka

Save 16% Save 16%
Original price US $1,916.00
Original price US $1,916.00 - Original price US $1,916.00
Original price US $1,916.00
Current price US $1,601.00
US $1,601.00 - US $1,601.00
Current price US $1,601.00
SKU : DL-QDFW-01

A Smart Way to Move the Camera

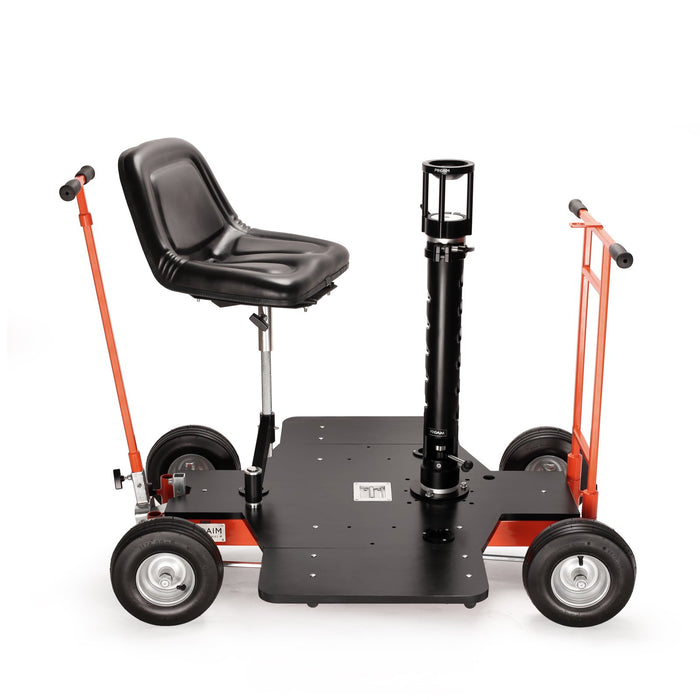

Proaim Quad-4 Pro Cinema Dolly & Bazooka

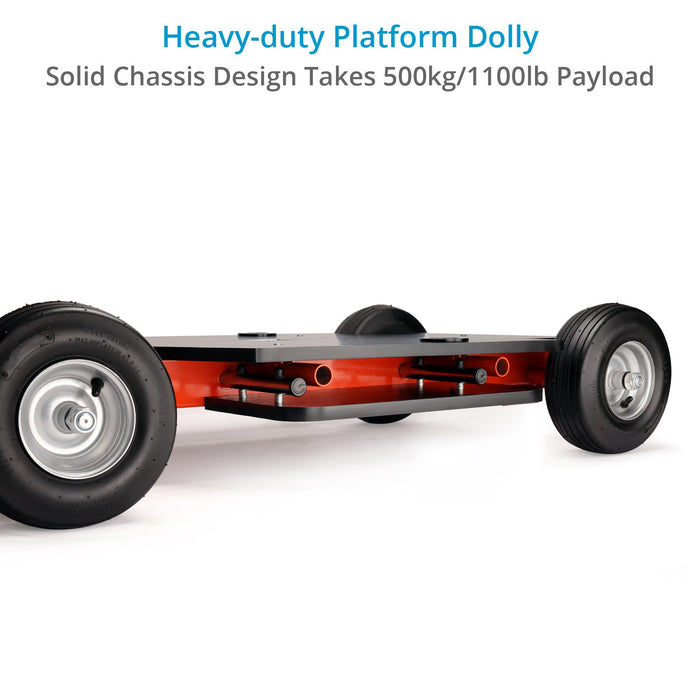

Strongest Platform Dolly

The Quad Dolly has an extremely solid Chassis Design, and the upper base is made of Solid Wood with high-quality finish. This makes it extremely robust and can easily handle payloads of up to 500 kg/1100 lb.

Proaim Quad-4 Pro Cinema Dolly & Bazooka

Low for the Best Perspective

The platform height of the Dolly is merely 21cm/8" from the ground. We wanted to make it as low as possible to help you capture those low shots very easily.

Proaim Quad-4 Pro Cinema Dolly & Bazooka

Personalize It

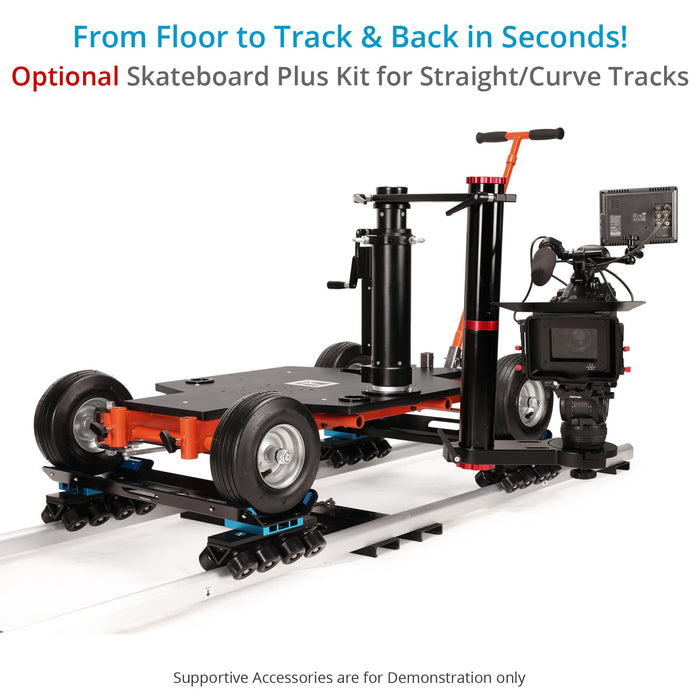

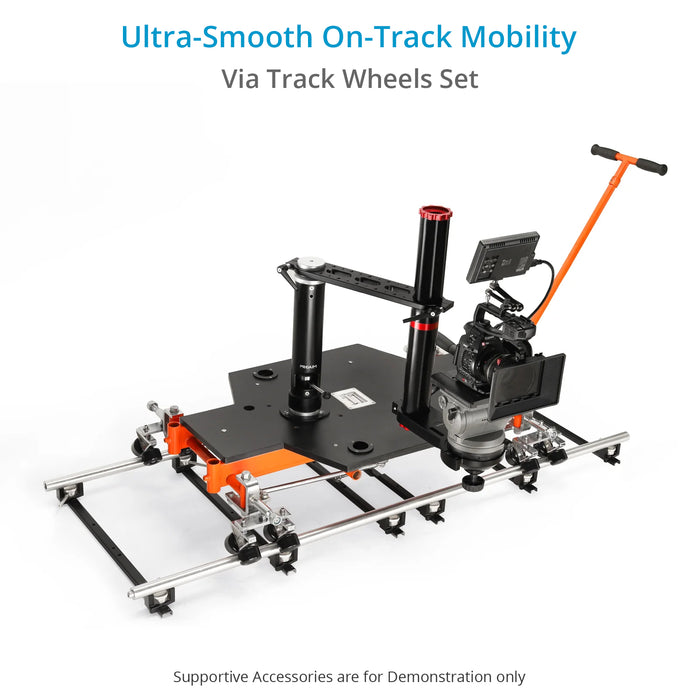

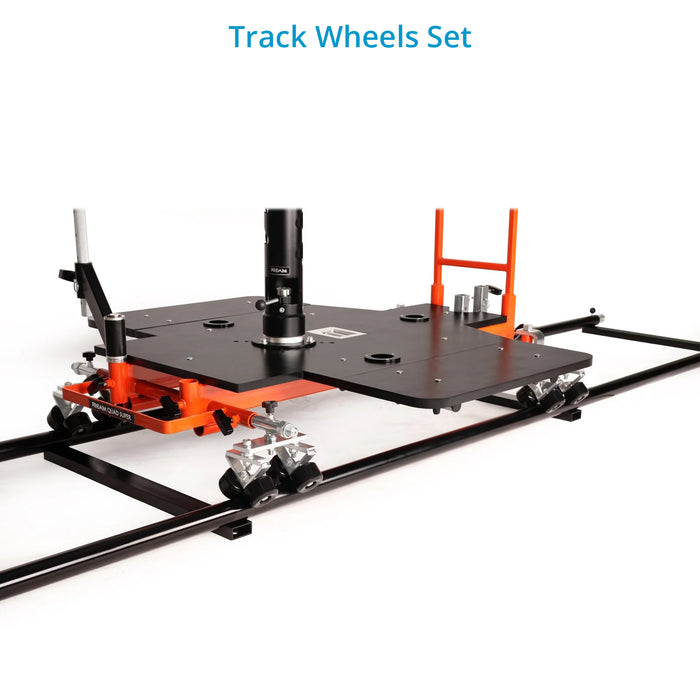

Equip your Quad Dolly with the included Track Wheels Set for use on tracks or with the Pneumatic Wheels for standard floor use. One can also use it with a Tripod, a Bazooka, a Slider, or any Euro-compatible accessory and configure it for their needs.

What Makes Quad-4 Pro the Best Choice?

Dolly Specifications

Construction

  Chassis: Solid Metal
  Platform: Wooden

Load Capacity

  500kg/1100lb

Wheel Size

  Diameter-11”, Thickness -4”, Silver Steel Rim-5”

Height from Ground

  21cm

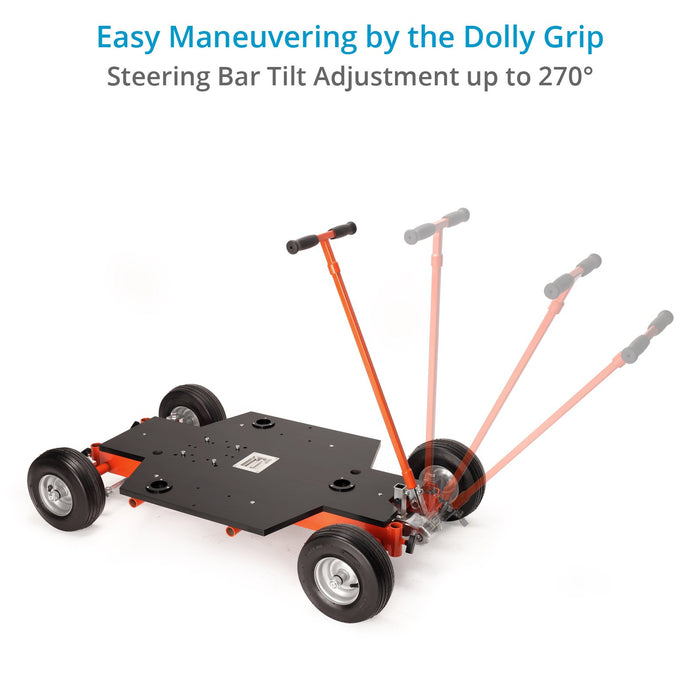

Steering Bar can Tilt Down

  270°

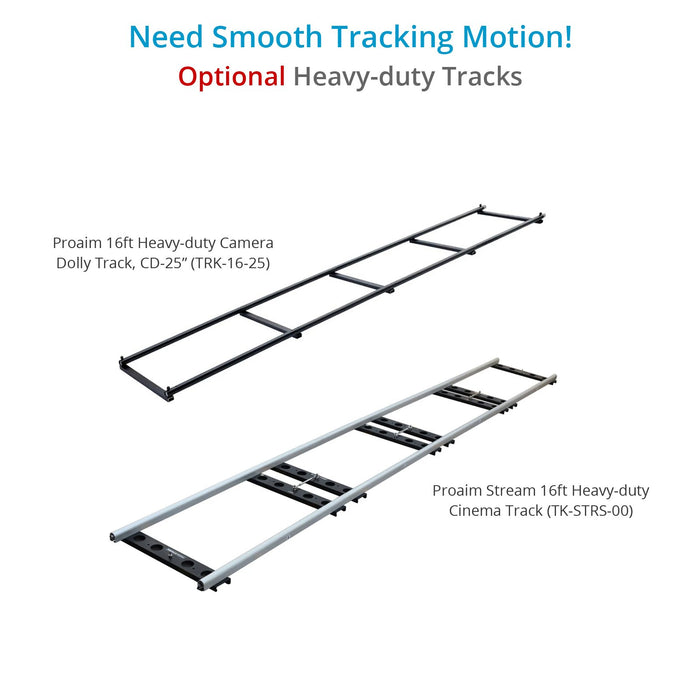

Compatible Track

  Proaim Stream Track (TK-STRS-00), (TRK-16-25)

Compatible Track Distance

  24.5 -25’’

Compatible Track Rail Diameter

  30mm - 48.3mm

Product Dimensions

Proaim Quad-4 Pro Cinema Doorway Dolly

Bazooka Specifications

Construction

  High-Grade CNC Aluminum

Height

  Max Height: 46"/117cm
  Min Height: 32"/81cm

Bowl

  100mm

Weighing Capacity

  200kg/441lb

Packing Specifications

Product Weight (with packing)

  Box 1: 55.16kg / 121.6lb
  Box 2: 22.8kg / 50.26lb
  Box 3: 12.9kg / 28.44lb
  Box 4: 9.2kg/ 20.28lb

Packing Dimensions

  Box 1: 133 x 84 x 27 cm
  Box 2: 100 x 75 x 22 cm
  Box 3: 69 x 62 x 28 cm
  Box 4: 90 x 22 x 19 cm

In the Box

  Proaim Quad-4 Doorway Dolly
  Chair
  Z for chair
  All-Wheel steering
  Steering Push bar
  Proaim Telescopic Bazooka with Quick Lock Lever (BZ-286-00)
  Proaim Euro Adapter Mount (EM-259-00)
  Proaim Euro/Elemac - Bowl Camera Riser (100mm) (BA-267-00)
  Proaim Track Wheel Set for Quad Super Camera Dolly (P-TWS-QS) (Added on 12th Sep. 2023)

01.

Manoeuvres On Small Sets Like No Other Platform Dolly

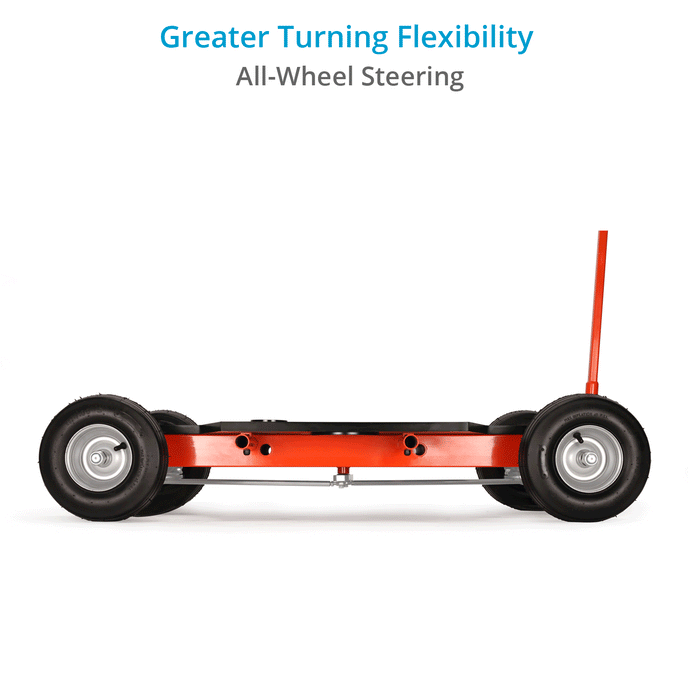

We designed the Quad Doorway Dolly while keeping mobility and easy operation in mind. With an All-wheel steering system, the Proaim Quad Dolly manoeuvres on small sets like no other platform dolly. It's capable of negotiating an extremely tight circle of 2 m (6 ft).

Steering Push bar allows pushing/pulling the Dolly on the ground with standard or on the track extremely smooth and easy.

Proaim Quad-4 Pro Cinema Dolly & Bazooka
Proaim Quad-4 Pro Cinema Dolly & Bazooka

02.

Create the Shot you Envision

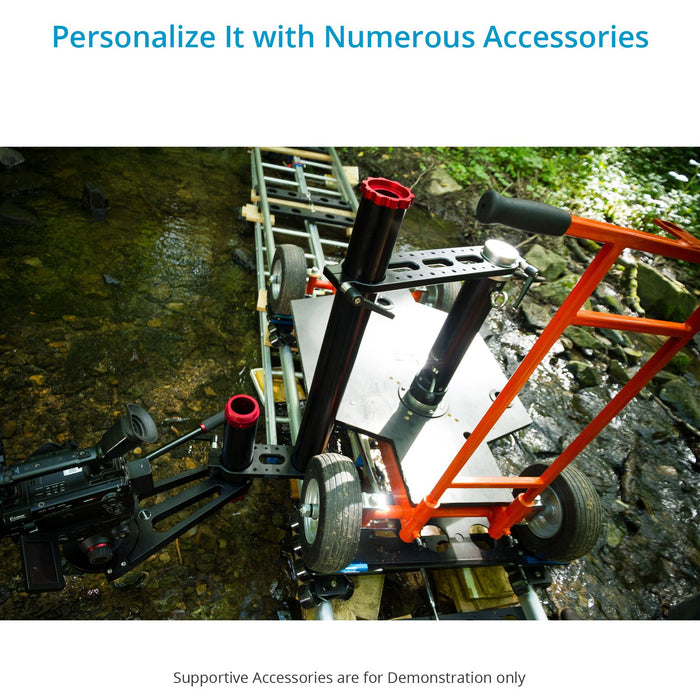

The Quad Dolly can be configured for use with multiple setups such as slider, jibs, tripods, and geared heads which enables you to bring the director's vision to reality.

We offer multiple accessories at highly affordable prices so that you can calibrate the Dolly exactly to your needs.

03.

Let Small Become Big, Double the Size

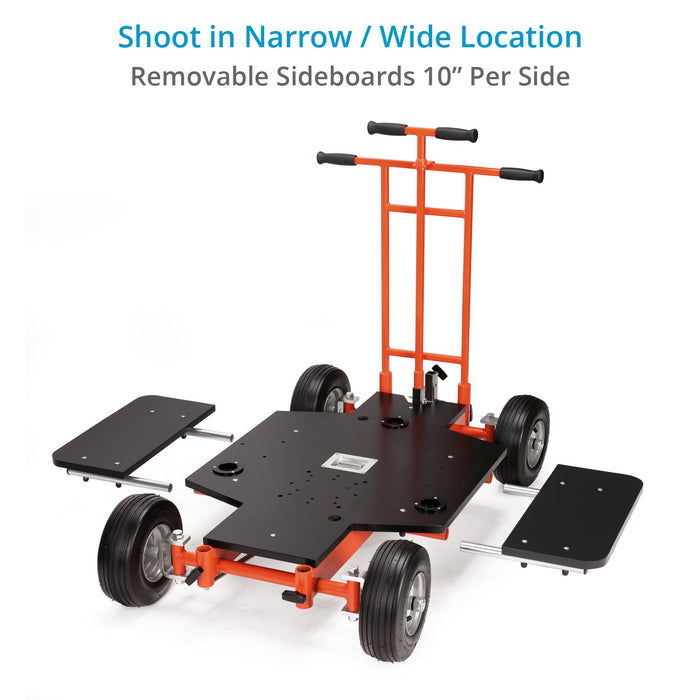

The Quad Dolly comes with removable sideboards that add an extra 10" per side for increased platform width to enable the Cameraman and the assistant to stand, sit or even kneel on the Solid Platform.

Proaim Quad-4 Pro Cinema Dolly & Bazooka
Proaim Quad-4 Pro Cinema Dolly & Bazooka

04.

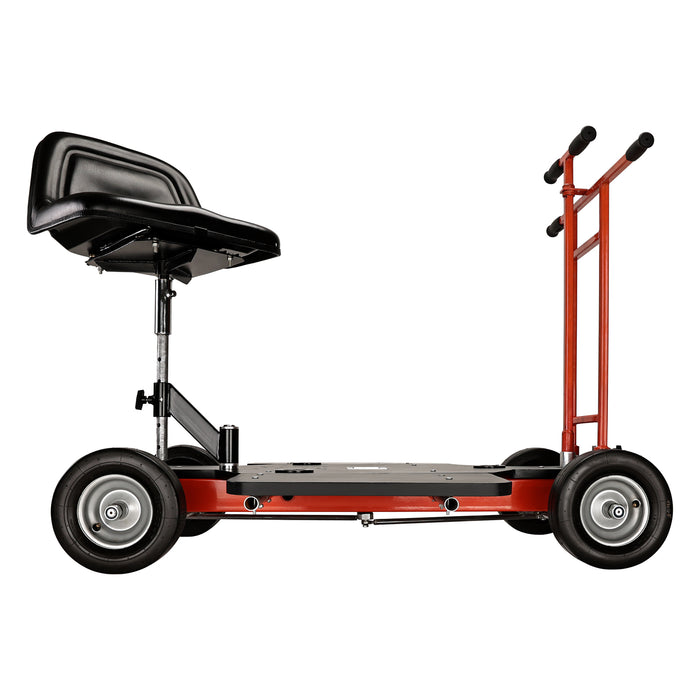

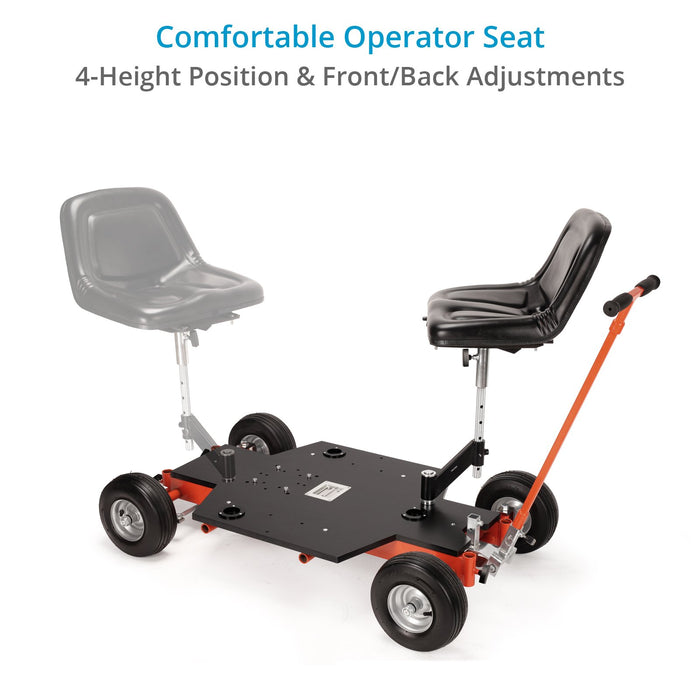

The Most Comfortable Dolly Seat

We understand how tiring a whole day shooting can be. The Quad Dolly comes with a thickly padded cushioned seat which provides exceptionally comfortable seating to the camera operator.

The seat mounts in 4 different positions allowing you to achieve a variety of camera angles. The seat is also height-adjustable for an optimal seating position according to the operator.

Available in Different Models

Available in Different Configurations


delivery

Guaranteed Fast Delivery
For all orders

customer service

Quick and Efficient
Customer service

easy returns

Easy Returns
Up to 30 days

warranty

1-Year Warranty
On All Products





  • \"Hi will the Proaim Telescopic 27\"\"- 42\"\" Bazooka for Camera Dolly | Euro/Elemac Mount fit on the Polaris dolly ?

    "Yes, Proaim Telescopic 27""- 42"" Bazooka BZ-286-00 will work with Proaim Polaris Portable Dolly DL-PLRS-01 with the help of Proaim Mitchell to Euro/Elemac Adapter EM-292-00.

  • Is the center column of the Comet Crane compatible with the Proaim Quad-4 Pro Camera Platform Doorway Dolly?

    Unfortunately, the center column of the Comet Crane is not compatible with the Proaim Quad-4 Pro Camera Platform Doorway Dolly.
