Expertly Crafted Gimbal head
Capture the essence of unplanned moments with Proaim Gimbal Tripod Head, a perfect tool for wildlife, sports action, and other moving object photography.
It lets you capture a fast-moving subject such as animals or athletes wonderfully, and it is something you would not be able to achieve otherwise by hand holding the lens.

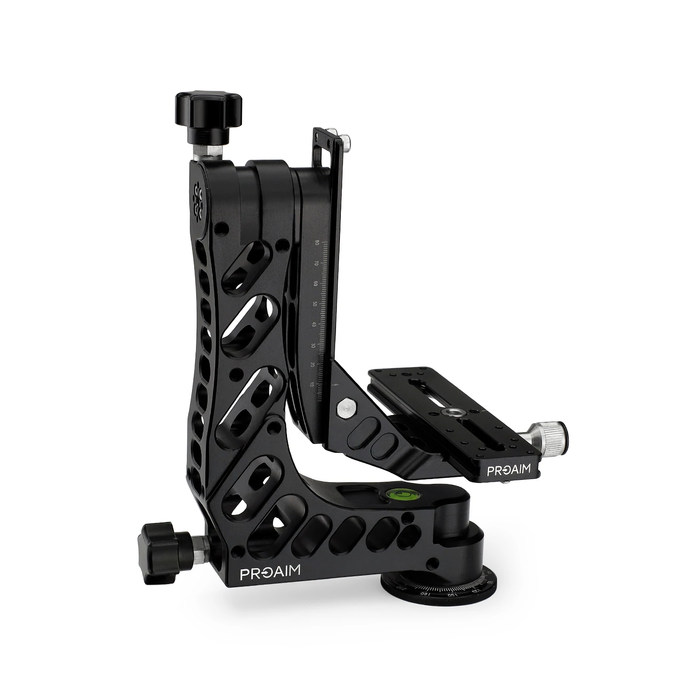

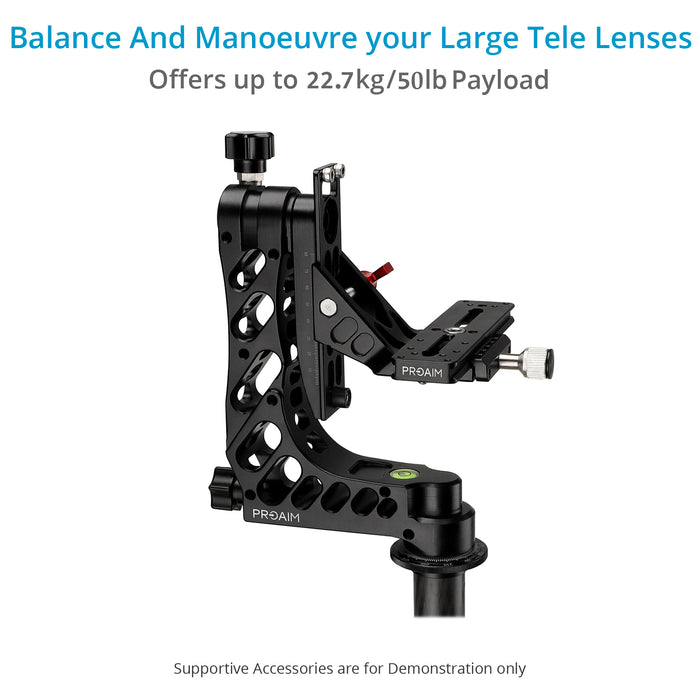

Machined with High-Grade Aluminum, it easily supports and balances huge and heavy telephoto lenses weighing up to 22.7kg/50lb.
Perfect Balancing Support - for Your Telephoto Lens - for Remarkable Results.
Smart & Intuitive Design

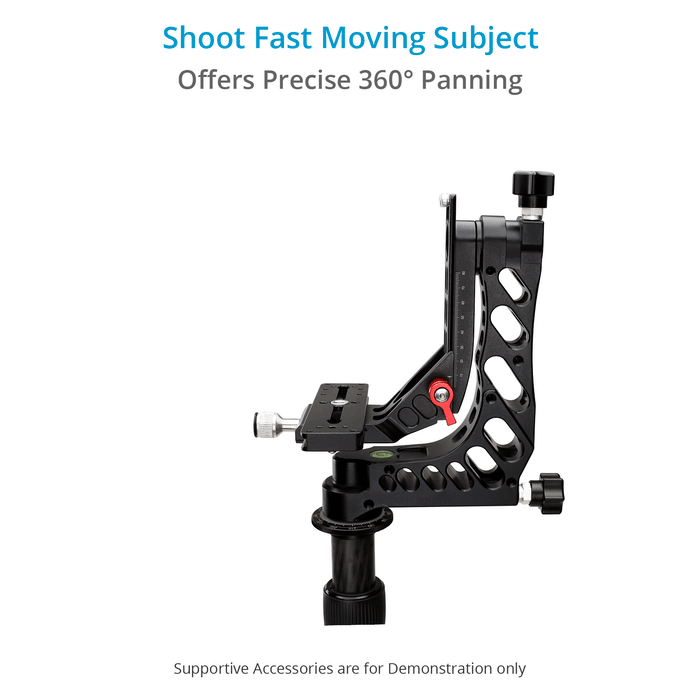

The head pans 360° while keeping the horizon straight using the bubble level at the base of the head.

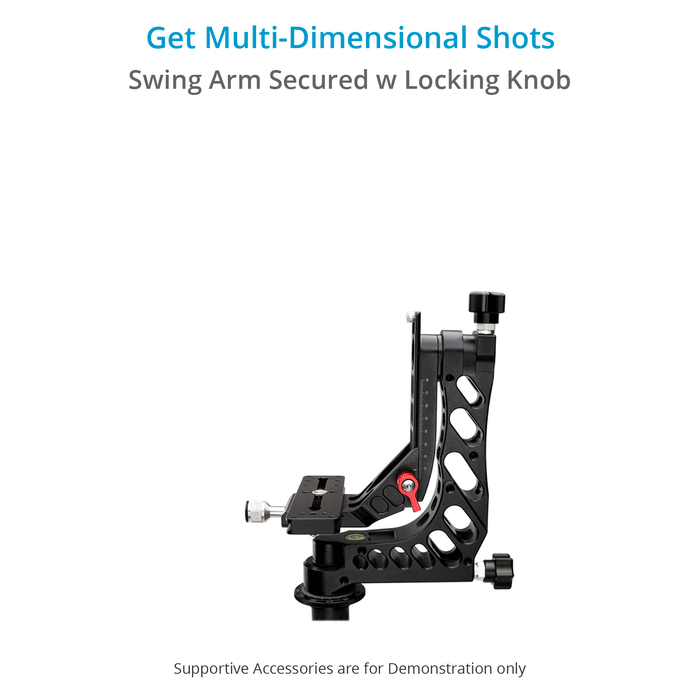

Also, it has a swing arm that tilts horizontally, giving you extreme tilt angles and effortless, balanced shots.
Both panning axis & floating tilt are locked independently using pan & tilt friction knobs.
Also, the head has a 360° panoramic scale that allows easy pan adjustments.
Security & Balance

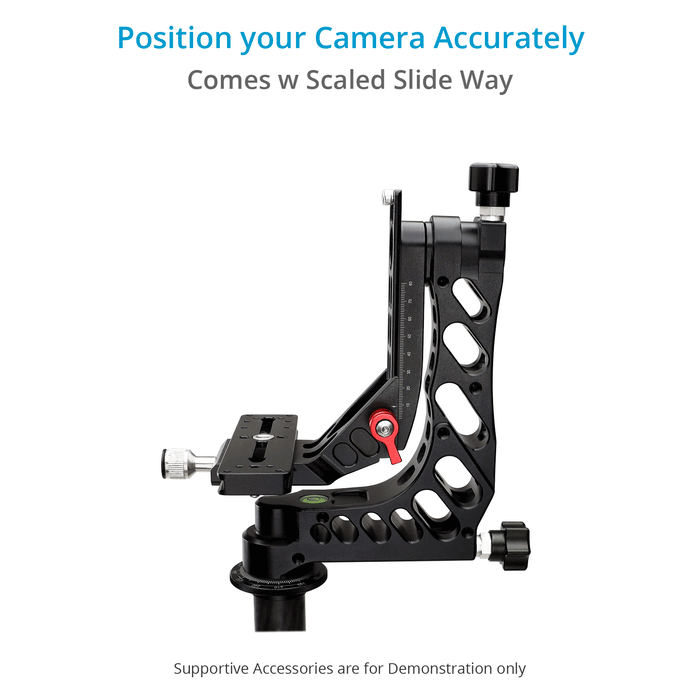

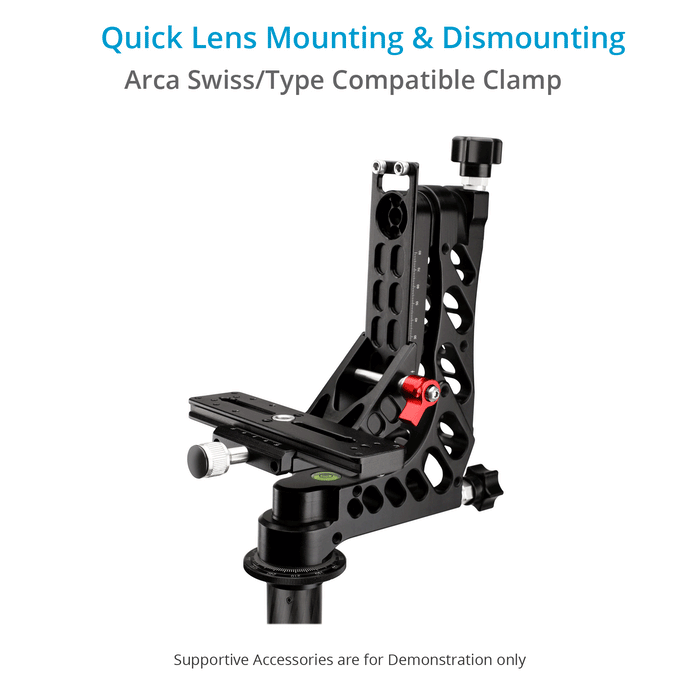

It has an Arca Swiss compatible camera plate clamp that moves up and down on a scaled slideway, secured with a control knob.

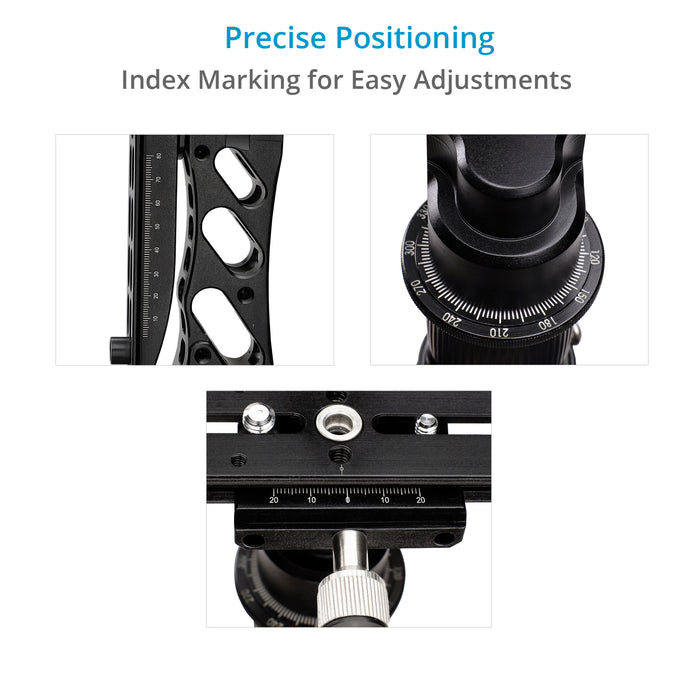

Numbered scales are located on the clamp and the swing arm so that the telephoto lens can have a repeated setup on the gimbal tripod head.
Before use, ensure that the head is vertically and horizontally balanced; the camera must be able to be adjusted at any angle while remaining in position.
The Proaim Gimbal Head has a double dovetail plate with 1/4′′-20 and 3/8′′-16 mounting screws fastened by the platform adjustment knob.

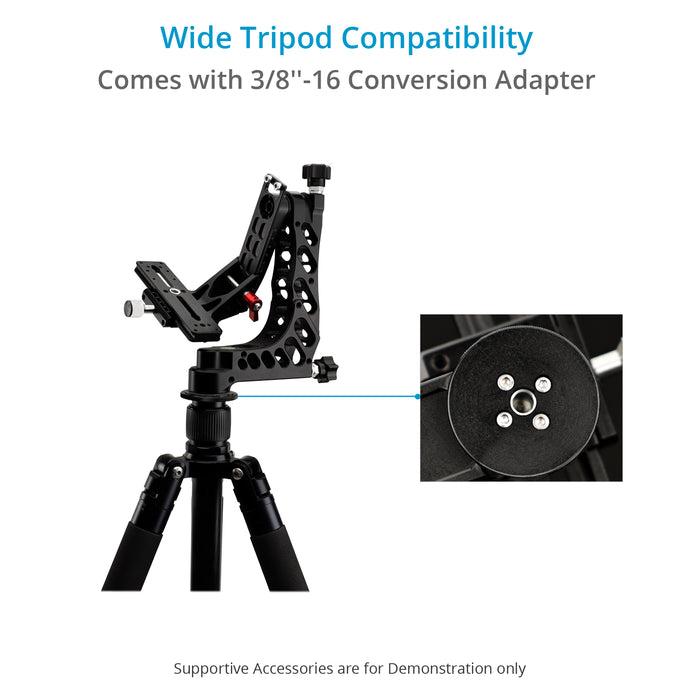

The gimbal head mounts directly to tripods with a 3/8′′-16 threaded mount.
In addition to that, we provide you with the conversion adapter for 1/4″-20 mounting, making it universally compatible with the tripods.

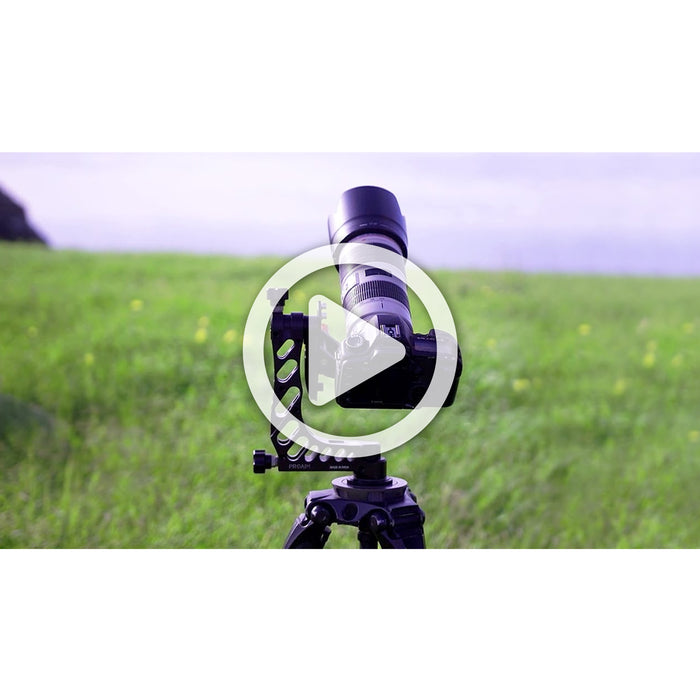

See how the Gimbal Tripod Head Works
High-Grade CNC Aluminum
22.7kg / 50lb
Quick Release Plate Type
Number of Bubble Level
Pan & Tilt Range
3/8′′-16 and Additional Conversion Adapter 1/4″-20 thread
Camera Mount Screw
1/4″-20 and 3/8″-16
9.8x3.1" / 24.7x7.8 cm
1.32kg / 2.91lb
In the Box
Proaim Universal Gimbal Tripod Head
Double Dovetail Plate (6")
