Proaim Sr. Pan Tilt Head for Camera Jib Crane, Payload - 7.5kg/16.5lb

2-Axis Motorized Head with 12V Joystick Controller

Sold out
Original price US $727.00 - Original price US $727.00
Original price
US $727.00
US $727.00 - US $727.00
Current price US $727.00
SKU : PT-SR

Smart Remote Head Gives You The Freedom
To Be More Creative

01.

VERSATILE REMOTE HEAD
The Proaim Sr. Pan-Tilt Head with Joystick Control remotely controls your Camera when it's mounted on a tripod, jib or crane.
The Sr. Pan-Tilt Runs conveniently on 12 VDC from either a battery pack or the included AC power supply.
No jib is complete without a motorized pan/tilt head, and the Sr. Pan tilt’s robust yet light construction, the universal mounting base and intuitive control box makes it a breeze to set up and operate on virtually any jib.
The universal camera plate is adjustable for different sized setups and can support film and video cameras weighing up to 7.5kg / 16.5lb.
The precisely designed Head gives you incredible freedom of movement and gets you cinematic footage virtually anywhere.

Proaim Sr. Pan Tilt Head for Camera Jib Crane, Payload - 7.5kg/16.5lb
Proaim Sr. Pan Tilt Head for Camera Jib Crane, Payload - 7.5kg/16.5lb

02.

HIGH PERFORMANCE WITH ADVANCED FEATURES
Professionally designed 2-Axis Sr. Pan-Tilt Head ensures a perfect camera balance and offers smooth camerawork at all times.

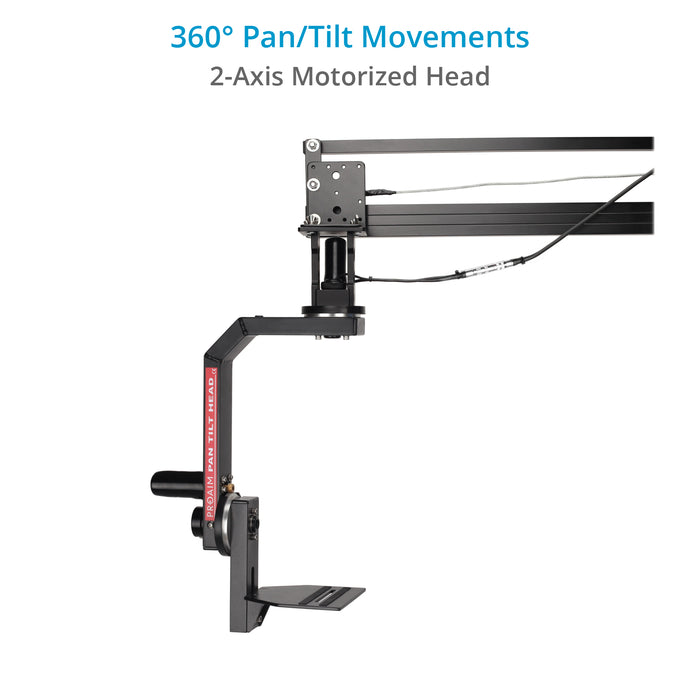

It can be mounted vertically or underslung. The Head will pan and tilt through 360°, and this enables the camera to point directly upwards or downwards when required.
The head has variable pan and tilt speeds, with a minimum speed of 6° per second for slow and smooth pans and tilts. For faster, yet smooth pan and tilts, the head has a maximum pan/tilt speed of 51° per second.
Two high-quality coreless motors and backlash-free gears work precisely, quietly and dynamically. The motor drive can be easily disengaged to balance the Camera on the camera plate.
The high strength brass gears are engineered to withstand long hours of functions and have minimal wear and tear.

03.

EASY OPERATION

Damping Control :- Damping control knob prevent the Head from stopping abruptly with a jerk, giving you smooth endings. The amount of damping is increased by rotating the damping knob clockwise.
Dead Spot Control :- The Dead spot control determines the centre band of the joystick where no motion will occur and ensure no crossover to the other axis when not wanted. you can adjust your joystick when it is not centre by rotating this knob clockwise. If you observe the head moving without deflecting the joystick, it will be necessary to adjust centring. and to perform best in reversing the head then dead spot knob should be 30 to 40 percent.
Pan/Tilt Direction :- You can reverse the panning & tilting direction as & when required by using switch and you can also take damping function at the time of reversal. So best way to reverse the pan tilt head is by using this Reversal switch.

Proaim Sr. Pan Tilt Head for Camera Jib Crane, Payload - 7.5kg/16.5lb
Proaim Sr. Pan Tilt Head for Camera Jib Crane, Payload - 7.5kg/16.5lb

04.

BUILT TO LAST
Precision CNC machining, rigorous parts inspection, and thorough individual unit testing ensure A-grade quality, which serves for the lifetime.
Technological advancements make the unit light, smooth and easy to operate.
The high-quality carrying bag with custom-fit foam protects the Pan-Tilt Head for storage and transport via air or land.

IN-ACTION VIDEOS

SPECIFICATIONS

Material of Construction

  High-grade CNC Aluminum

Load Capacity

  7.5 kg / 16.5 lb

Pan & Tilt

  Movement: 360°

Speed

  Minimum: 6°/sec
  Maximum: 51°/sec
  Covers 360° at Slowest Speed in : 2 minutes
  Covers 360° at Highest Speed in : 7 seconds

Motors

  Two high torque, coreless DC motors that rotate the Head 360° (Pan/Tilt)

Gears

  2 Small: ⌀ 13.5mm (Brass)
  2 Large: ⌀ 88mm (Aluminum)

Adjustments

  Minimum Height of Head: 18.5" / 46.99 cm
  Maximum Height of Head: 26" / 66 cm

JOYSTICK CONTROLLER

Axis: 2
Connectors: 2x 4-Pin XLR Male Connectors
Pan/Tilt Direction: Yes
Upgraded with: Damping Knob

AC Adapter input

  AC 100-240V ; Output 12V DC-2A

Cables

  Cable Length: 15 meter (Can be extended up to 50 meter)
  Cable Connector: 4-Pin XLR
  Battery Cable: 3 meter Long

Dimension

Proaim Sr. Pan Tilt Head for Camera Jib Crane, Payload - 7.5kg/16.5lb

Weight

  Pan/Tilt Head: 3 kg / 6.6 lb
  Joystick: 800 gram / 28.22 oz
  Bag Dimensions: 50 x 35 x 19 cm

PACKAGING INFO

Package Weight

  7.7 kg / 16.97 lb

Box Dimensions (LxWxH)

  22.8 x 14.9 x 7.4" / 58 x 38 x 19 cm

IN THE BOX

Proaim Sr. Pan & Tilt Camera Motorized Head
Joystick Control
15 meter/49foot long Control Cable
3 meter long 4pin XLR cable (for using 12VDC Battery Packs)
1/4"-Camera Mounting Screw
Worldwide Universal Adapter
12V AC Adapter
Storage Case with Custom Fit Packing

USER MANUAL

WHY SR. PAN-TILT IS THE BEST CHOICE?

Proaim Sr. Pan Tilt Head for Camera Jib Crane, Payload - 7.5kg/16.5lb

Creative Flexibility

It can be used with Jibs, Cranes, Tripods, etc., and holds video, film cameras weighing up to 7.5kg/16.5lb.

Proaim Sr. Pan Tilt Head for Camera Jib Crane, Payload - 7.5kg/16.5lb

Minimum Wear and Tear

The high-strength brass gears are engineered to withstand long hours of functions and have minimal wear and tear.

Proaim Sr. Pan Tilt Head for Camera Jib Crane, Payload - 7.5kg/16.5lb

Affordable Price

There is no other product in the market, with these many features even close to this price range. We offer Value for Money!

FAQ

Q: Will it work with canon 550d camera?

Ans: Yes, it will work with canon 550d camera.

Q: How the head can be mounted?

Ans: This pan tilt head has square plate with four screws mounting at corners.

Q: Will the fluid head fit to this head?

Ans: Yes, you can mount fluid head on the head plate.

Q: Will it fit to 100mm bowl tripod?

Ans: Yes, it will fit on 100mm bowl tripod using 100mm half bowl adapter.

Q: Will it mount on fluid head?

Ans: No, It will not mount on fluid head.

Q: Can I purchase this head with the compatible tripod?

Ans: Yes, you can purchase this head with tripod and tripod adapter.

Q: Do you provide cable for the battery?

Ans: Yes, we provide 3 meter long cable for using with the battery.

Q: What is the gear material?

Ans: Small gears are made of brass and bigger gears are made of aluminum.

Q: Does the joystick come with handle to clamp on jib crane?

Ans: Yes, the joystick control box comes with a handle to clamp it on a jib crane.

Q: Is the camera plate height adjustable?

Ans: Yes, you can adjust the height of camera plate.

Q: How many circle it can complete?

Ans: This pan tilt head can take two complete 360 degree circles.

Q: Which motors are used in this head?

Ans: High torque, coreless 12V DC motors are used in this head.

Q: What kind of battery I need to operate it?

Ans: You need 12V battery to operate this head.

Q: Is it returnable for a full refund if it doesn’t meet my expectations upon delivery?

Ans: Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 30 days and you get a 100% refund.

Q: What is the warranty?

Ans: We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.


delivery

Guaranteed Fast Delivery
For all orders

customer service

Quick and Efficient
Customer service

easy returns

Easy Returns
Up to 30 days

warranty

1-Year Warranty
On All Products


Customer Reviews
5.0 Based on 4 Reviews
5 ?
100%
4
4 ?
0%
0
3 ?
0%
0
2 ?
0%
0
1 ?
0%
0
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
EW
09/06/2018
Ethan W.

Accommodates Large Cameras

Good strong product; handles my Canon XH-A1 with no problem; I am very pleased...I especially like the fact that the plate the camera attaches to adjusts relative to the size of the camera; the XH-A1 is a fairly large camera and this head accommodates it very well.

LB
05/28/2018
Laurier B.

Good Value for price!!

Well constructed work flawlessly worth the price.

J
12/05/2016
Jamie

High Quality Product!

This pan tilt head is amazing. It allows me to get those steady pan and tilt shots all from the external control. I love that I can adjust the speed, and overall very pleased with the build qualit




  • Will it work with canon 550d camera?

    Yes, it will work with canon 550d camera.

  • How the head can be mounted?

    This pan tilt head has square plate with four screws mounting at corners.

  • Will the fluid head fit to this head?

    Yes, you can mount fluid head on the head plate.

  • Will it fit to 100mm bowl tripod?

    No, It will not fit to bowl tripod.

  • Will it mount on fluid head?

    No, It will not mount on fluid head.

  • Can I purchase this head with the compatible tripod?

    Yes, you can purchase this head with tripod and tripod adapter.

  • Do you provide cable for the battery?

    Yes, we provide 3 meter long cable for using with the battery.

  • What is the gear material?

    Small gears are made of brass and bigger gears are made of aluminum.

  • Does the joystick come with handle to clamp on jib crane?

    Yes, the joystick control box comes with a handle to clamp it on a jib crane.

  • Is the camera plate height adjustable?

    Yes, you can adjust the height of camera plate.

  • How many circle it can complete?

    This pan tilt head can take two complete 360 degree circles.

  • Which motors are used in this head?

    High torque, coreless 12V DC motors are used in this head.

  • What kind of battery I need to operate it?

    You need 12V battery to operate this head.

  • What is the warranty?

    We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.

  • Could it be controlled by a computer

    The Proaim Pan Tilt Head PT-SR is only controlled by a joystick controller included in it. It will not be controlled by a computer.

  • Can the Sr. Pan Tilt Head be moved by hand if i don't want to use the motor?

    Yes, the Proaim Senior Pan tilt head can be moved with hands but before this you have to disengage the motor gear to avoid any damage to the gears.

  • Is it safe to power the Proaim Sr. Pan Tilt Head ( PT-SR) with 14.4 volts v-mount battery?

    We do not recommend a 14.4 Volt V-mount Battery for Proaim Sr. Pan Tilt Head because with 14.4 Volt V-mount Battery the RPM (Rotation Per Minute) specifications will be changed which eventually decreases the life of the Motor.

    We suggest to use 12 Volt capacity battery with this Head.

  • \"I have an old EZ FX Jib and am wondering if you have any pan and tilt heads that will work with a 100mm ball receptacle??? Most seem unable to fit an EZ FX jib.\"

    You can mount the Proaim Jr. Pan Tilt or the Proaim Sr. Pan tilt head on EZ FX Jib with the help of a 100mm Half-Ball adapter (BA-100).
