Proaim Powermatic Scissor 17ft Telescopic Camera Jib Crane Package

For 3-Axis Ronin, Movi Gimbals | For Video Film Productions

Save 5% Save 5%
Original price US $4,011.00
Original price US $4,011.00 - Original price US $4,011.00
Original price US $4,011.00
Current price US $3,799.00
US $3,799.00 - US $3,799.00
Current price US $3,799.00
SKU : JB-SCSR-01
Description


Next Step in the Evolution of Camera Jib!

Quickly Moves In/Out of a Shot. Manoeuvres into Inaccessible Areas – Smoothly & Silently.


01.

Thoughtful Engineering

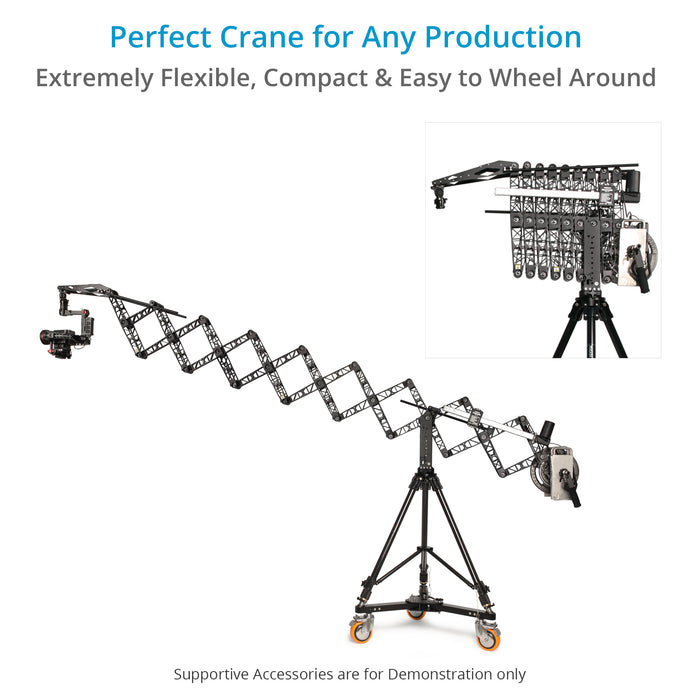

Proaim Powermatic Scissor telescopic camera crane lets you easily capture creative shots usually done with high-end and expensive Technocranes.

Extending the scissor arm puts the camera right where you need it. The flexible motion allows the arm to open 17’ out and then retract back in.

High-grade Aluminum Crane Frame is lightweight & durable enough to hold 3-Axis Camera Gimbals with a maximum payload of 15kg / 33lb.

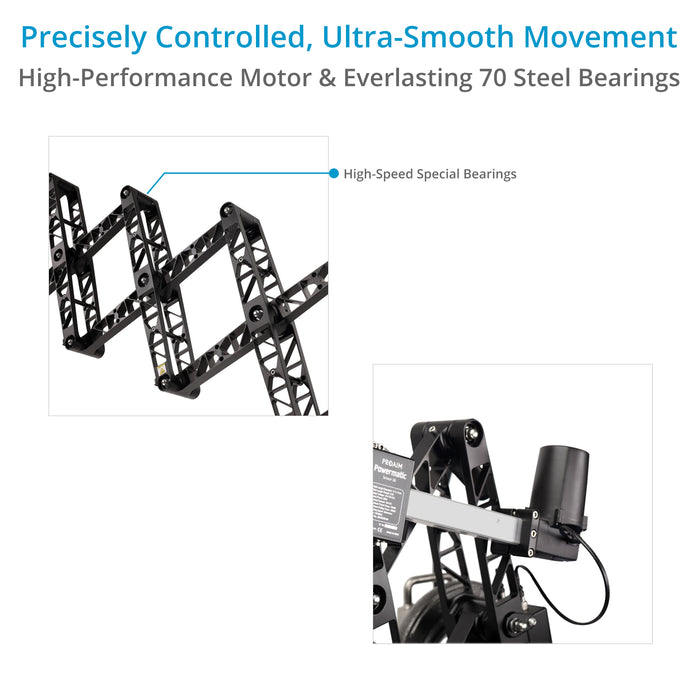

The high-speed special 70 steel bearings ensure outstanding durability & strength while providing smooth soundless movement every time you extend or retract.

It is perfect for tight indoor spaces as well as on-location shoots. It even fits into a private vehicle.

Proaim Powermatic Scissor 17ft Telescopic Camera Jib Crane Package
Proaim Powermatic Scissor 17ft Telescopic Camera Jib Crane Package

02.

Effortless Operation

The Powermatic Scissor allows you to achieve fluid movements of extreme precision without any difficulty.

Steady Fluid Head ensures perfect alignment of your 3-Axis Gimbal on Scissor Crane.

Tilt Lock allows you to fix the jib’s tilt angle to get linear tracking shots.

Pan Lock enables locking the jib’s pan movement for achieving high/low angle shots.

6LCD Mounting Arm helps in attaching an LCD monitor for better viewing of shots; the arm can be mounted left/right as per your requirement.

03.

Precisely Controlled Movements

High-Performance 12V DC motor ensures silent operation and drives the jib smoothly.

The Precise Controller very conveniently push-out / pull-in the jib length and control the movements.

The system is integrated with a V-Mount Battery Plate, which adapts a 14.8V V-Mount battery to power the drive system.

Proaim Powermatic Scissor 17ft Telescopic Camera Jib Crane Package
Proaim Powermatic Scissor 17ft Telescopic Camera Jib Crane Package

04.

Solid Foundation for Scissor Crane

This excellent combination of Proaim Gravity Tripod Stand and Anchor Dolly is sturdy enough to support the Crane when it's fully loaded and weighed.

Constructed from high-grade aluminum, the dolly & stand have an ample spread that pushes the centre of gravity lower towards the ground providing a secure foundation for stable shots.

The dolly gives you the flexibility to move the crane as & when required.

Being telescopic, the stand’s height can be adjusted according to shooting requirements. The Stand also features micro adjustment on legs, for easy balancing.

Proaim Dolly & Stand are robust yet lightweight and folds down into a compact size for easy transportation.

05.

Simplified Transport

The Complete Crane System fits in a Flight Case and Storage Bags for easy storage. These storage cases are easy to carry with you to different sets and locations.

Proaim Powermatic Scissor 17ft Telescopic Camera Jib Crane Package

See how the Scissor Crane Works

Scissor Crane Specifications

Construction

  High-grade CNC Aluminum

Total No. of High-Speed Steel Bearings

  70

Total Length Extended

  17ft / 5.2m

Total Length Closed

  3.3ft

Extended Height from Ground

  17.4ft / 5.3m

Closed Height from Ground

  6.3ft

Load Capacity

  15kg / 33lb

Crane Pan Lock

  Yes

Crane Tilt Lock

  Yes

Self-balance Weight (Extended/Collapsed)

  24kg / 53lb

Power Source

  V-Mount Battery (Not Included)

Battery Runtime

  1 ½ - 2 hours

Weight of Scissor Jib

  33kg / 73lb

Motor Specifications

IP44 Protection

  Certified

Rated Voltage

  12V -15V DC

Rated Power

  60W

Nominal Current

  10A DC

Maximum Thrust Force

  1000N

Maximum Pulling Force

  1000N

Travelling Speed

  36mm/sec

Noise

  <55dB

Vibration

  Not Noticeable

Jib Packing Info

Product Weight with Flight Case

  71kg / 157lb

Flight Case Dimensions (L x W x H)

  85cm x 40cm x 80cm

Tripod Stand (TP-GVTY-01) Specifications

Weight Capacity

  On Minimum Height 250kg / 550lb
  On Maximum Height 180kg / 396lb

Height

  Maximum Height: 120cm
  Minimum Height: 82cm

Pipe dia

  42mm

Micro Adjustment

  Yes

Folded Dimensions

  94cm

Weight of Stand

  12kg / 26lb

Anchor Dolly (DL-ANCR-02) Specifications

Folded Length

  23.5"

Wheel Diameter

  6"

Load Capacity

  500kg / 1100lb

Wheel Lock

  Yes

Product Weight

  12kg / 26.45lb

In the Box

17ft Powermatic Scissor Jib
Jib Controller & Monitor Bracket
Ronin Controller Bracket
Female to Female Connector
2 x Weight Ends
15V AC Adapter
Weight Rod & Cable Guide Rods
HDMI Male to Male Wire & BNC Wire
Flight Case
Anchor Dolly (DL-ANCR-02)
Gravity Stand (Flat Base) (TP-GVTY-01)
Storage Bag for Gravity Stand


delivery

Guaranteed Fast Delivery
For all orders

customer service

Quick and Efficient
Customer service

easy returns

Easy Returns
Up to 30 days

warranty

1-Year Warranty
On All Products





  • WHAT RONIN MODEL DO YOU USE THIS CRANE

    We used Ronin M/MX, Ronin2 models with a crane. Whereas other gimbals like Freefly Movi, Zhiyun Crane 2 & 3S / DJI Ronin S & RS 2 / Moza Air also mount with a crane using compatible adapter plate.

  • Is it possible to mount a Crane 3S on this, rather than a Ronin?

    Yes

  • Hi I want to buy the telematic 17fy jib, but need clarity on what is the best gimbal head for a URSA MINI camera, in terms of weight and compatibility with the crane. also please send link of any compatible base plate i need to buy. Thank you

    The Scissor crane is designed to attach 3-Axis Camera Gimbals like Ronin M/MX, DJI Ronin S, Ronin 2, RS2, or Freefly Movi. Below is the link for compatible adapters to attach Gimbal with the Scissor Jib.

    P-QRG (for Zhiyun Crane 2 & 3S / DJI Ronin S, RS 2, RS3, RS3 Pro & 4D / Moza Air Gimbal): https://www.proaim.com/products/proaim-quick-release-plate-for-hand-held-gimbals
    QR-RON2 (for DJI Ronin 2): https://www.proaim.com/products/proaim-mount-for-dji-ronin-2-r2-camera-gimbal
    QR-MOVI (Mount for Freefly MōVI M5/M10/M15/PRO)

  • Can you mount the movi pro to the crane?

    Yes, you can mount Movi pro on the Proaim Powermatic Scissor 17ft Telescopic Camera crane with the help of a QR-MOVI accessory.

    Ref: https://prnt.sc/ukGE5OgIScV5

    Here are the dimensions:

    https://prnt.sc/_Gg7334eeBdG

    https://prnt.sc/QjqDXOW4tFkA

    https://prnt.sc/boyksUDXBTxB

  • I purchase a scissor crane. Do you have an instructional video on how to put it together?

    Below is the video of how to assemble Proaim Powermatic Scissor 17ft Telescopic Camera Jib Crane JB-SCSR-00:
    https://www.youtube.com/watch?v=cbURj6fWOK8

  • Hello, is screen includes in the crane packages ?

    The Proaim Camera Crane Packages does not include the monitors or screens.

  • How to Mount Ronin RS2 Pro And RS3 Pro with Proaim Powermatic Scissor 17ft Telescopic Camera Jib Crane ?

    To mount Ronin RS2 Pro and RS3 Pro on the fluid head of the Scissor crane, you will need Proaim Quick Release plate (P-QRG).
    Link for P-QRG: https://proaim.com/products/proaim-quick-release-plate-for-hand-held-gimbals
