Proaim Powermatic Scissor Pro 17ft Telescopic Camera Jib Crane (Load Capacity - 15kg)

Proaim Powermatic Scissor Pro 17ft Telescopic Camera Jib Crane w New Remote Controller (Dampening & Speed Control)

Payload- 15kg / 33lb

Sold out
US $3,480.00
US $3,480.00 - US $3,480.00
US $3,480.00
US $3,200.00
US $3,200.00 - US $3,200.00
US $3,200.00
SKU : JB-SCSR-02
Also Available in Warehouses:    USA   Canada   Europe

Next Step in the Evolution of Camera Jib!

Quickly Moves In/Out of a Shot. Maneuvers into Inaccessible Areas – Smoothly & Silently.

01.

Thoughtful Engineering

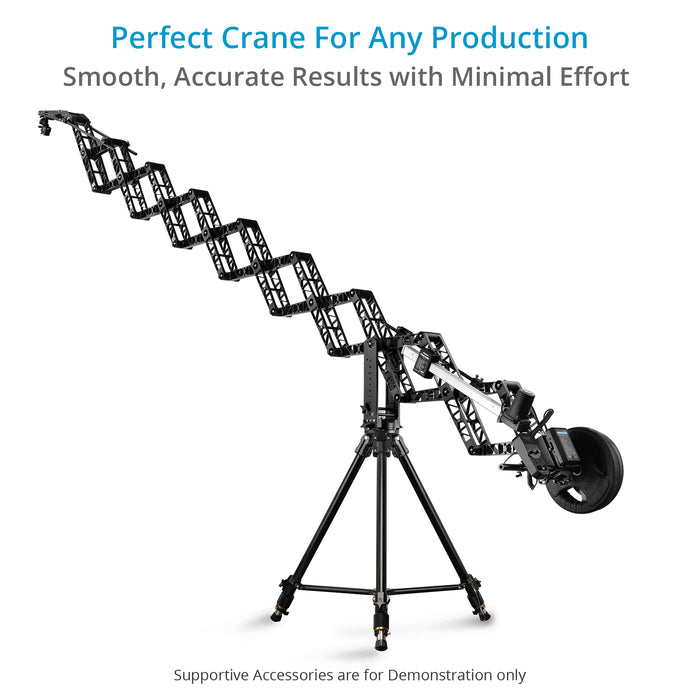

Proaim Powermatic Scissor telescopic camera crane lets you easily capture creative shots usually done with high-end and expensive Technocranes.

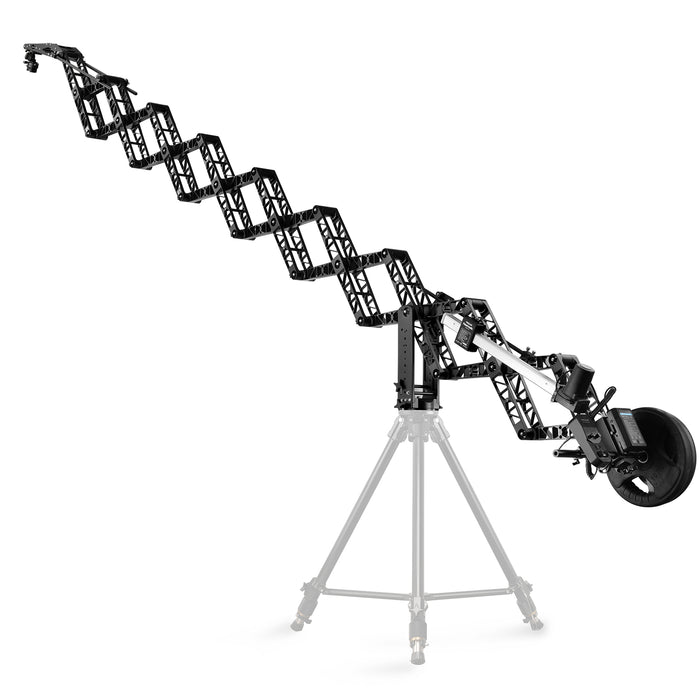

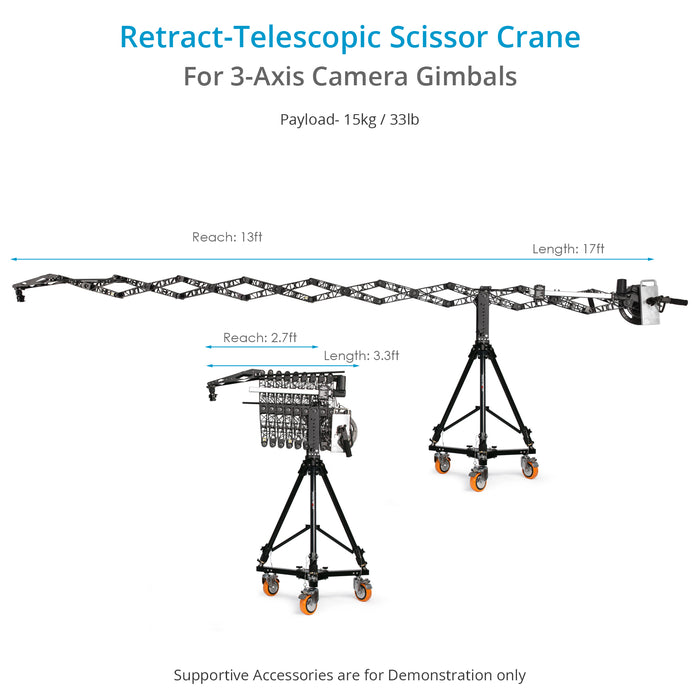

Extending the scissor arm puts the camera right where you need it. The flexible motion allows the arm to open 17’ out and then retract back in.
High-grade Aluminum Crane Frame is lightweight & durable enough to hold 3-Axis Camera Gimbals with a maximum payload of 15kg / 33lb.

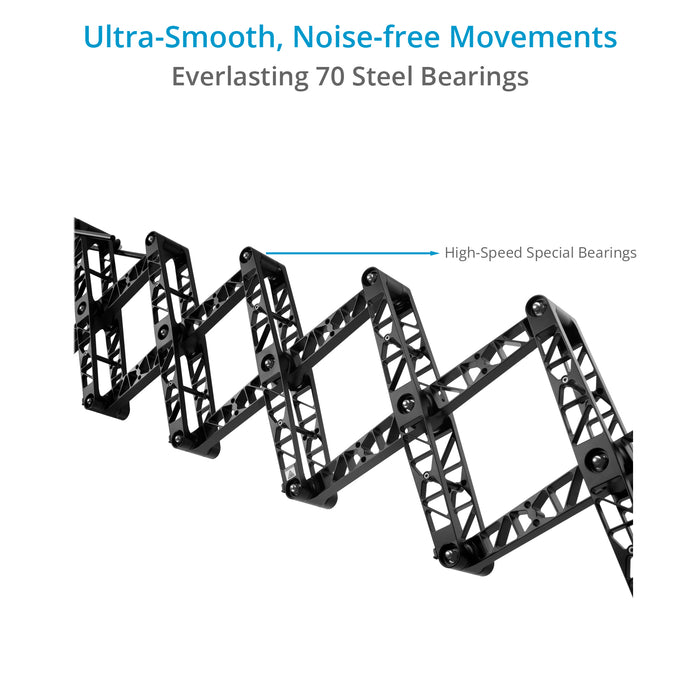

The high-speed special 70 steel bearings ensure outstanding durability & strength while providing smooth soundless movement every time you extend or retract.
It is perfect for tight indoor spaces as well as on-location shoots. It even fits into a private vehicle.

Proaim-Powermatic-Scissor-Pro-17ft-Telescopic-Camera-Jib-Crane-with-Upgraded-Remote- Controller-Kit-5
Proaim-Powermatic-Scissor-Pro-17ft-Telescopic-Camera-Jib-Crane-with-Upgraded-Remote- Controller-Kit-5

02.

Effortless Operation

The Powermatic Scissor allows you to achieve fluid movements of extreme precision without any difficulty.

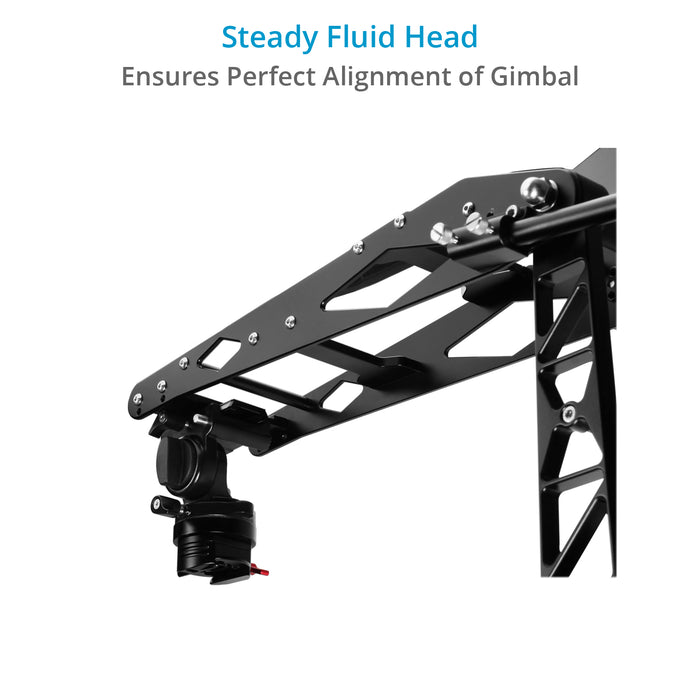

Steady Fluid Head ensures perfect alignment of your 3-Axis Gimbal on Scissor Crane.

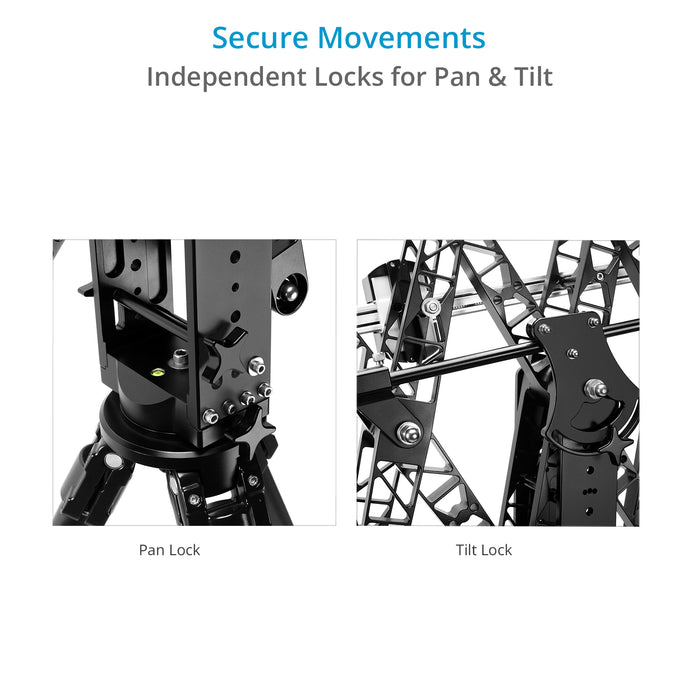

Tilt Lock allows you to fix the jib’s tilt angle to get linear tracking shots.
Pan Lock enables locking the jib’s pan movement for achieving high/low angle shots.

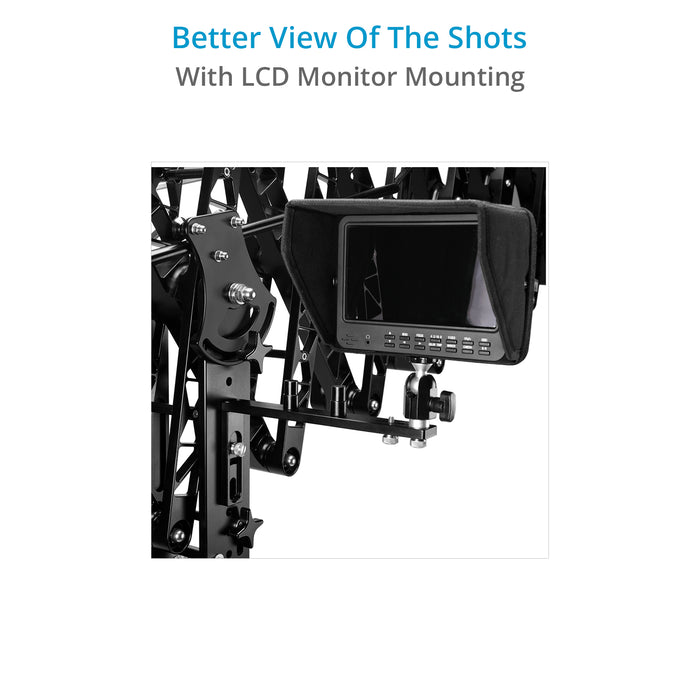

LCD Mounting Arm helps in attaching an LCD monitor for better viewing of shots; the arm can be mounted left/right as per your requirement.

03.

Fully-Featured Controller Kit

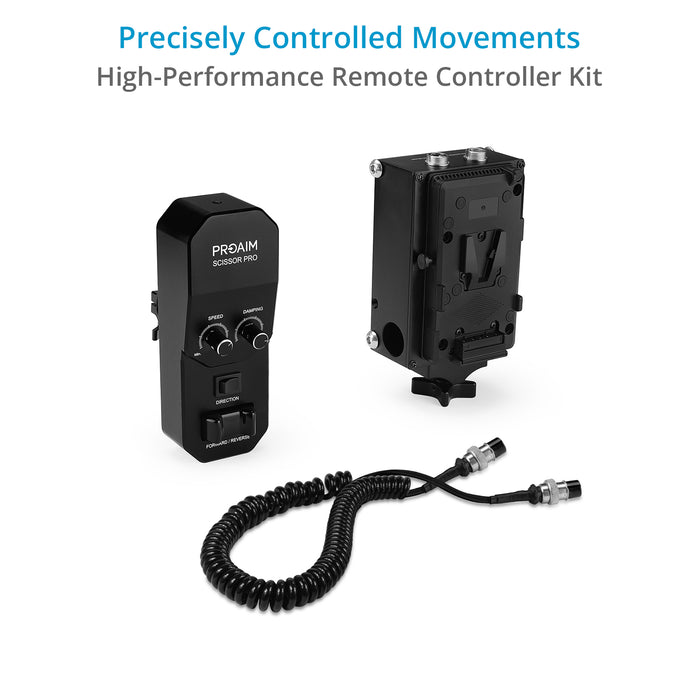

The new & improved Remote Controller Kit, lets you efficiently control the speed and damping of your jib rendering enhanced control & precision.

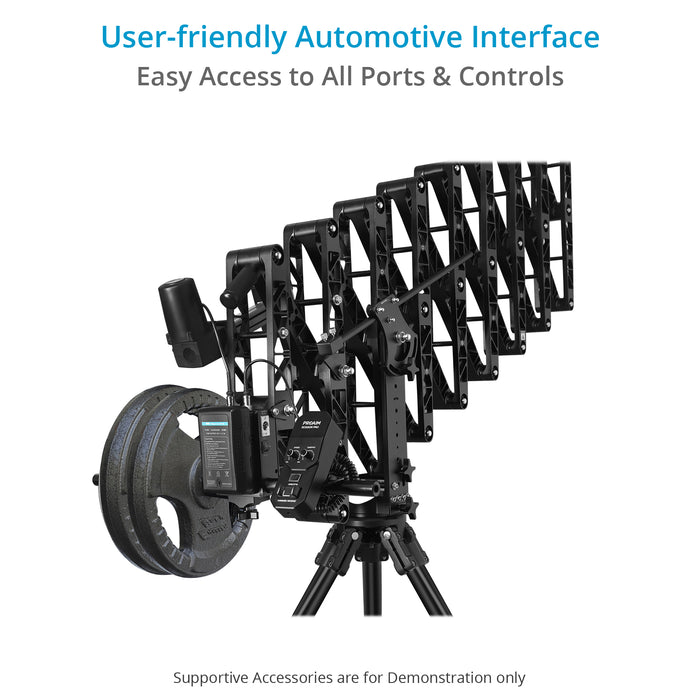

The kit comes equipped with a Remote Control and a Controller Box which has a battery plate; it adapts a 15V V-Mount Battery to power and drives the jib arm smoothly.
The included Spiral Cable attaches the Controller Box to the Remote Controller, thus powering the latter to regulate the movements of the jib.
The highly-functional Controller Kit facilitates features like Damping Adjustment, Speed Control & Direction Control etc.

Proaim-Powermatic-Scissor-Pro-17ft-Telescopic-Camera-Jib-Crane-with-Upgraded-Remote- Controller-Kit-5
Proaim-Powermatic-Scissor-Pro-17ft-Telescopic-Camera-Jib-Crane-with-Upgraded-Remote- Controller-Kit-5

04.

Precisely Controlled Moves


With these super-functional additional features, the controller is an ideal choice for your Scissor Jib Crane

      Retraction/Expansion

The forward/reverse buttons let you conveniently push out and pull in the jib arm.

      Speed Controller

The speed dial, as the name suggests, lets you control the speed intensity of the jib movements.

      Damping Adjustment

The damping adjustment dial lets you control the level of damping and facilitate smooth, stabilized movements as the jib expands & retracts.

      Direction Control

The direction button lets you lock the direction in which you want your jib to move- forward or reverse.

05.

Simplified Transport

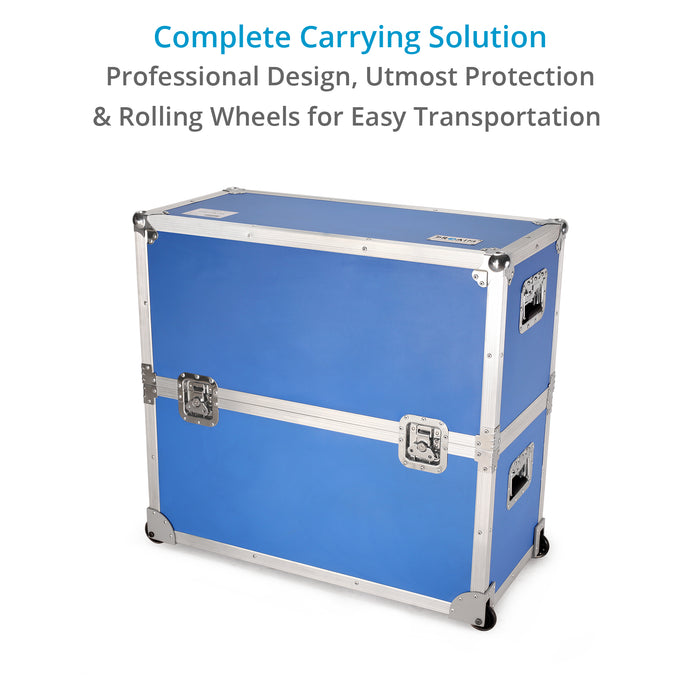

The Complete Crane System fits in a Flight Case for easy storage. This storage case is easy to carry with you to different sets and locations.

Proaim-Powermatic-Scissor-Pro-17ft-Telescopic-Camera-Jib-Crane-with-Upgraded-Remote- Controller-Kit-5

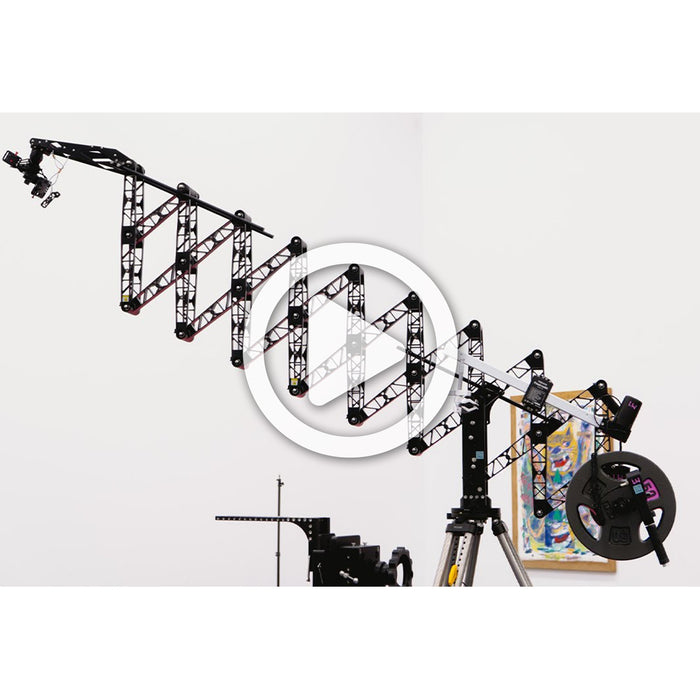

See how the Scissor Pro Crane Works

Scissor Crane Specifications

Construction

  High-Grade CNC Aluminum

Payload

15kg / 33lb

Total No. of High-Speed Steel Bearings

  70

Total Length Extended

  17feet / 5.2m

Total Length Closed

  3.3feet

Extended Height from Ground

  17.4feet / 5.3m

Closed Height from Ground

  6.3feet

Crane Pan Lock

  Yes

Crane Tilt Lock

  Yes

Self‐balance Weight (Extended/Collapsed)

  24kg / 53lb

Maximum Speed

  Forward Speed of Scissor Jib in Second:- 12 sec
  Reverse Speed of Scissor Jib in Second:- 11 sec

Minimum Speed

  Forward Speed of Scissor Jib in Second:- 25 sec
  Reverse Speed of Scissor Jib in Second:- 21 sec

Power Source

  V‐Mount Battery (Not Included)

Battery Runtime

  Depend on battery

Dimensions

Proaim-Powermatic-Scissor-Pro-17ft-Telescopic-Camera-Jib-Crane-with-Upgraded-Remote- Controller-Kit-5

Weight of Scissor Jib

  33kg / 73lb

Product Weight (Without Packing)

  41kg / 90.38lb

Product Volumetric Weight (With Packing)

  73.26kg / 161.51lb

In the Box

17ft Powermatic Scissor Jib with Gimbal Fluid Head
3 x Guide Rods
Weight Rod
Hub Locking knob
Monitor Arm
Speed Controller Remote
Controller Spiral cable
2 x Weight Closers
Ronin Controller Bracket
15Ac Adapter
Controller Box with Battery plate
HDMI Male to Male Wire
BNC Wire
2 x Fuse
Female to Female Connector
Female to Female Connector
Spanner (Size: 13mm)
50 Piece Cable Tie
Flight Case

Motor Specifications

IP44 Protection

  Certified

Rated Voltage

  12V -15V DC

Rated Power

  60W

Nominal Current

  10A DC

Maximum Thrust Force

  1000N

Maximum Pulling Force

  1000N

Travelling Speed

  36mm/sec

Noise

  <55dB

Vibration

  Not Noticeable

Remote Controller Kit Specifications

Construction

  High Grade Aluminum

Battery Plate

  V‐mount

Compatible Power Source

  Option:‐ 15V AC Adapter
  V‐Mount Battery (Not Included)

Dimensions

Proaim-Powermatic-Scissor-Pro-17ft-Telescopic-Camera-Jib-Crane-with-Upgraded-Remote- Controller-Kit

Weight of Remote Controller Kit

  2.4kg / 5.29lb

User Manual

  Proaim Powermatic Scissor Pro 17ft Telescopic Camera Jib Crane w New Remote Controller
delivery

Guaranteed Fast Delivery
For all orders
customer service

Quick and Efficient
Customer service
easy returns

Easy Returns
Up to 30 days
warranty

1-Year Warranty
On All Products



  • What’s the lowest height the setup can reach, and how much vertical movement is available at different extension distances?

    The lowest height of the Proaim Powermatic Scissor Pro (17ft) primarily depends on your tripod configuration. Typically, the jib arm operates at around 6.3 ft from the ground, but with the tilt mechanism and underslung gimbal mounting, the camera can be positioned down to ground level for low-angle shots.

    In terms of vertical movement, the available up-and-down travel increases as the scissor arm is extended. At full extension (17 ft), the system can achieve a maximum height of approximately 17.4 ft. Simply put, greater extension provides a wider vertical movement range, with the maximum vertical travel available at full reach.

  • What's the best way to attach Tilta Remote Control Handle for Advanced Ring Grip for RS 2 and RS 3 Pro?

    The Tilta Remote Control Handle for Advanced Ring Grip for RS 2 and RS 3 Pro can attach with a standard NATO rail. It should be possible to mount this handle controller with a NATO rail attachment and an appropriate clamp, such as a Manfrotto Super Clamp.

  • Can speed and damping be adjusted while operating?

    Yes, the upgraded remote controller allows speed control, damping adjustment, direction lock, and expansion/retraction control for precise camera moves.

  • Is the movement smooth and quiet during operation?

    Yes, the crane uses high-speed 70 steel bearings that ensure smooth, stable, and low-noise movement, especially at controlled speeds.

  • How far does the scissor jb extend?

    The Scissor Jib extends up to 17 feet, allowing smooth push-in and pull-out shots.

  • Is there a bazooka that can carry this jib?

    Yes, you can use the BZ-286-00 Bazooka, which supports up to 200kg.
    To use the scissor crane with the bazooka, you will also need the AP-MTCL-SCSR and MA-293-00 accessories.

  • What is the weight of the crane in the case?

    The Scissor crane weighs at 33kg.

  • Is the pan axis motorized?

    No, the pan axis is manual and not motorized.

  • Can the jib arm be locked so it doesn't fall over when letting go?

    Yes, Jib arm has a pan and tilt lock mechanism.

  • How much load capacity does the tripod need to have?

    The payload capacity of the tripod stand should be:
    On Maximum Height: 180 kg / 395 lb
    On Minimum Height: 250 kg / 550 lb

  • Is there a circular track accessory?

    No, currently we do not have a curved track accessory for Proaim Powermatic Scissor 17' Telescopic Jib Arm.

  • Does Proaim Powermatic Scissor Telescopic Camera Jib Crane with New Remote Controller include the tripod and dolly as well?

    The Proaim Powermatic Scissor Pro 17ft Telescopic Camera Jib Crane w New Remote Controller (Dampening & Speed Control) JB-SCSR-02 includes the Scissor Jib Crane and New Remote Controller only.
    You can purchase the compatible tripod and dolly via below link:
    TP-GVTY-01: https://www.proaim.com/products/proaim-gravity-heavy-duty-tripod-flat
    DL-ANCR-02: https://www.proaim.com/products/proaim-anchor-heavy-duty-studio-camera-tripod-dolly

  • I purchase a scissor crane. Do you have an instructional video on how to put it together?

    Below is the video of how to assemble Proaim Powermatic Scissor 17ft Telescopic Camera Jib Crane JB-SCSR-00:
    https://www.youtube.com/watch?v=cbURj6fWOK8
