Unleash your Creativity with Perfection & Accuracy

Error-free Shots – Precise Panning & Tilting – Easy & Handy Operations.

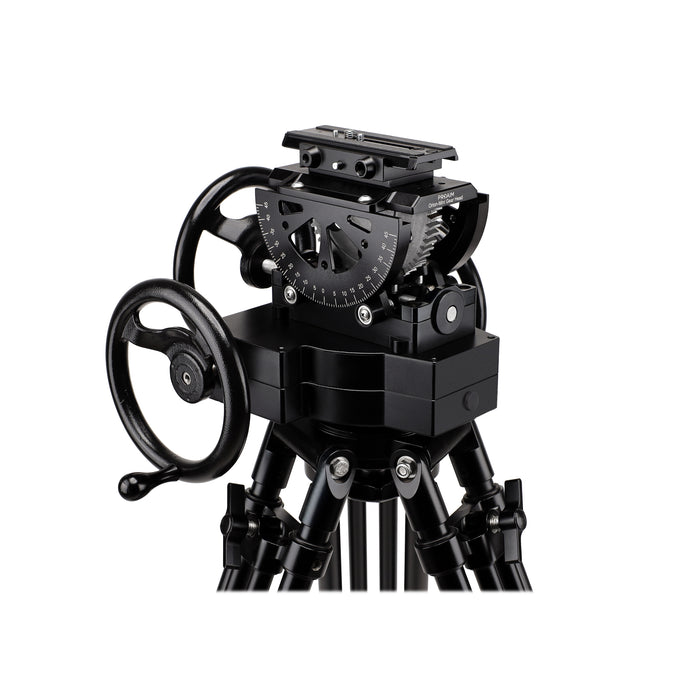

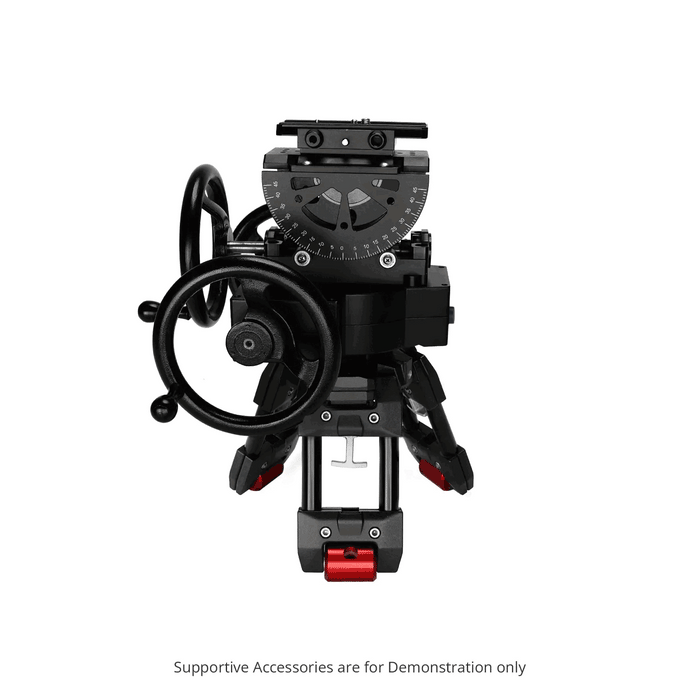

Proaim Orion Mini Camera Geared Head

Promise Exceptional Performance

Precise Fluid Pans & Tilts; Gun Metal Gears Work, Smoothly, Quietly & Dynamically.

Proaim Orion Mini Camera Geared Head

Boss in its Range

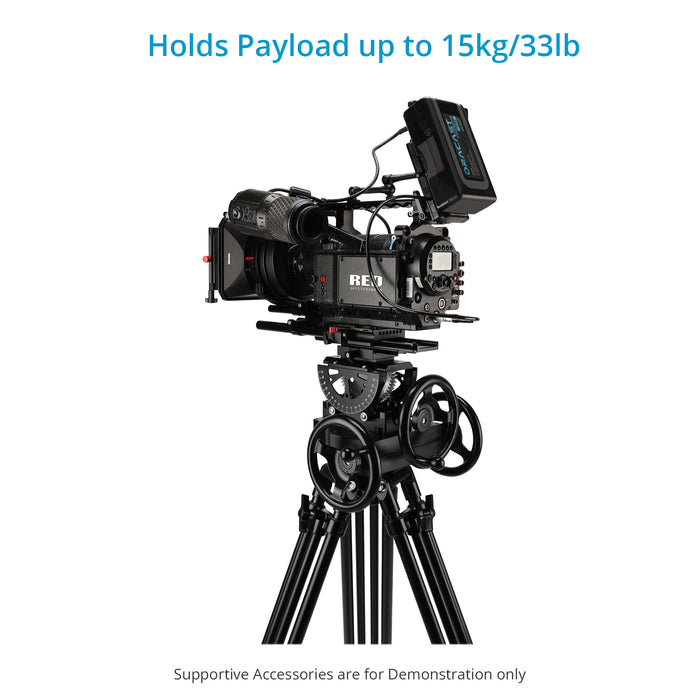

Quality Constructed Equipment works with most of the DSLR Video Cameras; offers payload up to 15 kg / 33 lb.

Proaim Orion Mini Camera Geared Head

Minimalist Design

Studio & field ready design lets you win hearts of your audience at any point of time.

See how the Orion Mini Geared Head Works

Specifications

Construction

  CNC Aluminium

Material

  Gear Material : Cast iron/gun metal
  Crank Material : Forge Casting

Load Capacity

  15 kg/33 lb

Mounting

  Tripod Mounting : 3/8” flat mount ,100mm bowl
  Camera mounting : ¼”-20, 3/8”-16;

Degree

  Tilting Degree : 45°
  Panning degree : 360°

Camera Plate ( L X B )

  14x5.5cm Manfrotto 357 standard

Product weight (without packing)

  8.06 kg/17.76 lb

Product Weight (with packing)

  12.36 kg/27.2 lb

In the Box

Proaim Orion Mini Gear Head

User Manual

01.

Accuracy at its Max

Proaim Orion Mini Geared Head lets you control Panning & Tilting precisely to get more accurate and detailed shots.

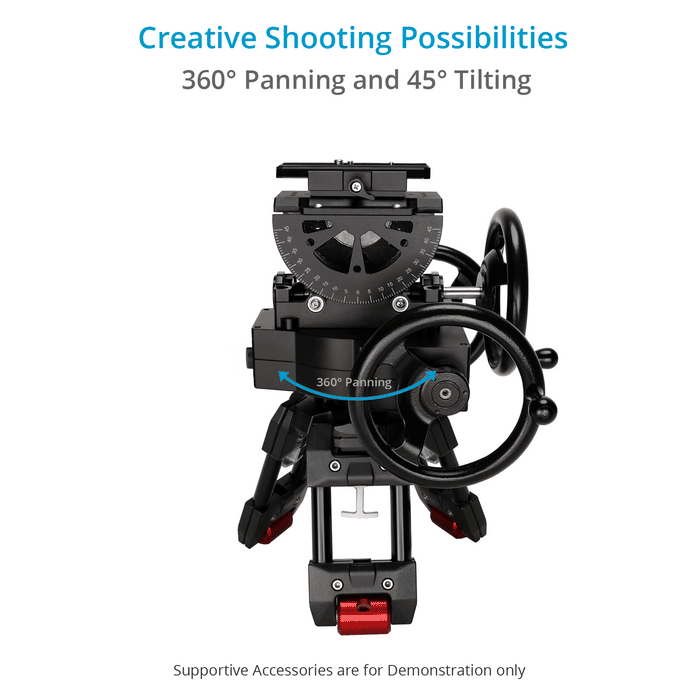

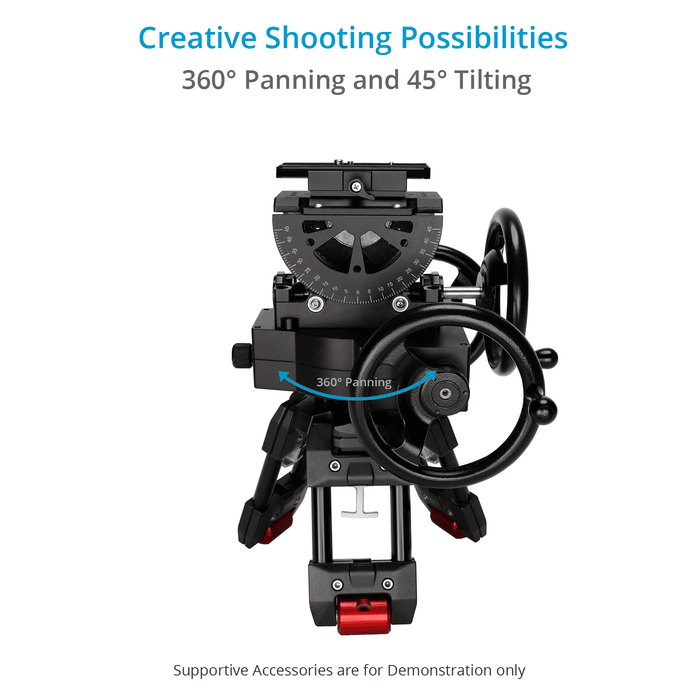

Its intuitive design offers 360° Panning for accurate panoramic shots and 45° Tilting Movement on each side.
Independent and professional filmmakers loves to use Gear Head as it allows fast, repeatable motions precisely and quickly.
Precise geared movements in 2 directions make it a professional add-on to your kit that delivers immensely stable, smooth, and balanced shots.

Proaim Orion Mini Camera Geared Head, 15kg / 33lb Payload
Proaim Orion Mini Camera Geared Head, 15kg / 33lb Payload

02.

Precisely Engineered

The Proaim Mini Orion Gear Head is engineered to precisely fulfil the need & ease of every Filmmaker, Videomaker & Photographer.
It has a quick-release plate to offer a stable base to a wide range of DSLR Video Cameras. Designed with sturdy cranks for Panning & Tilting Movements.
The cranks have counterbalance mechanism means it stays where you leave it.

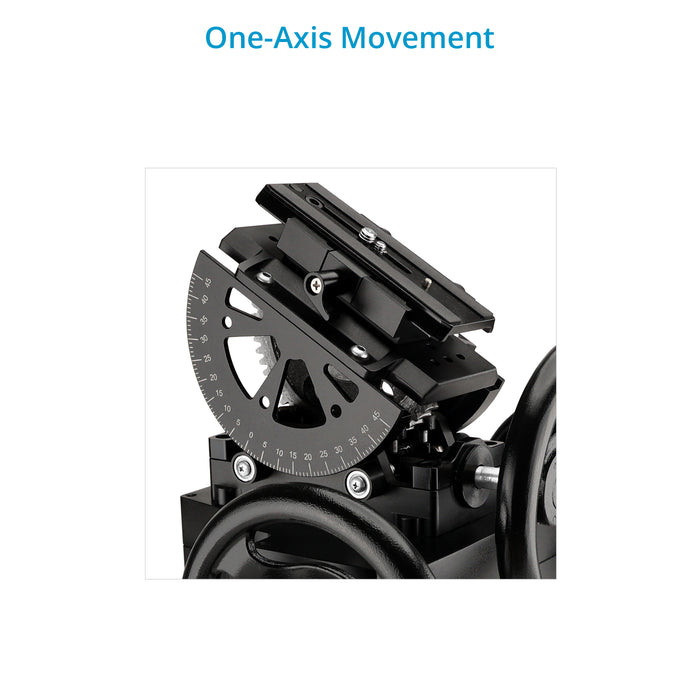

Its Friction & Locking Mechanism controls the resistance of the pan bar. And let’s you keep the panning crank in a static position when you want to use only tilt movement.

03.

Robust & Hassle-free Design

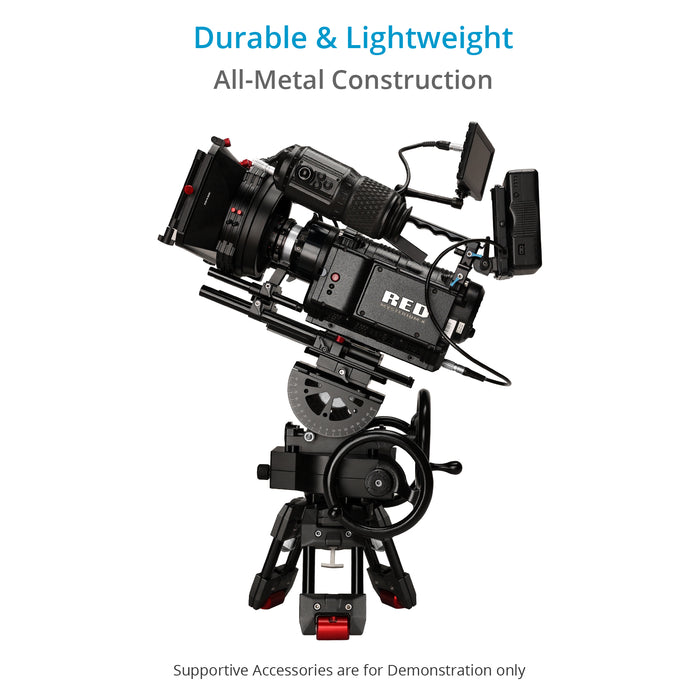

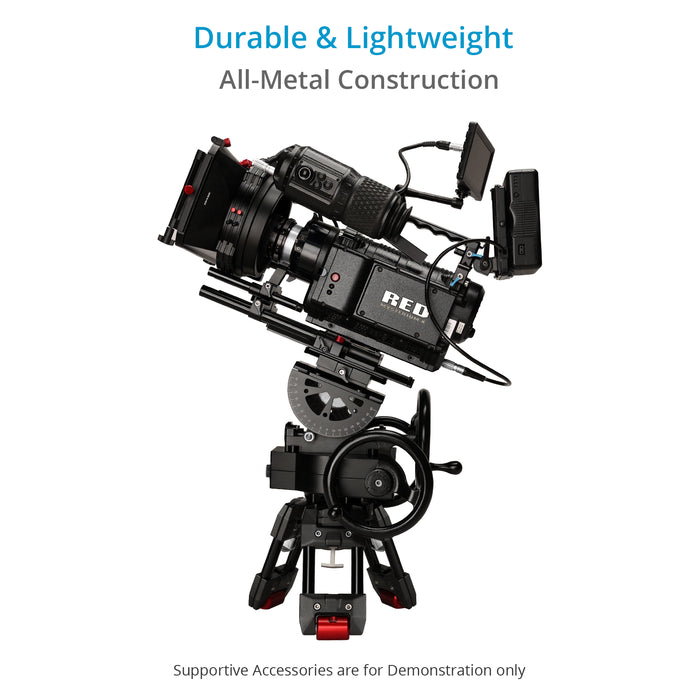

The high-strength metal body & gears are engineered for maximum durability & minimum wear and tear.
Likewise, it has Gun-Metal Gears that ensure very smooth & soundless operations, certainly promising a high level of performance.

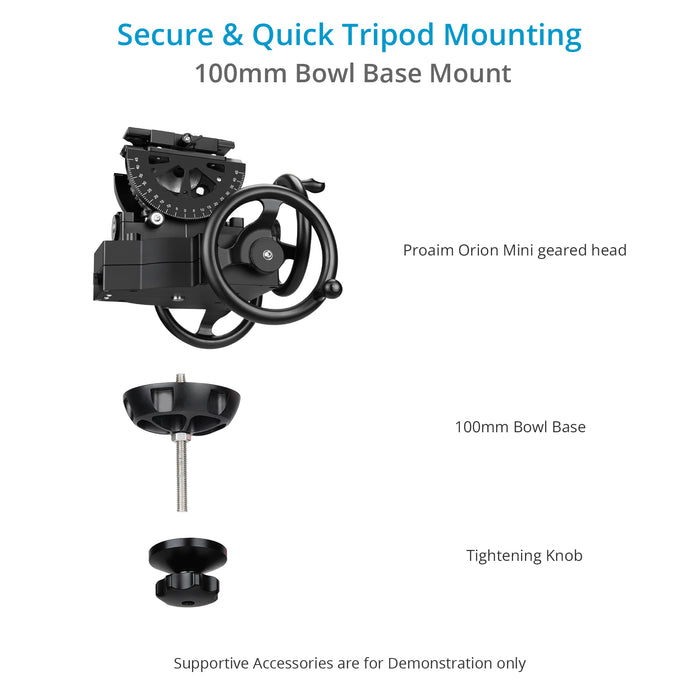

The inclusion of a 100mm mounting bowl at the base of the head facilitates secure and stable attachment to a tripod.
Fluid heads fail to deliver error-free results when working with horizontal and vertical lines. In contrast, Orion Mini Gear Head allows you to pan the camera in the mm range.
Along with these advantages, it is one of the most valuable addition to architectural, cityscape, and still life photography.

Proaim Orion Mini Camera Geared Head, 15kg / 33lb Payload

delivery

Guaranteed Fast Delivery
For all orders

customer service

Quick and Efficient
Customer service

easy returns

Easy Returns
Up to 30 days

warranty

1-Year Warranty
On All Products


Customer Reviews
5.0 Based on 1 Reviews
5 ★
100%
1
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
RW
03/22/2022
Rudolf W.
Switzerland Switzerland

Orion Mini Camera Geared Head is GREAT

Work well, as expected. With 11kg load no problems. Fine backlash in tilt correctet by turning the excenters very slightly . Now absolutly perfect, Thanks for this fine product!




  • Can the turning cranks removed from the head? (Temporarily I would need to do it for weight reduction).

    No, the crank on the Orion Mini head cannot be removed however, you can surely remove the handle.

  • How many speeds does this support?

    The Proaim Orion Mini Camera Geared Head will complete 360 degrees at the following speeds:

    Pan movement-
    Fast speed  - 19 seconds
    Medium Speed - 33 seconds
    Slow Speed - 1.23 minutes

    Tilt movement-
    Fast Speed   - 4.45 seconds
    Medium Speed - 11.2 seconds
    Slow Speed  -  22.51 seconds

  • Are there different speeds in the Orion Mini as there are in the regular Orion head?

    The Proaim Orion Mini Camera Geared Head does not have different speeds like the regular Orion head.

  • Can I use Orion Mini with Proaim 150mm Heavy Duty Tripod Mount with Spreader with the help of Proaim Mitchell Base to Bowl Camera Adapter ?

    The Proaim 150mm bowl adapter (BA150) is required to attach the Proaim Orion Mini with the Proaim 150mm heavy duty stand.

  • Do you have a short tripod that is around 30-40cm with z axis height tuning that could mate with the Orion gear head?

    Yes, we have a Proaim HD Mitchell stand. This stand will be compatible with P-OGR-H but not with P-ORGH-MN. Here is the link for reference :https://www.proaim.com/products/proaim-hd-mitchell-baby-camera-tripod-stand-w-lever-friction-with-aluminum-spreader

  • Any difference in the backlash and locking performances for the 2 models?

    For the accuracy of Proaim Orion Gear Head P-OGR-H, the backlash is 20-30 microns.
    And for Proaim Orion Mini Gear Head P-ORGH-MN, it is 30-50 microns.

  • Does both models come with the sliding axis adapter?

    There is no option of a sliding axis adapter in Proaim Orion Mini Gear Head.

  • Any difference in the backlash and locking performances for the 2 models?

    For the accuracy of Proaim Orion Gear Head P-OGR-H, the backlash is 20-30 microns.
    And for Proaim Orion Mini Gear Head P-ORGH-MN, it is 30-50 microns.

  • We would like to know what is the resolution and accuracy for both the pitch and yaw axis?

    In Orion Geared head P-OGR-H
    Tilting degree/crank rotation:
    At Fast Speed: Crank will cover 2.5 Degrees per Round.
    At Slow Speed: Crank will cover 1.4 Degrees per Round.

    Panning degree/crank rotation:
    At Fast Speed: Crank will cover 2.5 Degrees per Round
    At Slow Speed: Crank will cover 1.4 Degrees per Round

    In Orion Mini Geared head P-ORGH-MN
    Pan Hand Crank Wheel per rotation 6°
    Tilt Hand Crank Wheel per rotation 5°

  • Can you provide us the specifications and drawings for the gear head?

    Weight capacity: The weight capacity of P-ORGH-MN is 15kg.
    Tilting & Panning Degree:
    Tilting Degree of P-ORGH-MN is: 45°
    Panning degree of P-ORGH-MN: 360°

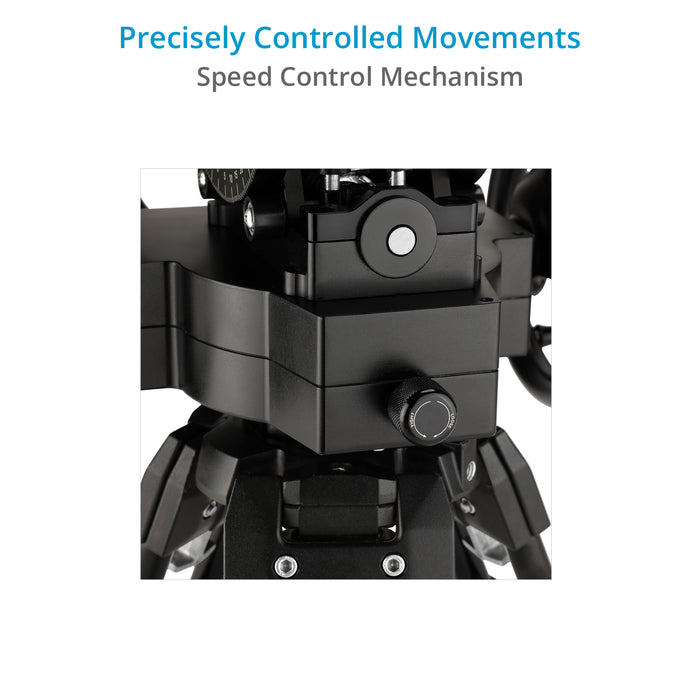

    Speed control Mechanism: There is no speed control but yes manually you can control the speed of this head.

  • Does the ORIAN MINI ALSO HAVE A HARD SLOW/FAST GEAR SWITCH LIKE THE LARGE ORIAN 2K GEAR HEAD ?

    The Proaim Orion Mini Camera Geared Head does not have a slow/fast gear switch like the large Proaim Orion Gear head. This head only has the manual speed control.

  • comes with flat base or ball base?

    The Proaim Orion mini geared head comes with the Tripod Mounting: 3/8” flat mount & 100mm bowl.
