Proaim Orion Camera Geared Head for Filmmakers & Videomakers

Proaim Orion Camera Geared Head for Filmmakers & Videomakers

US $1,920.00 - US $1,920.00
US $1,920.00
US $1,920.00 - US $1,920.00
US $1,920.00
SKU : P-OGR-H

Your Vision, Our Precision.

A Timeless Creation to Ace the Peak Accuracy in Your Shots!

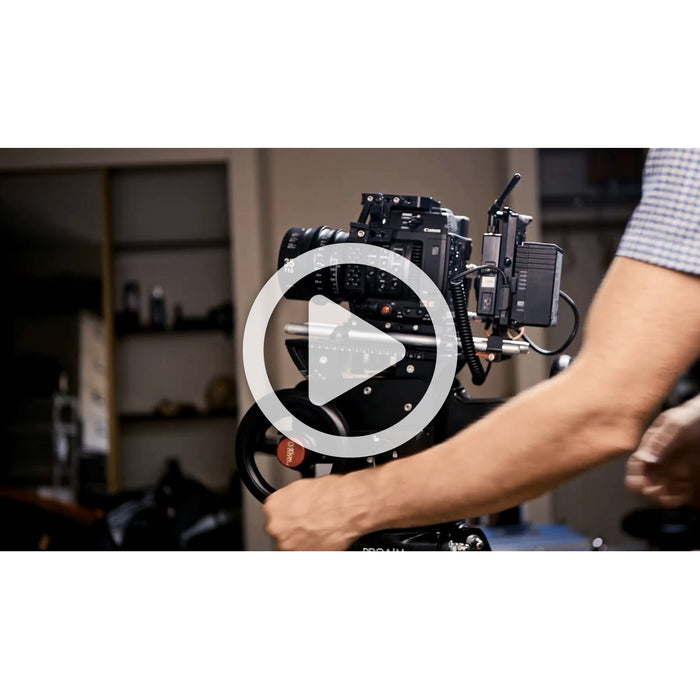

See how the Orion Geared Head Works

  Specifications

Construction

  High-Grade CNC Aluminum

Gear

  Gun Metal Gear

Crank Material

  Forge Casting

Load Capacity

  25kg / 55lb

Camera Mounting

  3/8"-16 & 1 x 1/4"-20 screws

Tripod Mounting

  100 mm Bowl Mount & Mitchell Mount

Bubble Level

  1

Panning Range

  360°

Tilt Range

  35°

Independent Pan Lock

  Yes

Independent Tilt Lock

  Yes

Tilting Degree/ Crank Rotation

  At Fast Speed: Crank will cover 2.5 Degrees per Round
  At Slow Speed: Crank will cover 1.4 Degrees per Round

Panning Degree/ Crank Rotation

  At Fast Speed: Crank will cover 2.5 Degrees per Round
  At Slow Speed: Crank will cover 1.4 Degrees per Round

  In the Box

  Proaim Orion Gear head Mitchell Base
  100 mm Bowl Base
  Tightening Knob
  Hard Case

  User Manual

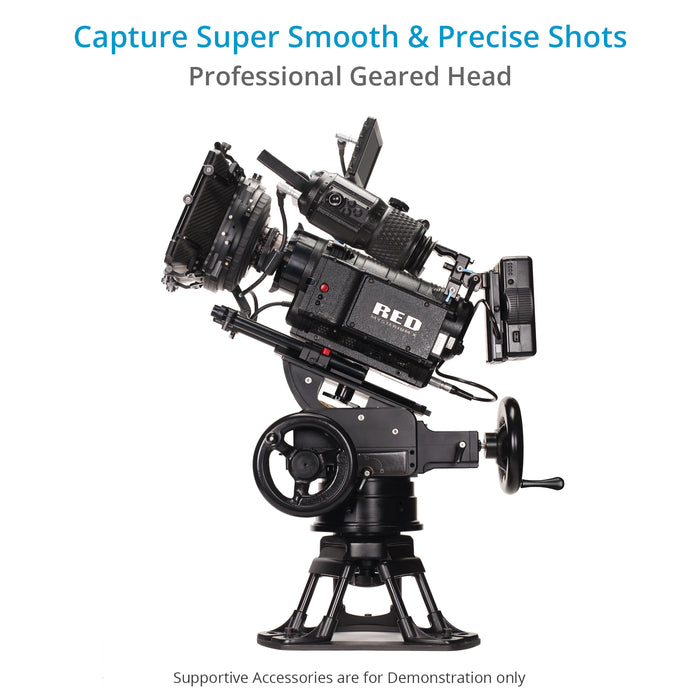

  Proaim Orion geared head

Light Yet Powerful

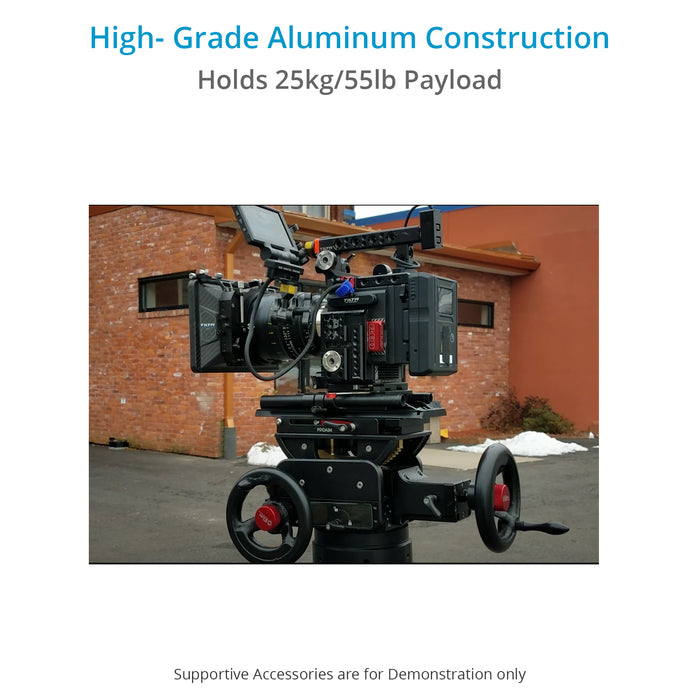

The Absolute Classic among tripod heads, Proaim Orion geared head has introduced a new level of motion control in the field of cinema gear. Our gearhead makes no negotiations in terms of features, reliability, or performance, thereby aiming for the precise fluid pan and tilts. Furthermore, its solid & lightweight aluminum-crafted body accommodates a range of professional cameras weighing up to 25 kg/55lb.

Proaim Orion geared head
Proaim Orion geared head

Fluid Pan & Tilt Moves

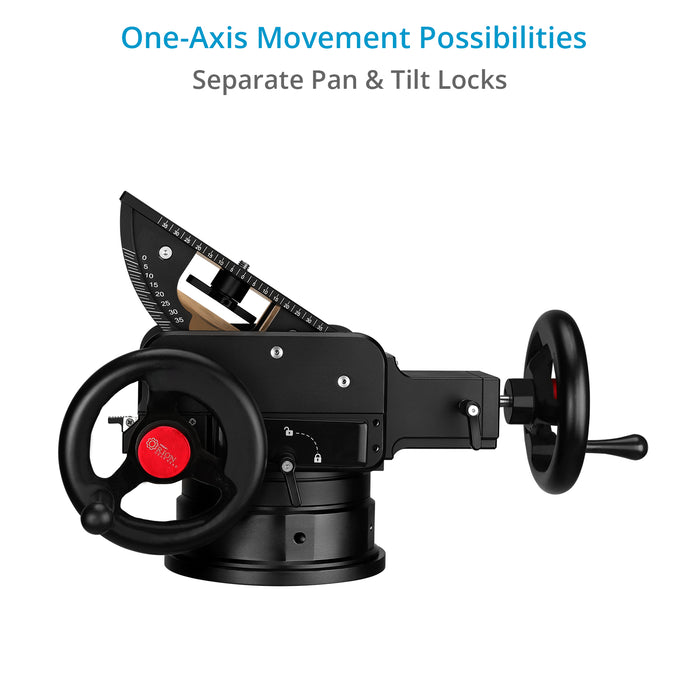

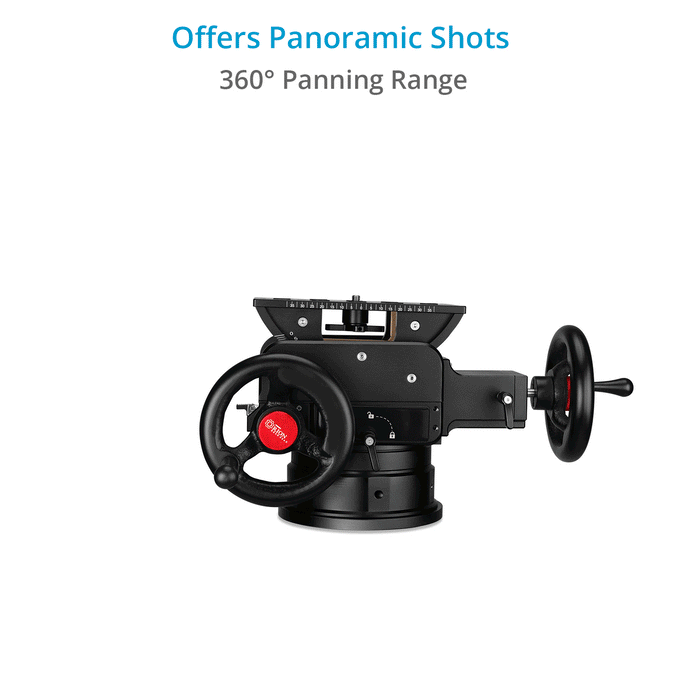

Our Orion Head owns a panning range of 360° and a 35° tilt range, along with the privilege of precise marking for perfect tilt. You can pan or tilt it in either direction using the manual pan and tilt cranks. Since these cranks are counterbalanced weighted cranks, you can rest the crank where exactly you left it, and we have created a separate pan and tilt lock, so you operate the pan and tilt it individually if you want.

Smooth Shots

The Orion Geared Head performs pan & tilts admirably. Its ability to perform rapid, repetitive motions accurately and swiftly in three axes makes it a must-have addition to your kit, delivering remarkably steady, smooth, and balanced shots every time.

Proaim Orion geared head
Proaim Orion geared head

Reimagined Precision

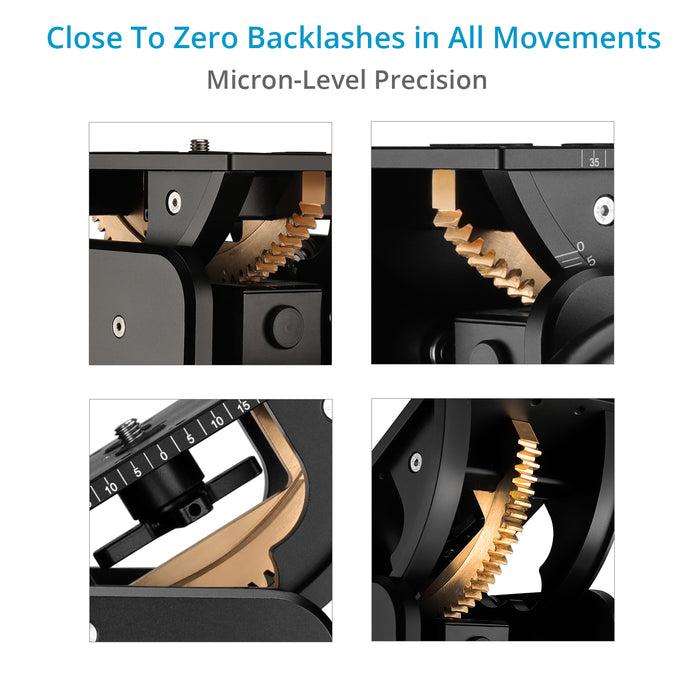

With Micron-level precision on each and every gear, this Gear Head provides close to zero backlashes in all movements. Over the past 18 months, we went back to the drawing board and redesigned all of its gearboxes to ensure there was no play/backlash in any movement, and we are proud of the end product.



Exceptional Long-Term Performance

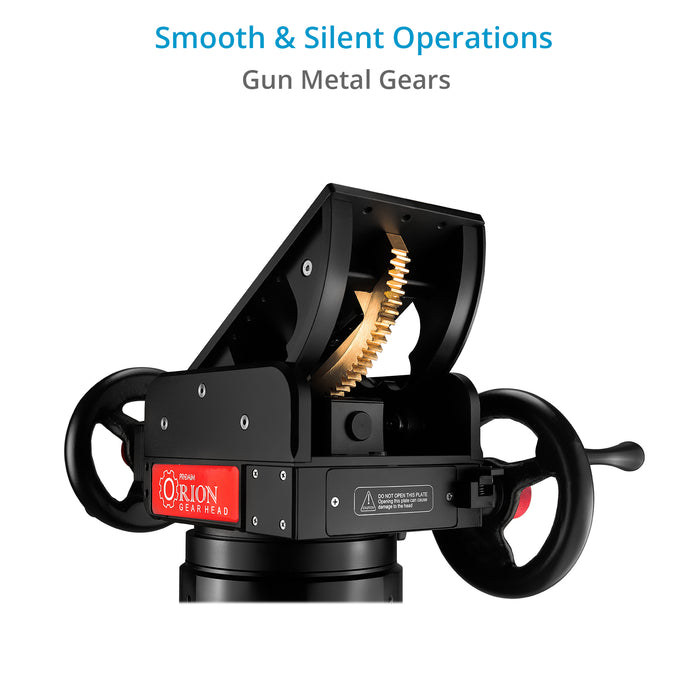

We moved away from Brass Gear to Gun Metal Gear, ensuring a very quiet, extremely smooth movement along with extraordinary resistance to wear and tear over the years.



Selectable 2-Speed Gear

This Head features 2 speeds that you can select from based on the shot requirements. The head performs equally consistently at both speeds and is a pleasure to work with



User-Friendly Design

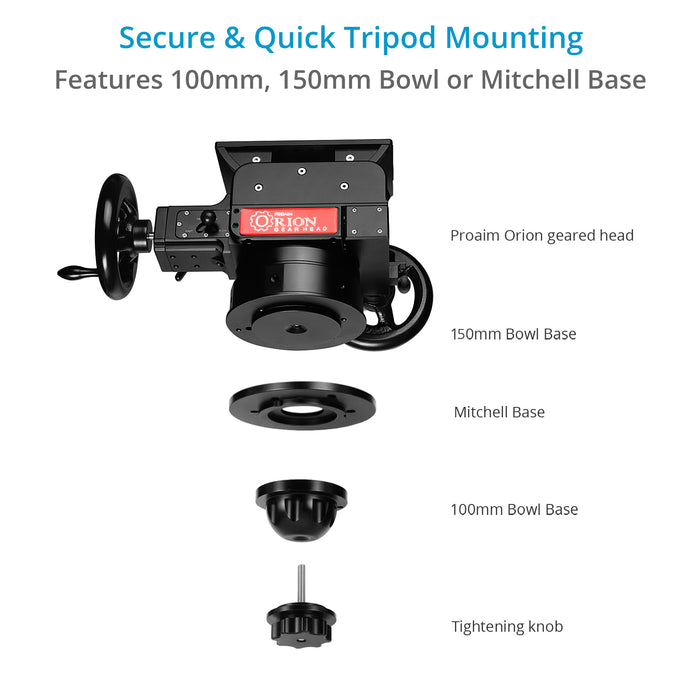

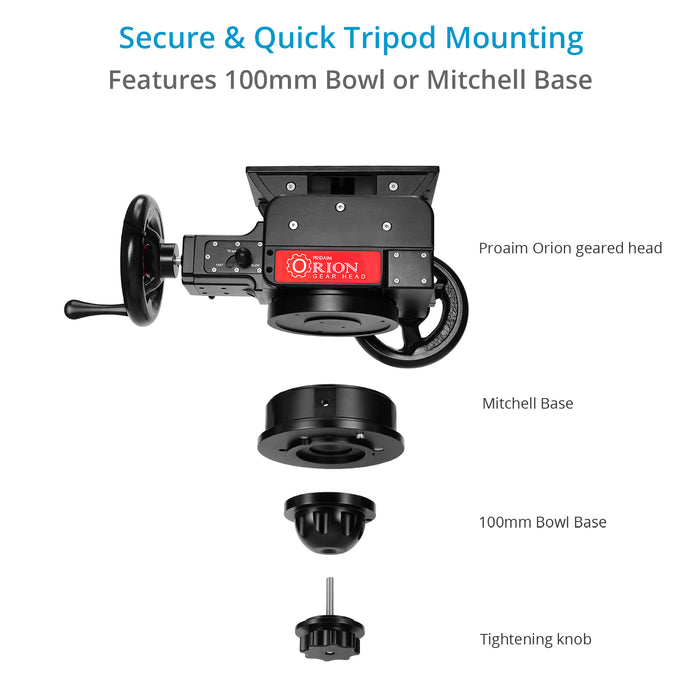

We provide two base options: a flat Mitchell base and a 100mm bowl, which can be switched out with the accompanying tools. Our Orion's head is a definite choice for any production set, whether it's a feature film, a music video, a short film, a commercial, or a corporate video. This entirely toolless clever innovation guarantees you will save time and energy on your next project.



Simplified Carrying

The head is built to be durable and lightweight, so you can count on it to last a long time and be effortless to travel with. And we packed it in a sturdy flight case so you can experience convenient travel as well as secure storage.

FAQ

Q: Does it mount on tripod?

Ans: Yes, it with fit to a Mitchell base or a 100mm bowl tripod.

Q: Will the fluid head mount on it?

Ans: It comes with ¼” screw mount so it will fit only incase if your head has the ¼” thread.

Q: Is its speed adjustable or it will rotate at fixed speed?

Ans: Yes, the speed is adjustable.

Q: Will external lcd monitor mount on this head?

Ans: Yes, you can mount lcd monitor on this head.

Q: How heavy is the Geared head?

Ans: It is around 16.5kg.

Q: Is it returnable for a full refund if it doesn’t meet my expectations upon delivery?

Ans: Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 30 days and you get a 100% refund.

Q: What is the warranty?

Ans: We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
