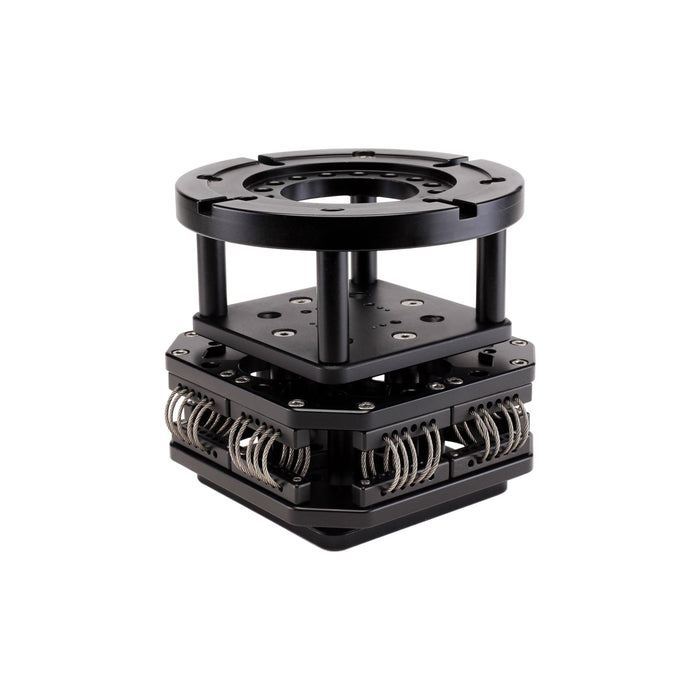

Proaim Mitchell Vibration Isolator for Camera Gimbals

For DJI Ronin, Freefly MOVI & Other Remote Heads

$495.00
SKU : VB-MTCL-00

Capture Naturally Smooth Shots

Proaim Mitchell Vibration Isolator for Camera Gimbals

Super-Smooth Shots

Cut Down Vibrations and other Noise from your Shot!

Proaim Mitchell Vibration Isolator for Camera Gimbals (VB-MTCL-02)

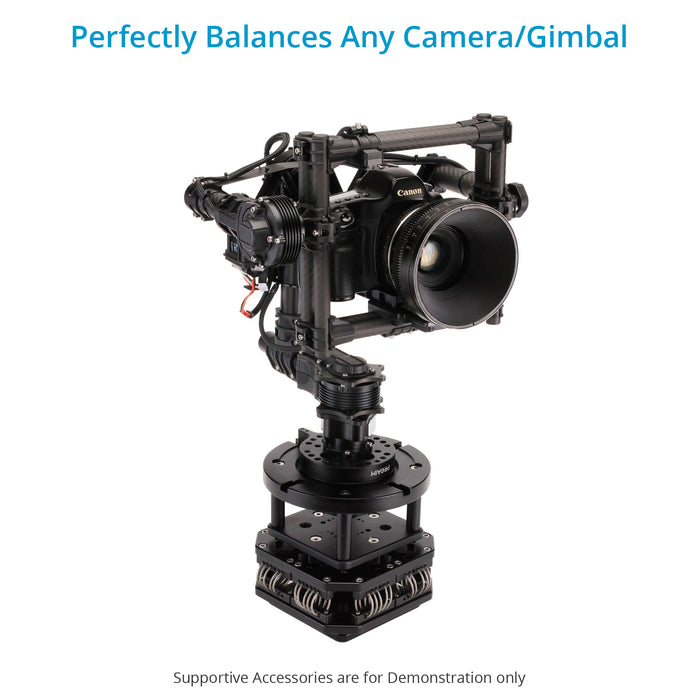

Calibrate to Your Needs

Adapt it to any Camera + Gimbal Setup ranging from 5kg to 50kg, and it'll function precisely the way you need it.

Proaim Mitchell Vibration Isolator for Camera Gimbals

Quickest Setup Time

One-Man Assembly! It is ready for your Gimbal in the shortest time possible.

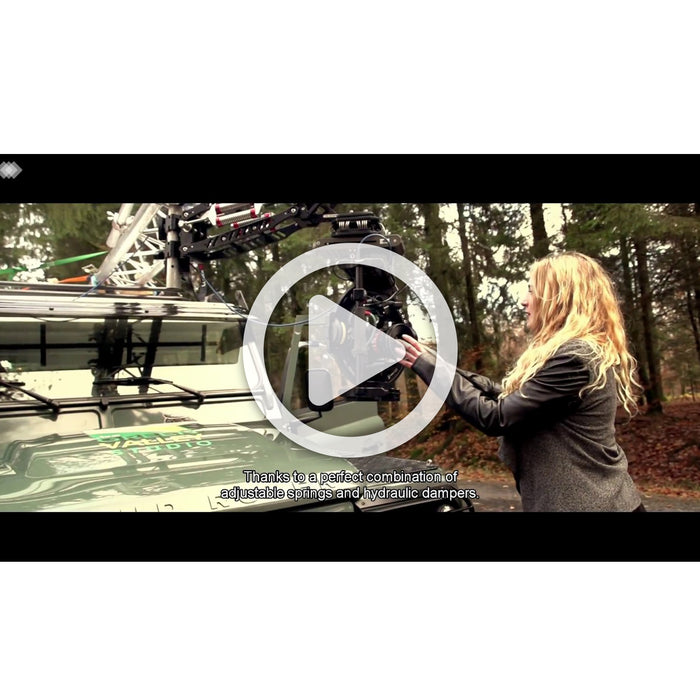

See how the Mitchell Vibration Isolator Works

Specifications

  VB-MTCL-00

Construction

  High-grade CNC Aluminum

Load Capacity with Single Spring Adapter

  15-30 kg / 33-66 lb

Load Capacity with Double Spring Adapter

  40-50 kg / 88-110 lb

Mounting threads

¼”-20 & 3/8”-16

Temperature Range

-20° to 50°C / -4° to +122°F

Product Dimensions (HXW)

17.7cm x 16.5cm

Product Weight (with packing)

4 kg / 8.8 lb

  VB-MTCL-01

Construction

  High-grade CNC Aluminum

Load Capacity with Single Spring Adapter

  15-30 kg / 33-66 lb

Load Capacity with Double Spring Adapter

  40-50 kg / 88-110 lb

Mounting threads

¼”-20 & 3/8”-16

Temperature Range

-20° to 50°C / -4° to +122°F

Product Dimensions (HXW)

17.7cm x 16.5cm (Without clamp)

Product Weight (with packing)

5 kg / 11 lb

  VB-MTCL-02

Construction

  High-grade CNC Aluminum

Load Capacity with Single Spring Adapter

  --

Load Capacity with Double Spring Adapter

  5-15 kg / 11-33 lb

Mounting threads

  ¼”-20 & 3/8”-16

Temperature Range

-20° to 50°C / -4° to +122°F

Product Dimensions (HXW)

17.7cm x 16.5cm

Product Weight (with packing)

3.950 kg / 8.5 lb

  VB-MTCL-04

Construction

  High-grade CNC Aluminum

Load Capacity with Single Spring Adapter

  --

Load Capacity with Double Spring Adapter

  5-15 kg / 11-33 lb

Mounting threads

¼”-20 & 3/8”-16

Temperature Range

-20° to 50°C / -4° to +122°F

Product Dimensions (HXW)

17.7cm x 16.5cm (Without clamp)

Product Weight (with packing)

4.800 kg / 10.58 lb

Customizable to Hold Many Payloads

  In the Box

  Proaim Mitchell Vibration Isolator for Camera Gimbal Castle Ring

Robust, Smart & Reliable

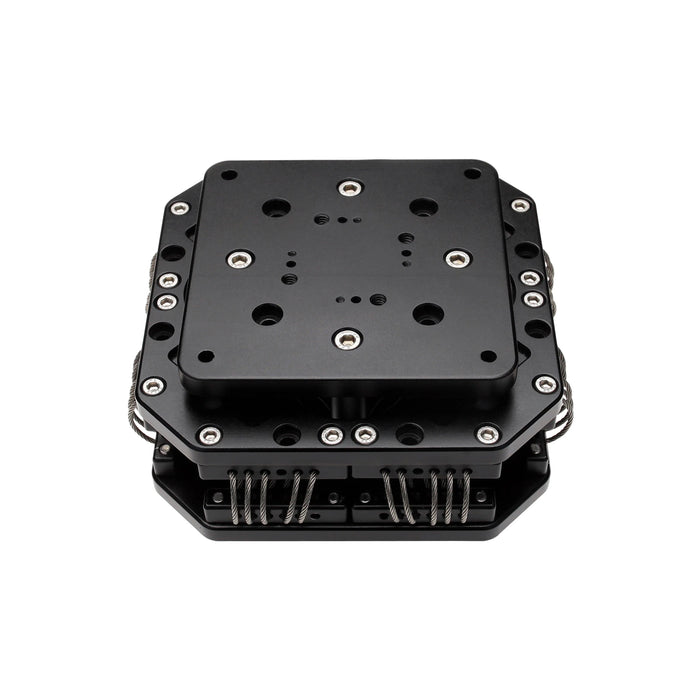

This Vibration Isolator System has an integrated Mitchell Mount, which provides extremely robust setups.

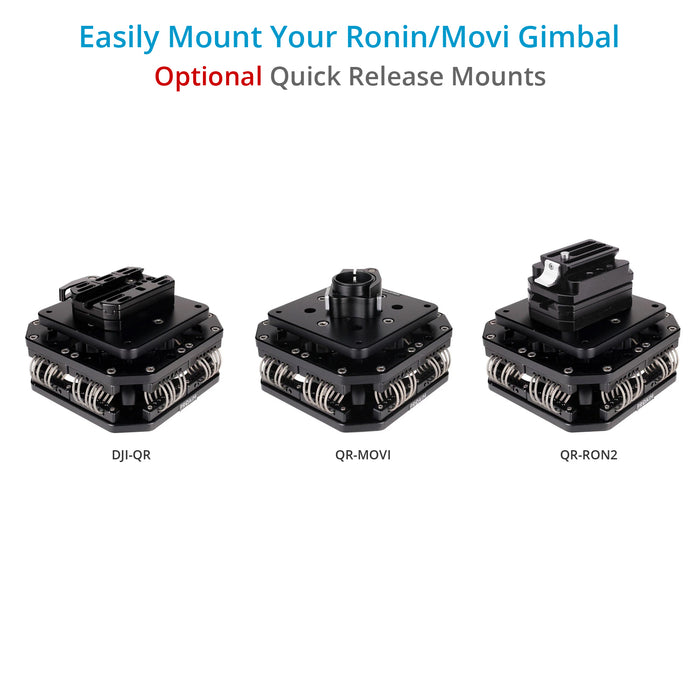

Alternatively, the system can be used without the Mitchell Plate directly with a Ronin or any other major gimbal systems.

Proaim Mitchell Vibration Isolator for Camera Gimbals
Proaim Mitchell Vibration Isolator for Camera Gimbals

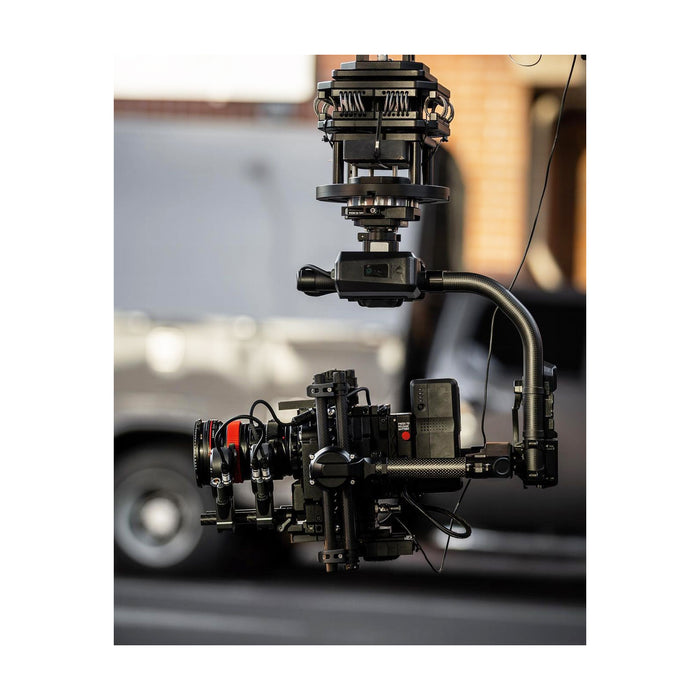

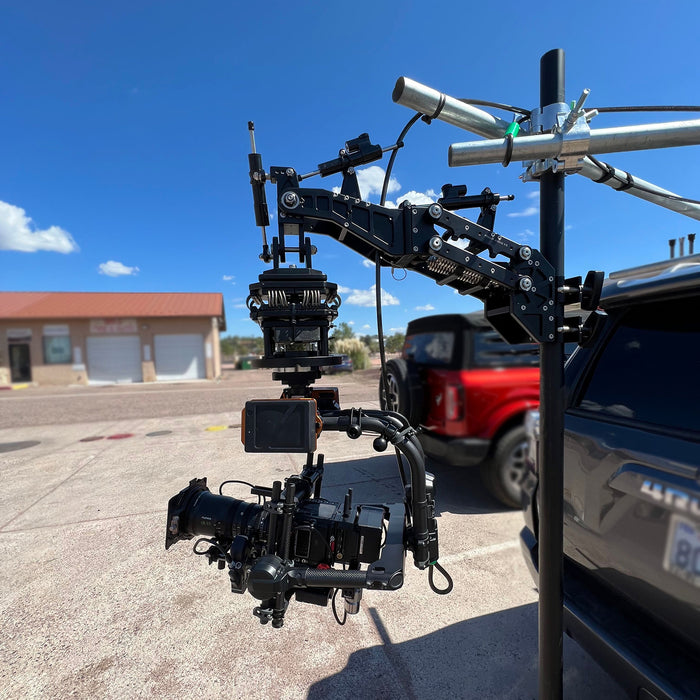

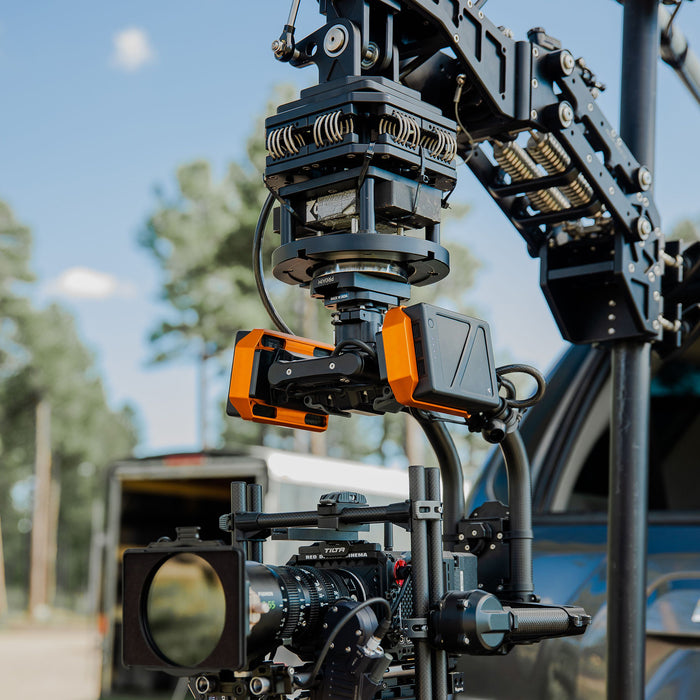

Get Stable Shots from any Moving Platform

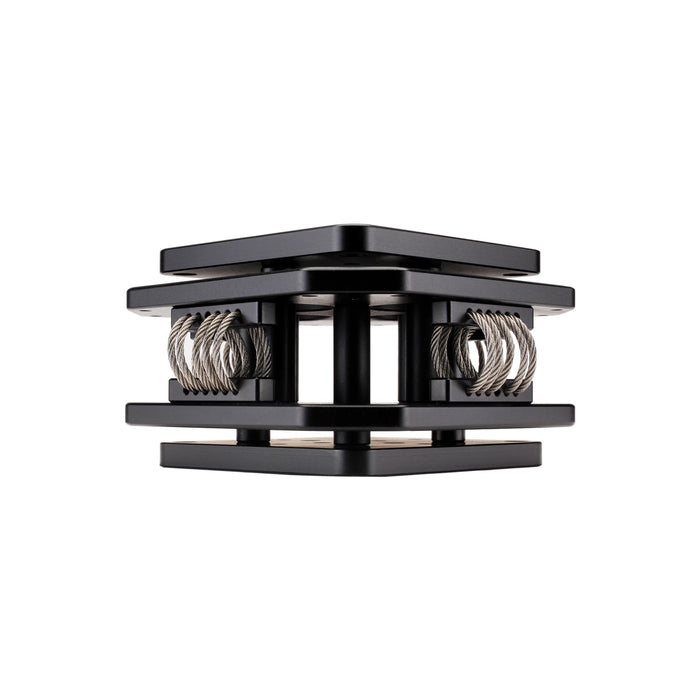

The Isolator system absorbs the shocks, bumps and jerky movements of the vehicle by utilizing strategically configured 5 / 16" wire cables to support the Gimbal and allow it to absorb inertial movements.

The isolator, in conjunction with the camera Gimbal, makes sure you get incredibly smooth shots even on rough terrains.

Wire modules are customizable according to the weight of your camera setups and the shot desired.

Protect your Gimbal

If you hard-mount a Gimbal setup to a moving platform, any Jerky movement creates an enormous amount of stress on the Motors and Bearings of the Gimbal as it tries to stabilize the camera. High-Frequency Vibrations created by moving parts such as motors, rotor blades or propellers and Low-Frequency Oscillations such as the sudden changes in direction are all absorbed by the Wired Isolator. It reduces the stress on your Gimbal motors that now have to work only to stabilize a softened range of vibrations, which in turn increases the life of your Gimbal.

Proaim Mitchell Vibration Isolator for Camera Gimbals

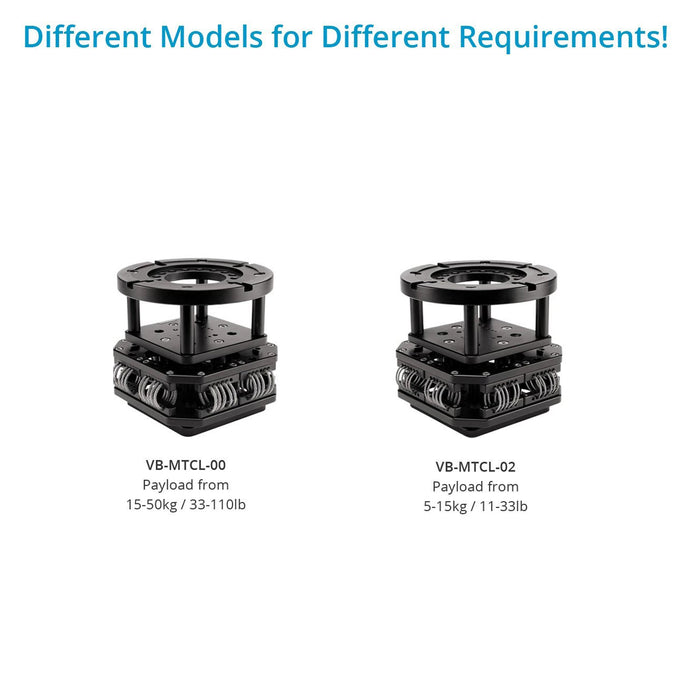

DIFFERENT MODELS FOR DIFFERENT REQUIREMENTS!

VB-MTCL-00
Payload from 15-50 kg / 33-110 lb

VB-MTCL-01
Payload from 15-50 kg / 33-110 lb

VB-MTCL-02
Payload from 5-15 kg / 11-33 lb

VB-MTCL-04
Payload from 5-15 kg / 11-33 lb

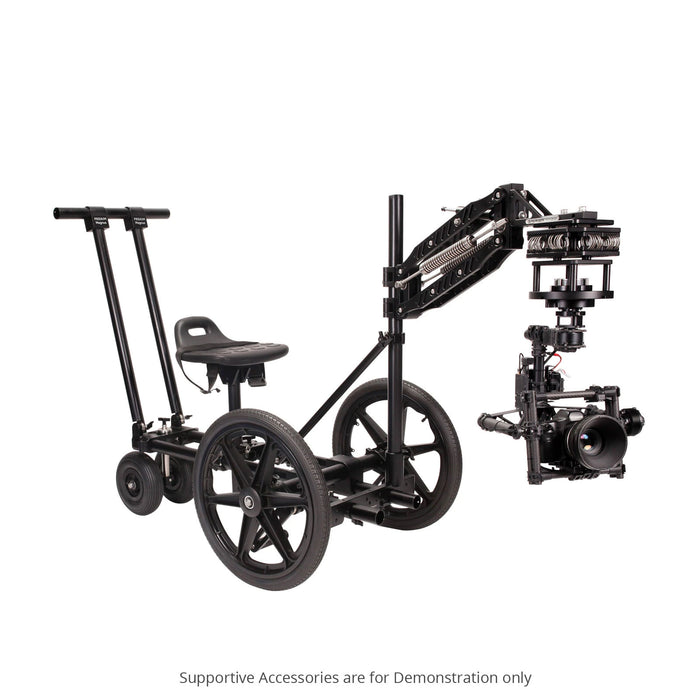

BEST COMPANIONS FOR YOUR ISOLATOR!

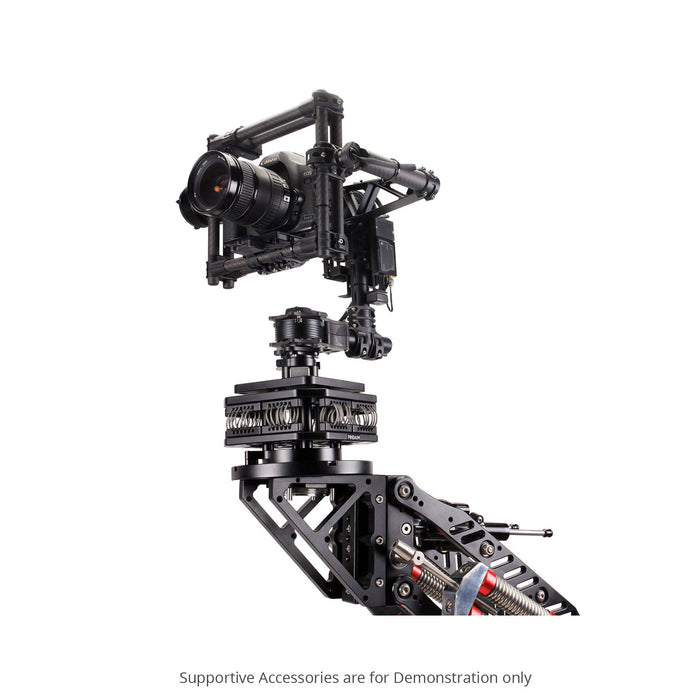

Proaim Airwave Vibration Isolator Arm (5-30kg)
Use the isolator with Proaim Airwave Arm onto any Moving Platform and Curate a Perfect Action or Chase Sequence.

Proaim Airwave XL Shock Absorber Arm (30-65kg)
When used with Proaim Airwave XL Arm, the vibration isolator provides you with enhanced performance and super smooth shots.
