Proaim Mitchell Camera Riser

$330.00
SKU : MR-291-00

Extend Your Camera to Different Heights on Mitchell Mount Products.

Massive Strength. Stable Build Platform. Quick Setup. Ultra-Versatile. Industry Standard Mitchell Mount.

Proaim Quick Lock Mitchell Mount Camera Height Riser!

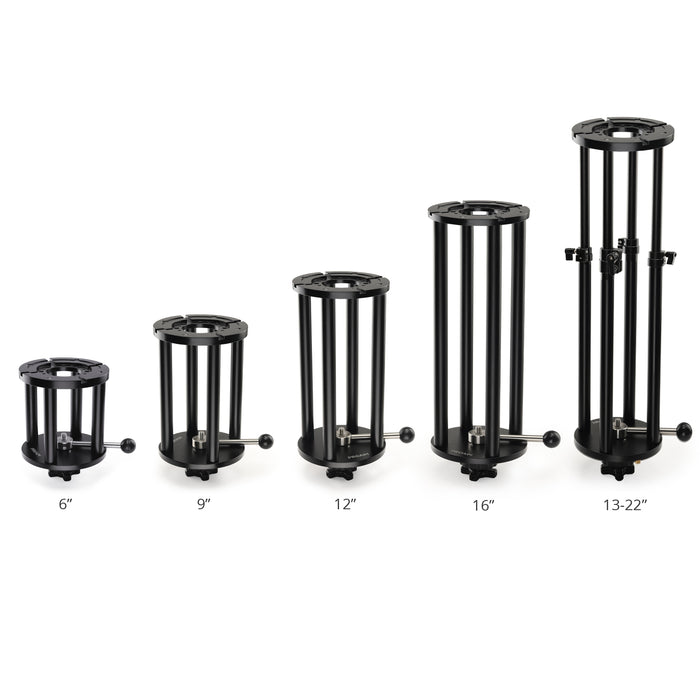

The Proaim Mitchell Mount Camera Riser, also known as hi-hat, is used to elevate a camera setup above various Mitchell base platforms. This Quick Lock Camera Riser is available in 6”, 9”, 12”, 16” and Telescopic 13-22” sizes and has Mitchell configurations on top and bottom. Manufactured from commercial-grade aluminum, the Risers have a standard Mitchell mount that attaches to all Proaim Dollies and Mitchell mount products.



Telescopic Euro Mount Bazooka Base

"WHAT YOU SEE IS WHAT YOU GET"

Logo

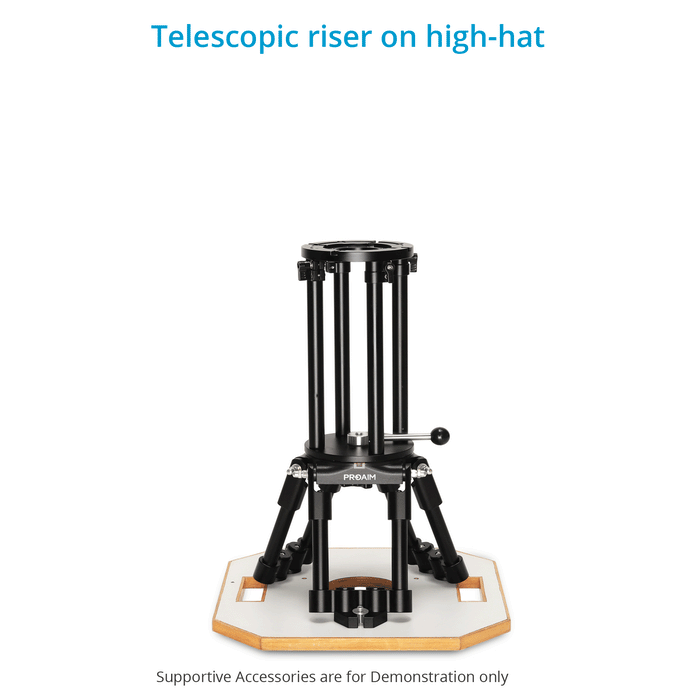

Proaim Telescopic Mitchell Riser

The Mitchell Telescopic Camera Riser from Proaim is an adjustable camera riser featuring a Mitchell mount, and it can be adjusted between 13" to 22" in height.


Telescoping Bazooka Euro Mount

IMAGE GALLERY



Telescopic bazooka euro Mount

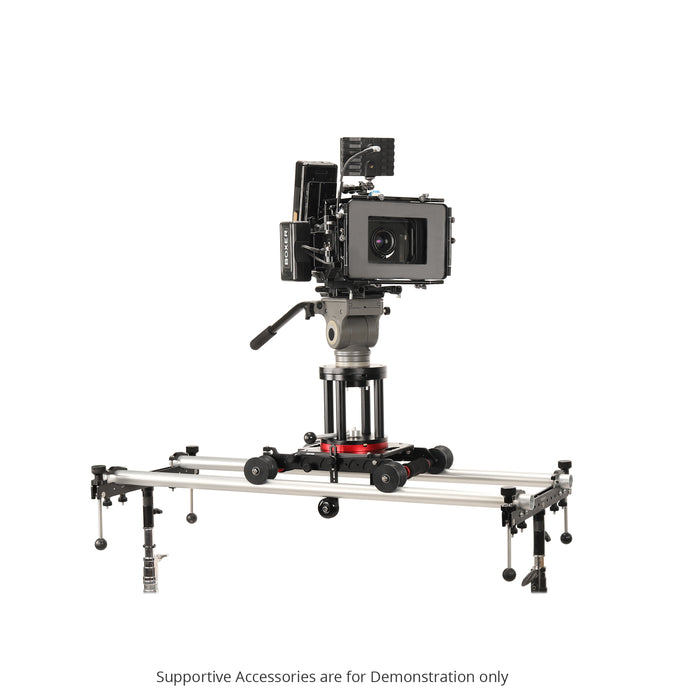

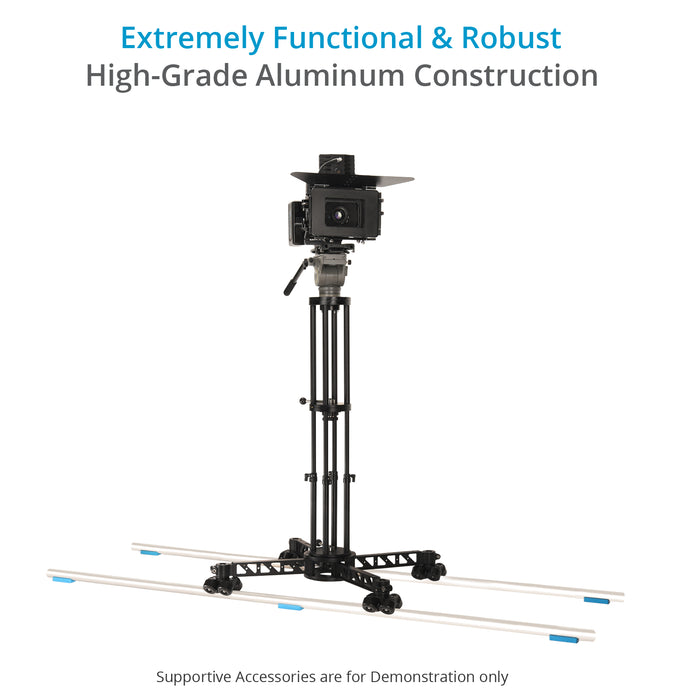

The Supportive accessories are for demonstration purpose only.


- Construction: High-grade Aluminum
- Clamp’s Construction: Stainless Steel & Aluminum

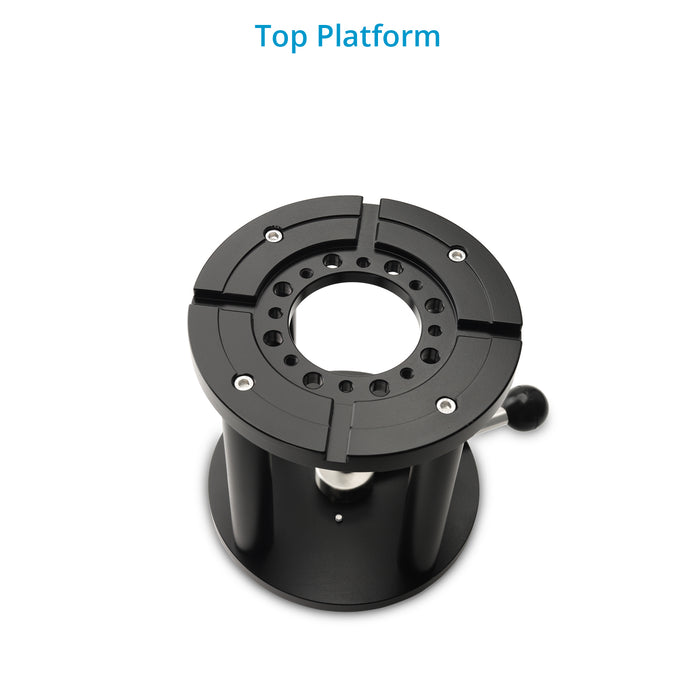

- Mitchell Top Plate Diameter: 175mm

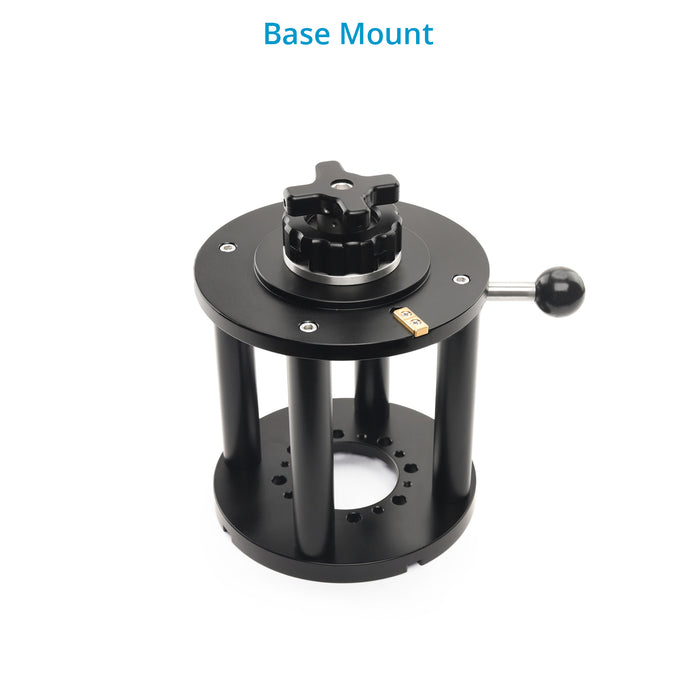

- Base: Mitchell Mount

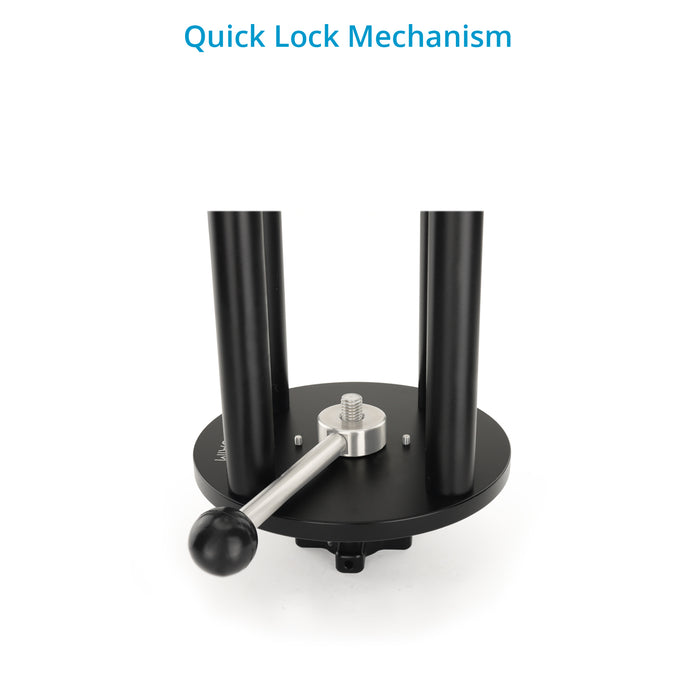

- Locking Lever: Yes

Payload Capacity:
6" Riser: 200kg / 440lb
9" Riser: 185kg / 408lb
12" Riser: 178kg / 392lb
16" Riser: 170kg / 375lb
13"-22" Telescopic Riser: 150kg / 330lb

Proaim Mitchell Camera Riser

FAQ

Q: What is the recommended maximum payload?
Ans: The recommended maximum payload is:
- 6" Riser : 200kg
- 9" Riser : 185kg
- 12" Riser : 178kg
- 16" Riser : 170kg
- 13"-22" Riiser : 150kg

Q: What is the diameter of the Mitchel mount disk?
Ans: The diameter of the Mitchel mount disk is 175mm.

Q: What material are the clamping mechanisms?
Ans: The material of clamping mechanisms is stainless steel and aluminium.
