ULTIMATE SOLUTION FOR PROFESSIONALS
Proaim unveils Kite 22 Camera Jib Crane to let you explore your cinematic world. It will give you the whole spectrum of innovative ideas by giving various geographic scenarios & different in-studio angles.
The Kite 22 jib stabilizes your camera to create incredibly detailed, smooth and consistent shots. It is well-engineered equipment which includes a tripod stand, portable floor dolly & Dutch roll pan-tilt head.
The High-Grade Aluminum construction offers unbeatable strength and holds most camera setups.
AN ALL-ROUNDER AND INDUSTRY STANDARD ROBUST CAMERA CRANE
Perfectly Meets Various Production Needs!
WELL DESIGNED ARM SECTIONS

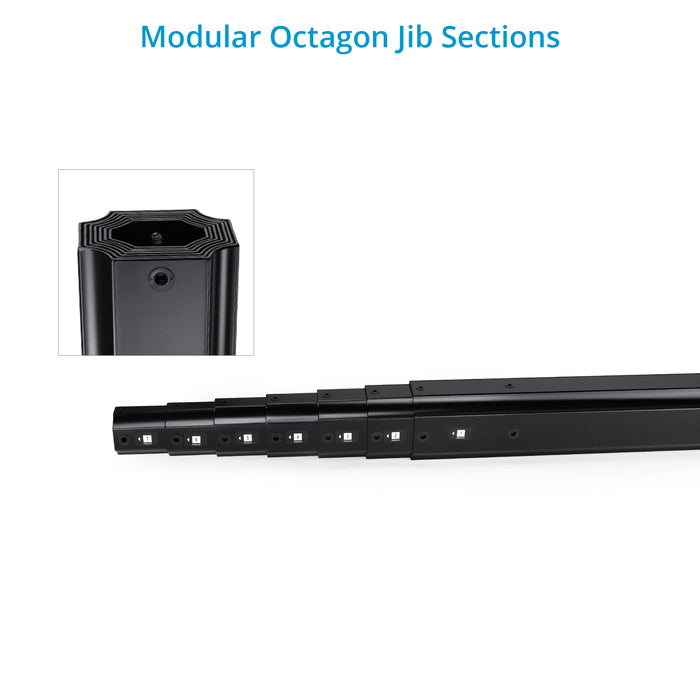

The modular octagonal-shaped arm sections reinforce the sturdiness of the Kite-22ft Camera jib crane.
It is divided into seven sections, each measuring 4' in length, overlapping by up to 1' for varied lengths.

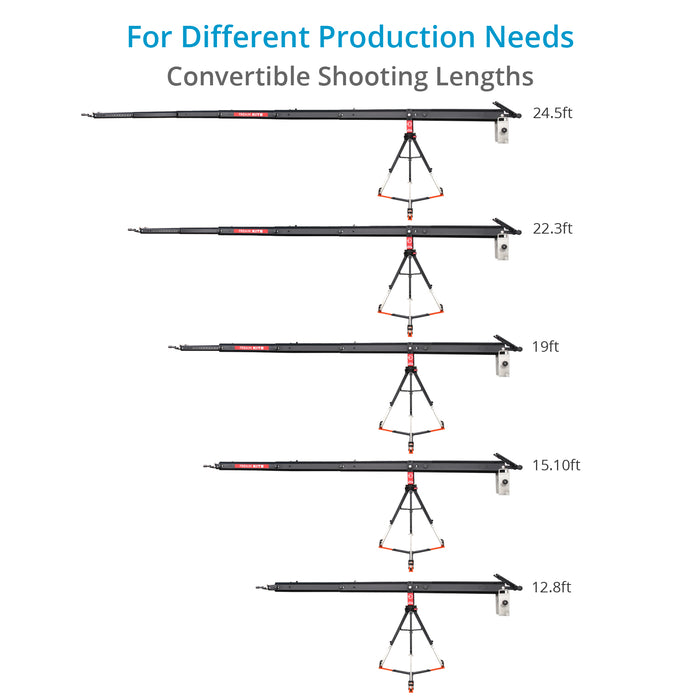

Arm length is adjustable, ranging from 12.8 ft. to 24.5 ft. (24.5ft, 22.3ft, 19ft, 15.10ft & 12.8ft) to meet any professional demands.
Each section is pulled from the previous section, so you can store unused sections in the tail as ballast weight and lighten your counterweight demand.
SOLID FOUNDATION WITH MOBILITY

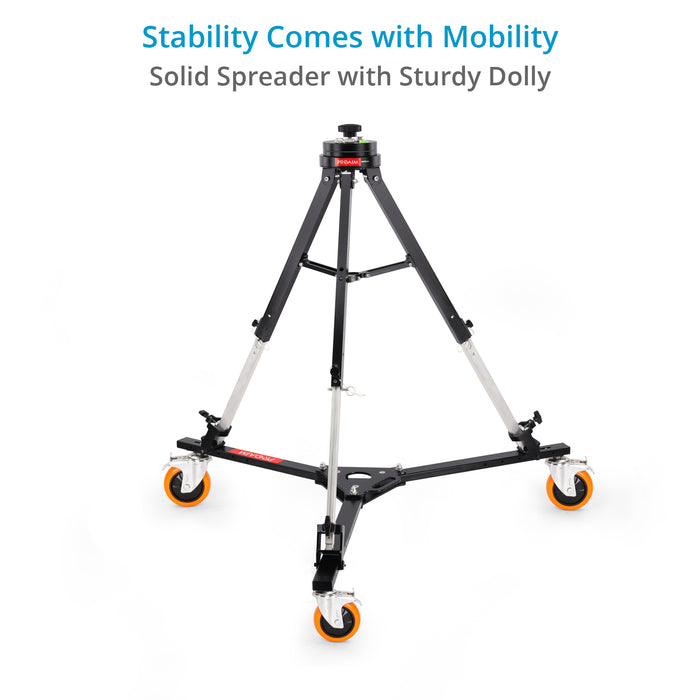

Proaim Kite 22 Starter package comes with LW-150 Heavy Duty Jib Stand to provide excellent stability to your heavy camera setups.
It combines high-quality materials, technological expertise and superior design to provide the ideal support needed to take the perfect shots.
The Tripod supports an incredible payload of up to 150kg/330lb and is highly stable in use.
The Kite 22 package includes a D-33 Pro Dolly to add mobility to the crane. It's a compact and versatile pro video dolly.
The Locks on the wheels ensure static jerk free shots & easy assembling.

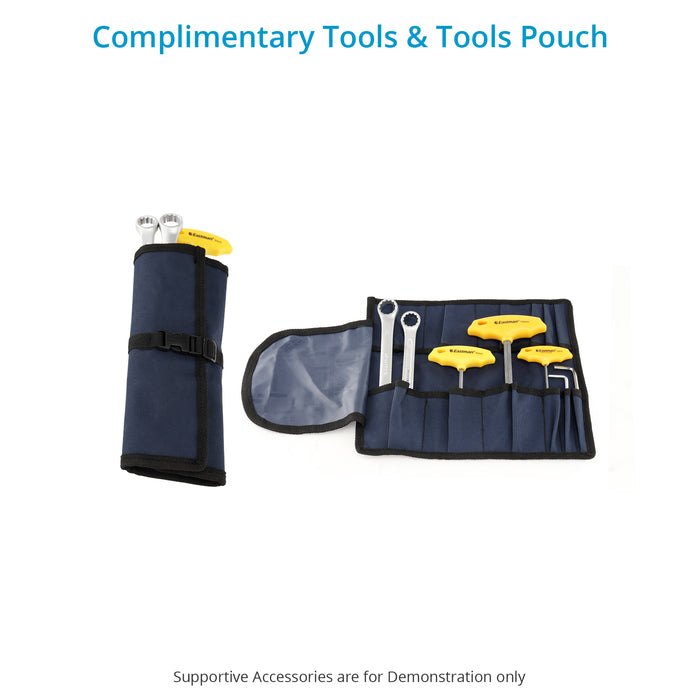

The tool/accessory roll pouch provides rapid access to various tools such as Allen keys or wrenches. It has ten pockets to neatly organize multiple hand tools so you can work quickly and efficiently.

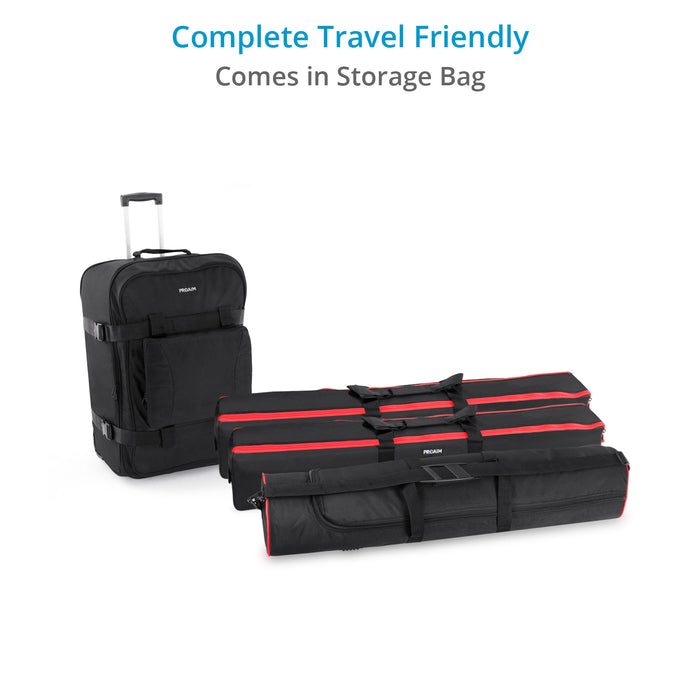

The complete Crane Package fits in customized storage cases to ensure full protection. These storage cases are easy to carry with you to different sets and locations.
TELESCOPIC CAMERA JIB
Jib Arm Material
High Grade Aluminum HE30
Jib Arm Shape
Height from Ground
Jib Arm Thickness
Jib Crane Length
24.5ft (7.5 Meter)
Jib each Arm length
Jib Arm Dimensions
|Jib Arm Octagonal Tube||Outer Diameter||Inner Diameter|
|Ist Section(weight section)||164mm||156mm|
|7th Section (Top Section)||104mm||96mm|
Height of Jib Arm while Your Stand Adjusted at Maximum height of 4ft: 19ft high at 24.5ft length
16.6ft high at 22.3ft length
14.3ft high at 19ft length
12.2ft high at 15.10ft length
10ft high at 12.8ft length
Add Counter Weights in the rear section of Jib according to Camera and Pan Tilt Head weight as per this chart :
|Self Balancing||When 2.2lbs weight is on the Head Plate|
24.5ft jib arm balances at about 121.5lbs.
24.5ft arm balances at around 133lbs.
Crane Pan Lock
Crane Tilt Lock
Black Powder Coated
Coupling Jib Arm Sections
A union coupling design of Jib Arm is done by washer and Steel bolt and shank with external clamps as well as Pin Lock for double locking System
Jib Arm Break downs to
7 Sections of 4ft each
Camera Platform Leveling
By Control Cable
High carbon steel with electro galvanized 4mm tested wire at 800kg
Multiple user friendly alignment of Stress Cable is provided For making Jib Stand straight without any curve
Carrying Case size
Jib Crane Weight
30 kg / 66 lb
Max Camera Package Load Capacity(including Pan Tilt Head)
20 kg / 45 lb
JIB TRIPOD STAND(LW-150)
150 kg / 330 lb
Hub Assembly Material
High Grade Aluminum HE30
Stand Minimum Height With Bowl
2ft 2 inch
Stand Maximum Height With Bowl
3ft 2 inch
Distance from Center
Weight of Stand
6.7 kg / 14.7 lb
Weight of Spreader
1.8 kg / 3.96 lb
Max Opening : 24 inch
Min Opening : 15 inch
Length of Hard Case
MS powder coated
Steel bolts with washers
Folded (L x W x H) 84 x 28 x 22 cm Doorway Width - 144cm
Height From Ground
Weight of Dolly
15.2 kg / 33.5 lb
Three leg Floor dolly
Maximum Load capacity
800 kg / 1763.7 lb
IN THE BOX
Proaim kite-22 Telescopic Camera Jib Crane (P-22)
Proaim 150mm bowl Jib Stand with spreader (LW-150)
D-33 Pro Camera Dolly (D-33)
Proaim Customized Storage cases for Camera Jib Arm & Jib Stand & Accessories
Tools and Tool Pouch/Wrap- Complimentary!
Guaranteed Fast Delivery
Quick and Efficient
Q&AAsk a Question
How to assemble Kite-22 crane, i am very confused?
"Here is the assembling video of the Kite 22 Crane Jib:
Hello, is screen includes in the crane packages ?
The Proaim Camera Crane Packages does not include the monitors or screens.
