Proaim Kite-22 Popular Package - 24.5ft Camera Jib Crane for Video Film Productions

Senior Pan-Tilt Head, 150mm Bowl Tripod Stand & D-33 Camera Dolly

Sold out
Original price US $2,428.00 - Original price US $2,428.00
Original price
US $2,428.00
US $2,428.00 - US $2,428.00
Current price US $2,428.00
SKU : KITE-22-POPULAR


AN ALL-ROUNDER AND INDUSTRY STANDARD ROBUST CAMERA CRANE

Perfectly Meets Various Production Needs!

01.

ULTIMATE SOLUTION FOR PROFESSIONALS

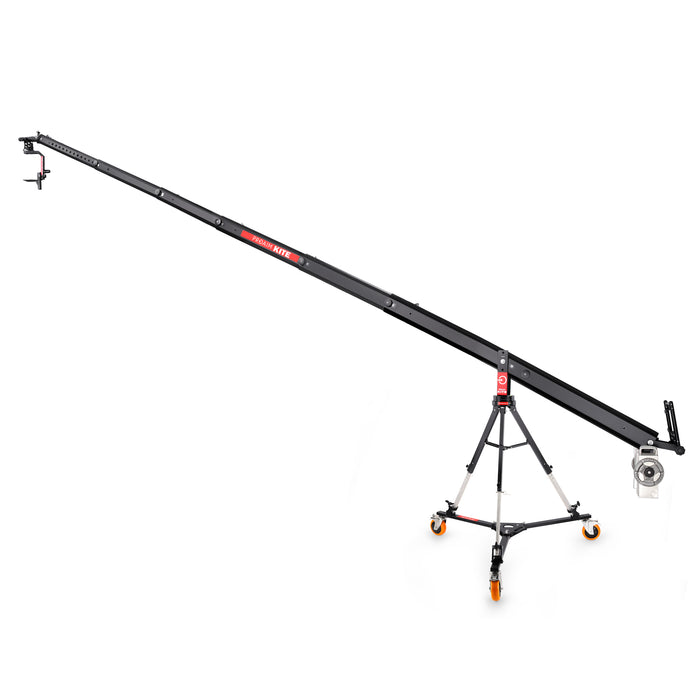

Proaim unveils Kite 22 Camera Jib Crane to let you explore your cinematic world. It will give you the whole spectrum of innovative ideas by giving various geographic scenarios & different in-studio angles.

The Kite 22 jib stabilizes your camera to create incredibly detailed, smooth and consistent shots. It is well-engineered equipment which includes a tripod stand, portable floor dolly & Dutch roll pan-tilt head.

The High-Grade Aluminum construction offers unbeatable strength and holds most camera setups.

Proaim Kite-22 Popular Package - 24.5ft Camera Jib Crane for Video Film Productions
Proaim Kite-22 Popular Package - 24.5ft Camera Jib Crane for Video Film Productions

02.

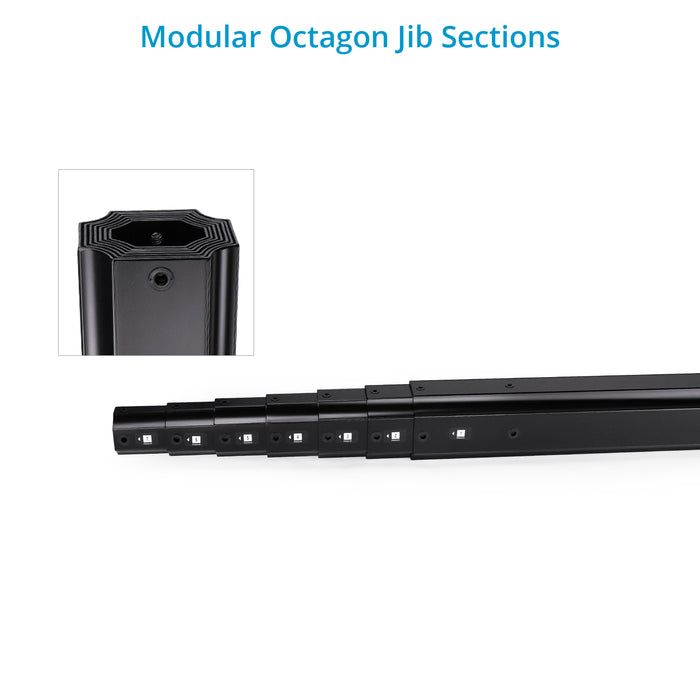

WELL DESIGNED ARM SECTIONS
The modular octagonal-shaped arm sections reinforce the sturdiness of the Kite-22ft Camera jib crane.
It is divided into seven sections, each measuring 4' in length, overlapping by up to 1' for varied lengths.

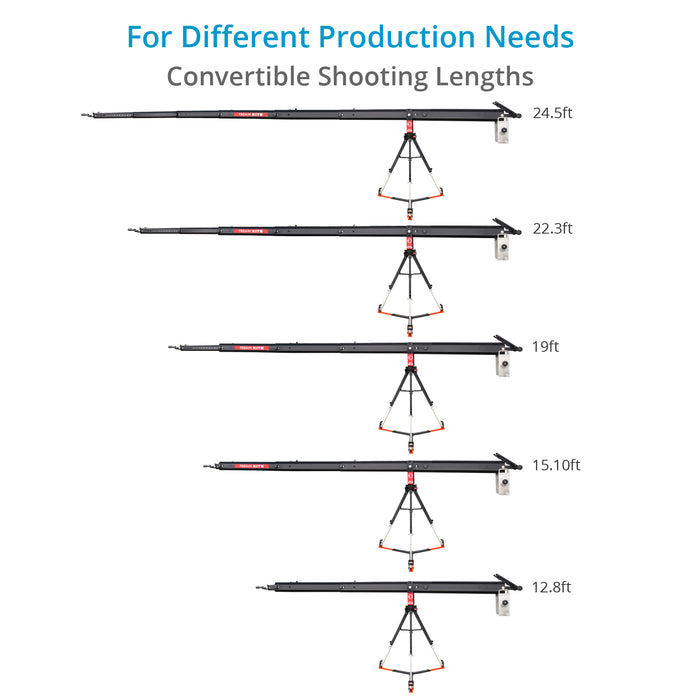

Arm length is adjustable, ranging from 12.8 ft. to 24.5 ft. (24.5ft, 22.3ft, 19ft, 15.10ft & 12.8ft) to meet any professional demands.

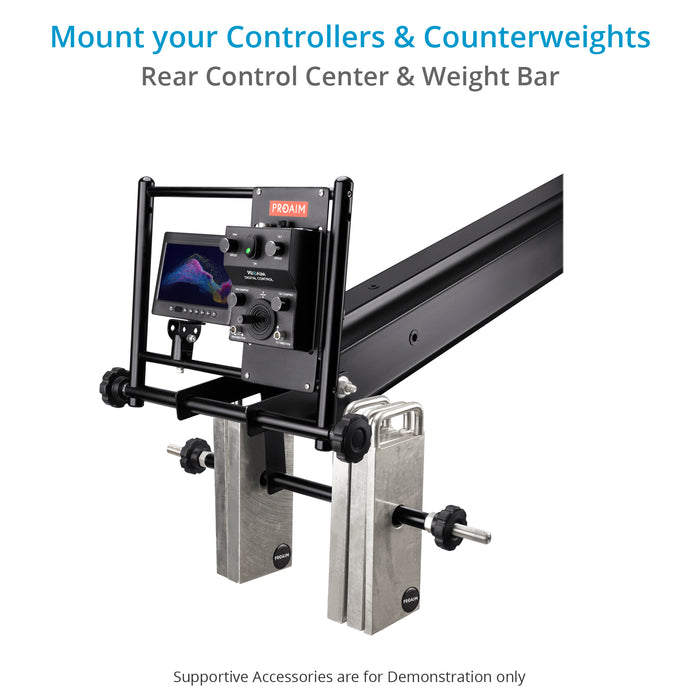

Each section is pulled from the previous section, so you can store unused sections in the tail as ballast weight and lighten your counterweight demand.

03.

SOLID FOUNDATION WITH MOBILITY

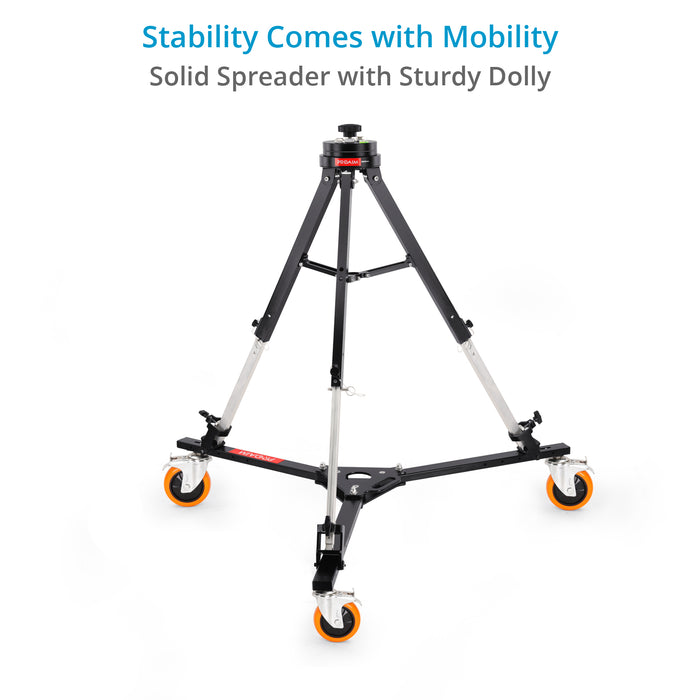

Proaim Kite 22 Popular package comes with LW-150 Heavy Duty Jib Stand to provide excellent stability to your heavy camera setups.
It combines high-quality materials, technological expertise and superior design to provide the ideal support needed to take the perfect shots.
The Tripod supports an incredible payload of up to 250kg/551lb and is highly stable in use.
The Kite 22 package includes a D-33 Pro Dolly to add mobility to the crane. It's a compact and versatile pro video dolly.
The Locks on the wheels ensure static jerk free shots & easy assembling.

Proaim Kite-22 Popular Package - 24.5ft Camera Jib Crane for Video Film Productions
Proaim Kite-22 Popular Package - 24.5ft Camera Jib Crane for Video Film Productions

04.

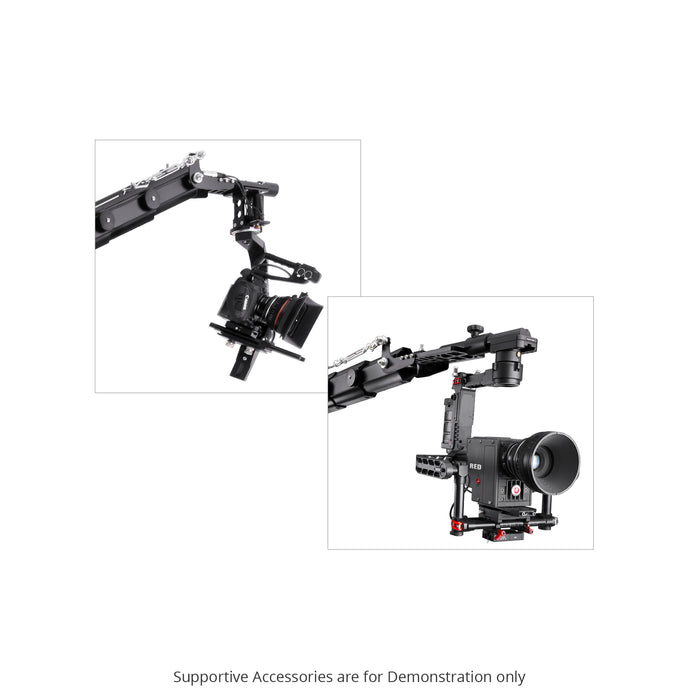

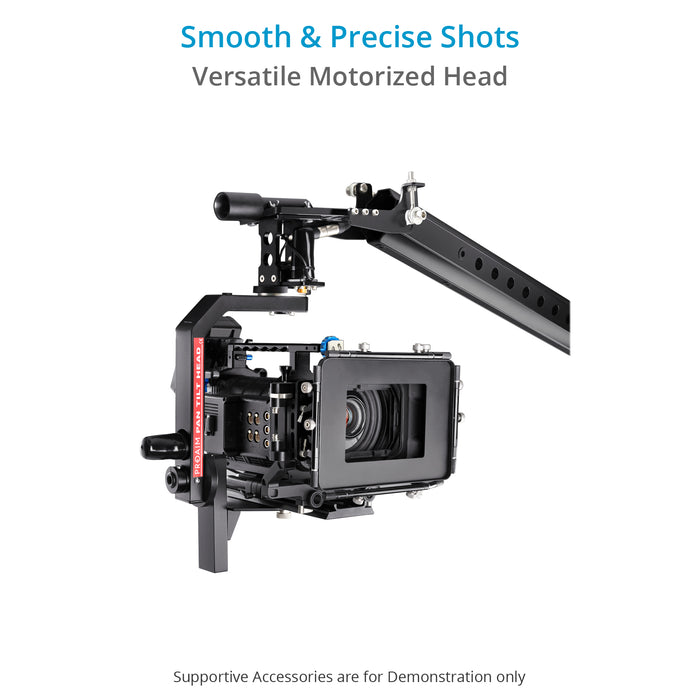

SENIOR ROLL PAN TILT HEAD
Proaim Senior Pan Tilt offers complete 360-degree pan & tilt movements while keeping your camera safe and secure.
It is engineered to support cameras up to 7.5kg/ 16.5lb with ease.
The Pan Tilt head is creatively designed to use jib crane arms, tripods, and other remote operating situations that deliver increased production value.
Speed Controller adjusts the speed of pan & tilt based on the requirement of the shot as you can reverse the panning & tilting direction as & when required.
Damping control prevents the head from stopping with a jerk enabling you to achieve smooth endings.

05.

SIMPLIFIED CARRYING

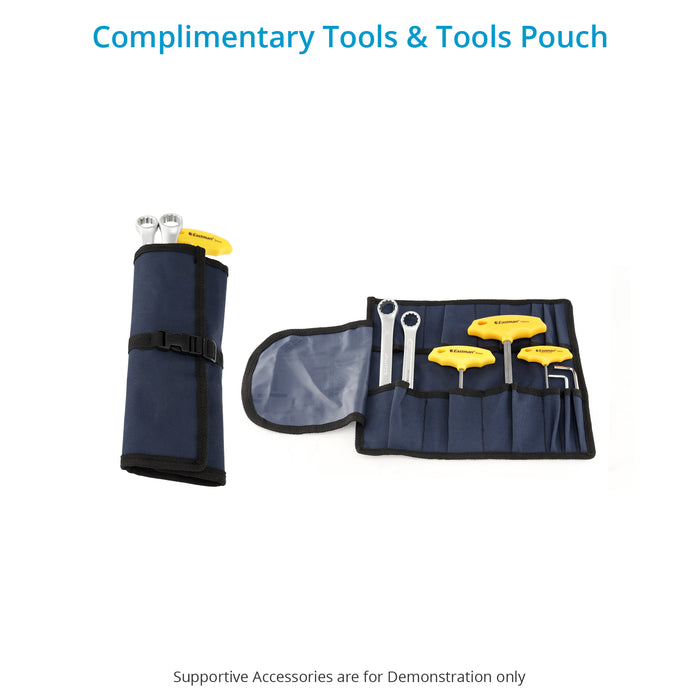

The tool/accessory roll pouch provides rapid access to various tools such as Allen keys or wrenches. It has ten pockets to neatly organize multiple hand tools so you can work quickly and efficiently.

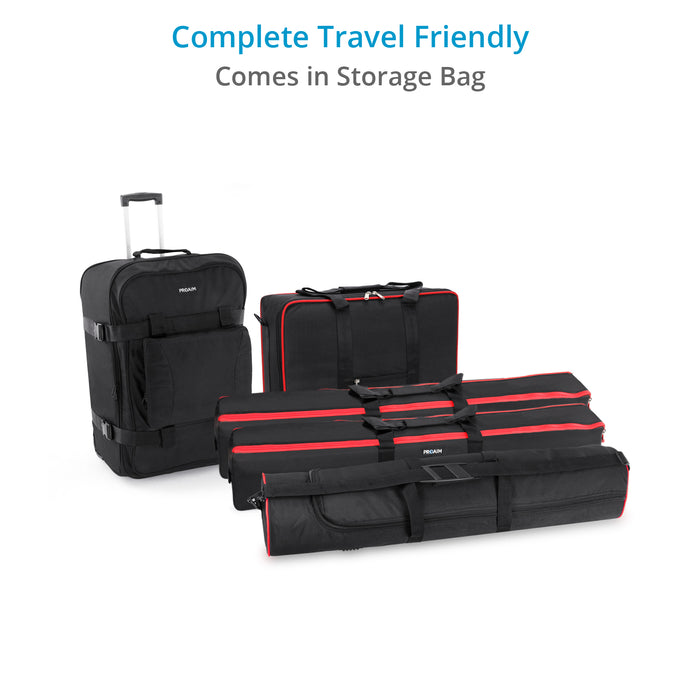

The complete Crane Package fits in customized storage cases to ensure full protection. These storage cases are easy to carry with you to different sets and locations.

Proaim Kite-22 Popular Package - 24.5ft Camera Jib Crane for Video Film Productions

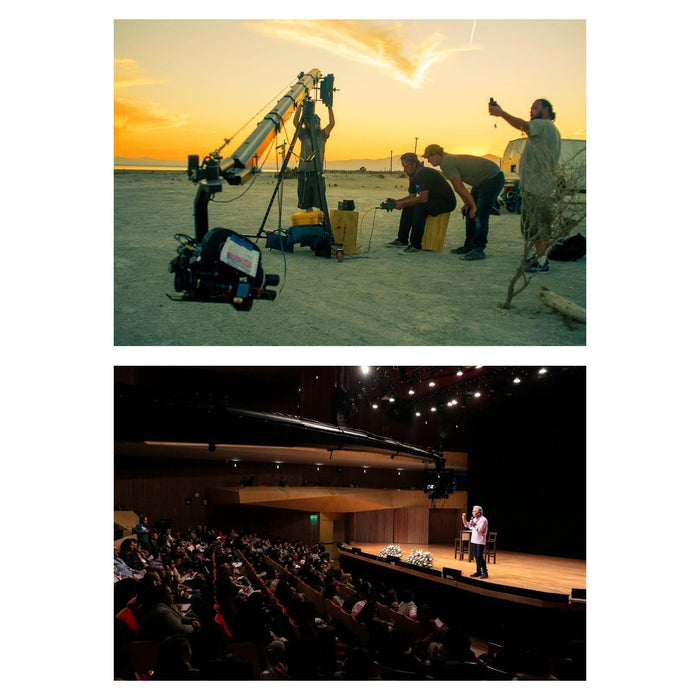

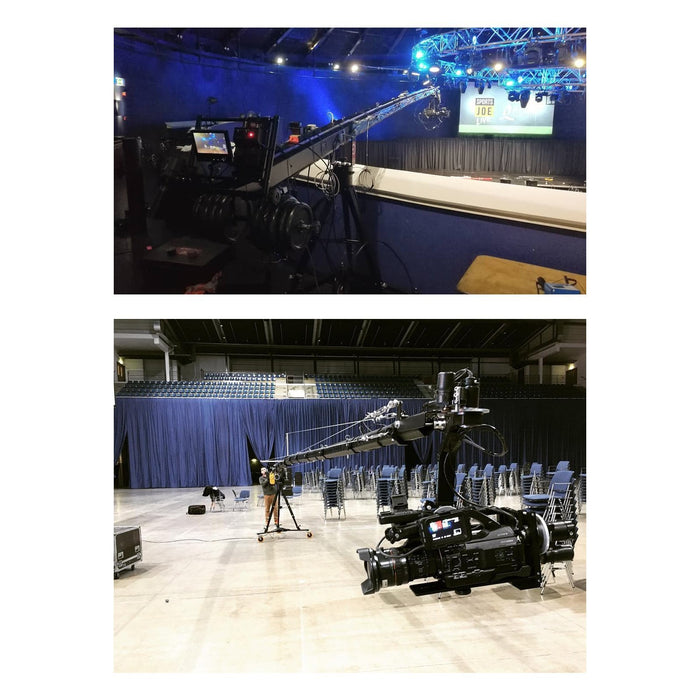

IN-ACTION VIDEOS

SPECIFICATIONS

TELESCOPIC CAMERA JIB

Jib Arm Material

  High Grade Aluminum HE30

Jib Arm Shape

  Octagonal

Height from Ground

  19ft / 5.8m

Jib Arm Thickness

  3mm

Jib Crane Length

  24.5ft / 7.5m

Jib each Arm length

  4ft

Jib Arm Dimensions

Jib Arm Octagonal Tube Outer DiameterInner Diameter
Ist Section(weight section)164mm156mm
2nd Section 154mm146mm
3rd Section 144mm136mm
4th Section134mm 126mm
5th Section124mm116mm
6th Section 114mm 106mm
7th Section (Top Section)104mm96mm

Height Range

  Height of Jib Arm while Your Stand Adjusted at Maximum height of 4ft: 19ft high at 24.5ft length
  16.6ft high at 22.3ft length
  14.3ft high at 19ft length
  12.2ft high at 15.10ft length
  10ft high at 12.8ft length

Balancing Chart

  Add Counter Weights in the rear section of Jib according to Camera and Pan Tilt Head weight as per this chart :

Self Balancing When 2.2lbs weight is on the Head Plate

24.5ft jib arm balances at about 121.5lbs.

22.3ft arm balances at about 119lbs.

19ft arm balances at about 116lbs.

15.10ft arm balances at about 114lbs.

12.8ft arm balances at about 112lbs.

24.5ft arm balances at around 133lbs.

22.3ft arm balances at around 128lbs.

19ft arm balances at around 122lbs.

15.10ft arm balances at around 117lbs.

12.8ft arm balances at around 115lbs.

Crane Pan Lock

  Yes

Crane Tilt Lock

  No

Finish

  Black Powder Coated

Coupling Jib Arm Sections

  A union coupling design of Jib Arm is done by washer and Steel bolt and shank with external clamps as well as Pin Lock for double locking System

Jib Arm Break downs to

  7 Sections of 4ft each

Camera Platform Leveling

  By Control Cable

Stress cable

  High carbon steel with electro galvanized 4mm tested wire at 800kg

Multiple Alignment

  Multiple user friendly alignment of Stress Cable is provided For making Jib Stand straight without any curve

Carrying Case size

  51 inches

Jib Crane Weight

  30 kg / 66 lb

Max Camera Package Load Capacity(including Pan Tilt Head)

  20 kg / 45 lb

PAN TILT HEAD

Pan-Tilt Material

  High Grade Aluminum

Max Camera Package Load Capacity

  7.5 kg /16.5 lb

Pan movement

  360°

Tilt movement

  360°

Speed

  Variable-controlled speed from 6 degree / sec (low speed) to 51 degree / sec (high speed)
  Slowest Speed : 2 minutes
  Highest Speed : 7 seconds

Motors

  Two high torque, coreless DC motors that rotates (pans) and tilts the head 360 degrees

Gears

  2- Silver Big Gears (Dia- 89mm)
  2- Brass Small Gears (Dia- 14mm)

Minimum height of head

  18.5 inches

Maximum height of head

  26 inches

AC Adapter input

  AC 100 - 240V ; output - DC 12V -2A

Cable Length

  9 meter

Cable Connector

  4-Pin XLR

Battery Cable

  3 Meter long

Weight

  7.2 kg /15.8 lb

Bag Dimensions

  50 x 35 x 19 cm

JOYSTICK CONTROLLER

Joystick Controller

  2-Axis

Connectors

  2x 4-Pin XLR male connectors

Pan/Tilt Direction

  Yes

Upgraded with

  Damping knob

TRIPOD STAND(LW-150)

Material

  Solid Aluminum

Hub Assembly Material

  High Grade Aluminum HE30

Bowl Mount

  150mm

Bowl Thickness

  30.8mm

Stand Minimum Height With Bowl

  2ft 2 inch

Stand Maximum Height With Bowl

  3ft 2 inch

Distance from Center

  22 inch

Weight of Stand

  6.7 kg / 14.7 lb

Weight of Spreader

  1.8 kg / 3.9 lb

Spreader

  Max Opening : 24 inch
  Min Opening : 15 inch

Length of Hard Case

  28.7 inch

Weighing Capacity

  250 kg / 551 lb

D-33 DOLLY

Maximum Load capacity

  400 kg / 881lb

Material

  MS powder coated

Bolts

  Steel bolts with washers

Wheels Diameter

  148.7mm

Wheels Thickness

  49.40mm

Wheel Material

  Polyurethane

Central Distance

  72cm

Dimensions

  Folded (L x W x H) 84 x 28 x 22 cm
  Doorway Width - 144cm

Height From Ground

  9 inch

Weight of Dolly

  15.2 kg / 33.5 lb

Dolly Type

  Three leg Floor dolly

Wheel Lock

  Yes

PACKING INFO

Product Volumetric Weight (with packing)

Case 1 = 14kg / 32lb
Case 2 = 12kg / 27lb
Case 3 = 38kg / 82lb
Case 4 = 12kg / 27lb
Case 5 = 15kg / 35lb
Case 6= 8kg / 18lb

Product Gross Weight (with packing)

Case 1 = 22kg / 48lb
Case 2 = 16kg / 37lb
Case 3 = 27kg / 59lb
Case 4 = 17kg / 40lb
Case 5 = 20kg / 44lb
Case 6= 7kg / 16lb

IN THE BOX

Proaim Kite-22 Telescopic Camera Jib Crane
Proaim 150mm bowl Jib Stand with spreader (LW-150)
Proaim D-33 Pro Dolly (D-33)
Proaim Sr. Pan Tilt Head with Joystick Controller & Accessories (PT-SR)
Customized Storage cases for Camera Jib Arm , Jib Stand & Accessories
Tools and Tool Pouch/Wrap-
Complimentary


delivery

Guaranteed Fast Delivery
For all orders

customer service

Quick and Efficient
Customer service

easy returns

Easy Returns
Up to 30 days

warranty

1-Year Warranty
On All Products





  • does this come with weights?

    No

  • Which size of Tripod legs can fit in the D-33 dolly?

    The tripods with up to 48mm diameter legs can be used with the Proaim D-33 Portable Camera Tripod Dolly.

  • Could it be controlled by a computer

    The Proaim Pan Tilt Head PT-SR is only controlled by a joystick controller included in it. It will not be controlled by a computer.

  • Can the Sr. Pan Tilt Head be moved by hand if i don\'t want to use the motor?

    Yes, the Proaim Senior Pan tilt head can be moved with hands but before this you have to disengage the motor gear to avoid any damage to the gears.

  • How to assemble Kite-22 crane, i am very confused ?

    "Here is the assembling video of the Kite 22 Crane Jib:
    https://www.dropbox.com/s/ajrtm7ywfsr7f5v/Kite-22-crane-assembly-Final.mp4?dl=0"

  • Hello, is screen includes in the crane packages ?

    The Proaim Camera Crane Packages does not include the monitors or screens.
