EFFORTLESS FOCUS ADJUSTMENTS

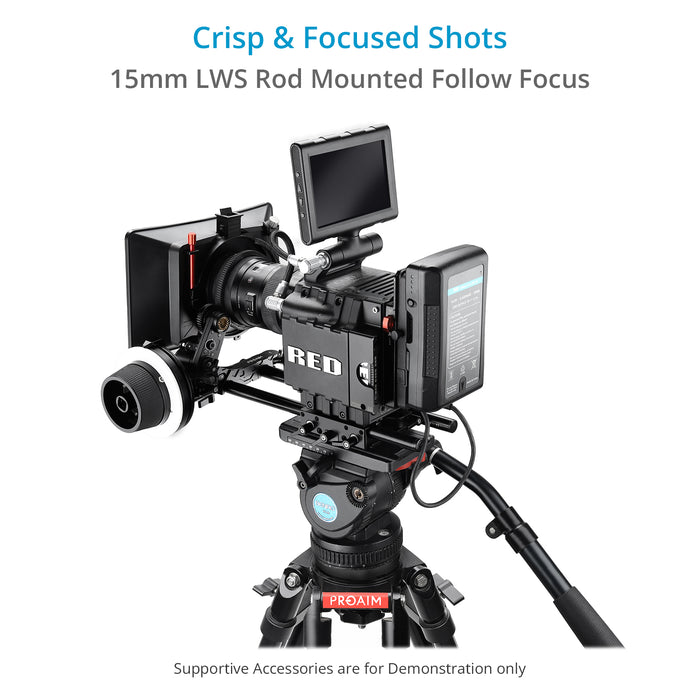

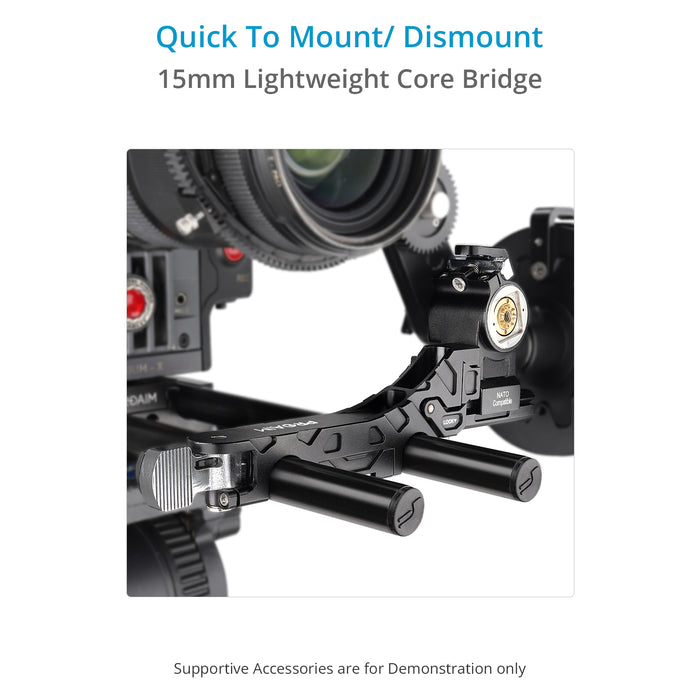

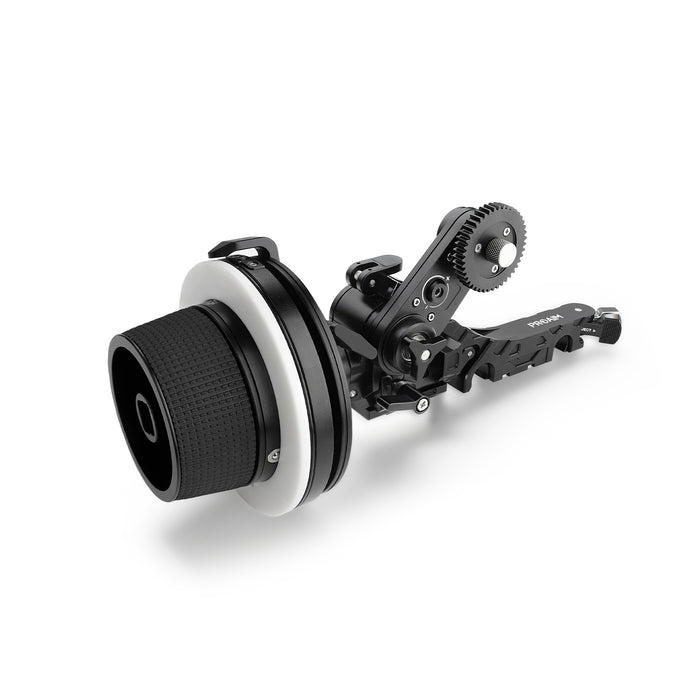

The FocusBee Follow Focus includes a 15mm Lightweight Core Bridge for 15mm rods, a sleek Swing Arm, a 0.8 MOD 43-Teeth Drive Gear, a 35-Teeth Drive Gear, and a Focus Handwheel with Marking Disc that works together to deliver smooth and precise focus adjustments.
SHARPER FOCUS, PREMIUM SHOTS: A PERFECT FILMMAKING ALLY.

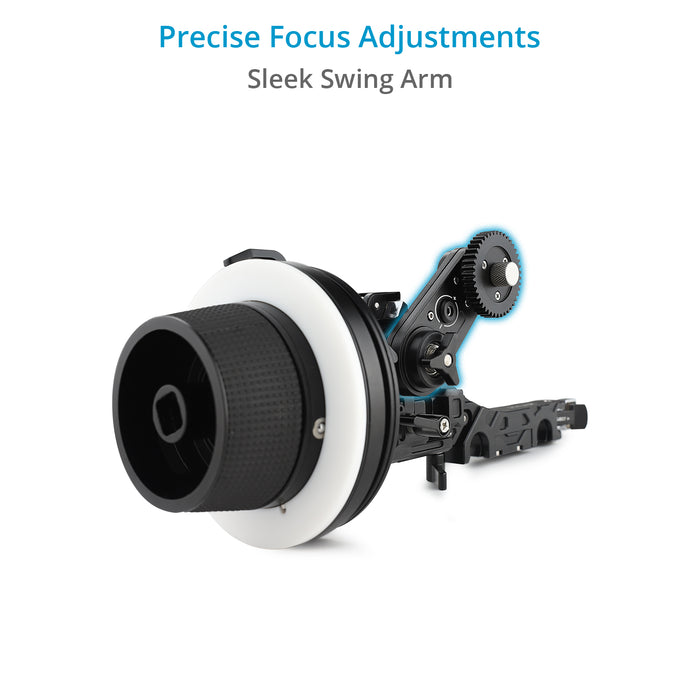

A SLEEK SWING ARM
The swingarm features a 1:1.842 gear ratio enabling broader and smoother focus adjustments, and it also works well with the lightweight core bridge by transferring the focus movement from the handwheel mounted on your core bridge to the drive gear that interfaces with your lens.

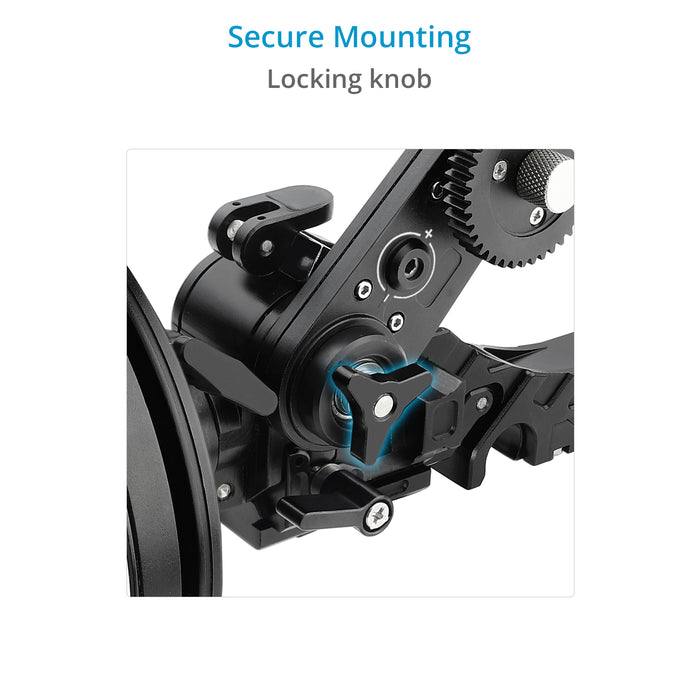

You can mount the Swing Arm on either side of your core bridge's drive transmission to match the position of your lens's focus gear.
BUILT-IN TENSION ADJUSTMENT ROLLER
The swing arm features a built-in tension adjustment roller that applies slight pressure or tension on the gear mechanism to eliminate unwanted movement in the focus gear.
It improves the overall quality of the footage and helps maintain focus consistency throughout the shot.

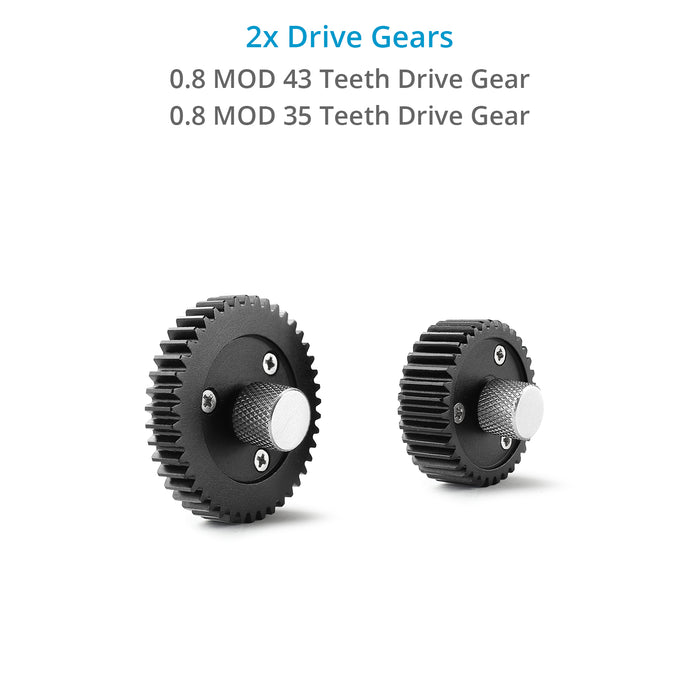

43 TEETH DRIVE GEAR
The 43 Teeth Drive Gear has a finer gear ratio than 35 teeth drive gear, allowing the operator to focus more precisely, especially when working with lenses with narrow field depth.
35 TEETH DRIVE GEAR
The 35 Teeth Drive Gear delivers a slightly faster and less sensitive focus control, making it useful for wide-angle lenses, especially in fast-paced shooting scenarios.

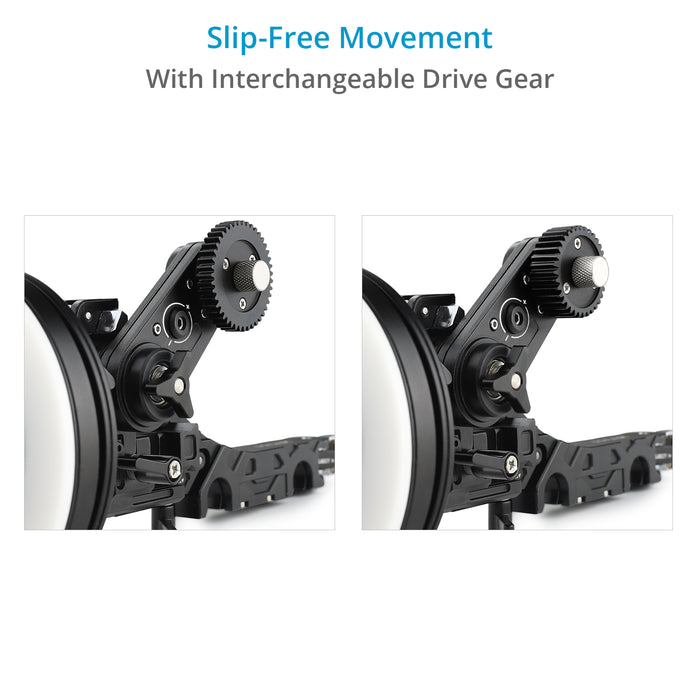

Both gears can be mounted on either side of the Swing Arm.

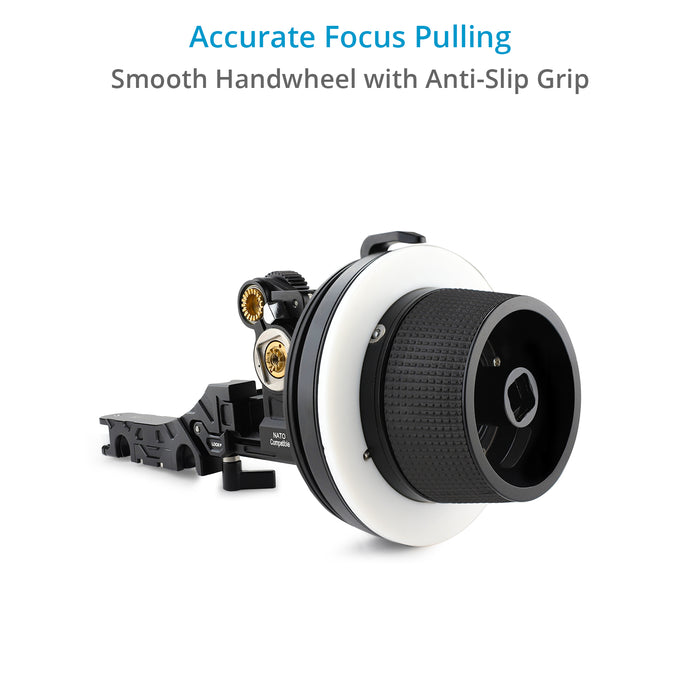

The Focus Handwheel is a conical handwheel with an anti‐slip grip with built-in keyway depression that lets you accurately pull focus without taking your eyes off the action.

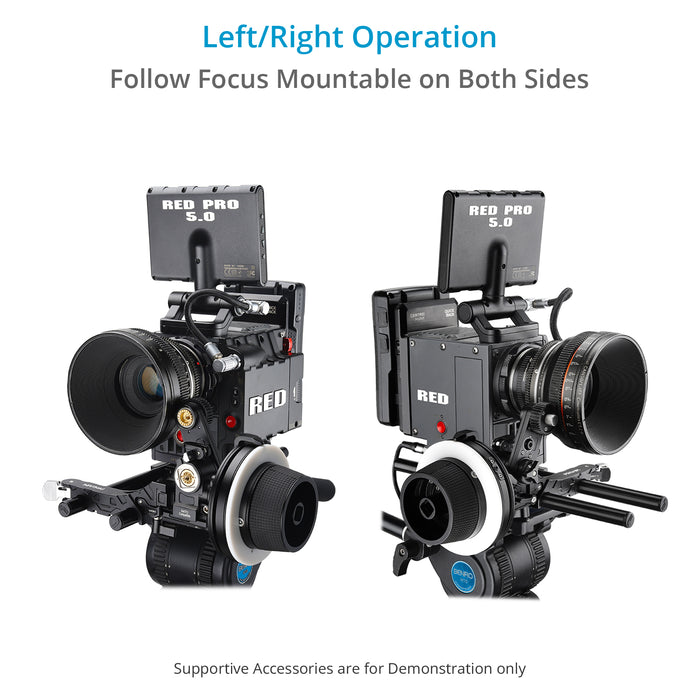

You can pull focus from both sides by switching the focus unit from one side to another.

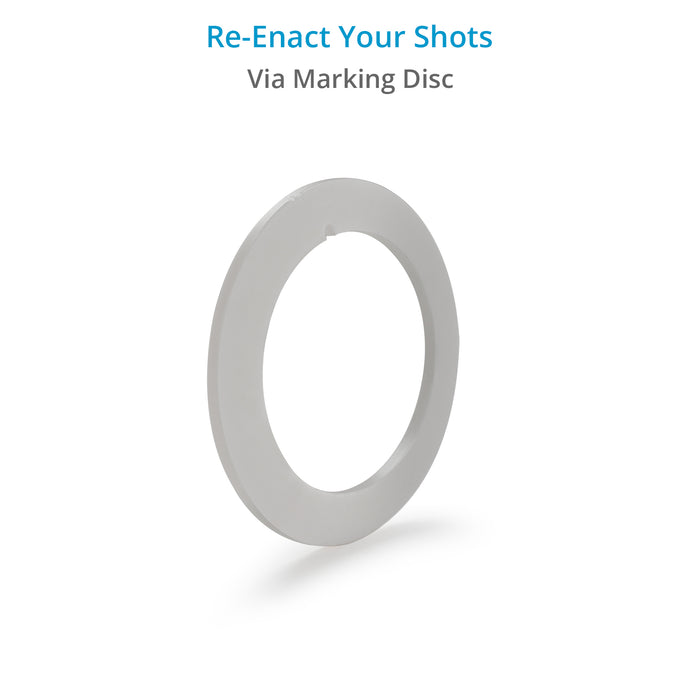

REMOVABLE MARKING DISC
The handwheel also includes a removable marking disc that can be pre-marked to match specific lenses for rapid lens changes and focus resets.
It features a detent that can prevent the marking disc from spinning.

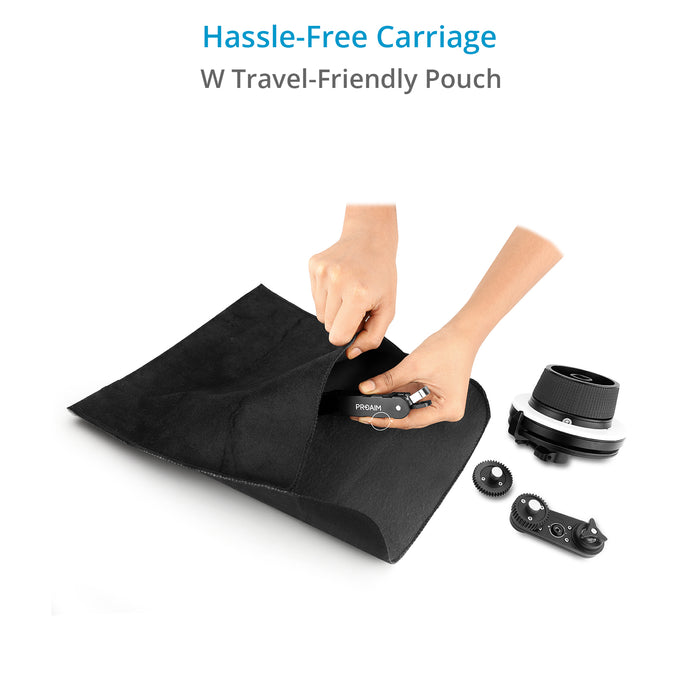

The follow focus unit can be separated to be accommodated in a travel-friendly pouch, enabling a hassle-free carriage.
High-Grade CNC Aluminum
Ratio Of Swing Arm
Number Of Gears
0.8 MOD 43 Teeth Drive Gear X 1
0.8 MOD 35 Teeth Drive Gears X 1
Face Width / Diameter
35 Teeth Drive Gear - 0.4” / 10 Mm
43 Teeth Drive Gear - 0.2” / 6 Mm
Product Weight (Without Packing)
0.9kg / 1.9lb
Product Volumetric Weight (With Packing)
1.8kg / 3.9lb

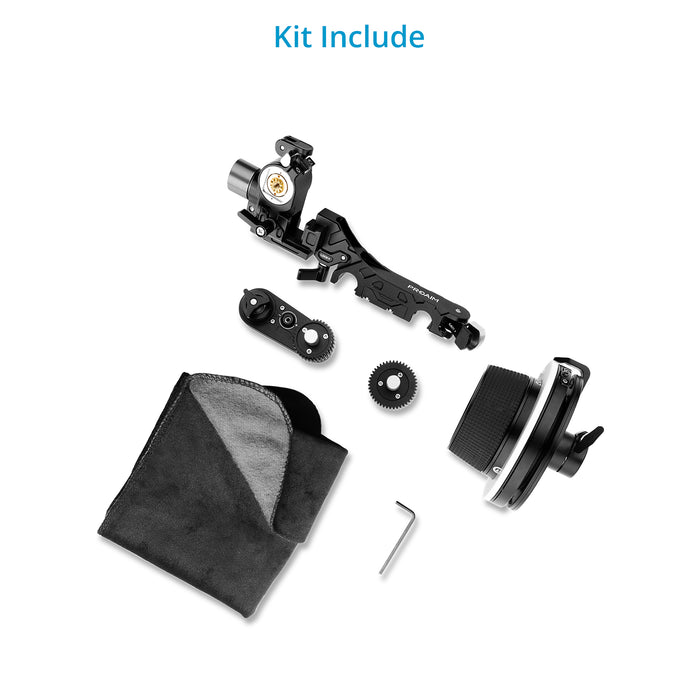

IN THE BOX
Proaim 15mm Lightweight Core Bridge
Focus Hand wheel
Swing Arm with Drive Gear 35 teeth knob
1 x Drive Gear with 43 teeth
1x L- type Allen key (Size:- 2.5mm)
