Proaim Explorer Pan Tilt Head for Camera Jib Crane, 8kg/17.6lb Payload

Proaim Explorer Pro Pan Tilt Head for Camera Jib Crane, 10kg/22lb Payload

Long-Lasting 2-Axis Motorized Head w 12V Controller

Save 9% Save 9%
US $796.00
US $796.00 - US $796.00
US $796.00
US $723.00
US $723.00 - US $723.00
US $723.00
SKU : PT-EXPR-02

Also Available in Warehouses: Europe

AT A GLANCE

Payload
10kg/22lb
Construction
Stainless Steel
Motors
High-Performance DC motor

Secure checkout | Fast delivery | 30-day returns | 1-year warranty

Make Your Shots More Dramatic Than A Standard Straight-Angle Shot!

01.

CAPTURE A WIDER VIEW & SHIFT VIEWER’S PERSPECTIVE
A pan & tilt shot is one of the most versatile shots in a director's Script. To execute the same in an accurate sense, you must have equipment that yields more unique but satisfactory outcomes.
Proaim explorer pan-tilt head is precisely engineered, easy to operate & a silent companion for accurate panning & tilting motions. It changes the dynamics of your shot & adds an excellent cinematic feel to it.

Proaim Explorer Pro Pan Tilt Head for Camera Jib Crane, 10kg/22lb Payload
Proaim Explorer Pro Pan Tilt Head for Camera Jib Crane, 10kg/22lb Payload

02.

ADVANCED, PRECISE & HIGHLY EFFICIENT
This 2-Axis pan-tilt head facilitates effortless continuous 360° rotation on both horizontal and vertical axis that gives the operator full freedom to capture any desired angle.

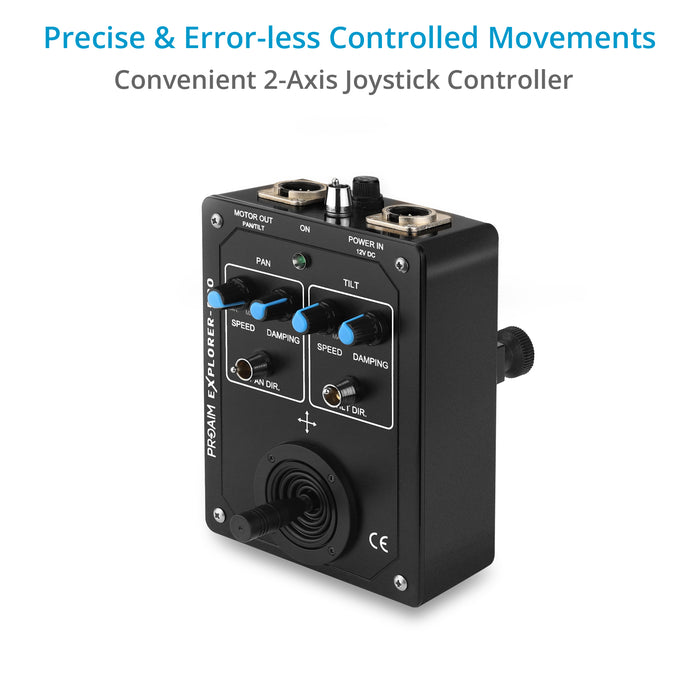

A wired joystick remote controller provides a great range of pan and tilt speed control, with an excellent rotation for a complete revolution in any axis.
The precise, quiet & highly efficient motors are backlash-free & offer significant rotational force that provides 40% more speed than any normal motor & has extended rotation life.

03.

ADAPTABLE, VERSATILE & ENDURING
Camera position adjustment lets you find an accurate balance on both pan & tilt pivot points for right camera moves.
The high-strength brass gears certify minimal wear and tear.
Adjusting the Camera Angle upside down lets you capture graceful bird’s eye view shots at ease.
Suitable for surroundings such as sports events, small and large studios, churches, parliaments, etc.

Proaim Explorer Pro Pan Tilt Head for Camera Jib Crane, 10kg/22lb Payload
Proaim Explorer Pro Pan Tilt Head for Camera Jib Crane, 10kg/22lb Payload

04.

OPTIMAL MOTION & SPEED CONTROL

Damping Control :- Damping control knob prevent the Head from stopping abruptly with a jerk, giving you smooth endings. The amount of damping is increased by rotating the damping knob clockwise.
Dead Spot Control :- The Dead spot control determines the centre band of the joystick where no motion will occur and ensure no crossover to the other axis when not wanted. you can adjust your joystick when it is not centre by rotating this knob clockwise. If you observe the head moving without deflecting the joystick, it will be necessary to adjust centring. and to perform best in reversing the head then dead spot knob should be 30 to 40 percent.
Pan/Tilt Direction :- You can reverse the panning & tilting direction as & when required by using switch and you can also take damping function at the time of reversal. So best way to reverse the pan tilt head is by using this Reversal switch.

IN-ACTION VIDEOS

SPECIFICATIONS

Construction

  Stainless Steel

Compatibility

  All packages of Proaim Alphabet jib
  All packages of Proaim Kite-22 Crane
  All packages of Proaim 24ft Camera Crane
  All packages of Proaim 32ft Camera Crane
  Proaim 24ft Fraser Camera Jib Crane Package

Payload

  10kg / 22.0lb

Pan & Tilt

  360 Degree

Pan/Tilt speed with balanced condition

  Minimum Speed
  One Round (360 Degree) in 1 Minute 25 Second.
  Maximum Speed
  One Round (360 Degree) in 4 Second.

Motors

  High-Performance DC motor

Gears

  Yes

Adjustments

  Yes

Joystick Controller

  Yes

AC Adapter Unit

  12V-3amp

Cables

  15 mtr controller cable & 3 mtr Battery Cable

Dimensions

Proaim Explorer Pro Pan Tilt Head for Camera Jib Crane, 10kg/22lb Payload

Product Weight (Without Packing)

  9.3kg / 20.5lb

Product Volumetric Weight (With Packing)

  17kg / 37lb

IN THE BOX

Proaim Explorer Pro Pan Tilt Head
2 x Cable: 15 mtr x 3 mtr
12V AC Adapter
Controller Box
Universal Adapter
Safety Cap

USER MANUAL

Proaim Explorer Pro Pan Tilt Head

  Proaim Explorer Pro Pan Tilt Head for Camera Jib Crane
delivery

Guaranteed Fast Delivery
For all orders
customer service

Quick and Efficient
Customer service
easy returns

Easy Returns
Up to 30 days
warranty

1-Year Warranty
On All Products

Q&A

Ask a Question



  • What kind of motors does it use?

    It uses precise, quiet DC motors with backlash-free operation.

  • Does the damping control help with smooth stops?

    Yes — the damping knob prevents abrupt stops, giving smooth motion endings.

  • Can the head be reversed to pan/tilt in the opposite direction?

    Yes — you can reverse pan and tilt direction using the controller switch.

  • Is the motor operation quiet enough for filming sound?

    Yes — the efficient motors are designed to operate quietly and precisely.

  • Can I adjust the pan and tilt speed?

    Yes — the wired joystick controller lets you control pan/tilt speed smoothly.

  • Does the explorer pro pan tilt head work with the wave-2 jib?

    No, the Explorer pro pan tilt head is not compatible with the wave-2 jib. But you can buy the PT-SR pan tilt head which will be compatible with the wave-2 Jib.

  • Can SKU : PT-EXPR-02 be directly mounted on the JB-FR4T-02?

    Yes, the Proaim Explorer pan tilt head (PT-EXPR-02) can be mounted directly on the Proaim 24ft Fraser Camera Jib Crane (JB-FR4T-02). Please refer the user manual of PT-EXPR-02 for the detailed instruction of head mounting on the crane.

  • Will this work with the Airwave V530?

    The best option is to use the Airwave with a gimbal instead of the Pan Tilt Heads. In Moving the setup, it will not help in achieving smooth endings. So we do not recommend this combination.
