Proaim Electro Magnet Quick Release Mitchell Mount for Camera & Gimbal Rigs

50kg / 110lb

$1,150.00
SKU : QR-ELMG-01

Make Your Setup Much More Stable & Faster!

Promising Exceptional Performance with Finest Features!

Proaim-Electro-Magnet-Quick-Release-Mitchell-Mount-for-Camera-&-Gimbal-Rigs-3

Quick, Quicker, Quickest

Bypass all the screwing & unscrewing with quick release

Proaim-Electro-Magnet-Quick-Release-Mitchell-Mount-for-Camera-&-Gimbal-Rigs-3

Design your oner/long take shot

Switch from a High-Angle to a Low-Angle view a whole lot faster in an easier way

Proaim-Electro-Magnet-Quick-Release-Mitchell-Mount-for-Camera-&-Gimbal-Rigs-3

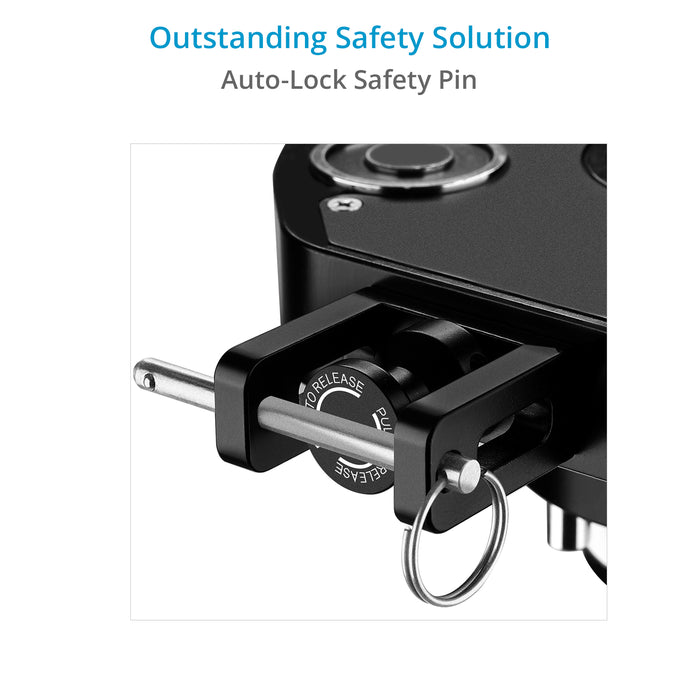

Outstanding Safety

Out Of Battery! Don’t Worry Your Cameras, Lens, and Stabilizers are secured with Auto-Lock Safety Pin

Specifications

Construction

  High-grade Aluminum & Steel

Compatibility

  Proaim Mitchell Vibration Isolator for Camera Gimbals-(VB-MTCL-00)

Payload

  up to 50kg / 110lb

Mounting

Top: Mitchell Mount
Base: Universal Mounting Plate (for DJI Ronin 2 & Freefly MoVi Pro)

Battery Mount

  V-Mount-type

Operating Temperature

  -5°C to +45°C

Recommended Power Supply

  DC IN: 14V‐26V
  Max current: 3A (16V)

Dimensions

Proaim Electro Magnet Quick Release Mitchell Mount for Camera & Gimbal Rigs

Product Weight (Without Packing)

  4.11kg / 9.06lb

Product Gross Weight (With Packing)

  12.7kg / 27.9lb

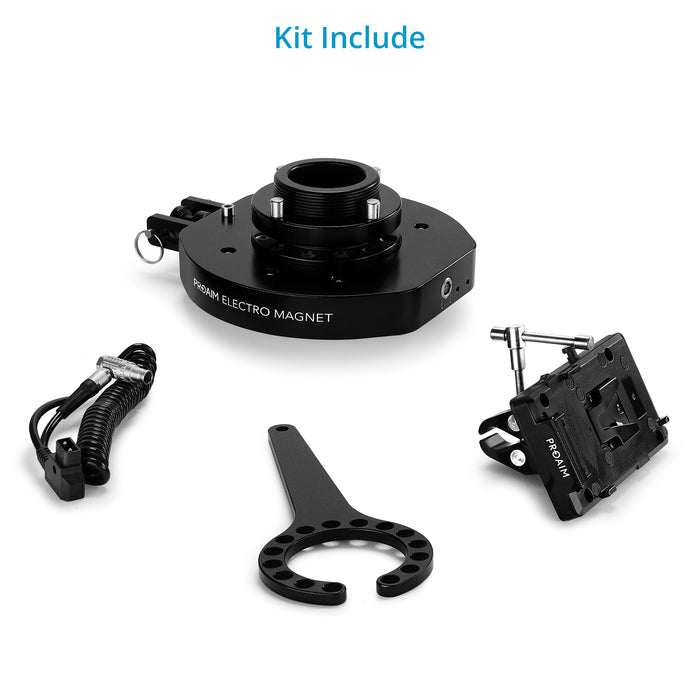

In the Box

1 x Mounting Plate (Top Mount & Bottom Mount)
1 x Wrench
Safety Lock
1 x D-Type Cable
1 x Battery Plate with Clamp (Front Side & Back Side)
Hard Case

01.

All-Versatile & High-Performance Gear

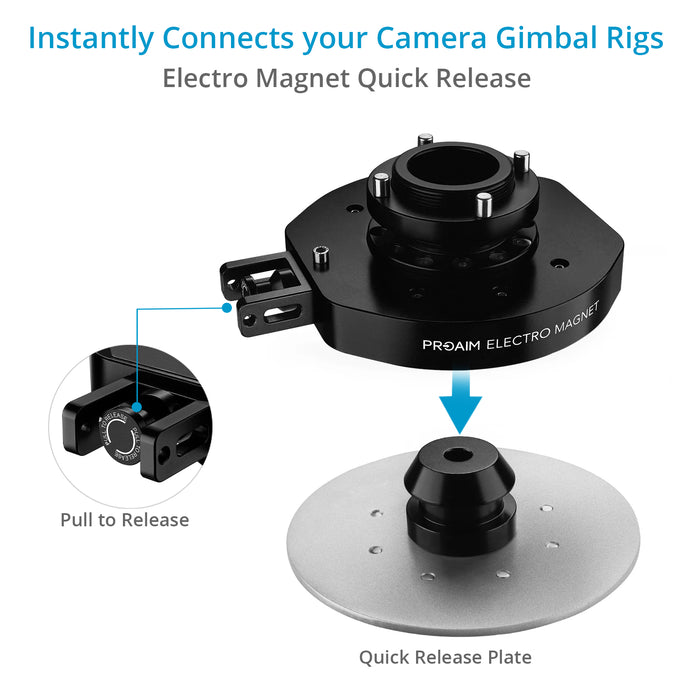

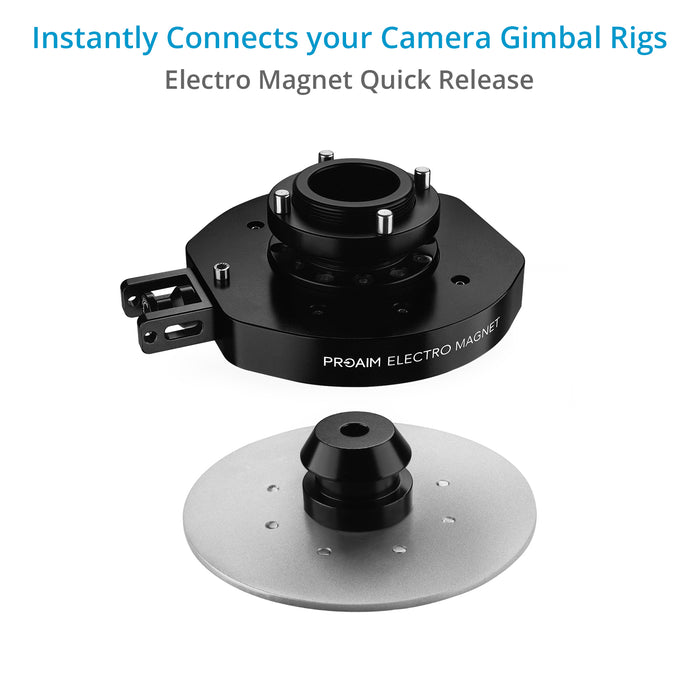

Unleash your artistic imagination with Proaim Electro Magnet Quick Release Mitchell Mount, a brilliant and secure electromagnet that connects cinema rigs together in a matter of seconds.
It lets you quickly attach or detach the camera or gimbal to any Mitchell dolly, tripod, Jib/Cranes, shock-absorber arms, or other Mitchell gears.
And gives you the benefit of switching from a high-angle to a low-angle view or vice versa while using a gimbal or camera to crane/jib or boom, perfect for capturing long take shots.
Besides, you can use it to shoot scenes up and downstairs in indoor and outdoor settings.

Proaim-Electro-Magnet-Quick-Release-Mitchell-Mount-for-Camera-&-Gimbal-Rigs-3
Proaim-Electro-Magnet-Quick-Release-Mitchell-Mount-for-Camera-&-Gimbal-Rigs-3

02.

Smart & Intuitive Design

Designed with utmost attention to detail, it is both beautiful and sturdy with outstanding stability.

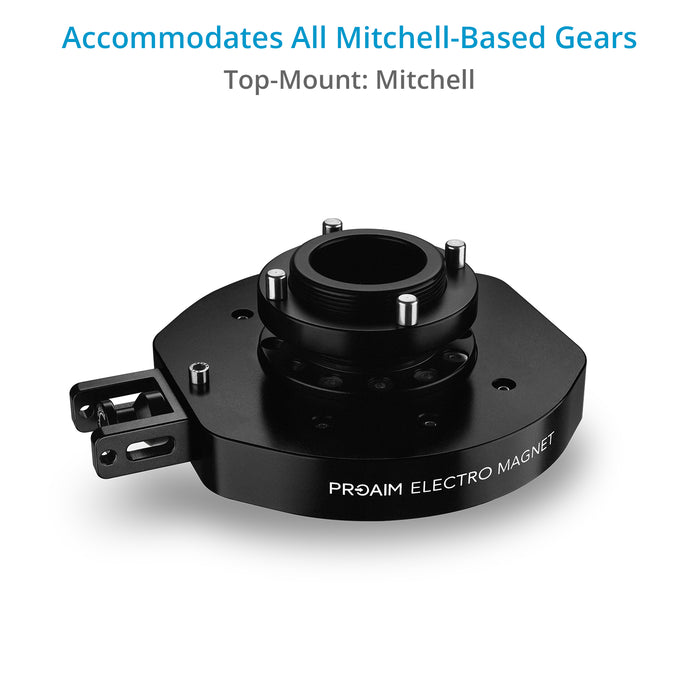

The top mount is the Male Mitchell mount, which accommodates all industry-standard Mitchell-based gears.

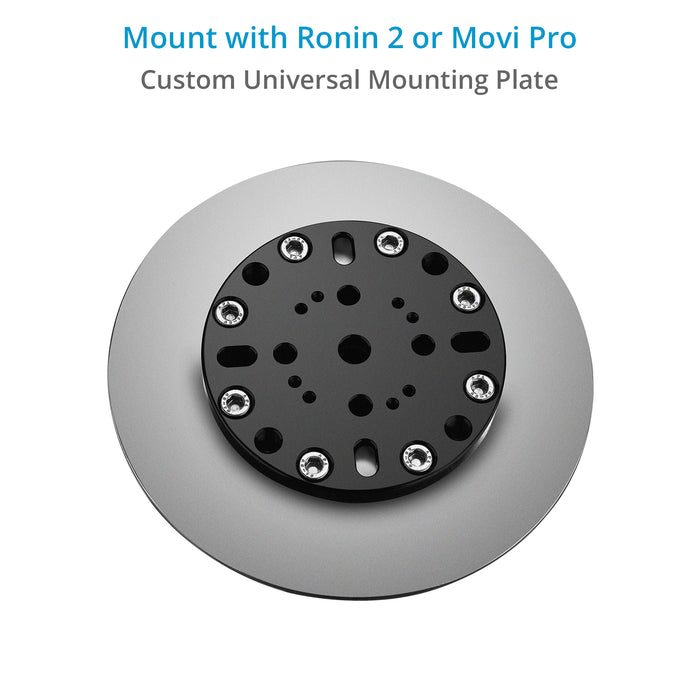

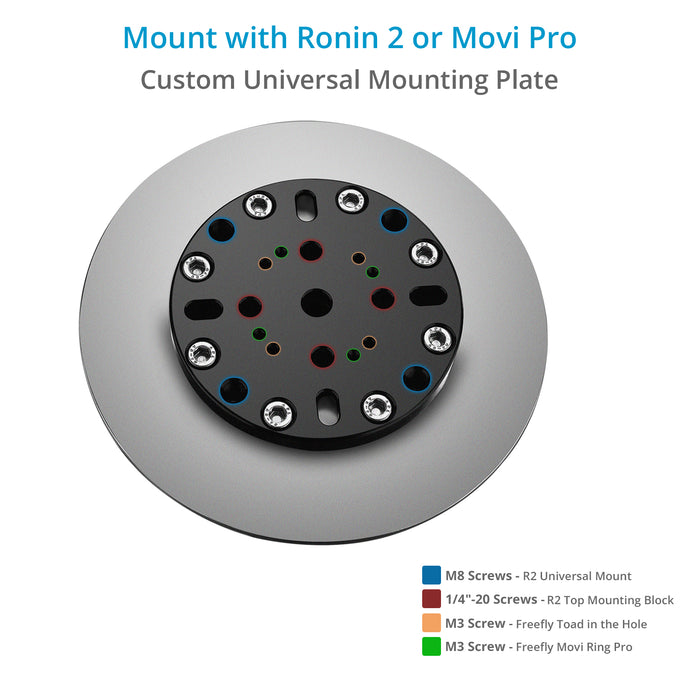

And it has a steel plate with a built-in Universal Plate for the bottom support that is easily compatible with DJI Ronin 2 or Freefly Movi Pro.

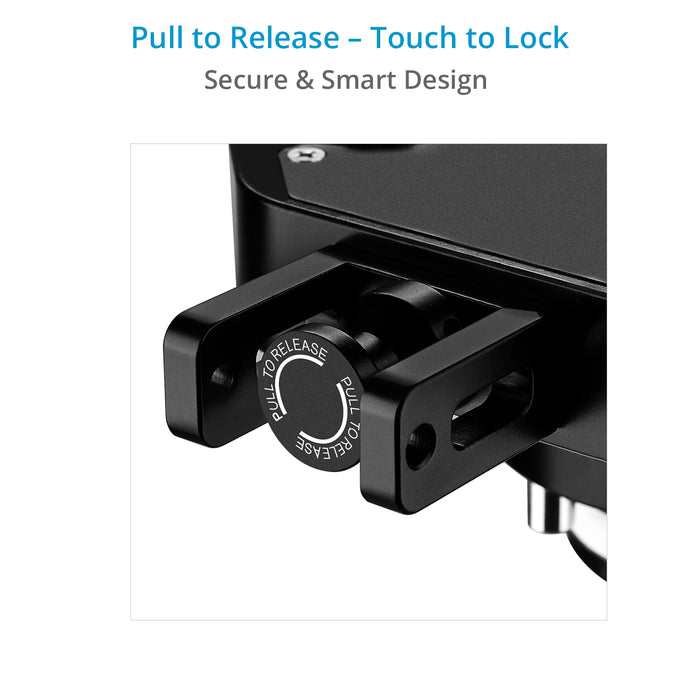

This strong electromagnet can support a payload of up to 50kg/110lb, and unlike other magnets, it has a built-in pull motion rather than a pushing button to release. >

03.

Adaptable & Convenient

The electromagnet runs on P-tap power from any 12-volt P-tap source, and we have included a P-tap power cable to power your electromagnet from the V-Mount battery.
In addition to that, it comes with a V-lock plate with a P-tap out for V-mount battery mounting.
We also provide a Mitchell castle nut wrench for quick and secure Mitchell mount castle nut adjustment.

Proaim-Electro-Magnet-Quick-Release-Mitchell-Mount-for-Camera-&-Gimbal-Rigs-3
Proaim-Electro-Magnet-Quick-Release-Mitchell-Mount-for-Camera-&-Gimbal-Rigs-3

04.

Exceptional Safety

This electromagnet release offers you some great safety features.
Firstly, the release bottom is protected by a mechanical key so that whenever your rigs are positioned beneath the magnet, nobody can touch the button release, making it highly secure.
Next, a unique safety feature inside the Electro Magnet keeps the gadget in place even when the batteries run out or lose power.

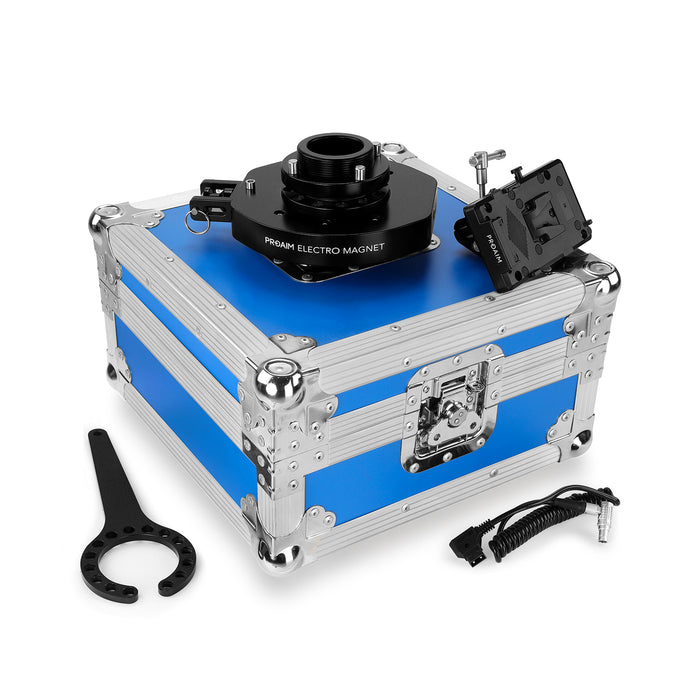

And it comes securely and snugly packed in a solid and durable flight case with a unique foam liner for easy traveling and secure storage.
