Proaim Airwave V15 Camera Vibration Isolator Arm (15-50kg/33-110lb)

For 3-Axis Ronin/Movi Gimbals & Stabilized Heads

Save 12% Save 12%
Original price US $2,349.00
Original price US $2,349.00 - Original price US $2,349.00
Original price US $2,349.00
Current price US $2,061.00
US $2,061.00 - US $2,061.00
Current price US $2,061.00
SKU : VI-ARWV-15


Don't Miss Out on the Action!

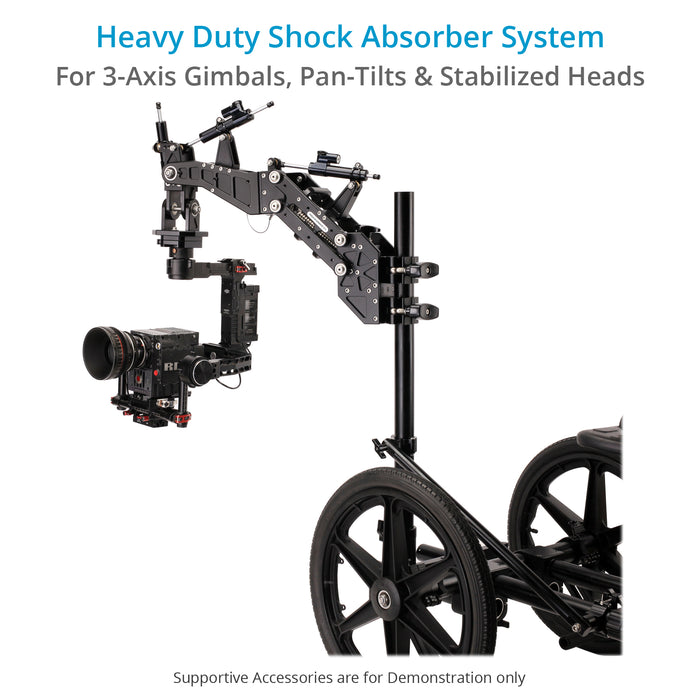

Mount the Proaim Airwave Arm onto any Moving Platform and Curate a Perfect Action or Chase Sequence.

Proaim Airwave V15 Camera Vibration Isolator Arm (15-50kg/33-110lb)

Super Smooth Footage

Cut Down Vibrations and other Noise from your Shot!

Proaim Airwave V15 Camera Vibration Isolator Arm (15-50kg/33-110lb)

Compatible with All Gimbal Systems

The Arm ensures a secure attachment of Ronin, Movi, Tilta or any other Gimbal System presently on the market!

Proaim Airwave V15 Camera Vibration Isolator Arm (15-50kg/33-110lb)

Calibrate to Your Needs

Adjustable Springs and Dampers help you adjust your Airwave Arm precisely to your setup.

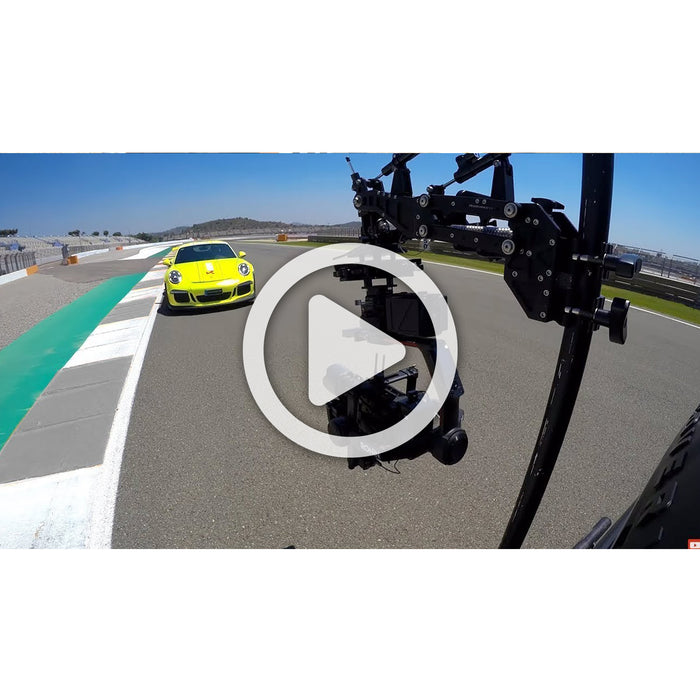

See how the Airwave V15 Works

Arm Specifications

Construction

  Commercial-grade Aluminum

Arm Payload

  15-50kg/33-110lb

Connectivity

  Connects to 38-65mm Scaffold Pole

Dimensions of Arm

Proaim Airwave V15 Camera Vibration Isolator Arm (15-50kg/33-110lb)

Lift range

  24"

Temperature Range

  -20° to +50°

Product Weight

  10.91kg/24lb

Product Weight with Flight Case

  28.5kg/62.8lb

Dimensions of Flight Case (Without Packing) LxWxH

  58cm x 55cm x 30cm

In the Box

Airwave V15 Camera Vibration Isolator Arm
Ronin Plate (DJI-QR)
Nose Plate
L Plate
Flight Case

User Manual

01.

Airwave V15 Arm: Get the Most Stable Shots from Moving Platforms!

Proaim Airwave V15 Camera Vibration Isolator Arm spawned from the idea of making the most versatile isolator system while still being affordable.

The V15 Arm works in conjunction with the Gimbal and assists in Removing High-Frequency Vibrations and Damping Low-Frequency Oscillations.

The Dual Spring configuration of the V15 absorbs all excessive shocks, jerks from a fast-moving vehicle or uneven terrain while the custom dampers dampen the movement of the Arm and only transfer a softer and smoother range of vibrations to the Gimbal.

Proaim Airwave V15 Camera Vibration Isolator Arm
Proaim Airwave V15 Camera Vibration Isolator Arm

02.

Integrated Roll and Tilt Damper System

The V15 has an integrated Roll and Tilt Dampening System that smoothens the sudden jerks, vibrations and the movement caused by taking a sharp turn or sudden acceleration and deacceleration. This results in extraordinarily natural, stable and smooth video output.

03.

Ultimate Damping, Peak Shock Absorption, Lifting Capacity and Stability

We have spent countless hours in perfecting the shock absorption and damping action of the Arm to suit varied types of setups you may want to use with the Arm.

The backbone of the V15 Arm is the Dual Stainless-Steel Springs and Custom Actuator Hydraulic Dampers.

The spring tension can be easily adjusted with the help of the included Allen Key, and it'll perform optimally throughout its range of motion for all kinds of loads..

The damping action of all axes, vertical, tilt and roll depending on the load placed on the Arm and how fast you plan on going. The damping can be adjusted with a knob that has 22 steps, to precisely dial in the exact amount of damping you need for your shot.

Proaim Airwave V15 Camera Vibration Isolator Arm
Proaim Airwave V15 Camera Vibration Isolator Arm

04.

Quick, Easy and Reliable Setup

Mounting a Camera Setup reliably to a Moving Platform can require lots of additional grip and rigging. It takes time and doesn't guarantee that the output would be completely smooth.

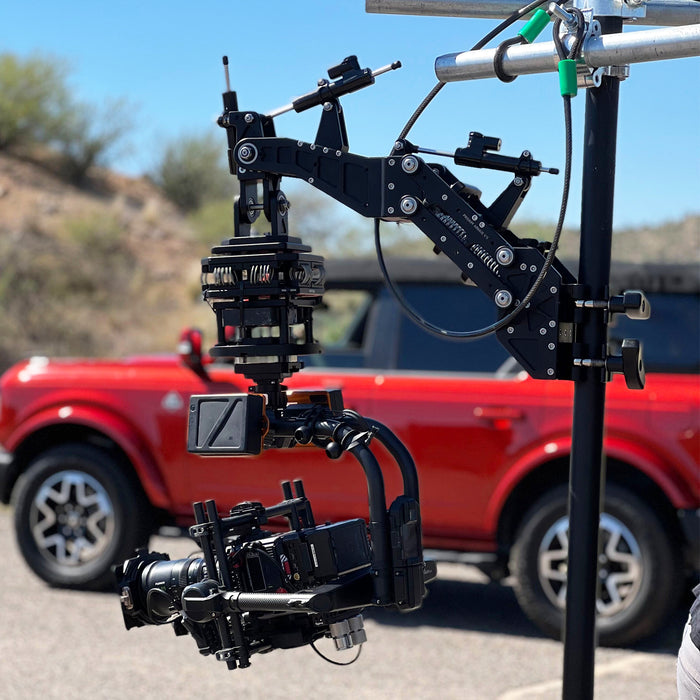

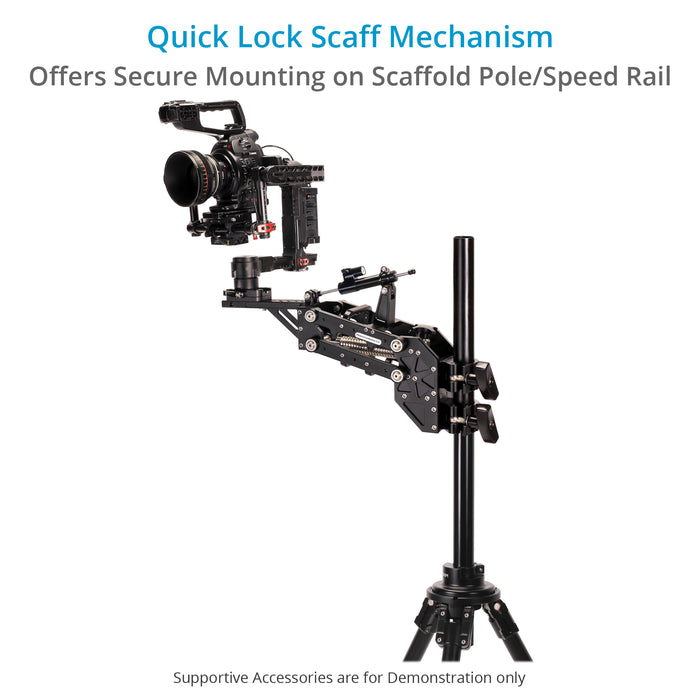

The Airwave V15 Arm can be securely attached to any Scaffold Pole or Speed Rail with a quick-lock Scaff Mechanism which is extremely robust and stable.

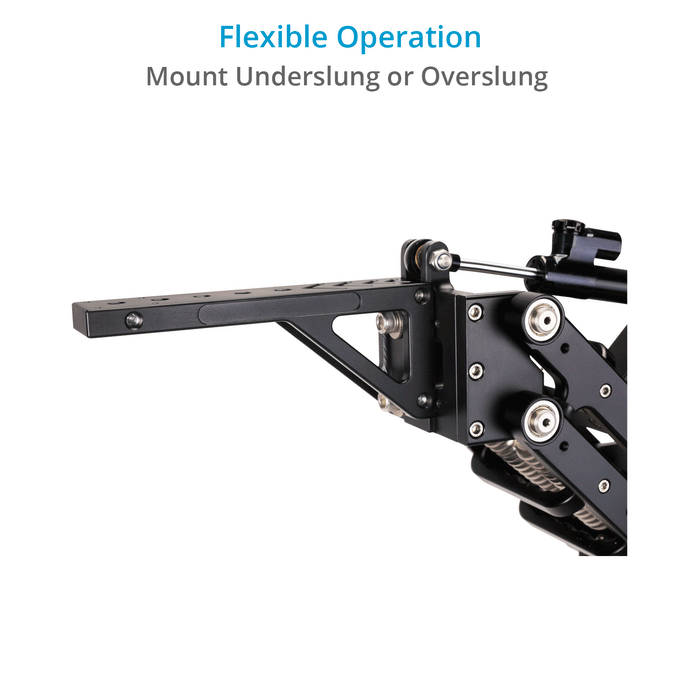

The V15 Arm can be configured in low mount, underslung and over slung mount to capture the best perspective.

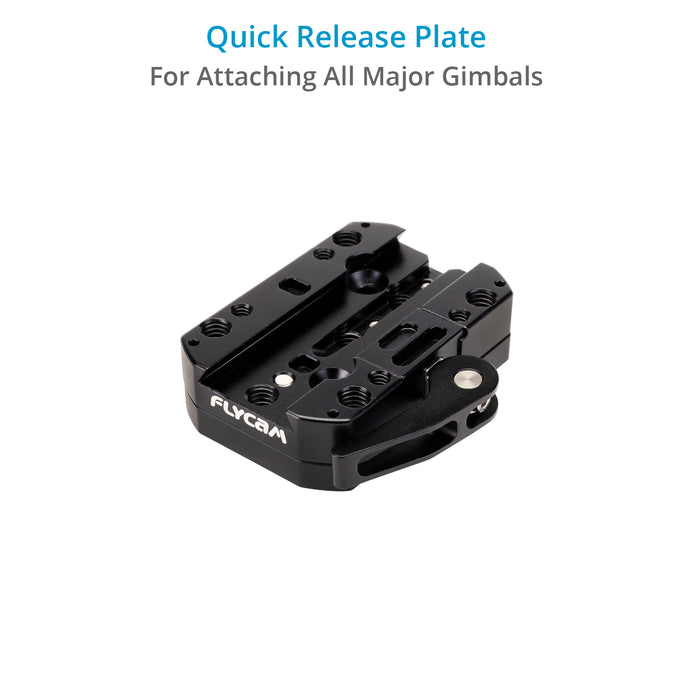

You can mount the Ronin M/MX directly to the Arm with the use of Ronin Quick Release provided with the Airwave V15. All other Major Gimbal Systems can be installed similarly by the use of a Quick Release plate available on our website.

05.

Protect your Gimbal, Increase its Life

If you hard-mount a gimbal setup to a moving platform, any jerky movement creates an enormous amount of stress on the Motors and Bearings of the Gimbal as it tries to stabilize the camera.

High-Frequency Vibrations created by moving parts such as motors, rotor blades or propellers and Low-Frequency Oscillations such as the sudden changes in direction, are all absorbed by the Arm's Springs and Dampers. It reduces the stress on your gimbal motors that now have to work only to stabilize a softened range of vibrations which in turn increases the life of your Gimbal.

Proaim Airwave V15 Camera Vibration Isolator Arm
Proaim Airwave V15 Camera Vibration Isolator Arm

06.

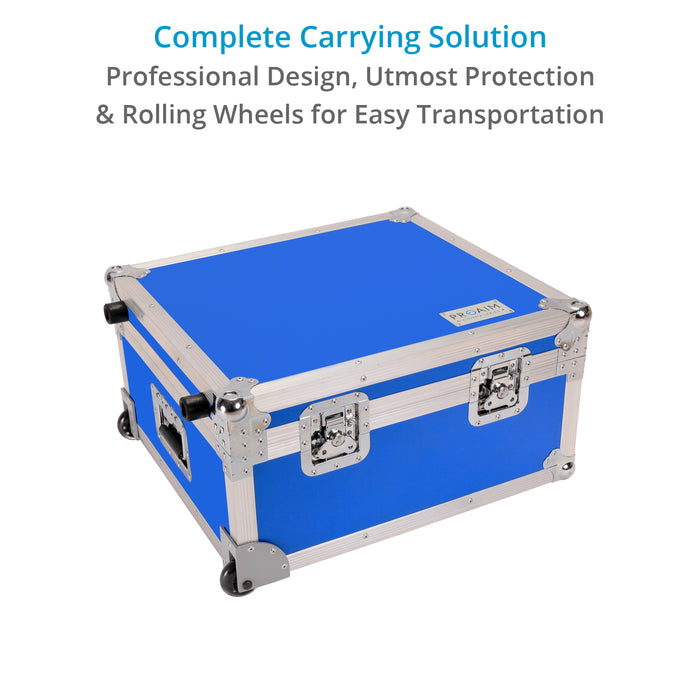

Compact and Safe Flight Case

The Proaim Airwave V15 Shock Absorbing Arm comes complete with a rolling Flight case with custom foam inserts to ensure complete protection for the Arm. The compact flight case is easy to carry with you to different sets and locations.

Why the Proaim Airwave V15 Arm would be the Best Choice

Price

There is no other product in the market with this many features even close to this price range. We offer Value for Money!

Stainless-Steel Springs

Custom Made Stainless-Steel Springs that can withstand continuous shocks and vibrations over an extended period.

Custom Made Dampers

They are especially suited for this application.

Quickest Setup Time

One-Man Assembly!

Versatility

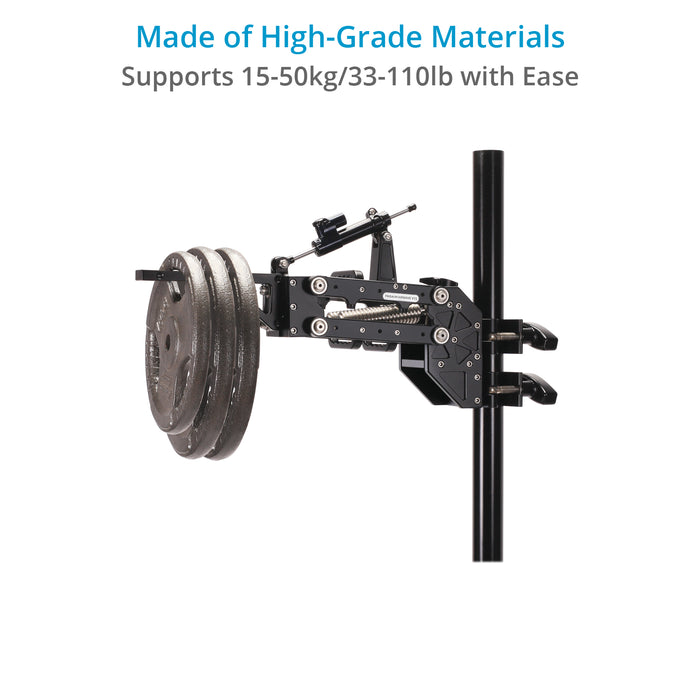

Adapt it to any Camera + Gimbal Setup ranging from 15kg to 50kgs, and it'll function precisely the way you need it.

Proaim Airwave V15 Camera Vibration Isolator Arm

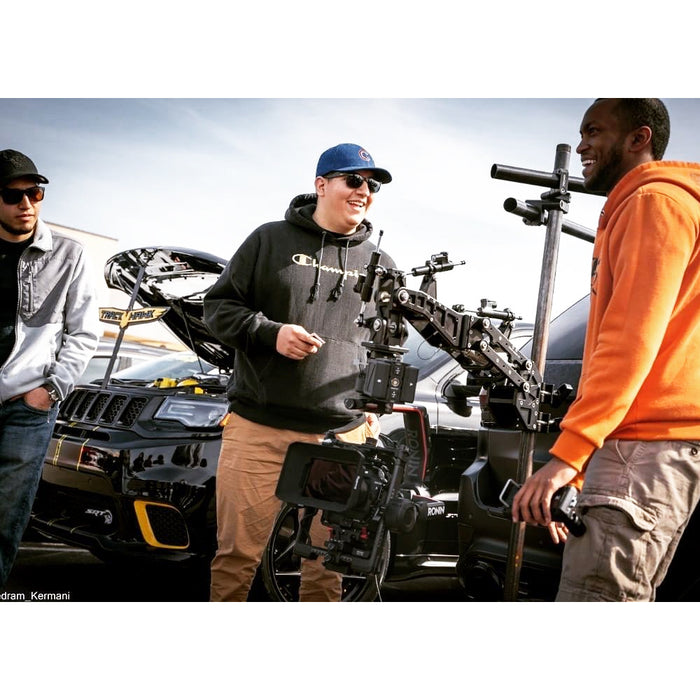

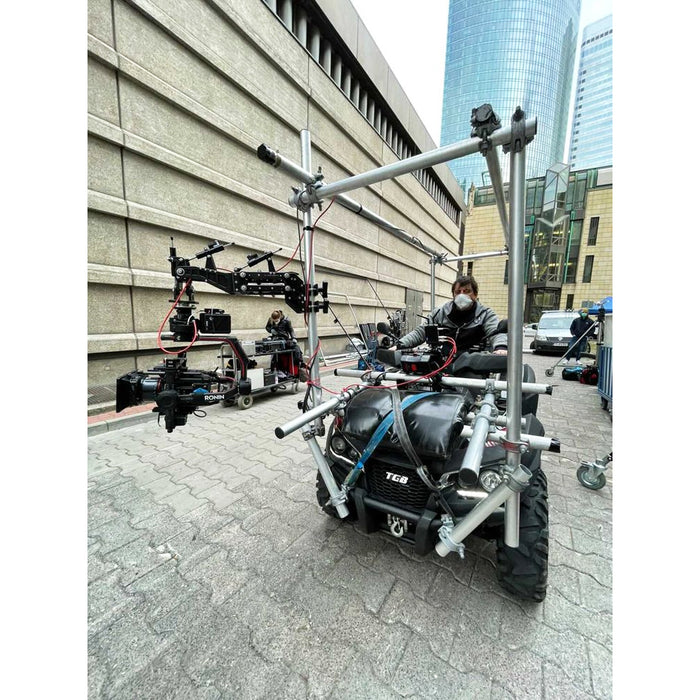

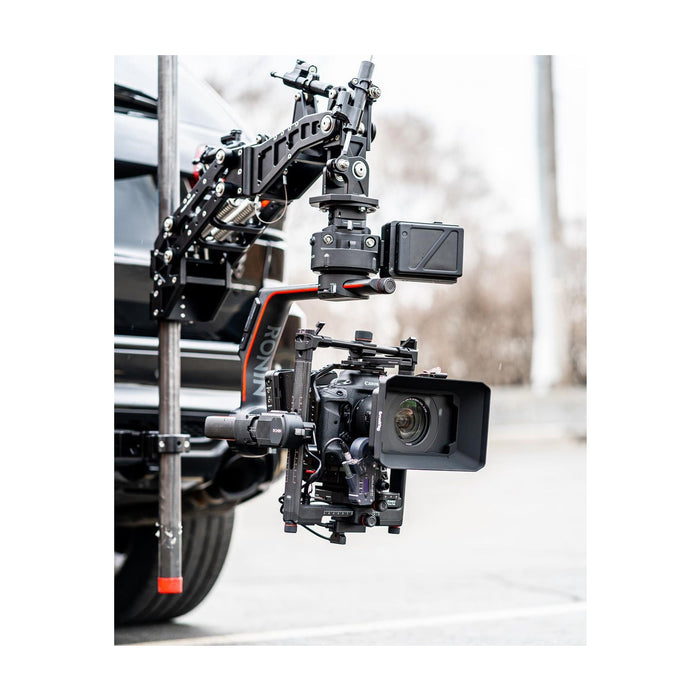

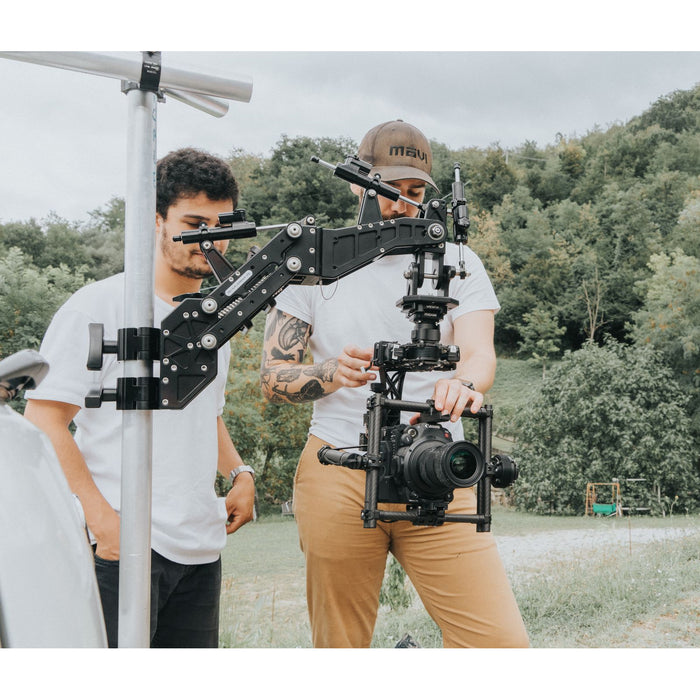

AIRWAVE V15 AROUND THE WORLD

Proaim Airwave V15 Camera Vibration Isolator Arm
Proaim Airwave V15 Camera Vibration Isolator Arm
Proaim Airwave V15 Camera Vibration Isolator Arm
Proaim Airwave V15 Camera Vibration Isolator Arm
Proaim Airwave V15 Camera Vibration Isolator Arm

delivery

Guaranteed Fast Delivery
For all orders

customer service

Quick and Efficient
Customer service

easy returns

Easy Returns
Up to 30 days

warranty

1-Year Warranty
On All Products





  • Am I able to connect movii XL to this proaim v 15 arm? If not what adapter do I need?

    Yes, Movii XL can be connected with Proaim Airwave v15 arm with the help of P-GMP-01 & QR-MOVI accessories.

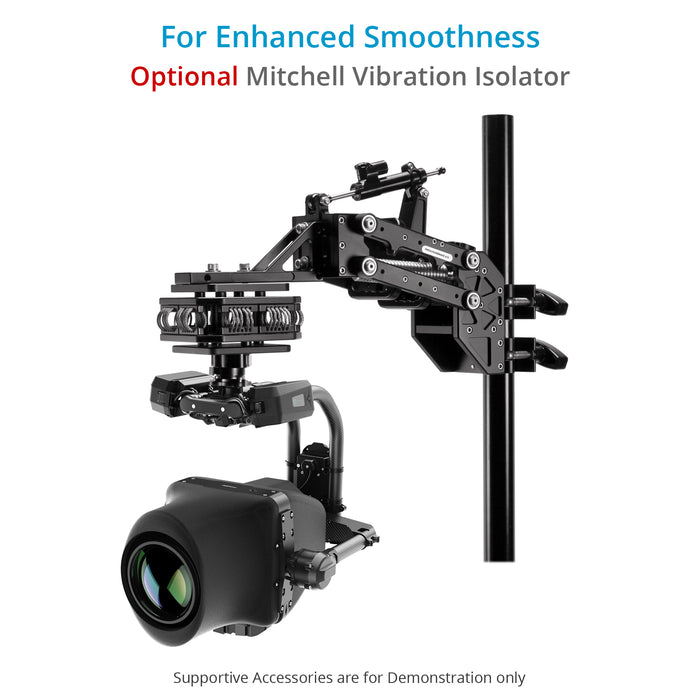

  • Can I attach Glide vibration isolator with Airwave v15 ?

    Yes, the Proaim Glide 4-Dimensional Vibration Isolator can be attached with the Proaim Airwave V15 isolator arm.
