Proaim 7' Wave-2 Jib with CST-100 Stand, Portable Dolly & Jr. Pan Tilt Head
Best Travel Crane Package for Outdoor extremes & Indoor Studio Shots !!
PROAIM welcomes you to the new and modernized era with its Proaim 7' Wave-2 Jib with CST-100 Stand, Portable Dolly & Jr. Pan Tilt Head, a portable filming solution to increase your production value. The Robust jib crane is specifically designed travel crane for indoor & outdoor video productions. Its telescopic arm feature adds flexibility to frame perfect shots in indoor and outdoor spaces. This video production package includes a rugged camera dolly for smooth, dynamic moving shots, rock solid aluminum tripod stand for immense support, a rugged pantilt for creative angle shots. Now you can create the visual effects and produce incredibly smooth floating camera crane shots that add value to your filming productions and bring a quick return on your investment.
"WHAT YOU SEE IS WHAT YOU GET"
Exclusive of Weights
(Revised on 12-March-2020)

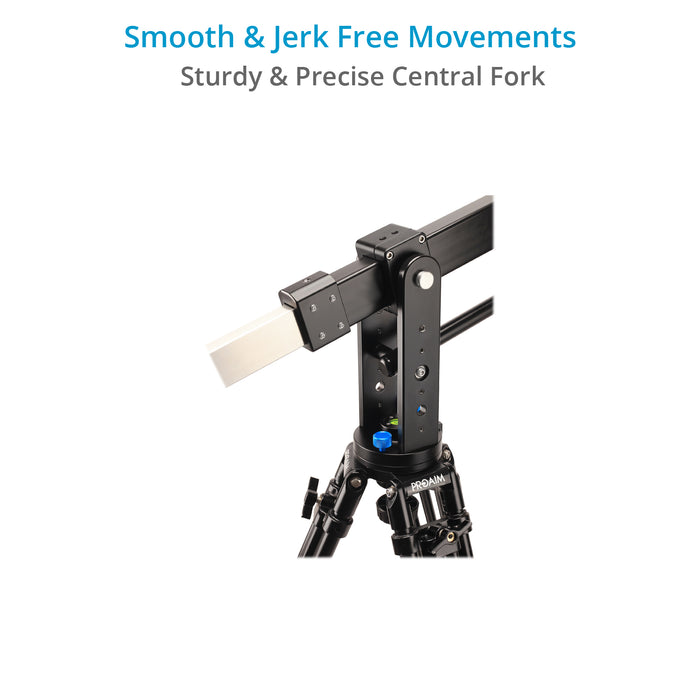

ROBUST CAMERA HEAD MOUNT

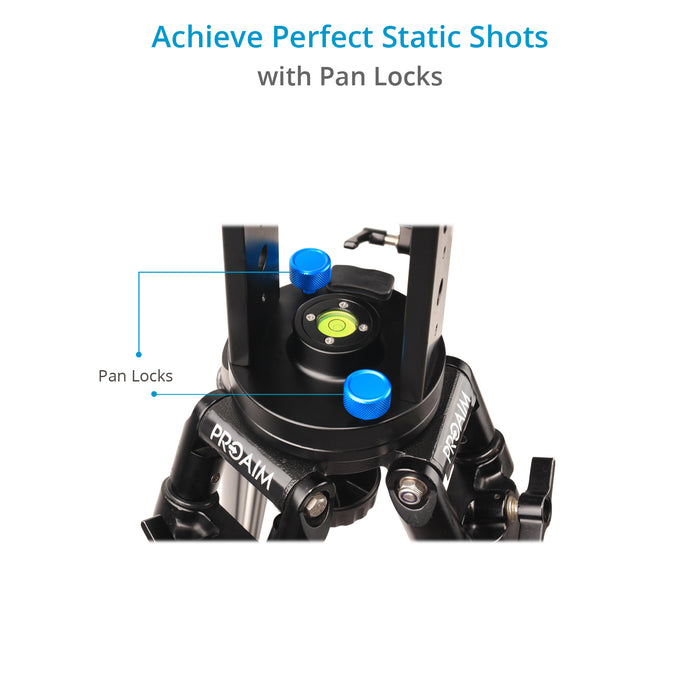

PANNING KNOBS & BUILT IN BUBBLE LEVELER

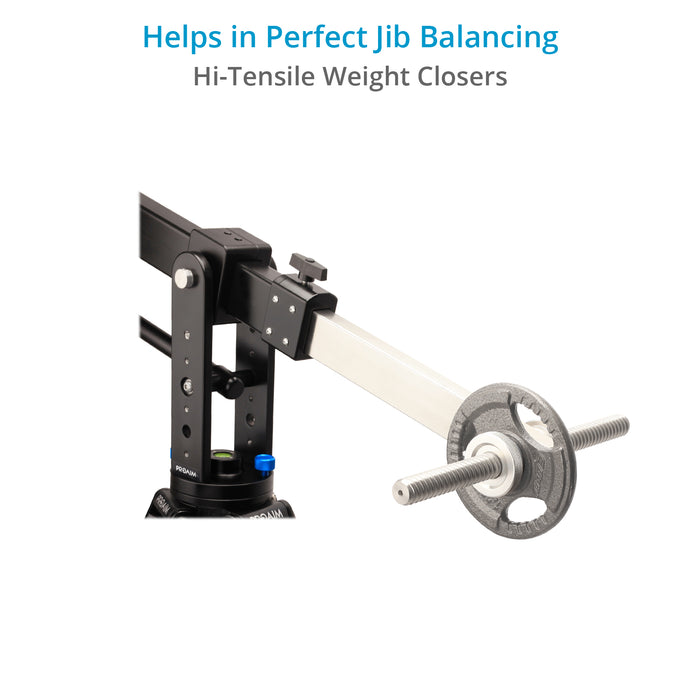

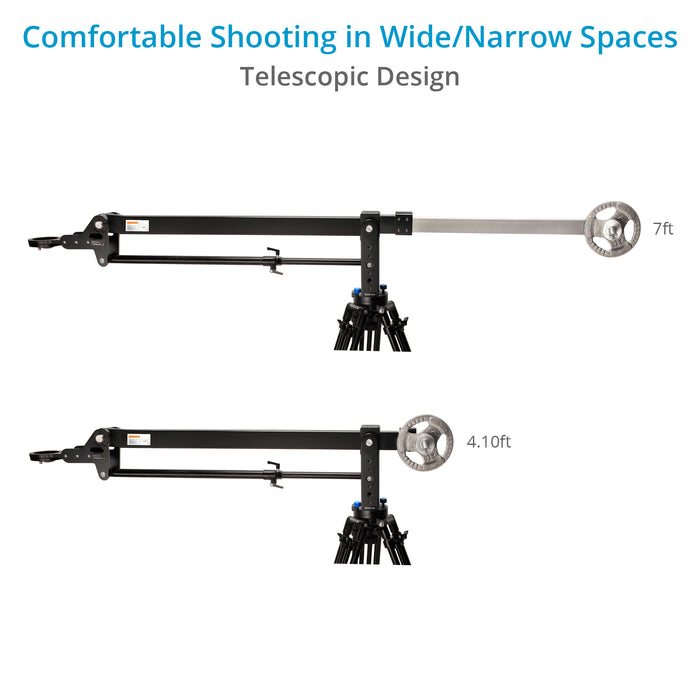

This travel friendly jib extends backward as per operator convenience for better control.
High Grade Tripod Stand
The Heavy duty stand is constructed to carry heaviest of loads with an ease. The Sturdy base ensures strong connection between the jib crane and tripod stand, extra solid knobs for secure locking.
PROAIM PORTABLE DOLLY
High Strength Dolly
The versatile 3-Leg Proaim Portable Camera Dolly turns your Tripod into camera tracking device and allows you to take silver screen-worthy movement with a max payload of 500kg/1100lb.

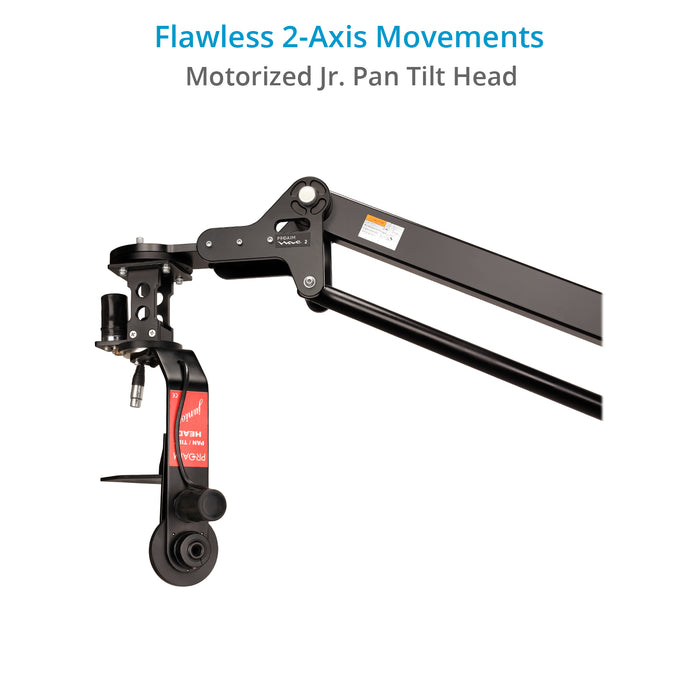

JR PAN-TILT HEAD
Its fully functional 2-axis Jr. Pan Tilt Head that offers 360-degree panning and tilting ability while keeping your camera safe and secure. The remote head is exceptionally engineered to bear maximum camera load capacity up to 6kg (13.2lb) or less with an ease.

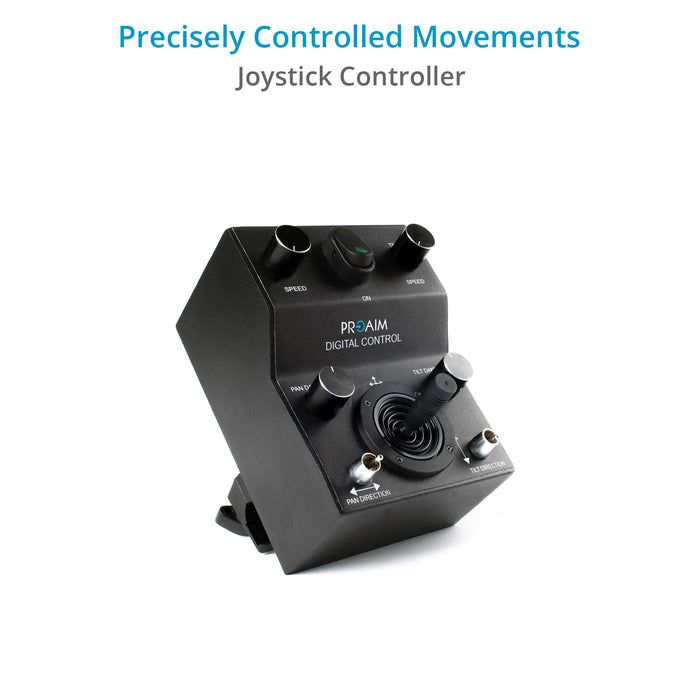

Dead Spot controls the sensitivity of the joystick on the pan tilt head. When turned on, there will be no motion on the pan tilt up to particular area on the joystick which prevents the unwanted movements and gives you a better control.
Adjusts the speed of pan & tilt based on the requirement of shot.
Damping control prevents the head from stopping with a jerk enabling you to achieve smooth endings.
Pan tilt Direction
You can reverse the panning & tilting direction as & when required.
PROAIM LANC ZOOM CONTROLLER
Proaim’s Lanc zoom controller is a universal controller for both LANC and Panasonic DV cameras, with a converter switch that allows for variable-zoom speed from slow to fast. The control zoom lever allows you to zoom out to wide-angle or zoom in to telephoto.

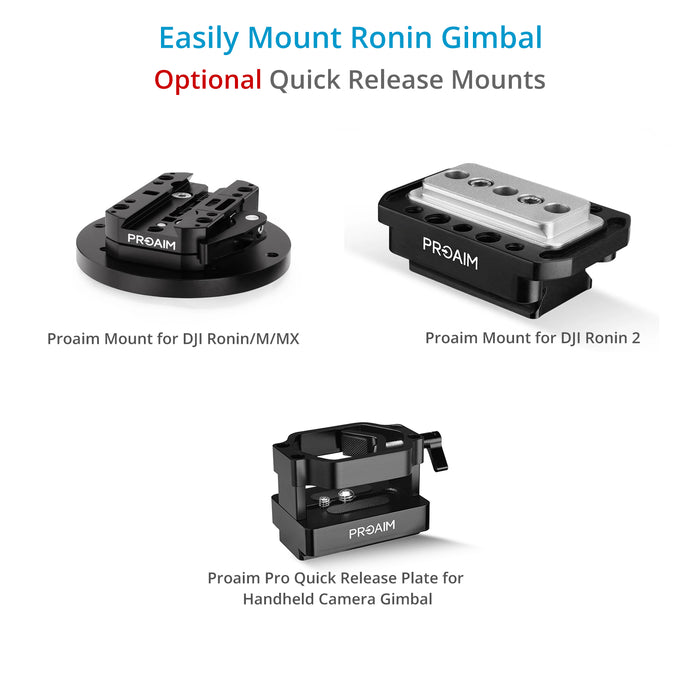

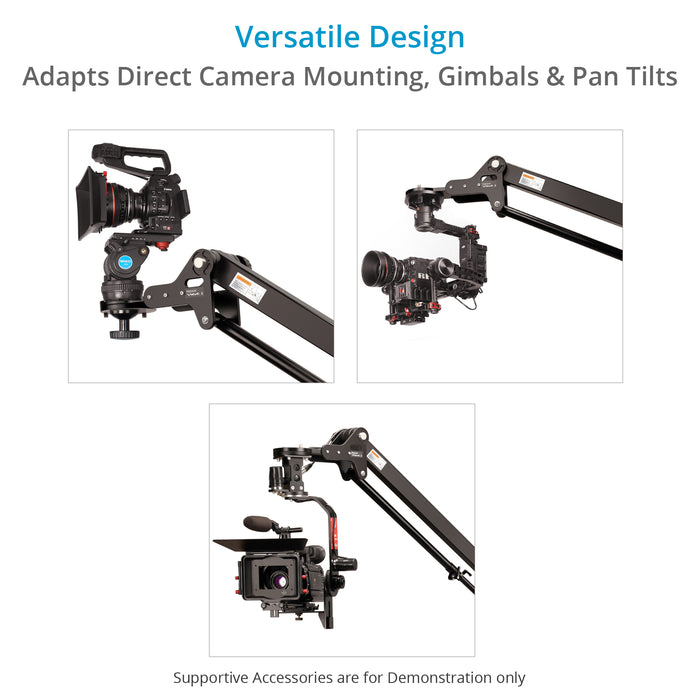

Mounting 3-Axis Gimbals is Possible!
Proaim Mount For DJI Ronin/M/MX (Optional)

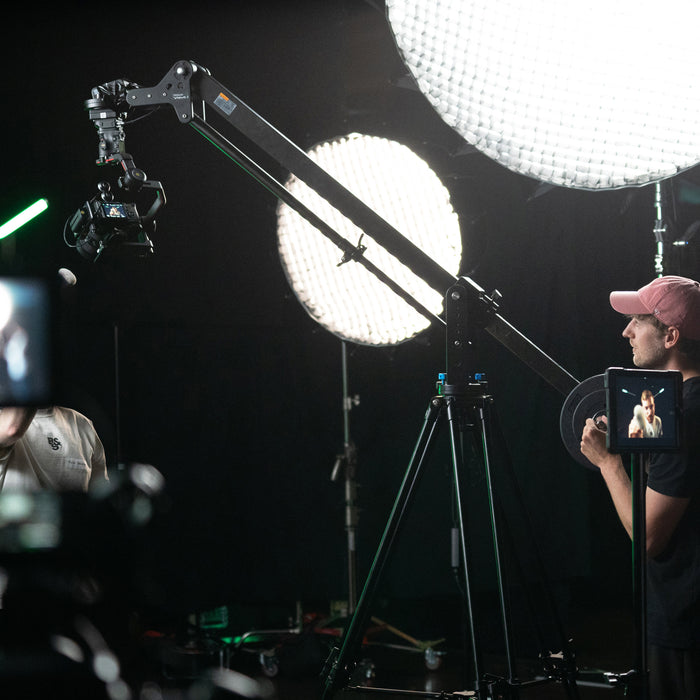

Think of Possibilities… Think of 7' Wave-2 Video Jib Crane
Bring a whole new dimension to your videos by moving your camera from a very low shot to a high shot smoothly and efficiently

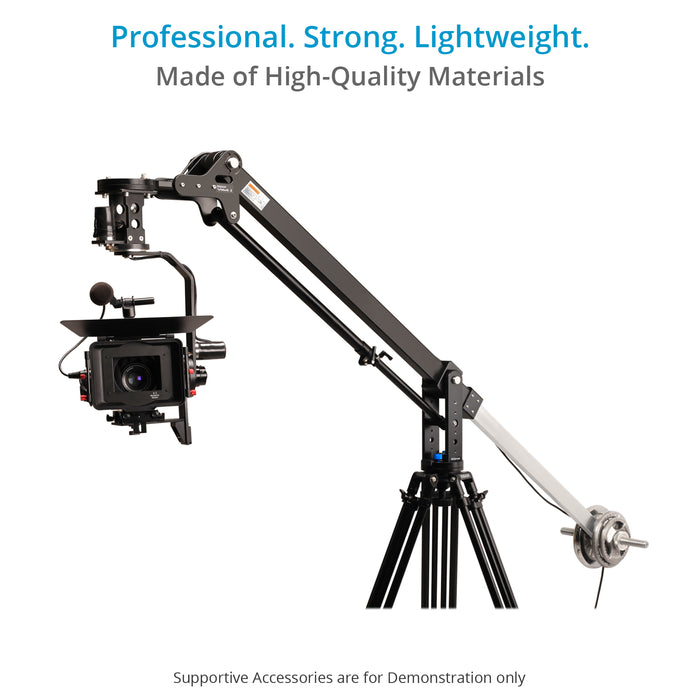

The supportive accessories are for Demonstration purpose.
CAMERA JIB ARM
- Load Capacity : 25kg/55lb.
- Tripod mount :100mm diameter

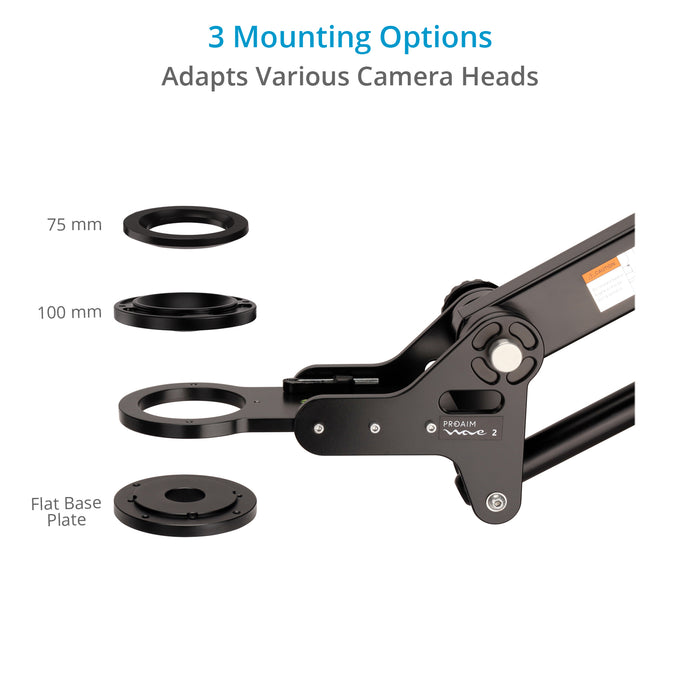

- Camera Mount Bowl :100mm and 75mm head (with ring )
- Construction: Robust Aluminum & Stainless Steel
- Pan Radius :360 Degrees
- Jib Pan Lock: Yes (via pan friction knobs on U-Hub)
- Jib Tilt Lock: No
- Camera Plate Tilt Lock: Yes (via adjusting the camera head plate knob and ratchet knobs on jib arm)
100MM BOWL TRIPOD STAND
- Max length of tripod - 60 inch
- Minimum length of tripod - 34 inch
- Collapsible height - 36 inch
- Tripod tubes made of Aluminum
- Diameter of tripod tubes - 20mm and 14mm
- Load capacity – 80kgs /176lbs
- Tripod Weight-6.50 kg
SPECIFICATIONS OF SPREADER
- Payload upto: 400kg / 880lb
- Spreader height: 50mm/2inch
- Build up radius Minimum: 41 - 66cm / 16 - 26inch
- Compatible with All Tripods with Twin Spiked Feet
- Product weight (without packing): 2.47kg / 5.44lb
- Weighing capacity-500kg.
- Weight of Product -10.7kg/23.5lb
- Hi-grade Aluminum tripod dolly for durability.
- Quality design and construction.
JR PAN-TILT HEAD
- Maximum Camera Package Load Capacity-6kg (13.2lb)
- Pan, tilt -360 degrees
- Slowest Speed-2 minutes
- Highest Speed-7 seconds
- Minimum height of head- 18.5 inches
- Maximum height of head-22 inches
- Weight of Pan Tilt head-2.7kg (5.9lbs)
- 2 Big Aluminum Gears (Dia- 88mm)
- 2 Small Brass Gears (Dia-13.5mm)
LANC ZOON CONTROLLER
- Control- Exchange switch: LANC / P
(LANC - Most Sony and Canon cameras with LANC jack/P - Panasonic cameras with Cam Remote jack)
REC: Record start/stop
ZOOM: Zoom lever can be variable for zoom speed
- Physical- Clamp distance (diameter): 0.4 - 1.2" (10 - 30mm)
Connector cable: 2.5mm Stereo mini jack
- Proaim 7’ Wave-2 Video Crane Jib
- Proaim CST-100mm Bowl Tripod stand (CST-100-01)
- Proaim Portable Dolly (P-PRT-D) (Revised on 08-Mar-2017)
- Proaim Lanc Zoom Controller (P-ZC-3DV)
- Proaim Jr Pan-Tilt Head (PT-JR)
- 12V Joystick Controller
- 75mm Bowl adapter
- Aluminum Spreader (P-AL-SP)

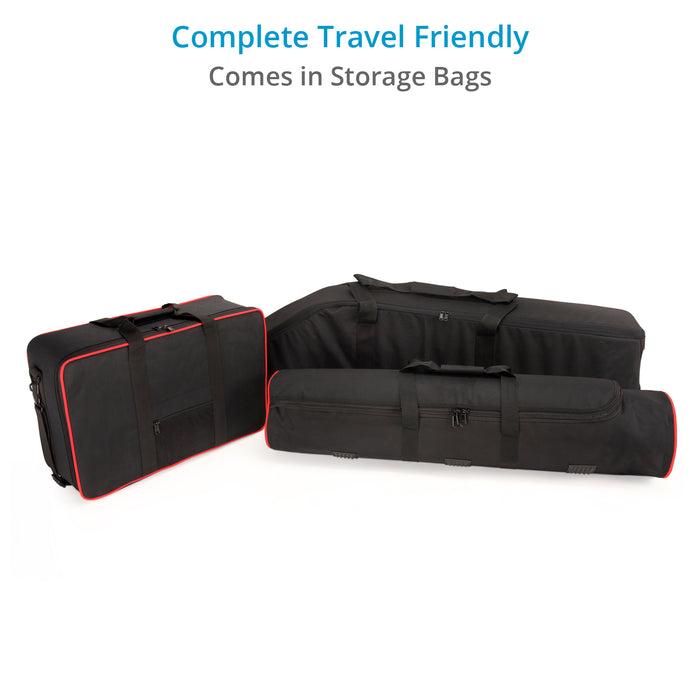

- Storage Bag
