Proaim 40ft Jumbo Film Production Package - Camera Jib Crane w Heavy-Duty Stand, Dolly & 3-Axis Pan-Tilt Head

Payload: 21kg/46lb | For Filmmakers & Production Units

Original price US $5,065.00 - Original price US $5,065.00
Original price
US $5,065.00
US $5,065.00 - US $5,065.00
Current price US $5,065.00
SKU : P-W9P40-JM


Bring a Whole New Level of Creativity to your Shot Creation & Visual Storytelling!

Take Your Next Productions to New Heights!

ELEVATE THE LEVEL OF CINEMATOGRAPHY

Proaim Airwave Vibration Isolator Arm (5-30kg)
Proaim 40ft Jumbo Film Production Package - Camera Jib Crane w Heavy-Duty Stand, Dolly & 3-Axis Pan-Tilt Head

An All-Rounder!

Jib that pushes the boundaries of technology! Combines everything you need to get dramatic sweeping & elevated shots.

Proaim Airwave Vibration Isolator Arm (5-30kg)
Proaim 40ft Jumbo Film Production Package - Camera Jib Crane w Heavy-Duty Stand, Dolly & 3-Axis Pan-Tilt Head

Boosts Creative Strike in You!

Explore your creativity with Spin 3-Axis Motorized Dutch Roll Pan Tilt Head; For filmmakers looking for nothing less than precision.

Proaim Airwave Vibration Isolator Arm (5-30kg)
Proaim 40ft Jumbo Film Production Package - Camera Jib Crane w Heavy-Duty Stand, Dolly & 3-Axis Pan-Tilt Head

A Rock-Solid Foundation!

Jib Tripod Stand with Heavy-Duty Dolly; Offers a Sturdy base & Easy Transit; Excellent mobility coupled with a hefty payload.

See how the Velvet Steel Track Works

Specifications(Camera Jib Arm)

Construction

  High-Grade CNC Aluminum

Payload Capacity

  21kg / 46.3lb

Jib Sections

  13

Each section length

  3'

Jib Length

  40ft

Jib Arm Wall Thickness

  3.5mm

Crane Pan Lock

  Yes

Dimensions

Proaim Wave-9 40ft Camera Crane Base Package

Product Weight (without packing)

  Case 1 = 35.5kg / 78lb
  Case 2 = 33.5kg / 73.8lb
  Case 3 = 32kg / 70.5lb
  Case 4 = 36kg / 79.3lb

Specifications(Big Heavy-Duty Jib Stand)

Construction

  High-grade Solid Aluminum

Height

  Maximum: 4ft 8inch
  Minimum: 3ft

Hub Assembly Diameter

  148mm

Hub Mount Thickness

  14mm

Dimensions

Proaim Wave-9 40ft Camera Crane Base Package

Specifications(Big Heavy-Duty Dolly)

Construction

  High Grade aluminum

Maximum Load capacity

  600kg / 1323lb

Wheels Diameter

  10 inch

Wheels Thickness

  2.45 inch

Central Distance

  40''

Height From Ground

  15 inch

Wheel Lock

  Yes

Dimensions

Proaim Wave-9 40ft Camera Crane Base Package

Product Weight (without packing)

  67kg / 147.7lb

Specifications(Spin-3 Motorized Pan Tilt Head)

Construction

  Aluminium, Brass (Gears)

Load Capacity

  15 kg / 33 lb

Pan/Tilt Range

  360°

Variable Speed

  5 Seconds to 1 Minute 20 Seconds (Slow to Fast)

Gears

  3‐ Big Gears (Dia‐ 100mm)
  2‐ Brass Small Gears (Dia‐ 14mm)
  1‐ Brass Small Pan Gear (Dia‐22mm)

Height Range

  23.5 to 25"

Connectors

  Head Power/Communication:32.8' / 10 m
  Joystick: 9.8' / 3 m

Cable Length

  Communication: 32.8' / 10 m
  Power: 9.8' / 3 m

Camera Platform

  12 x 3" / 30.5 x 7.6 cm

AC Input

  100 to 240 VAC

DC Output

  12 V, 2 A

Dimensions

Proaim 40ft Jumbo Film Production Package - Camera Jib Crane w Heavy-Duty Stand, Dolly & 3-Axis Pan-Tilt Head

Product Weight (Without Packing)

  10kg / 22lb

Packing Info

Product Weight (without packing)

  Case 1 = 41.7kg / 91.9lb
  Case 2 = 41.7kg / 91.9lb
  Case 3 = 41.7kg / 91.9lb
  Case 4 = 41.7kg / 91.9lb
  Case 5 = 55kg / 121lb
  Case 6 = 15.2kg / 33.5lb

In the Box

Proaim 40ft Jib Crane
Big Heavy Duty Jib Stand (HD-STD-B)
Big Heavy Duty Dolly with floor wheels (HDD-B)
Spin-3 (3-Axis) Motorized Dutch Roll Pan Tilt Head (PT-SPIN-3)
FREE Tool and Tool Pouch/Wrap
Storage & Packing Cases

01.

Creative & Professional Shooting Solution

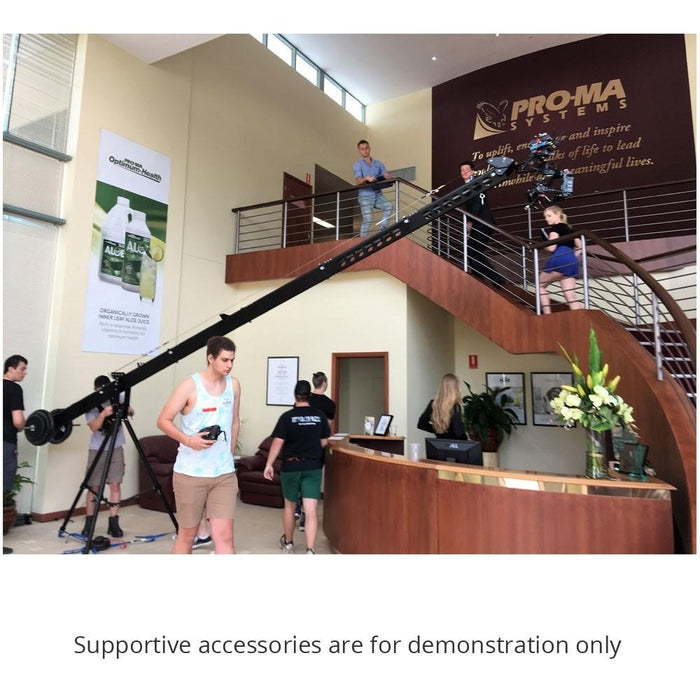

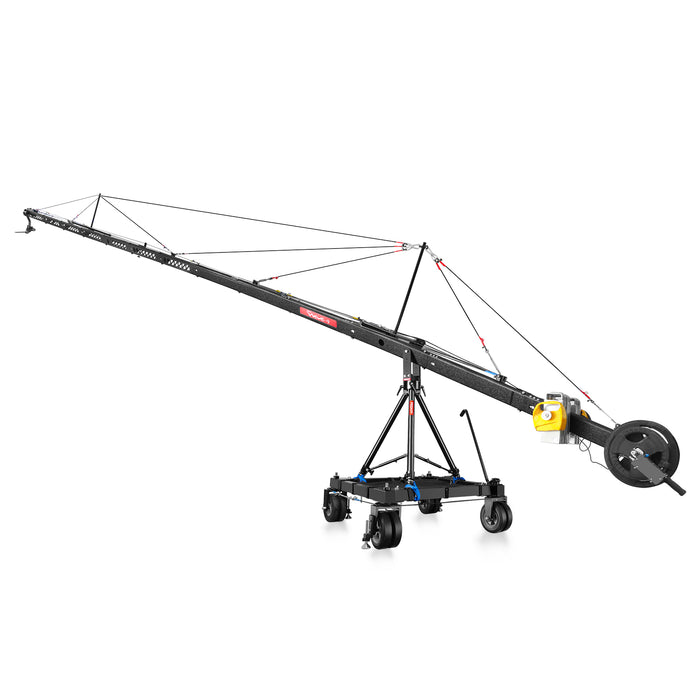

Uplift your creative potential and tempt your audience with suspense and impressive viewpoint using the professional Proaim 40ft Jumbo Crane/Jib with Big Heavy-Duty Stand, Dolly, Motorized head, and a joystick controller.
It lets you capture incredible smooth & dynamic shots while promising high reliability and maximum performance.
The Jib supports Pan Tilt Heads & 3-Axis Camera Gimbals & Video Film & Broadcasting Cameras.
And its sturdy structure made of High-grade CNC Aluminum offers excellent strength with a payload capacity of up to 21kg /46lb.

Proaim 40ft Jumbo Film Production Package - Camera Jib Crane w Heavy-Duty Stand, Dolly & 3-Axis Pan-Tilt Head
Proaim 40ft Jumbo Film Production Package - Camera Jib Crane w Heavy-Duty Stand, Dolly & 3-Axis Pan-Tilt Head

02.

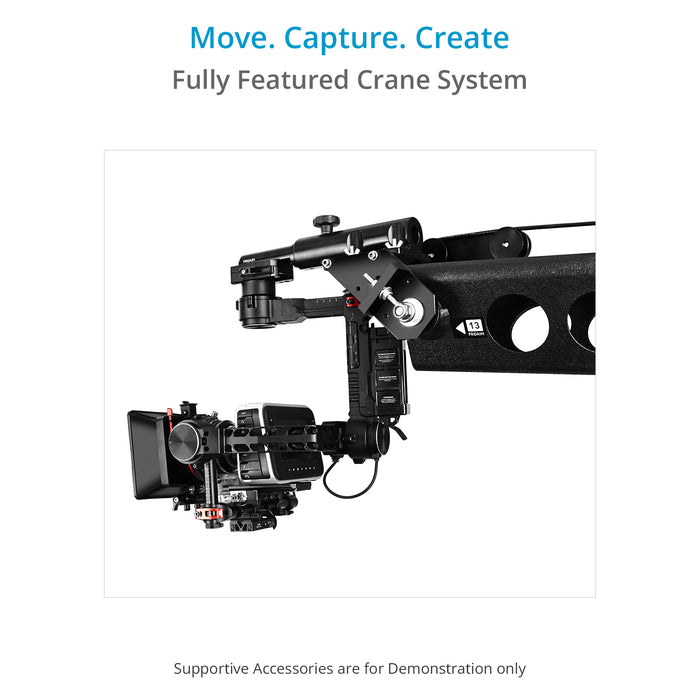

Expertly Crafted High-Performance Jib

Our modular Jib is engineered for optimum reliability and performance.
It features a central Fork that offers smooth pan-tilt movements while absorbing the operator's undesired vibration or movement.

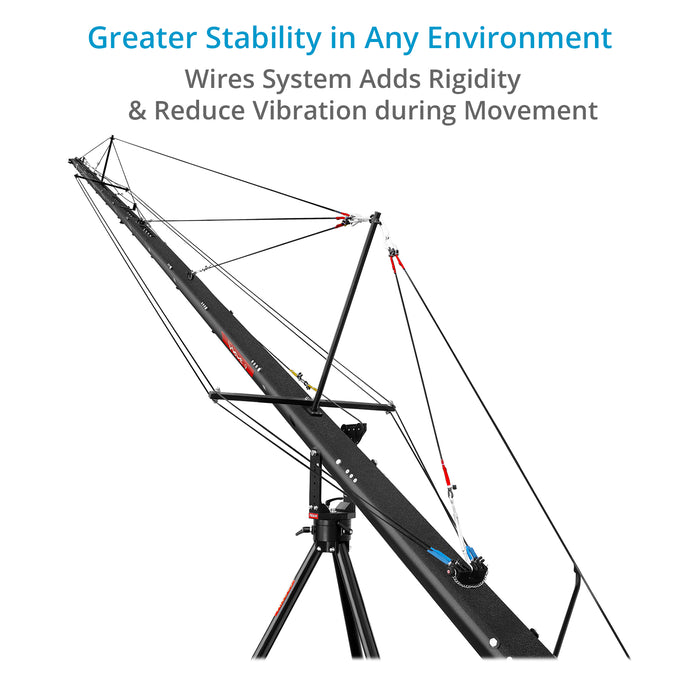

The color-coded suspension cables let you assemble the entire setup quickly.
These cables add stability to your Jib system by limiting distortions in any shooting environment.

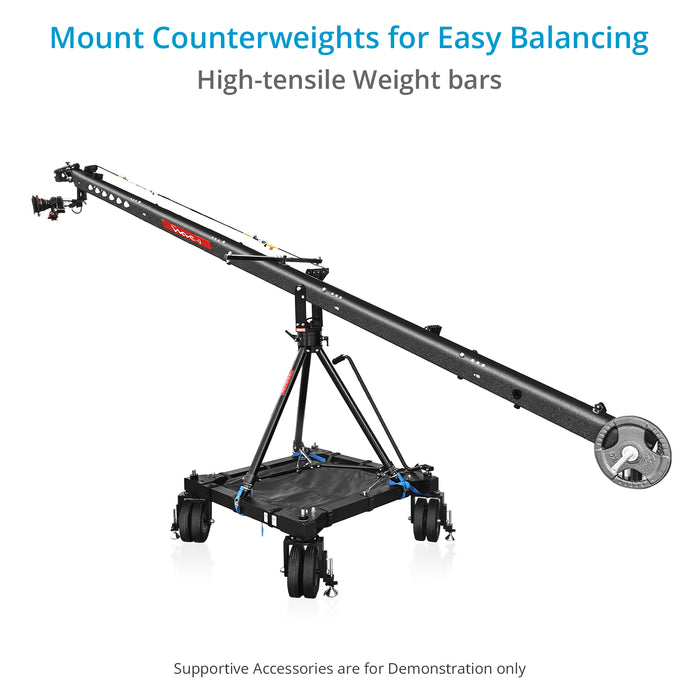

And we have included Hi-tensile weight bars to add counterweights, offering perfect balance for steady and effective shooting.

03.

Smartly Designed Arm Sections

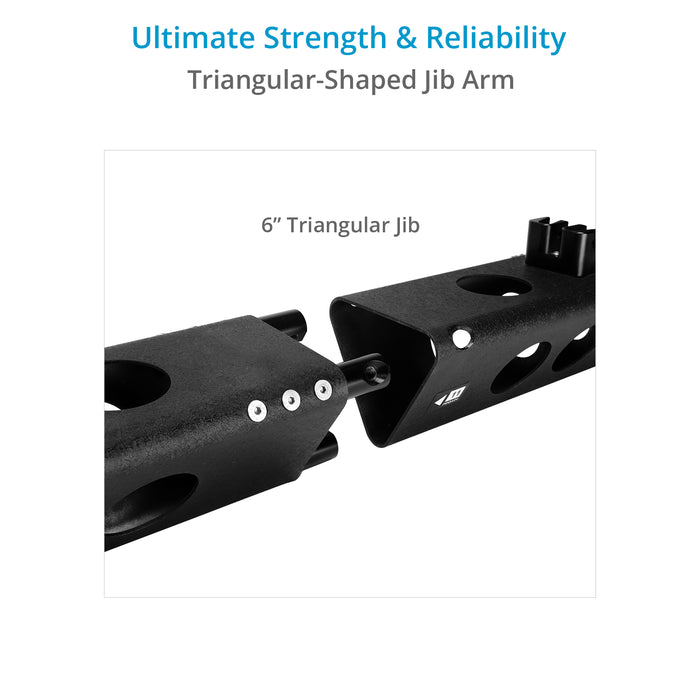

The triangular-shaped jib arm sections are divided into 13 sections, and each section fits smoothly and securely into another one.
It has a dual lock mechanism that strengthens the Crane System and makes it more durable.

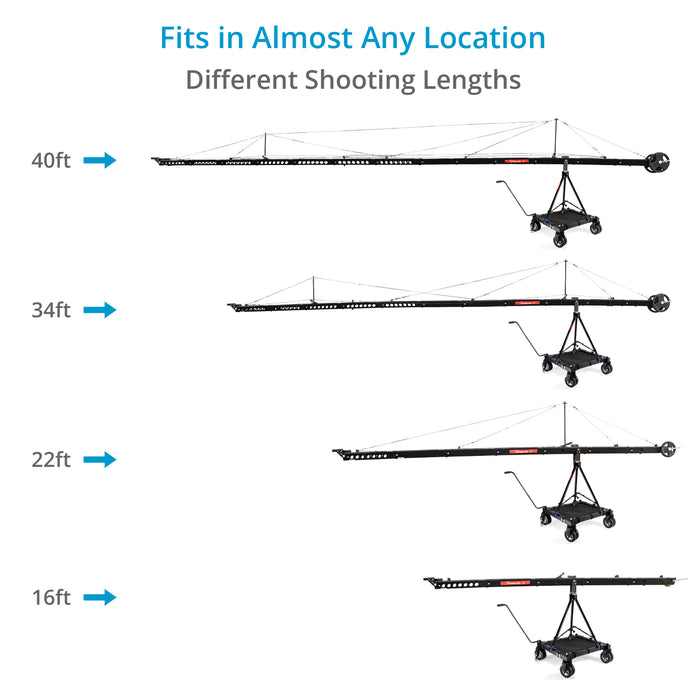

Also, Arm length is adjustable, ranging from 16ft to 40ft (16ft, 22ft, 34ft & 40ft), perfect for any shooting scenarios.
Holes have been added to the tube section to save weight and reduce wind pressure without compromising the strength of the Jib.

Proaim 40ft Jumbo Film Production Package - Camera Jib Crane w Heavy-Duty Stand, Dolly & 3-Axis Pan-Tilt Head
Proaim 40ft Jumbo Film Production Package - Camera Jib Crane w Heavy-Duty Stand, Dolly & 3-Axis Pan-Tilt Head

04.

Endless Creative Possibilities with Pan-Tilt Head

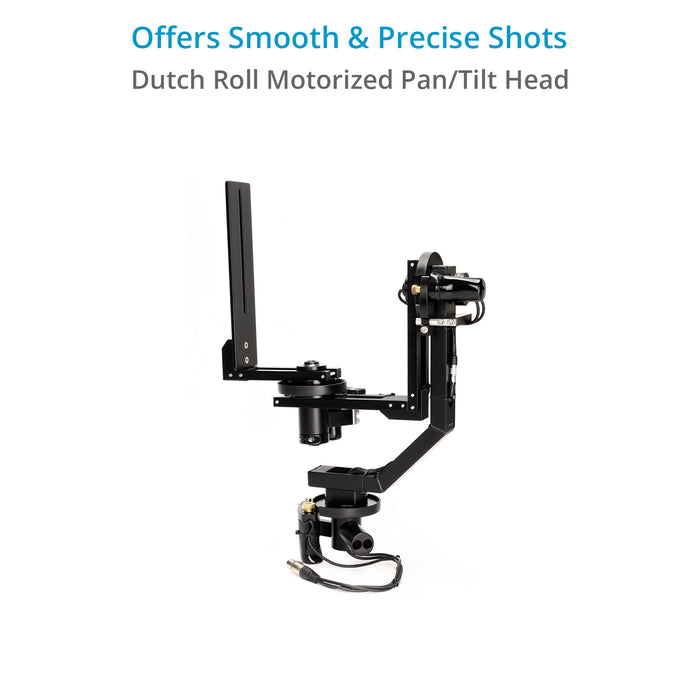

Every jib/crane necessitates a motorized pan/tilt head, so we have included a versatile Spin 3-Axis Motorized Dutch Roll Pan Tilt Head to ensure you get the perfect shot and the exact angle with every shot.
It supports cameras weighing up to 15kg/ 33lb and offers 360-degree panning, tilting, and rolling ability while keeping your camera safe and secure.

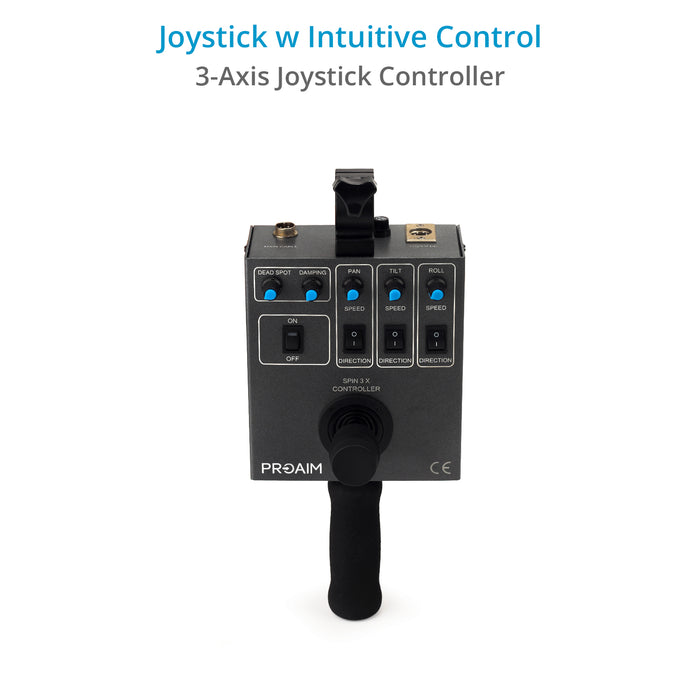

And it is controlled by the smartly designed joystick remote, which gives you control over the Pan, Tilt, and Dutch rolling movement right at your fingertips.
The joystick controller offers you smooth, accurate, and proportional control with customizable settings.

05.

Solid Foundation with Ease of Movement

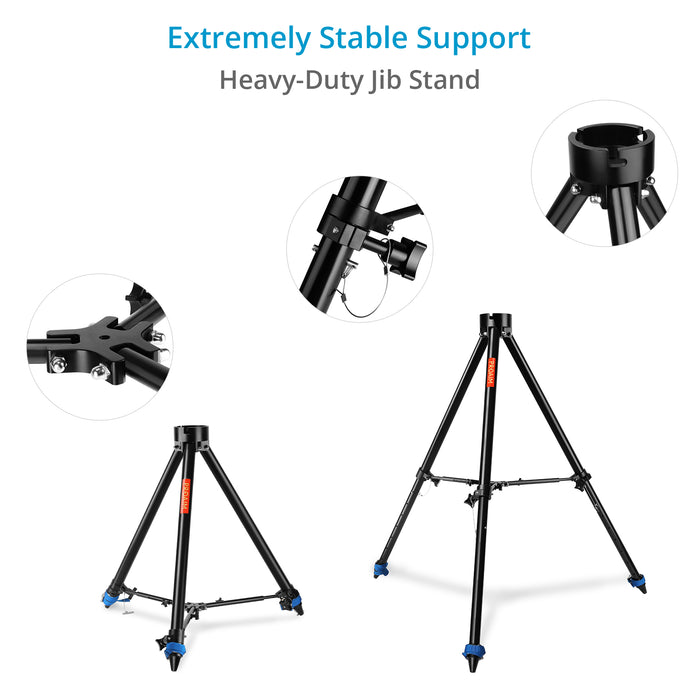

Since safety and stability are top priorities, we've paired a heavy-duty jib stand and dolly to give a rock-solid platform for your 40ft crane.
The heavy-duty jib stand is super sturdy, and its unbeatable strength makes it an ideal support for your 40ft jib/crane.

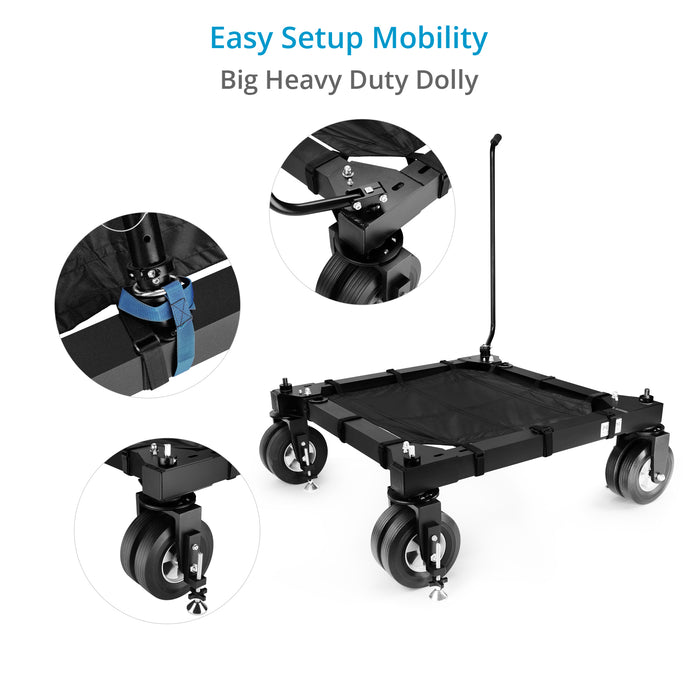

And the heavy-duty dolly offers exceptional maneuverability with an impressive payload of up to 600kg/1323lb to carry & move the heaviest of loads with ease.
Adding to it, this portable floor dolly owns an outstanding framework with pneumatic wheels, leveling supports, steering, and wheel locks that upgrade your user experience.

Proaim 40ft Jumbo Film Production Package - Camera Jib Crane w Heavy-Duty Stand, Dolly & 3-Axis Pan-Tilt Head
Proaim 40ft Jumbo Film Production Package - Camera Jib Crane w Heavy-Duty Stand, Dolly & 3-Axis Pan-Tilt Head

06.

Simplified Carrying

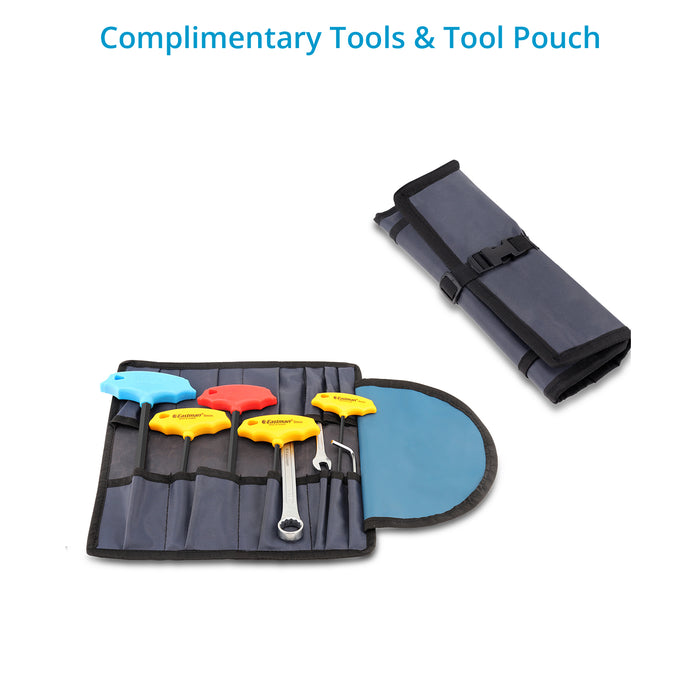

A ten-pocket tool/accessory roll pouch is included for quick access to tools like Allen keys and wrenches, making tool storage sleek and effortless.

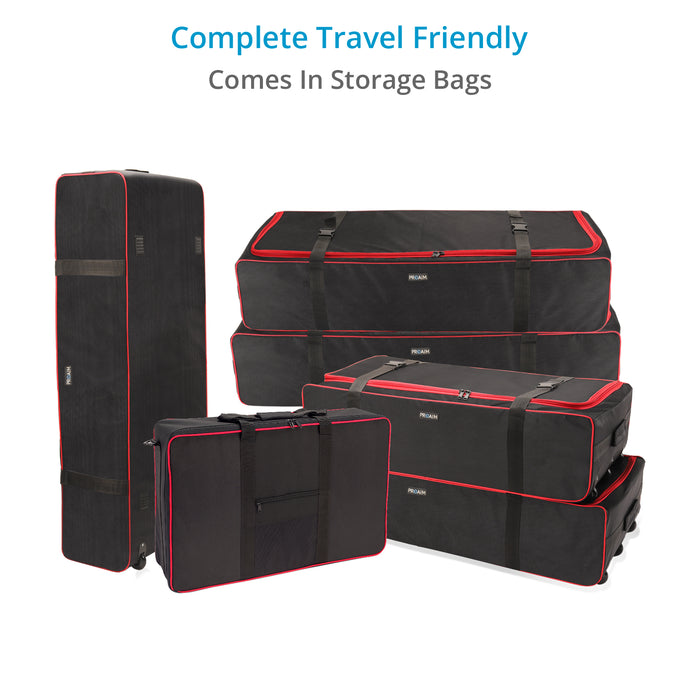

The Crane Package comes in custom-made storage cases to securely store and transport your gear.
And all these amazing perks outperform other jibs in the market, whether superior quality, optimum performance, or cost-effectiveness.


delivery

Guaranteed Fast Delivery
For all orders

customer service

Quick and Efficient
Customer service

easy returns

Easy Returns
Up to 30 days

warranty

1-Year Warranty
On All Products





  • Does this include the counterweights?

    No

  • \"What extent the PT-SPIN-3 is waterproof and dust proof. Can you please let me know the IP rating of the PT-SPIN-3.\"

    The Proaim PROAIM Spin-3 (3-Axis) Pan Tilt Head is not waterproof, however it does have limited protection against dust ingress. Its IP rating is IPX0.

  • Hello, is screen includes in the crane packages ?

    The Proaim Camera Crane Packages does not include the monitors or screens.
