Proaim unveils its Wing Camera Crane Film Production Package, driven with technicalities for modern video shooting. The crane jib uses triangular aluminum tubing for lightweight design and yet maintains the strength and rigidity. The arm connecting bars securely fits into another one with top screw that guarantees its strength and reliability. Included with the Heavy duty long lasting tripod stand and D-37 camera dolly to add dynamic moving shots in your videos. Moreover our Spin-3 (3-Axis) Motorized Dutch Roll Pan Tilt Head, Lanc zoom controller makes it a right choice for all filmmakers. Whether you are a seasoned pro or just a passionate beginner, you’ll get breath- taking footage every time with your vision.
"WHAT YOU SEE IS WHAT YOU GET"
(Revised on 27-Feb-2017)
EXCLUSIVE OF WEIGHTS

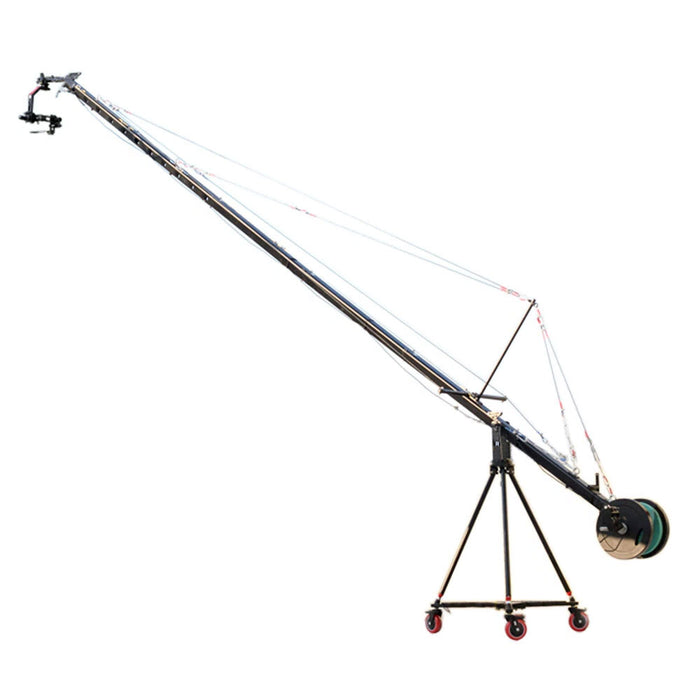

PROAIM 24FT/7MTR WAVE 5 JIB CRANE

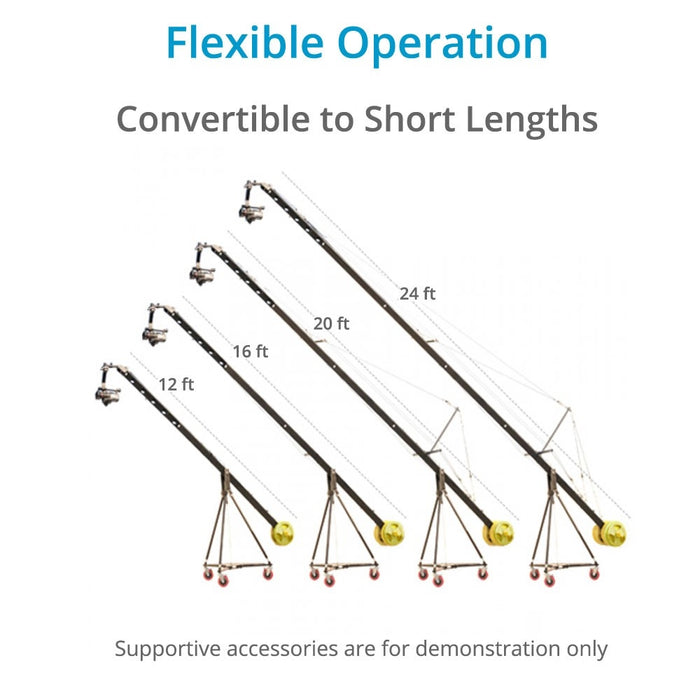

This High Grade Aluminum constructed camera crane jib arm is expandable from 4ft (one section) to 24ft/7mtr (six sections) in 4ft increments. As a quality constructed reinforced movie camera crane, it should last a lifetime.
- The Rear Control Center has provisions for mounting the Joystick Control box & Zoom Controller.
- Jib Arm connecting bars securely fits into another one with top screw that guarantees its double security, strength and reliability.
UNIQUE HEAD MOUNTING
Gets connected to most pan tilt in minutes, saving production time.

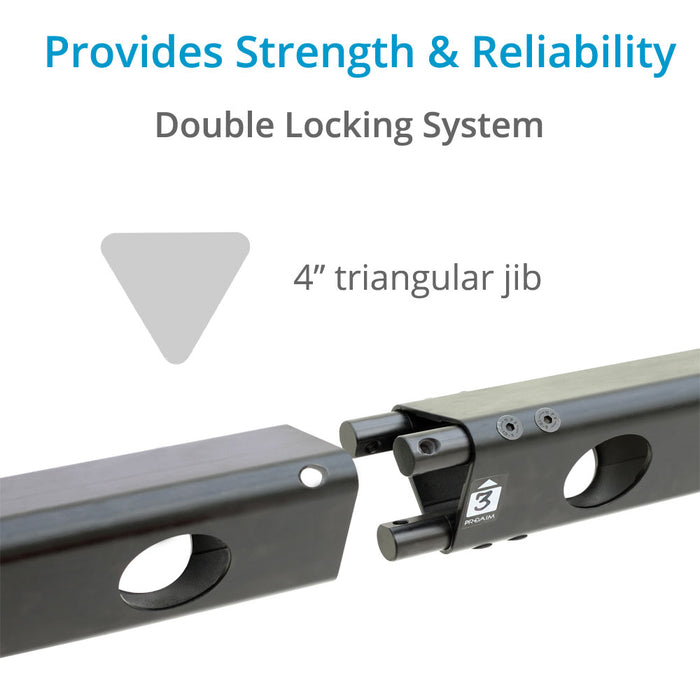

ARM CONNECTING BARS
Each section fits smoothly and securely into another one. For better protection, it is fastened by a screw at the top which ensures better safety of your movie camera crane. Double security features guarantees its strength and reliability.
Custom extruded sections connects smoothly & securely with one another

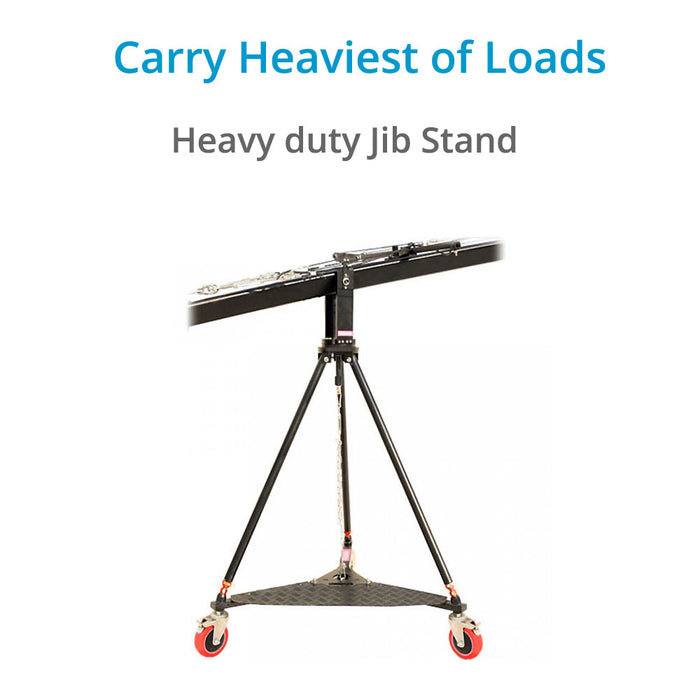

TRIPOD STAND (W5-STD)
The Heavy Duty Tripod Stand (W5-STD) is a rock solid, robust and long lasting camera crane stand made of mild steel, with an incredible height range of 42". It has a strong hub assembly. The feet are solid with double locking knobs.
Heavy duty stand ensures steady shots

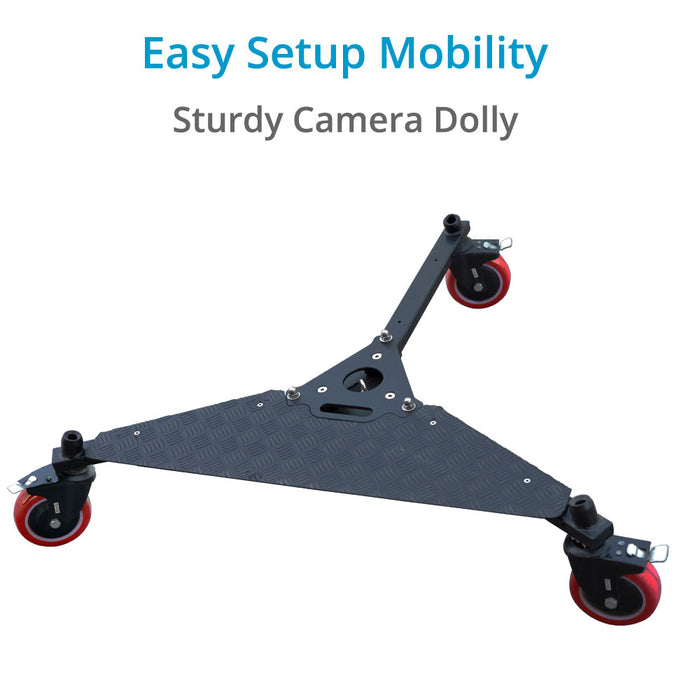

D-37 FLOOR DOLLY
D-37 Pro Dolly is the most portable camera dolly in the market. It's a compact, lightweight and versatile pro dolly best suited for supporting all heavy duty stands.
Industrial grade aluminum dolly can bear heaviest of equipment
- Rubber wheels with bearings allow for smooth movement
- It folds to a compact size for easy transport
- Build-in wheel lock provides stability to the system even in rougher terrains
- Pro Dolly setup supports heavy weight
- Quality designed and engineered

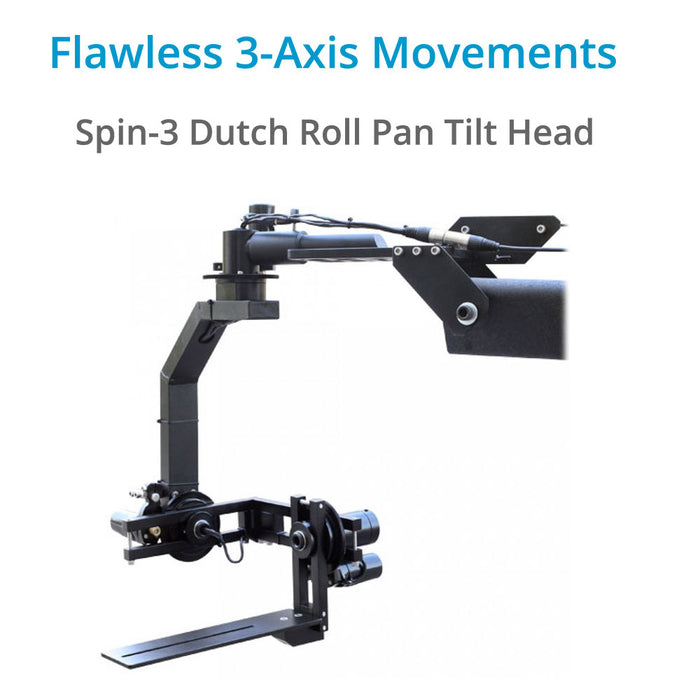

PROAIM SPIN-3 (3-AXIS) MOTORIZED DUTCH ROLL PAN TILT HEAD
Controlled by a joystick remote, the pan, tilt & rolling movement of the head works on 12 volt power and easily accepts external 12VDC battery power through the included a 3 meter long 4pinXLR cable. This 3-Axis spin Roll motorized camera head is a solid built unit with precision and long life capability designed in. The frame is made of a durable high grade metal. In Pan Tilt mechanism, XLR cables are built in to the motor, gears on the head are solid quality and the pan tilt head is sheathed in plastic to protect the finish.

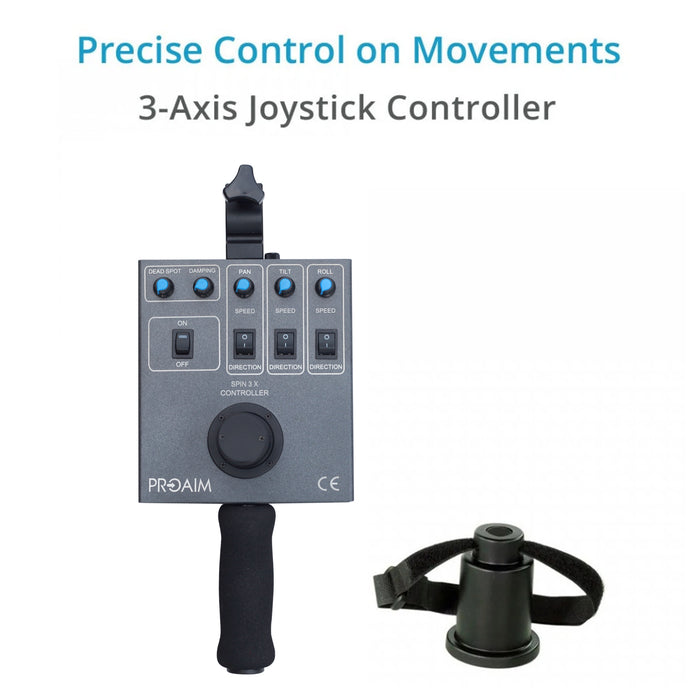

PAN TILT JOYSTICK CONTROL SYSTEM
- The Proaim™ Pan-Tilt Head comes with a remote Joystick controller system, 10 mtr. Long Cable and AC Adapter.
- You may run the Joystick from a flat surface like tabletop or attach to the boom arm of Jib crane.
An exquisite body with intuitive control
SUPERB PROPORTIONAL CONTROL
- Joystick has proportional linear movement i.e. farther you move the joystick, the faster the head moves.
- Joystick is touch sensitive
- Small movement – less speed.
- More movement – more speed.

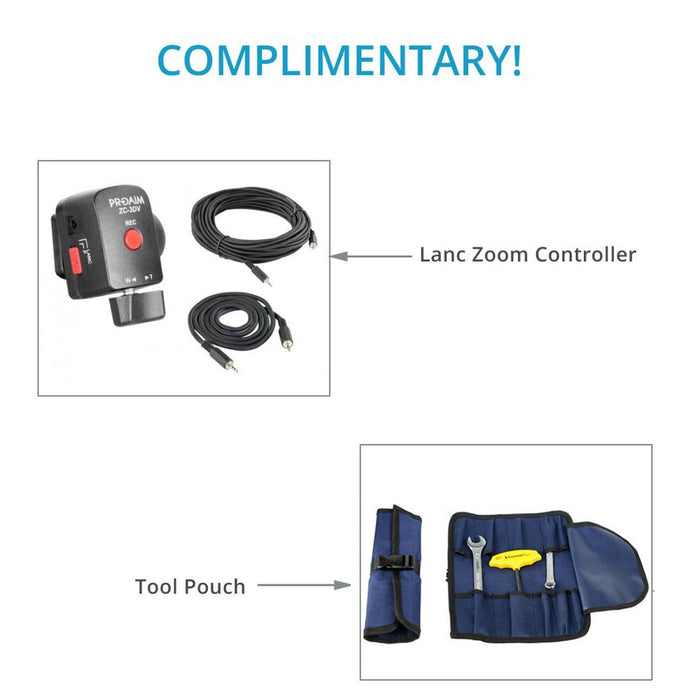

FREE PROAIM LANC ZOOM CONTROLLER (P-ZC-3DV)
The Proaim Zoom Control for DV Cameras is a universal controller for LANC and Panasonic Mini DV or HDV cameras. It works only with most Sony & Canon cameras with a 2.5mm mini-jack LANC input and Panasonic models with a 2.5mm mini-jack Cam Remote input.
An exquisite body with intuitive control
COMPLIMENTARY TOOLS AND TOOL POUCH/WRAP
This tool / accessory roll pouch provides Rapid Access to Various Tools such as Allen Keys or wrenches. This premium quality tool roll has 10 Various Pockets to neatly organize a variety of hand tools so you can work quickly and efficiently
The Supportive accessories are for demonstration purpose only.
|SPIN-3 AXIS PAN TILT HEAD|
2- Brass Small Gears (Dia- 14mm),
1- Brass Small Pan Gear (Dia-22mm)
6 Pin XLR
- 24ft/7mtr Wave 5 Movie camera crane
- Spin-3 (3-Axis) Motorized Dutch Roll Pan Tilt Head (PT-SPIN-3)
- Tripod Stand (W5-STD)
- D-37 Floor Dolly
- FREE PROAIM LANC ZOOM CONTROLLER
- FREE Tools and Tool Pouch/Wrap
