Proaim 14ft Video DSLR Camera Jib Stand with Jr pan Tilt Head

Sold out
$1,037.00
SKU : P-14-JS-JRPP
User-Friendly & Affordable Jib
High Build Quality with Payload up to 8kg/17.6lb

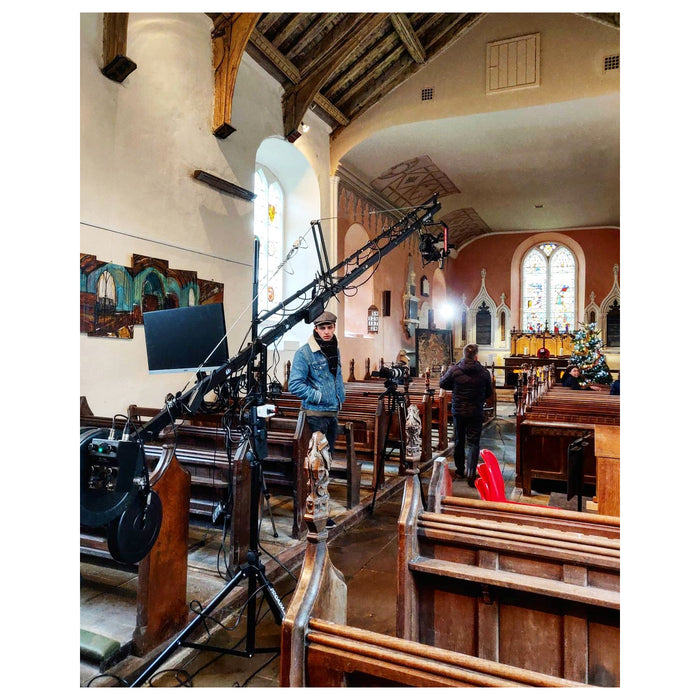

Versatile Jib Crane for Indoor/Outdoor Use
Professional. Simple. Powerful.

"WHAT YOU SEE IS WHAT YOU GET"
Exclusive of Weights

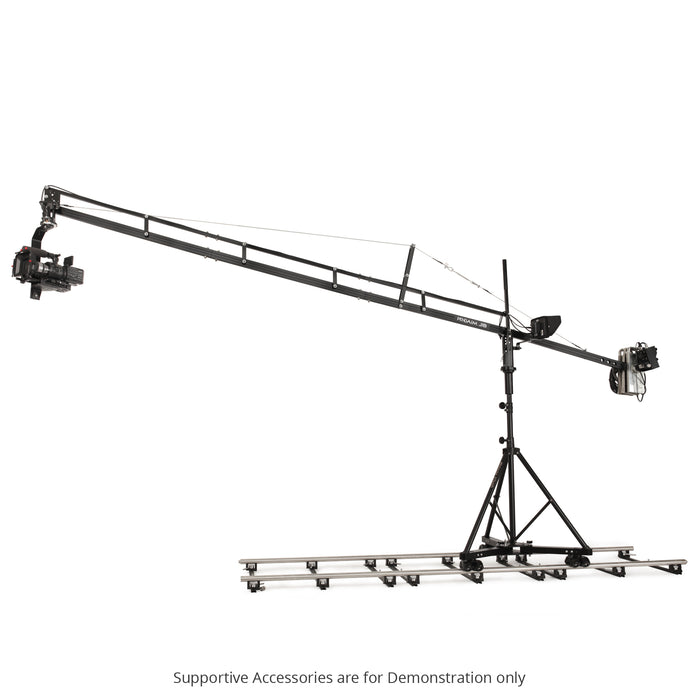

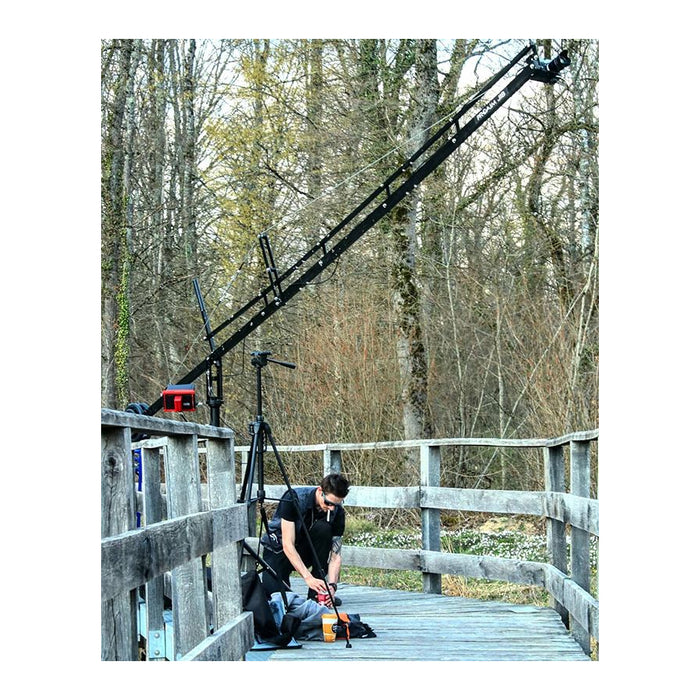

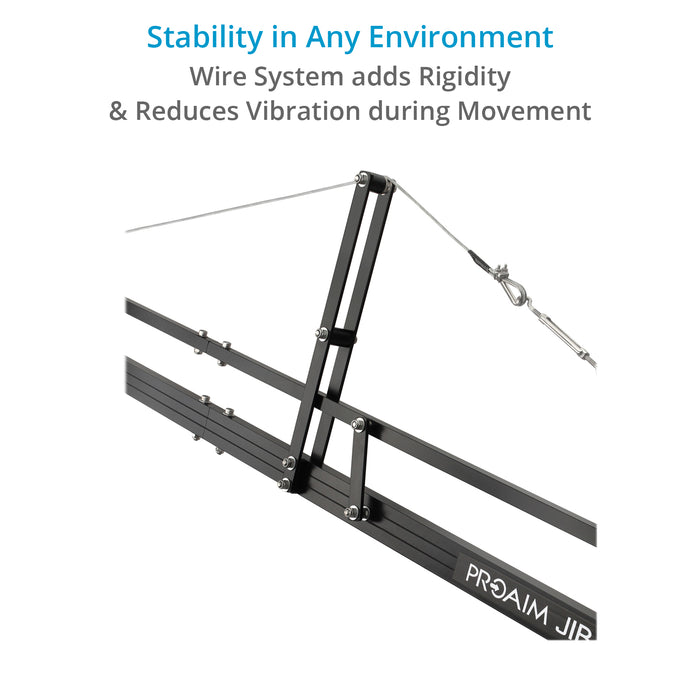

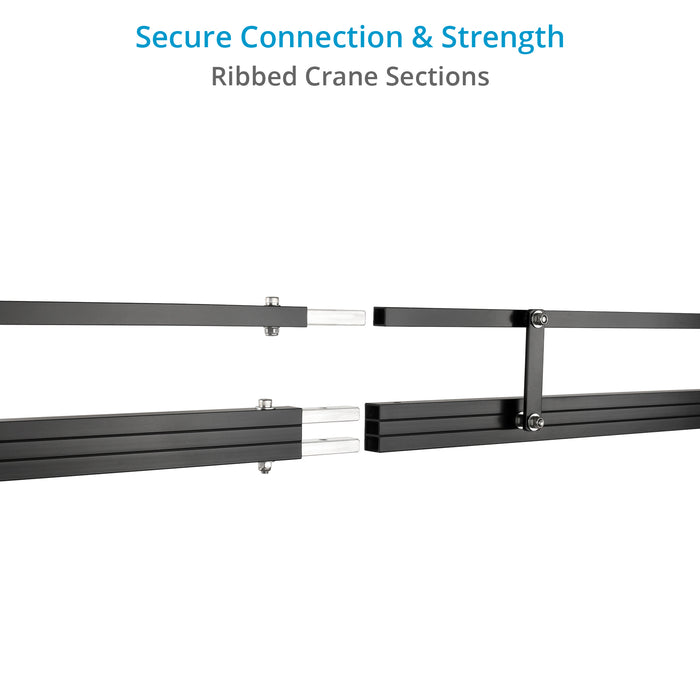

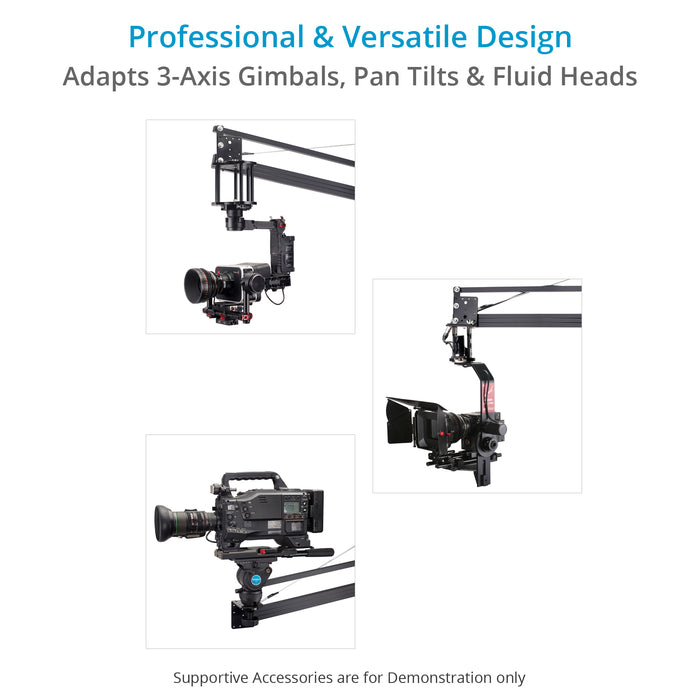

Proaim 14ft Camera Jib Arm is an industry standard lightweight camera crane system to achieve ideal shots with only a small crew, anytime anywhere. It is designed to accommodate every shooting scenario including small indoor & outdoor spaces for detailed & dynamic shots. High-grade Aluminum made, the Proaim Crane is robust and functional with payload up to 8kg/17.6lb. This heavy-duty crane adapts Pan Tilt, 3-Axis Gimbals or Flat base fluid heads. The 14ft Crane is equipped with fully ribbed sections that offer strength for higher angles & adjustable metal wire system for Superior Stability. Expertly crafted jib arm includes ergonomic camera platform, two arm design, SS locking pin, LCD monitor mounting arm & weight closers making it the perfect tool for any crane application. It comes in high impact protective packing for carrying, transporting and storing your valuable equipment. Proaim 14ft is a perfect travel companion for videomakers as they trek through extreme environments to capture the perfect shots. Show your talent of creative vision to the world with this small investment that you will not find anywhere else.


Video is for demonstration only
Actual Product may vary due to Product Improvements

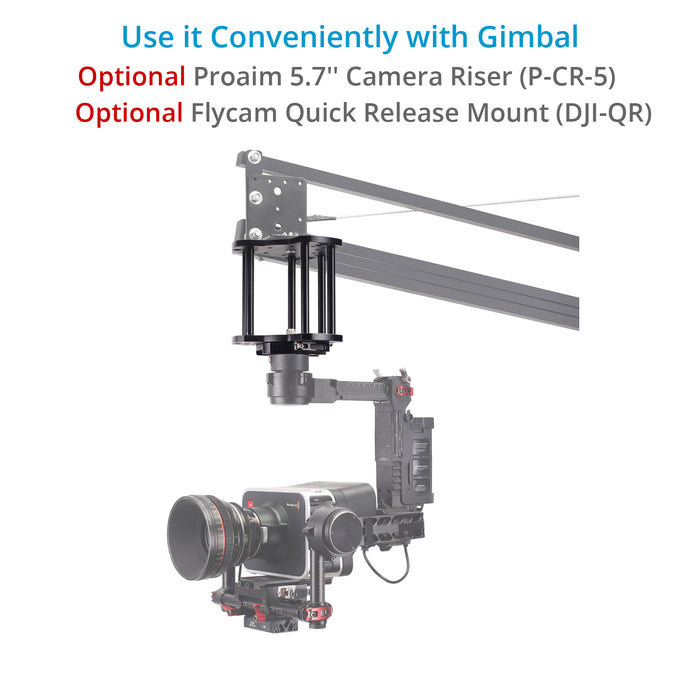

CAMERA BASE PLATFORM
Mount direct camera, pan tilt or gimbals in minutes


TWO ARM DESIGN
Dual arm sections for enhanced strength & stability


MONITOR MOUNTING
Quick LCD monitor attachment with 1/4"-20 hole



CAMERA MOUNT TILT CONTROL
Pin connected: Auto tilt mode
Pin not connected: Manual tilt
mode with control handle

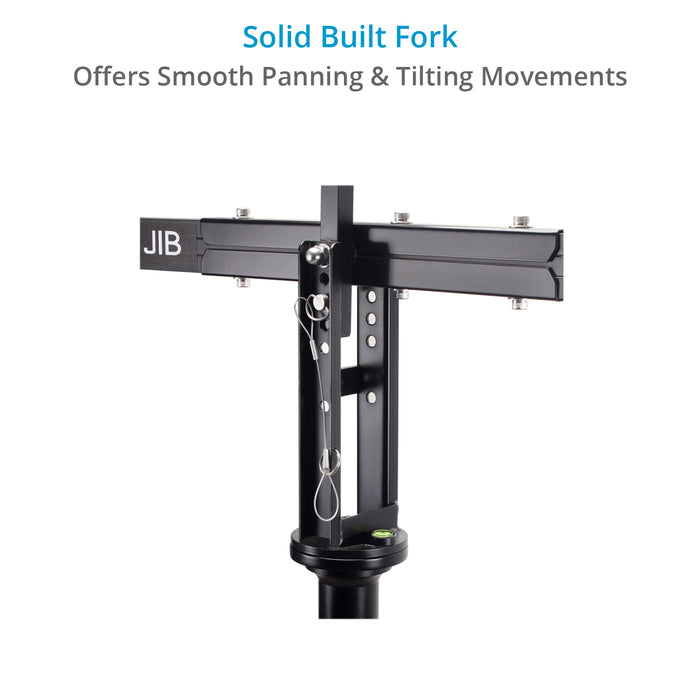

CENTRAL FORK
Thrust roller bearings absorb shock loads for smooth jerk free jib movements


WEIGHT CLOSERS
Hi-tensile weight closers keep the weight discs intact for perfect balance

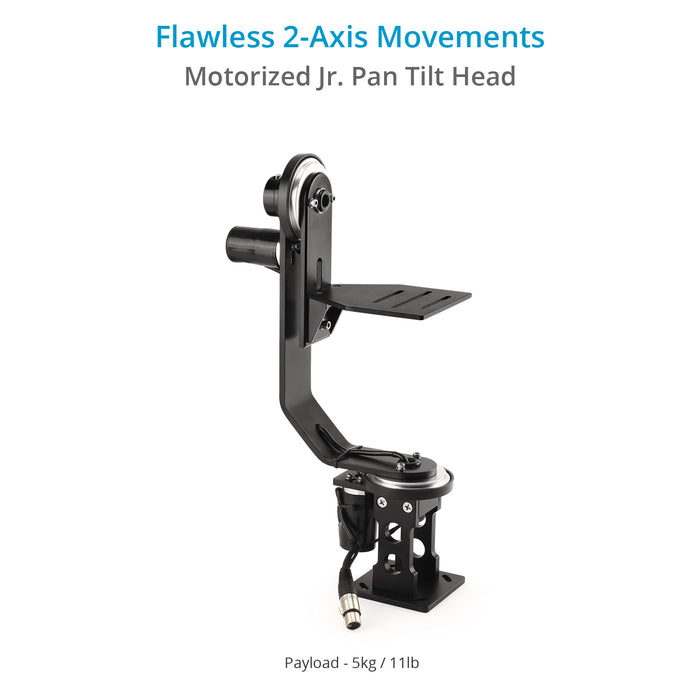

Jr. Pan-Tilt Head with 12V Joystick Control

• 2-Axis Pan Tilt Head allows 360° pan & tilt movements
• Gives you Freedom to take wide variety of smooth shots
• Aluminum made; supports Up to 5 kg / 11 lb payload
• Designed for DV/HDV and broadcast cameras
• Two coreless high torque motors for inaudible movements
• Strong Brass Gears withstand long hours of functions
• 12V Joystick Controller to control pan/tilt movements
• Built-in flexibility - use with crane arms, tripods etc.

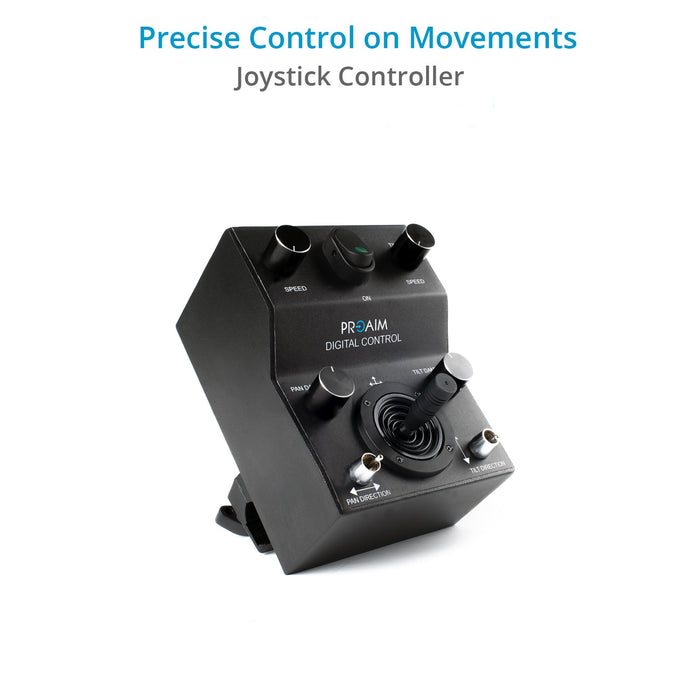

12V Joystick Control

• Remote Joystick Control System with 24' Long Cable & AC Adapter
• Intuitive control over pan/tilt movements
• Takes control of speed & direction as per requirement
• Damping control enables the head to achieve smooth endings
• Dead Spot controls sensitivity of joystick on pan tilt head & prevents unwanted movements
• For Outdoor Shooting, you can use 3meter long 4pin XLR cable with 12v brick or car battery

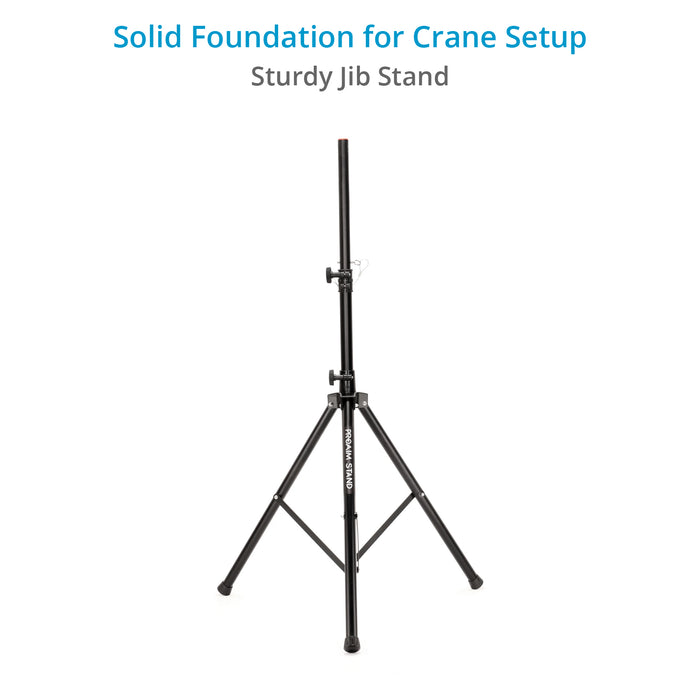

Proaim Jib Stand

• Powerful Combination gives Solid Foundation to the Crane Setup
• CNC Aluminum made jib stand carry loads up to 90kg/200lb
• High strength stand acts as a supporter for all time stable shots.



 14FT RIBBED JIB CRANE SPECIFICATIONS
  Weighing Capacity maximum 8kg (17.6 lbs)
 Material Used CNC made Aluminum Powder Coated
 Jib Arm Shape Rectangle
  Jib Arm Break downs into 4 Parts
 Length of Jib sections 3. 5ft each
 Variable shooting lengths 12ft
 Camera Mount Bolt ¼”-20 and 3/8”-16
 Jib Section Jointers Silver Aluminium
 Bearing at Center Fork Pan Thrust bearing with washer made of stainless steel
 Camera Tilt Angles Up to 270 degree
  Locking Pin Stainless steel locking pin for stable or tilt camera angles
 Pan Lock (For Jib) No
 Tilt Lock (For Jib) No
 Height Range from ground level 15 ft. when stand height adjusted at 5ft
 Length from tripod to Camera Mount 10.3ft
 Total jib arm length 13’ 9’’
 Camera Mount plate Rectangle( 10.5cm X 9cm )
 Camera Platform Levelling By stress cable Stress Cable made of metal with adjusting turn buckle hook
 Weight Holder Rod Made of MS Nickel chrome,
Length : 355mm
Dia : 25mm
  Weight Closures 2pc. Made of MS Nickel chrome
  Horizontal Movement Yes
  Vertical Movement Yes
  Horizontal/Vertical movement Lock No
  LCD Mount Provision Yes
 Weight 16 kgs

 BALANCING CHART

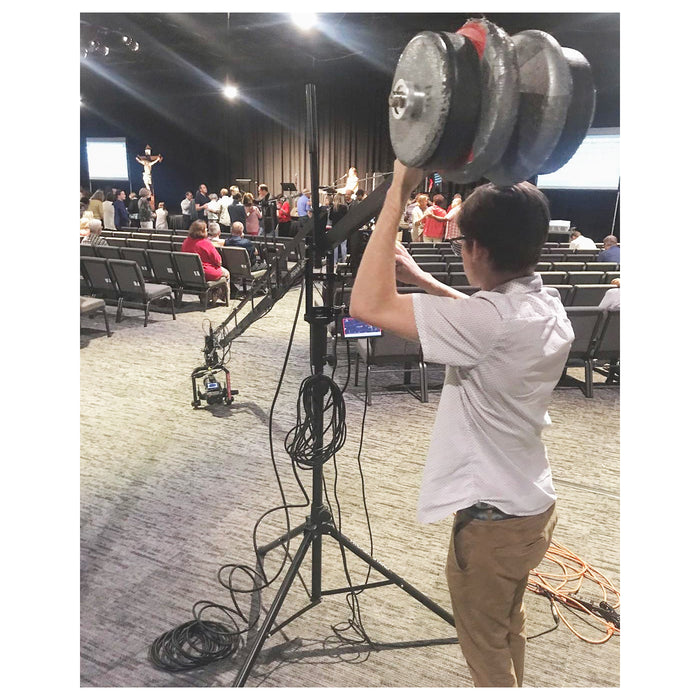

  Add Counter Weights in the rear section of Jib according to Camera and Pan Tilt Head weight as per this chart : The jib has a varying weight ratio depending on the length you have chosen.

The 14 jib arm itself balances at about11kg. Just multiply the weight, of the additional items you will put on the end of the arm, by 2 and you will know how much weight to buy.

The 12ft jib arm itself balances at about 4kg. Just multiply the weight, of the additional items you will put on the end of the arm, by 2 and you will know how much weight to buy.

Buy a few extras in case you add other accessories.


CAMERA JIB STAND

-  Made of Aluminum Black anodized
-   Base spread - 32"- 48"
-  Height adjustment - 44"- 80"
-  Completely collapsed height - 46"
-  Outer Dia of top part of Stand - 50mm
-  Makes the camera jib arm stable & solid as a rock
-  Safety Pin for Secure Pole
-  Weight capacity of the stand is 200lbs (90kg)


  PAN TILT HEAD - SPECIFICATIONS
 Pan Tilt Head Material High Grade Aluminium
 Load Capacity Up to 5 kg / 11 lb
 Pan movement 360 degrees
 Tilt movement 360 degrees
 Speed Variable-controlled speed from 6 degrees/sec (low speed) to 51 degrees/sec (high speed)
Slowest Speed : 2 minutes
Highest Speed : 7 seconds
 Motors Two high torque, coreless DC motors that rotates (pans) and tilts the head 360 degrees
 Gears 2- Big Aluminum Gears (Dia-88mm)
2- Small Brass Gears (Dia-13.5mm)
  Minimum height of head 18.5 inches
 Maximum height of head 22 inches
 AC Adapter input AC 100 - 240V ; output - DC 12V -2A
 Cable Length 7.5 meter
 Cable Connector 4-Pin XLR
 Battery Cable 3 Meter long
  Weight of Pan Tilt head 3kg
  Box Dimensions 52 X 34 X 18 cm

 JOYSTICK CONTROLLER
 Joystick Controller 2-Axis
 Connectors 2x 4-Pin XLR male connectors
 Pan/Tilt Direction Yes
 Upgraded with Damping knob
 Weight 800 grms

-  Proaim 14ft Video DSLR Camera Jib (P-14)
-  LCD Monitor Arm
-  Proaim Jib Stand (P-JS)
-  Proaim Jr. Pan Tilt Head with Joystick Box (PT-JR)
-  Universal Adapter
-  AC Adapter
-  Cable with Connector
-  Proaim Lanc Zoom Controller (P-ZC-3DV)

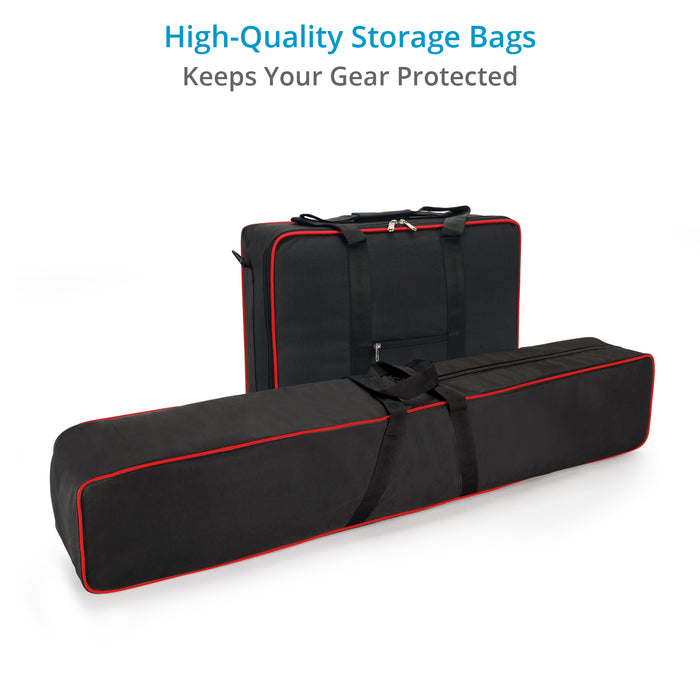

-  Storage Bag
