Proaim 14ft Camera Crane with Jib Stand and Sr. Pan-Tilt Head

$1,192.00
SKU : P-14-JS-SRPP

Capture smooth, dynamic sweeping pans shots similar to Hollywood production style with Proaim 14ft fully featured camera crane production package. The Aluminum constructed robust ribbed section jib crane assembles quickly without tools to benefit on-location productions. Known for its high strength and machined intersecting joints with secure assembly. At the end of your shoot, the camera boom breaks down into two 4 parts for easier travel and storage. Stainless steel support cables are included for maximum support of heavy loads with better stability.

camera crane

For Commercial/Wedding/Documentary/Independent/Professional Video Makers

Sr. Pan tilt head with joy stick control features360 degree end-less tilting movement and 360 degree panning movement with reversal point. The Proaim Zoom Control for DV Cameras is a universal controller for LANC and Panasonic Mini DV or HDV cameras and PROAIM 12V POWER PACK a high power, professional battery pack designed for portable and uninterrupted applications. Adding production value through shot selection just got a whole lot easier with PROAIM 14ft Camera Crane with Jib Stand and Sr. Pan-Tilt Head


camera jib boom

"WHAT YOU SEE, IS WHAT YOU GET"

proaim logo

FEATURES

- High quality camera crane perfect for any demanding angle
- 4 Ribbed sections for superior (7 times more) strength-reinforced engineering design.
- Fully adjustable metal wire system for superior stability
- Control Handle adjusts camera tilt
- Uses home style exercise weights with a one inch mounting hole
- Fixed camera angle when controlling handle 'pin locked'
- Stores in four easy to transport sections
- Quick, Flexible & dynamic champion for all locations
- Portable and very easy to carry
- Non-slip feet
- Fully controllable Pan Tilt to capture numerous angles
- 2 gear design for easy 360 degree operation
- Performance engineered with two 12 volt motors
- Supports cameras up to 10 pounds
- Consistent run speed even at slowest setting
- 100% Satisfaction Guarantee

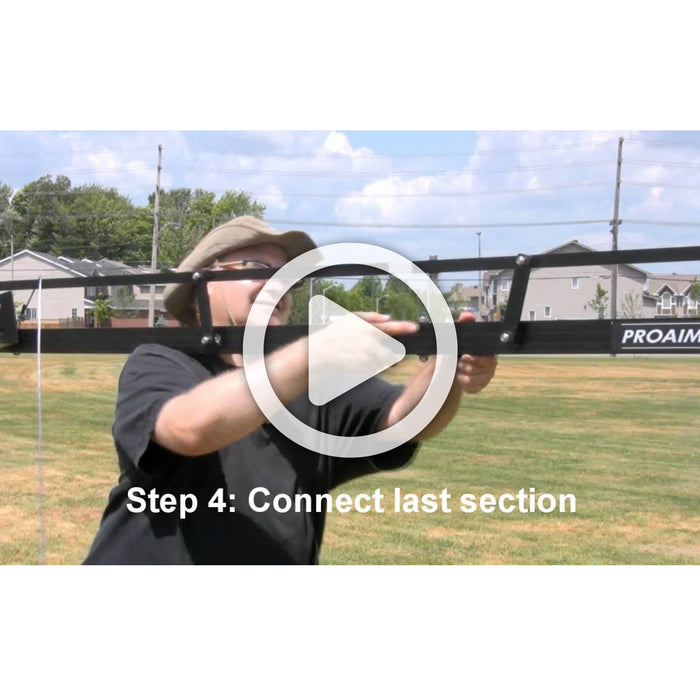

Video is for demonstration only
Actual Product may vary due to Product Improvements


View More Videos Here

PROAIM 14FT CAMERA CRANE

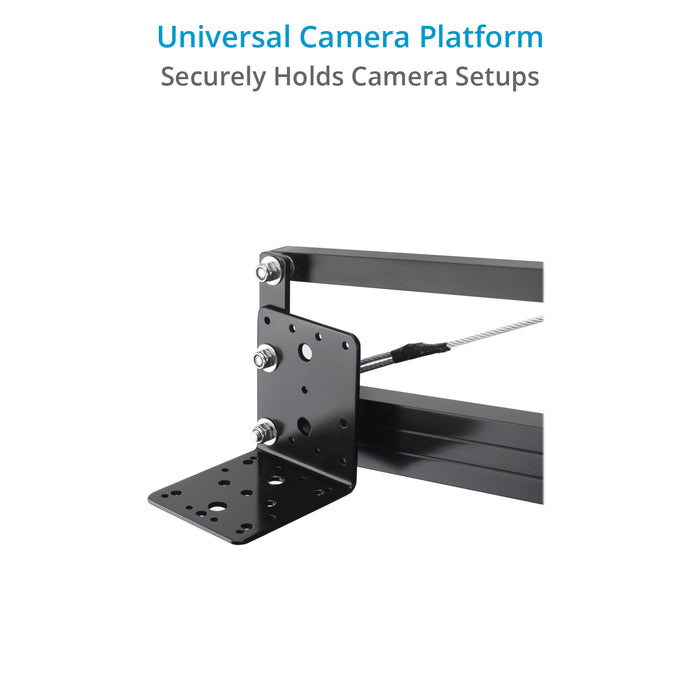

HIGH CAPACITY CAMERA BASE PLATFORM
High-capacity Camera Base platform is built to exacting standards for a remarkably stable point. It allows direct camera mounting on jib. Superior design set this base platform apart from others.

pan tilt head

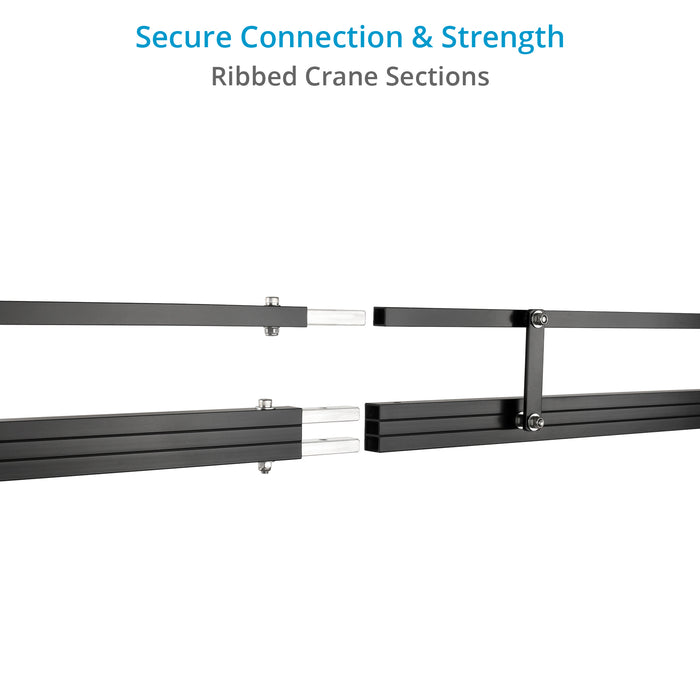

RIBBED SECTION CAMERA CRANE ARM BODY FOR HIGH STRENGTH
Ribbed sections makes the jib arm stronger & durable. It supports cameras up to 15lbs without pan tilt Head and 10lbs when using with pan tilt head. The cable-tensioned design of the Proaim 14ft camera crane allows it to reach farther and higher while maintaining stability.

camera jib with stand

MACHINED INTERSECTING JOINTS FOR QUICK AND SECURE ASSEMBLY
Intersection joint assembly allows for quick and secure connection. A solid stainless steel thumbscrew assures a tight and secure fit from above and below the camera crane arm.

video crane

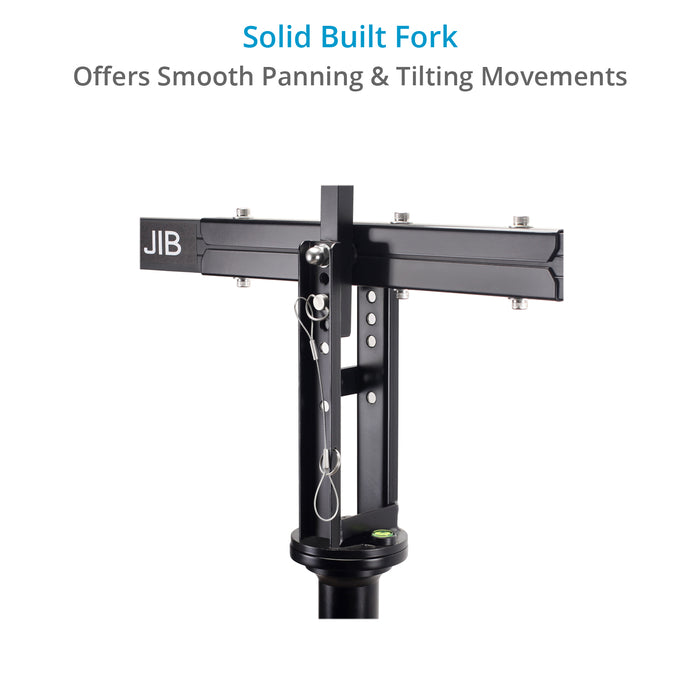

CENTRAL FORK WITH THRUST ROLLER BEARINGS TO HOUSE HEAVY AXIAL LOADS AND SHOCK LOADS
The fork provides you a maximum stability, smooth movements & jerk free shots. Thrust needle roller bearings are fitted with a form-stable cage to reliably guide and keep many needle rollers. These bearings enable to house heavy axial loads and shock loads.

camera jib

LOCKING PINS FOR STABLE OR MOVING SHOTS
High strength SS locking pin is used at the pivot point, and is connected properly to prevent from ever being lost.
- The control handle can be unlocked by releasing the locking pin to get moving shots.
- You can achieve fixed camera angles when controlling handle is pin locked.

tripod jib

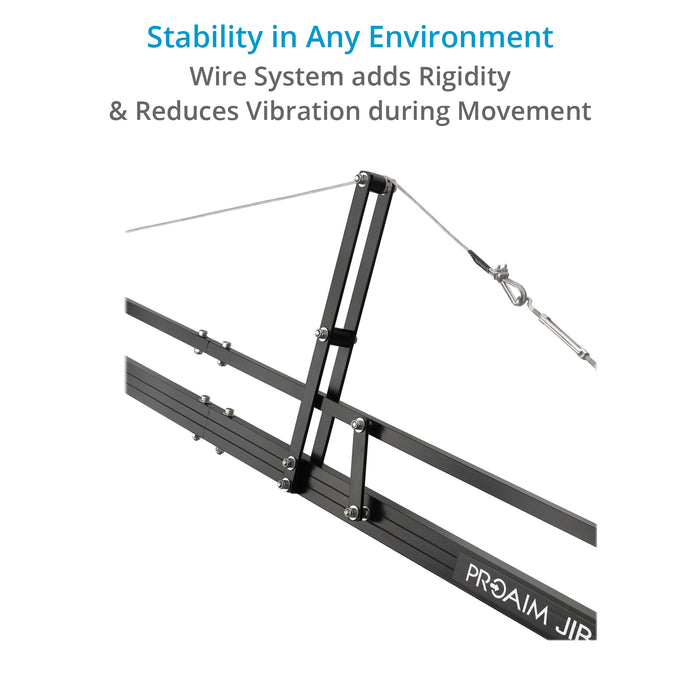

CABLES AND COUPLINGS
Our modular cable system boosts camera crane stability and rigidity. The superior-quality cable tensioning system keeps the 14ft camera crane taut, rock solid and easy to control. The smooth-coated, corrosion resistant cables are easy to handle and will last a lifetime.

camera jib with stand

LCD MOUNTING PROVISION
The LCD Mounting Arm for LCD Monitor comes with this camera boom.

video jib

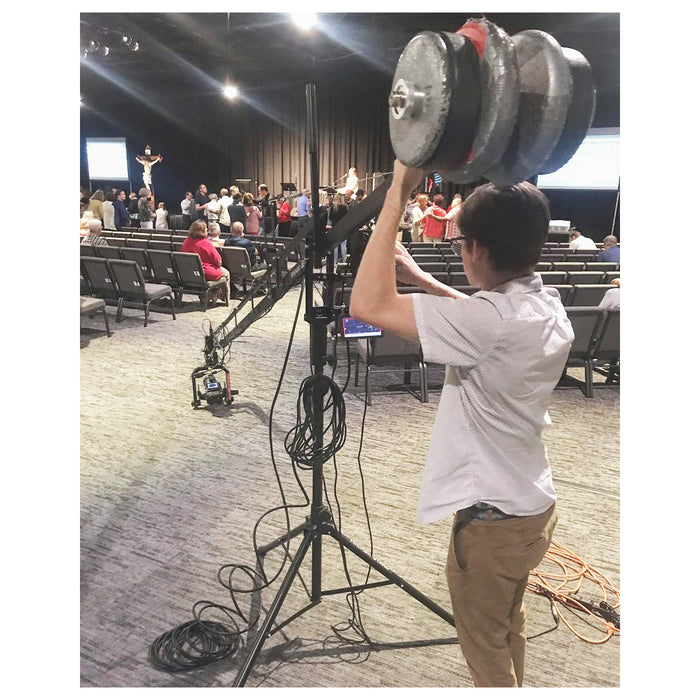

WEIGHT-CLOSERS (INCLUDED)
Stronger Hi-tensile weight closers help to achieve perfect balance.

dslr pan tilt

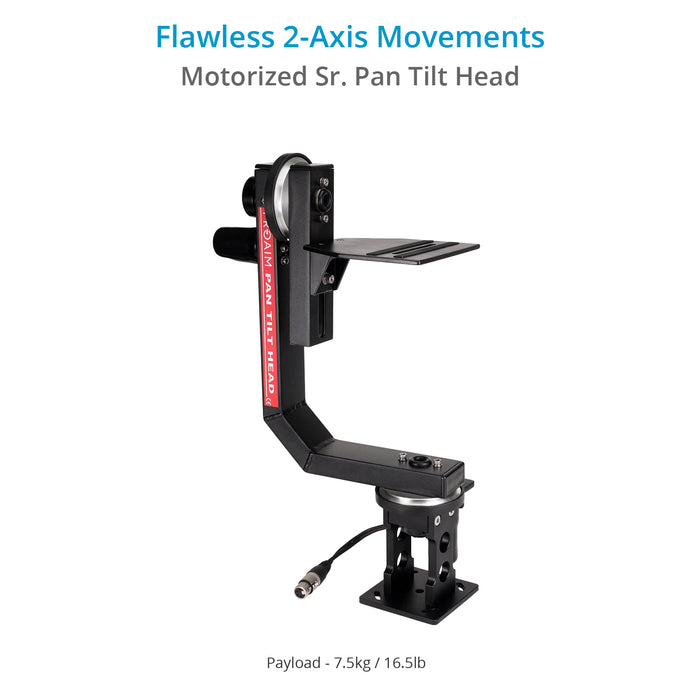

PROAIM Sr. PAN TILT HEAD
Designed for DV, HDV and broadcast cameras weighing upto 7.5kg / 16.5lbs or less. Our Proaim Senior Pan Tilt head offers 360 degree endless panning and tilting with reversal points.
- Runs on 12v DC power produced by the included A/C adapter or also accepts external 12V DC battery power through the included 3mtr long 4 pin XLR cable for outdoor shooting.
- You receive the Pan-Tilt Head with assembled wiring for Top and Bottom Motor.
- To install Power out to head (4 pin connector) and 12 volt DC power (4 pin XLR) in rear of joystick box.


pan tilt head

Tilt the camera independently

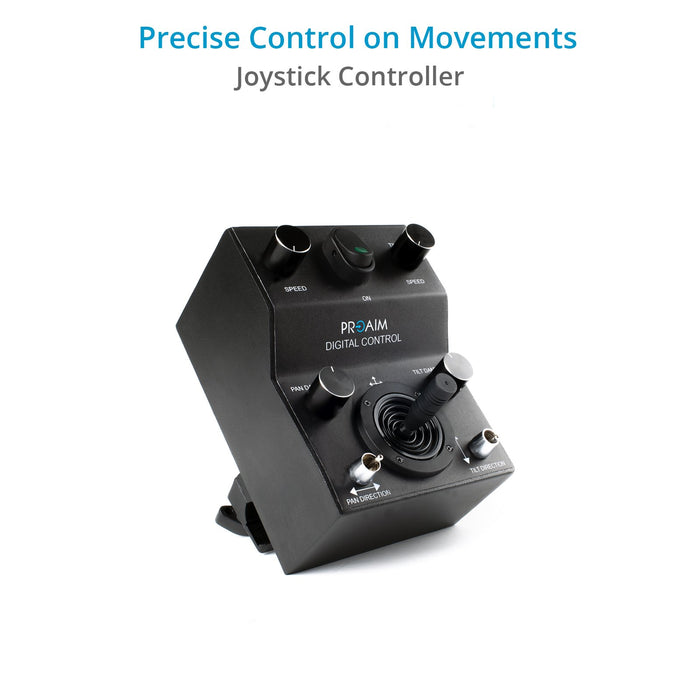

JOYSTICK CONTROL
-   The Joystick control system includes a 15 mt long operating cable and AC adapter.
-   Operational from a flat surface in handheld mode or when attached to the bottom of the jib arm.

-  Joystick has proportional linear movement i.e. farther you move the joystick, the faster the head moves.
-  Joystick is touch sensitive.
-  Small movement – less speed.
-  More movement – more speed.

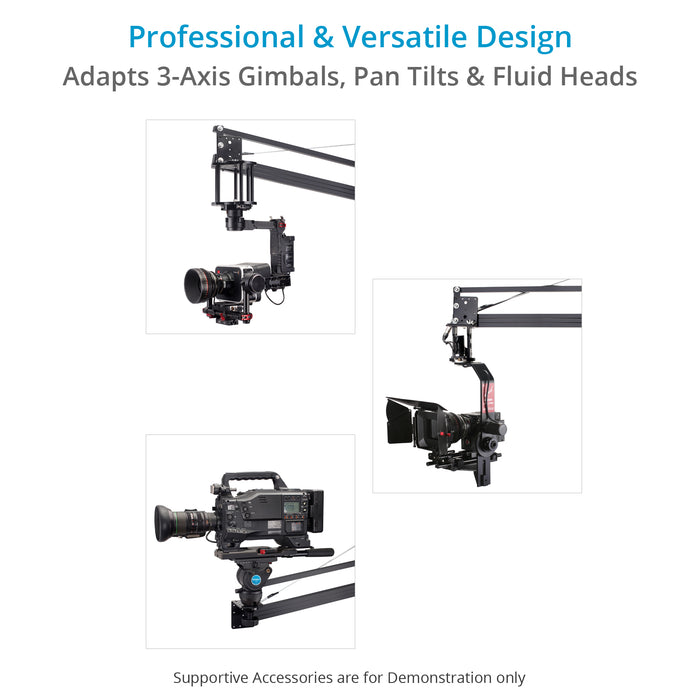

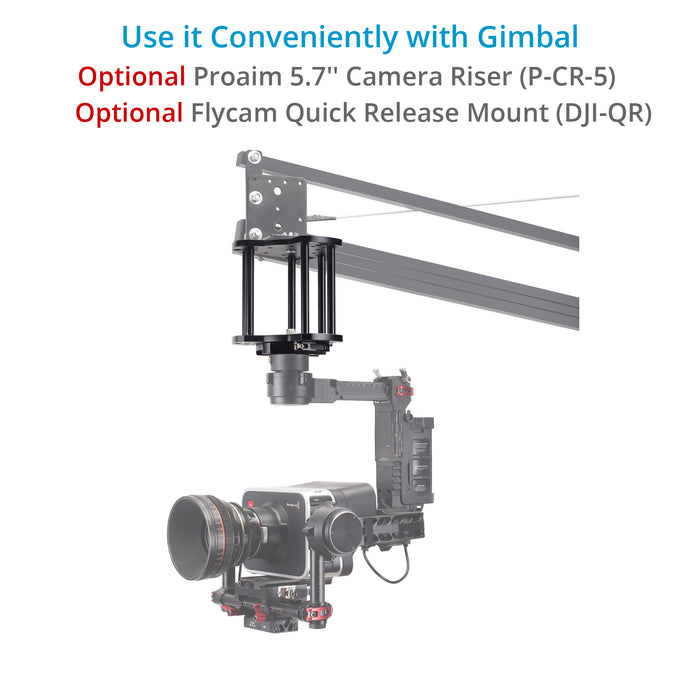

Mounting 3-Axis Gimbals is Possible!

Flycam Quick Release Mount
for Ronin/M/MX/R2 & MōVI (M5/M10/M15) (Optional)




IMAGE GALLERY


camera jib boom

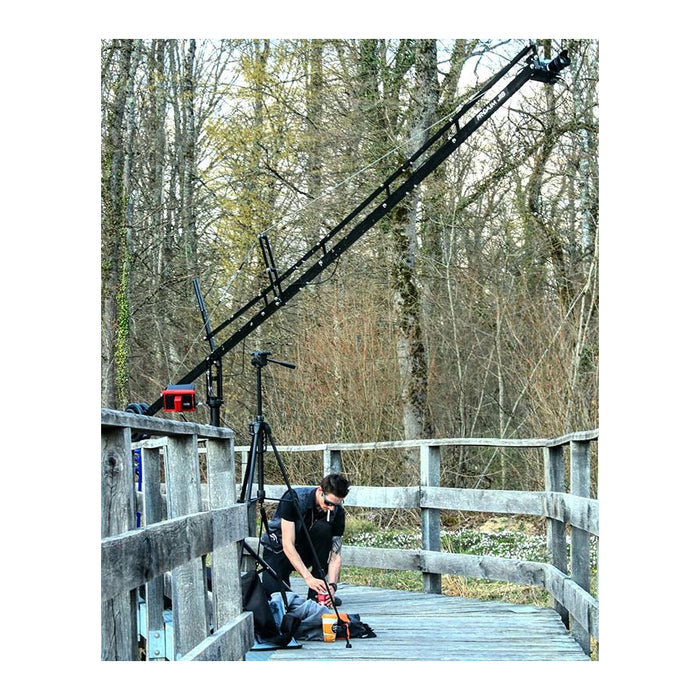

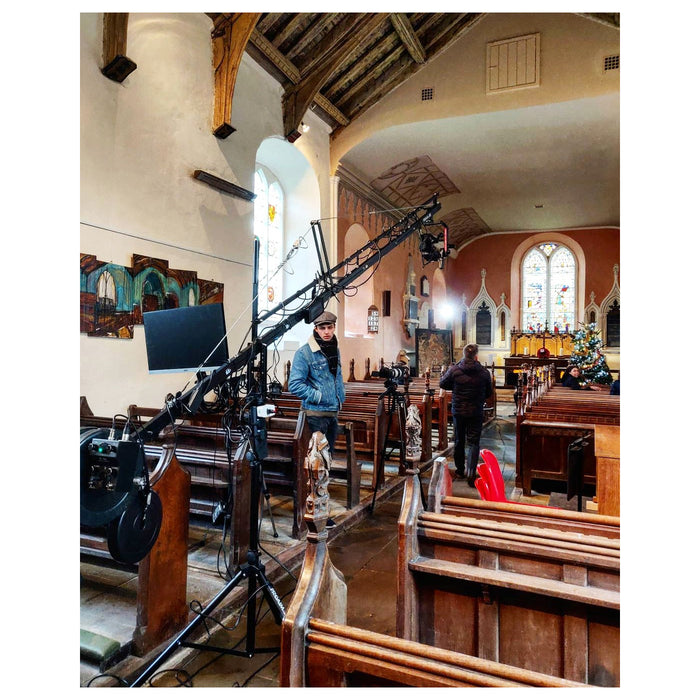

Gets you sweeping crane shot that captures your audience's attention

  14FT RIBBED JIB CRANE SPECIFICATIONS
  Weighing Capacity maximum 8kg (17.6 lbs)
  Variable shooting lengths 12ft , 9ft
 Material Used CNC made Aluminum Powder Coated
 Jib Arm Shape Rectangle
 Jib Arm Break downs into 4 Parts
 Length of Jib sections 3. 5ft each
  Camera Mount Bolt ¼”-20 and 3/8”-16
 Jib Section Jointers Silver Aluminium
 Bearing at Centre Fork Pan Thrust bearing with washer made of stainless steel
 Camera Tilt Angles Up to 270 degree
 Locking Pin Stainless steel locking pin for stable or tilt camera angles
 Pan Lock (For Jib) No
 Tilt Lock (For Jib) No
 Height Range from ground level 15 ft. when stand height adjusted at 5ft
 Length from tripod to Camera Mount 13’ 9’’
 Total jib arm length 10.3ft
 Camera Mount plate Rectangle( 10.5cm X 9cm )
 Camera Platform Levelling By stress cable Stress Cable made of metal with adjusting turn buckle hook
 Weight Holder Rod Made of MS Nickel chrome,
Length : 355mm
Dia : 25mm
 Weight Closures 2pc. Made of MS Nickel chrome
 Horizontal Movement Yes
 Vertical Movement Yes
 Horizontal/Vertical Movement Lock No
  LCD Mount Provision Yes
  Weight 16kgs

 BALANCING CHART
  Add Counter Weights in the rear section of Jib according to Camera and Pan Tilt Head weight as per this chart : The jib has a varying weight ratio depending on the length you have chosen.

The 14 jib arm itself balances at about11kg. Just multiply the weight, of the additional items you will put on the end of the arm, by 2 and you will know how much weight to buy.

The 12ft jib arm itself balances at about 4kg. Just multiply the weight, of the additional items you will put on the end of the arm, by 2 and you will know how much weight to buy.

The 9ft jib arm itself balances at about 3kg. Just multiply the weight, of the additional items you will put on the end of the arm, by 3 and you will know how much weight to buy.

Buy a few extras in case you add other accessories.

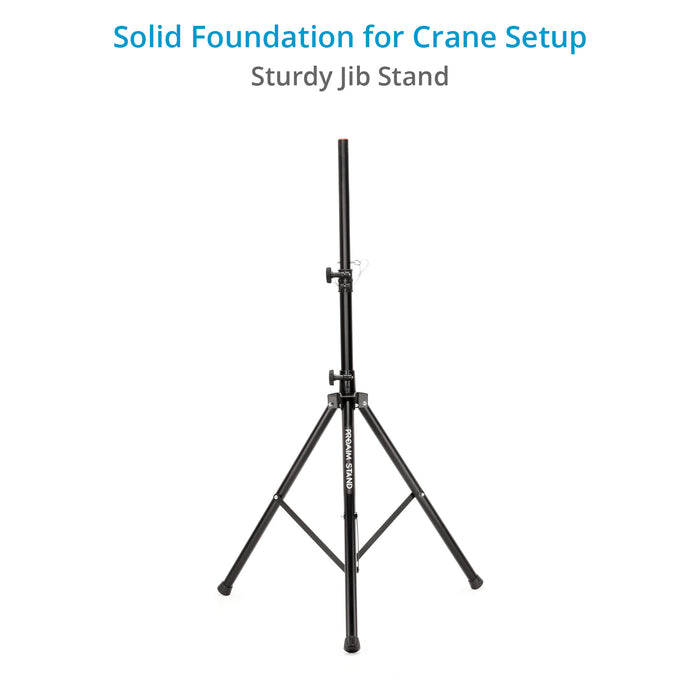

CAMERA JIB STAND

-  Made of Aluminum Black anodized
-  Base spread - 32"- 48"
-  Height adjustment - 44"- 80"
-  Completely collapsed height - 46"
-  Outer Dia of top part of Stand - 50mm
-  Makes the camera jib arm stable & solid as a rock
-  Safety Pin for Secure Pole
-  Weight capacity of the stand is 200lbs (90kg)


  PAN TILT HEAD SPECIFICATIONS
  Pan-Tilt Material High Grade Aluminium
  Maximum Camera Package Load Capacity 5kg (Including head )
 Pan movement 360 degrees
 Tilt movement 360 degrees
 Speed Variable-controlled speed from 6 degrees/sec (low speed) to 51 degrees/sec (high speed)
Slowest Speed : 2 minutes
Highest Speed : 7 seconds
 Motors Two high torque, coreless DC motors that rotates (pans) and tilts the head 360 degrees
 Gears 2- Big Aluminum Gears (Dia-88mm)
2- Small Brass Gears (Dia-13.5mm)
  Minimum height of head 18.5 inches
 Maximum height of head 26 inches
 AC Adapter input AC 100 - 240V ; output - DC 12V -2A
 Cable Length 7.5 meter
 Cable Connector 4-Pin XLR
 Battery Cable 3 Meter long
  Weight of Pan Tilt 3kg
  Carrying Bag Dimensions 50 X 35 X 19 cm

  JOYSTICK CONTROLLER
 Joystick Controller 2-Axis
 Connectors 2x 4-Pin XLR male connectors
 Pan/Tilt Direction Yes
 Upgraded with Damping knob

-  Proaim 14ft Video DSLR Camera Jib
-  Proaim Jib Stand
-  Sr. Pan Tilt Head with Joystick Box
-  LCD Monitor Arm
-  Universal Adapter
-  AC Adapter
-  Cable with Connector
-  Proaim Lanc Zoom Controller (P-ZC-3DV)

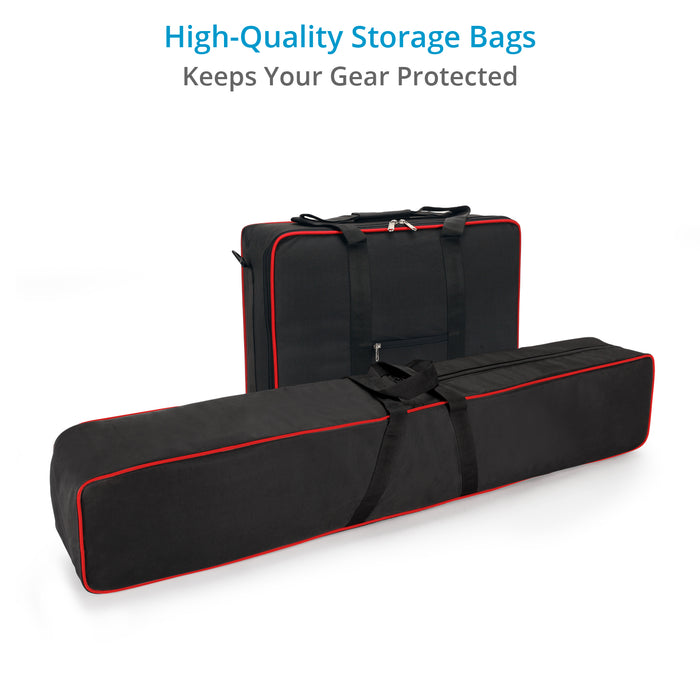

-  Storage Bag
