Proaim Atlas V2 Video Production Camera Cart

6 Reviews
Save 4% Save 4%
Original price US $1,950.00
Original price US $1,950.00 - Original price US $2,173.00
Original price US $1,950.00
Current price US $1,879.00
US $1,879.00 - US $2,089.00
Current price US $1,879.00
SKU : ATLS-V2-38


What Makes Atlas V2 Cart The Best Choice?

Proaim Atlas V2 Video Production Camera Cart

Stable and Sturdy

Solid Aluminum Construction ensures stability even when loaded to the max payload of 500kg/1100lb.

Compact and Quick

Tool-less Assembly/Disassembly within 2-3 minutes. Quickly Packs down to a 7" thick rollable case.

Proaim Atlas V2 Video Production Camera Cart

Adaptable

Multiple accessories are available to calibrate this Cart into precisely what you need.

See how the Atlas V2 Cart Works

Specifications

Construction

  High Grade CNC Aluminum

Load Capacity

  up to 500kg / 1100lb

Leg outer diameter

  38mm

Thickness of Cart Edge's

  8mm

Cart Size

  Assembled (ATLS-V2-38): Length 38'' Width 25.75'' Height 41”
  Assembled (ATLS-V2-48): Length 48'' Width 25.75'' Height 41”

Accessory Mounting

  ¼" -20, 3/8" -16 threads, Arri Standard Nato mountings

Rod Length

  21inch

Cross-Bars length

  22"

Cross-Bar Mounting Diameter

  38mm

Wheel Dimensions

  Diameter – 10 inch
  Width – 3.5 inch
  Alloy Rim Diameter – 4 inch
  Wheel Pressure 30 psi

Collapsed Dimensions

Proaim Atlas V2 Video Production Camera Cart

Dimension

Proaim Atlas V2 Video Production Camera Cart

Product Weight (without packing)

  Atlas V2 38" - 53 kg / 116.84 lb
  Atlas V2 48" - 58 kg / 127.86 lb

Product Weight (with packing)

  Atlas V2 38" - 63.02 kg / 139 lb
  Atlas V2 48" - 68.6 kg / 151 lb

Packing dimension

  Atlas V2 38" - 78 x 110 x 40 cm / 31" x 43" x 16"
  Atlas V2 48" - 79 x 137 x 31 cm / 31" x 54" x 12"

In the Box

4 x Supporting Rods
2 x Accessory Cross Bars
4 x Pneumatic Tyres
2 x Handle
Upper Shelf
Lower Shelf

User Manual

01.

Highly Customizable Film Cart

The Proaim Atlas V2 Cart is much more than a standard camera cart. Modular by design, it allows you to attach gimbals, monitors, baby pins, laptop plates, and anything else you might want to use with it. Choose from over 50 different accessories and you can transform it into a DIT Cart, a Sound Cart, a Lighting Cart or even an Equipment Dolly.

The built-in ¼" -20 and ARRI standard 3/8" -16 threaded holes offer creative mounting options on the Cart.

Proaim Atlas V2 Video Production Camera Cart
Proaim Atlas V2 Video Production Camera Cart

02.

Very Convenient Design

The Proaim Atlas V2 Cart has been designed with the convenience of its user in mind. The drawer is affixed to your cart by drilling holes into the cart, ensuring a solid and secure attachment.

An average Assembly/Disassembly Time of 2-3 minutes, Tool-less Design and its ability to Collapse into a Compact 7" Thick Suitcase makes it the most user-friendly Cart out there.

Simply put, the combination of these features helps you in saving the precious time on-set and makes it super easy to travel.

03.

New Adjustable Handles

The new and improved handle grips incorporate a hinge locking mechanism that allows you to remove or adjust the position of the handle quickly and easily without removing the top shelf. It helps in creating leverage needed while lifting the Cart quickly over obstacles, stairs or other incline surfaces.

Proaim Atlas V2 Video Production Camera Cart
Proaim Atlas V2 Video Production Camera Cart

04.

Advanced Wheel System

The Proaim Atlas V2 comes equipped with 10" Pneumatic wheels and 100% sealed bearing housing, which ensures that your Cart endures any load placed upon it and still roll incredibly smooth and silent.

The use of Pneumatic wheels instead of the industry-standard rubber wheels makes sure that the overall setup remains light, smooth and sturdy.

2 x 360° rotatable rear wheels and two non-rotatable front wheels make cart steering extremely smooth and easy.

The wheels attach to the Cart via a Dovetail Mechanism that ensures quick assembly and disassembly.

05.

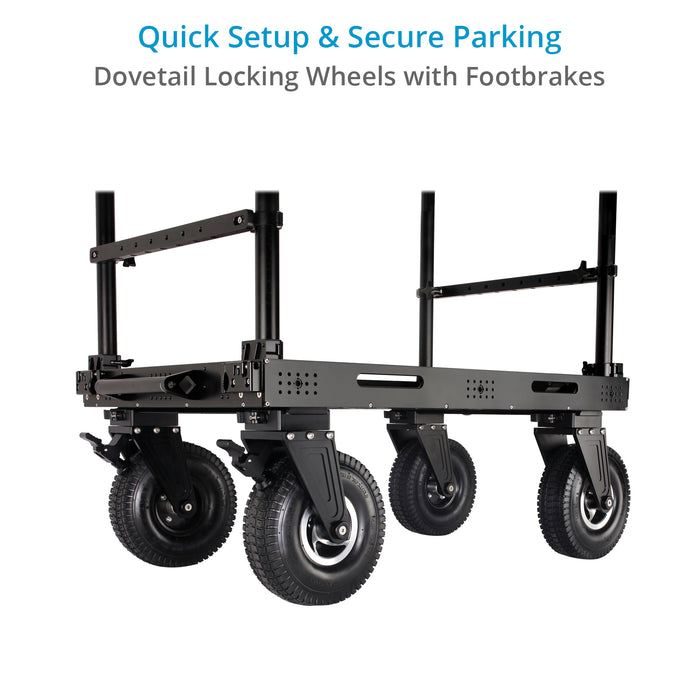

Always in Control

The specially designed foot brakes of the Atlas V2 Cart keep it completely steady, stable and secure for reliable parking and eliminating your worries even when you are not close to the Cart. The brakes are such that they don't become loose over time even when the tires experience some wear and tear, and the thickness decreases.

Proaim Atlas V2 Video Production Camera Cart
Proaim Atlas V2 Video Production Camera Cart

06.

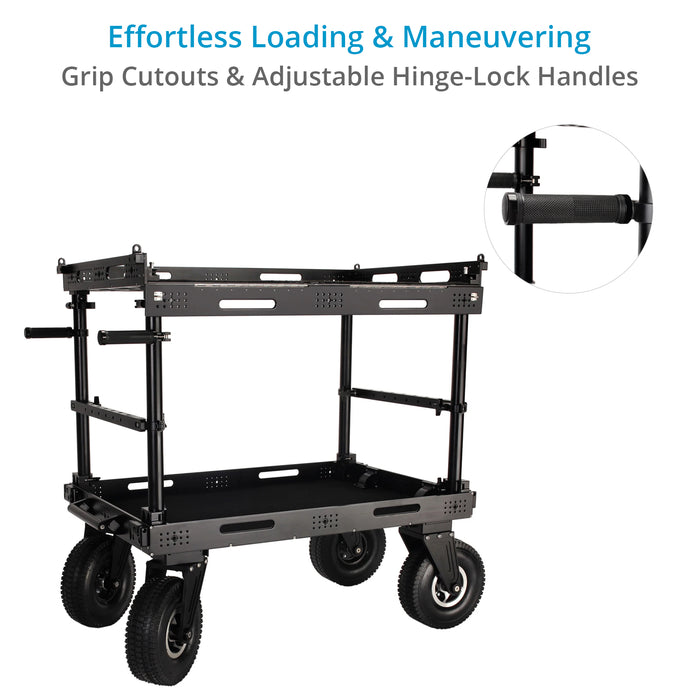

Grip Cutouts

The Atlas V2 features new Grip Cutouts on both the shelves of the Cart. These allow you to lift the Cart from both sides and load it into the truck or other vehicles. You can also use these to lift the Cart over obstacles or move it from one place to another.

07.

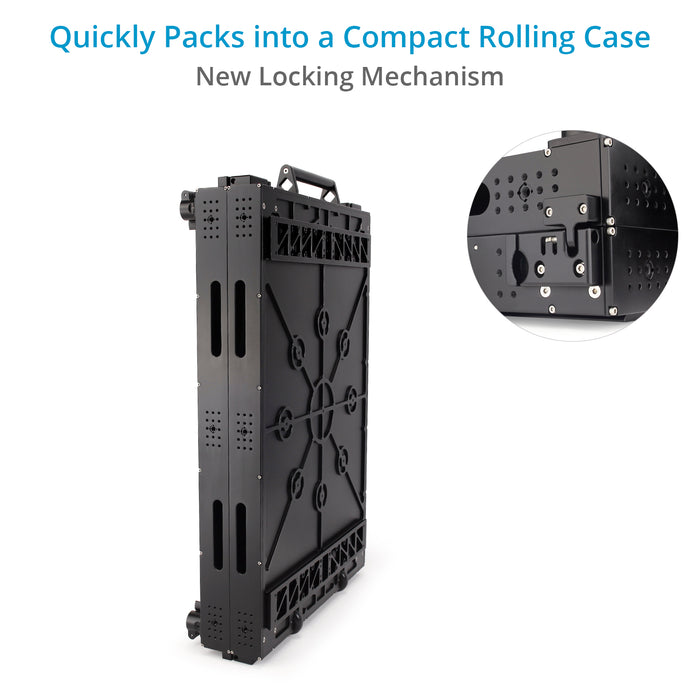

Travel-Friendly

Altas V2 can break down and stored in a few minutes. By design, the Atlas V2 is built to collapse on itself when not in use, making it incredibly easy to transport from one location to the next. No longer are you in need of a grip truck to bring your equipment to the next location, when now it all can sit firmly in the trunk of a midsized Sedan.

Proaim Atlas V2 Video Production Camera Cart
Proaim Atlas V2 Video Production Camera Cart

08.

Built to Last

The Atlas V2 cart is built with long hard-working days in mind. Constructed of aluminum, the Cart itself is incredibly robust in design. Most importantly, its collapsible design seems to have been done with zero sacrifices on the build quality of the Cart as a whole. The machined crossbars add rigidity to the Cart. At no moment whatsoever does the cart sway in its rigidity. Our emphasis on using only the best quality of raw materials makes sure the Cart lasts you a lifetime and is super stable even when fully loaded.


Different Sizes of Proaim Atlas V2 Cart

Proaim Atlas V2 Video Production Camera Cart

delivery

Guaranteed Fast Delivery
For all orders

customer service

Quick and Efficient
Customer service

easy returns

Easy Returns
Up to 30 days

warranty

1-Year Warranty
On All Products


Customer Reviews
5.0 Based on 6 Reviews
5 ★
100%
6
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
CC
09/04/2024
Carter C. (Amazon Buyer)
India India

Top-notch big cart!

I love this cart. This thing is well-built and easy to set up. I did it alone and had no problem configuring everything and tightening up. It rolls easily and fits through doors. It's got tons of cheese plate screw holes all over the sides to mount whatever you want, and it's thick, CNC-milled solid aluminum so that it will last. The wheels are easy to put on and take off, plus the whole thing can be folded up with the wheels fitting inside. It turns into a big rectangle like the obelisk from 2001 A Space Odessa, but with hard wheels on one end and a handle on the other to roll it around for putting it into a van or truck for transport. I've taken this cart off the road on bumpy ground with an Alexa Mini and tons of stuff, and it can do it. The accessory ecosystem is very robust as well. I bought two camera mounts with the horseshoe metal bracket, and I have different bowl sizes to mount various tripod heads. It is awesome to fully build two cameras on tripod heads and roll onto the set. I have the tripod holder on one end that carries two tripods so that I can be fully mobile with two cameras and even a teleprompter rig. This cart can hold lights, apple boxes, lenses, tools, cables, batteries, a sound bag + mixer, a laptop, and some C-stands or light stands all at once.

JD
09/04/2024
Jonathan D. (Amazon Buyer)
India India

Very, very well built.

It's hard to understate the build quality of this cart. I've been renting the other industry-standard cart made in the U.S. for a few months. I bought the 48" Atlas V2 when it went on sale. It just arrived, and wow, this thing is really well-built. While the U.S.-made cart was well designed and weight was a factor in its design, Atlas is absolutely a beast. The fit and finish are really nice. I'm pretty picky about the details, but Proaim nailed it. Pros: -The top and bottom decks are milled aluminum with zero flex. -The flop-down top tray rail adds strength to the top deck when it's down, and the hinges are very sturdy. The latch mechanism is very satisfying. -As far as I can see, there are zero sharp spots. Everything is chamfered and milled smooth. The connections are all well-made—not loose or fiddly at all. -I'm 6'1", and the height of the top deck is very comfortable, slightly taller than other carts. -It's heavy. It's hard to call this a con because I wanted a sturdier cart than the Inovativ, and really, I wonder how they could have made this lighter without sacrificing rigidity. You can't go wrong with this one if you are looking for your first cart and need more money for the more expensive brands. It would even work great as a one-person simple gear cart. This cart is a no-brainer in a studio environment where it stays built. I'm massively pleased.

C(
09/02/2024
Carter (.
India India

Top notch big cart for two camera set up

I love this cart. This thing is well-built and easy to set up. I did it alone and had no problem configuring everything and tightening up. It rolls easily and fits through doors. It's got tons of cheese plate screw holes all over the sides to mount whatever you want, and it's thick, strong CNC-milled aluminum, so it will last. The wheels are easy to put on and take off, plus the whole thing can be folded up with the wheels fitting inside. It turns into a big rectangle like the obelisk from 2001 A Space Odessa, but with hard wheels on one end and a handle on the other to roll it around for putting it into a van or truck for transport. I've taken this cart off the road on bumpy ground with an Alexa Mini and tons of stuff, and it can do it. The accessory ecosystem is very robust as well. I bought two camera mounts with the horseshoe metal bracket, and I have different bowl sizes to mount various tripod heads. It is awesome to fully build two cameras on tripod heads and roll onto the set. I have the tripod holder on one end that carries two tripods so that I can be fully mobile with two cameras and even a teleprompter rig. This cart can hold lights, apple boxes, lenses, tools, cables, batteries, a sound bag + mixer, a laptop, and some C-stands or light stands all at once.




  • is there a way to lower the standard height 41” like i just need a 30” to 34” ?

    There is no option to change the height of the Proaim Atlas V2 cart as its top shelf is fixed. But we have the Proaim Victor pro cart as it has an up & down movable top shelf so you can adjust the height. For reference, you can watch this youtube video: https://youtu.be/6dyyoJ1zkqw

  • What is the diameter of the inner opening on the wheel bearings? 1/2 inch or 5/8 inch maybe?

    The diameter of the inner opening on the wheel bearings varies from 17mm to 20mm.

  • Hi, what is the shipping time for France ? best regards

    Shipping Time to France is 5-7 business days.

  • Do you make a travel bag for the Atlas V2 Cart?

    Yes, we can make it at the request of the customer.

  • Is P-MLMT-M2 compatible with Atlas Cart ?

    Yes, the Proaim Multi Monitor Mounting System P-MLMT-M2 is compatible with the Proaim Atlas Cart.

  • Is the length that is listed at 38” include the handle or is that just the outside measurement of the square cart part?

    The 38" is the length of the Proaim Atlas V2 Video Production Camera Cart without handles (refimage: https://prnt.sc/k09M20cWG6z0 )

  • What carpet you use for the carts ?

    The Black non woven carpets are used on our Carts.

  • Does the top shelf adjust up and down?

    The top shelf in Atlas V2 cart is not adjustable to up/down.
