Proaim Universal 9” Camera Monitor Director Cage

Proaim Universal 9” Camera Monitor Director Cage

Adapts any monitor up to 9 inches (measured diagonally)

1 review
US $169.00 - US $169.00
US $169.00
US $169.00 - US $169.00
US $169.00
SKU : P-DMC-59
Also Available in Warehouses:    USA   Canada   Europe

Universal Cage Rig for Easy Handling of Your Monitors!
Secure & Comfortable. Height adjustable design adapts different monitors.
A Perfect Wireless Monitoring Solution for Directors & Video Assistants.


Small Monitor Cage

"WHAT YOU SEE IS WHAT YOU GET"

Proaim
 

 

Video is for demonstration only
 Actual Product may vary due to Product Improvements

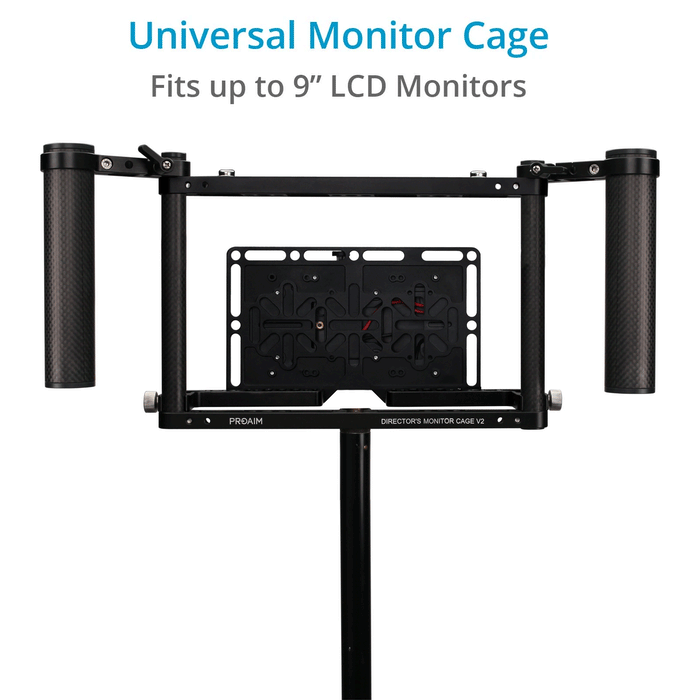

The Proaim Monitor Cage is meticulously designed to help directors and videomakers stay mobile when managing their production work. It is universally compatible with any monitor up to 9 inches (measured diagonally) and attaches via top, bottom, or rear 1/4-20 mounting locations. Constructed with durable, lightweight aluminum, the cage is modular and adjustable to support a monitor, battery mounts, and even a wireless transmission system. The robust design holds unique new features like dual direction swing away bracket, sun shade, quick release neck strap, dual Teradek mounting areas, handles and a cable tie for cable management.

Solid Construction
The Robust yet lightweight Aluminum & Carbon Fiber construction keeps your monitor protected. The Proaim Monitor Cage arrives mostly pre-assembled, with simple, rod-based height adjustment. By loosening the screws on the ends of the cross cheese bar, you could adjust and self-define the available height of the cage rig to fit in your monitor. It also features offset brackets which are great for attaching your LCD in two different places.

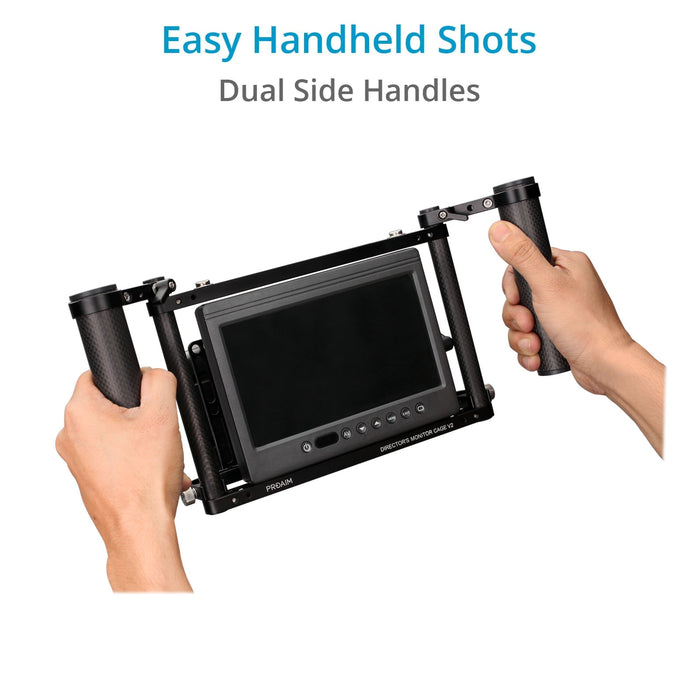

Comfortable Grip
A pair of carbon fiber handles are aimed at providing you with ultra-convenience during your monitor operation. It lets you have a comfortable hold on the cage during long hours of shooting. By loosening the knob, you’re free to sway in and orientate the handles at your requirement. The tool-less design of the handles allow them to be folded in for easy packing.

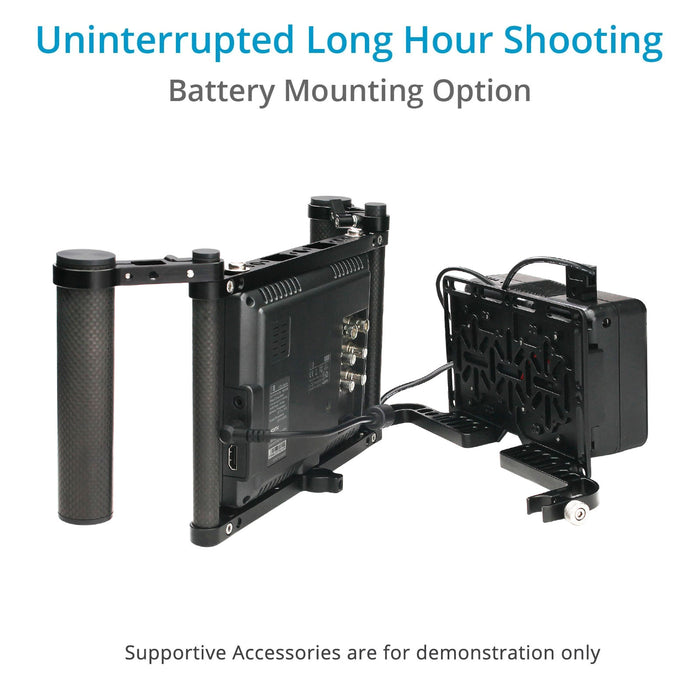

Battery Plate
The back mounting plate features V-Mount Battery Plate. The battery bracket can also be quickly removed when both swing clamps are loosened.

 9inch Monitor Cage

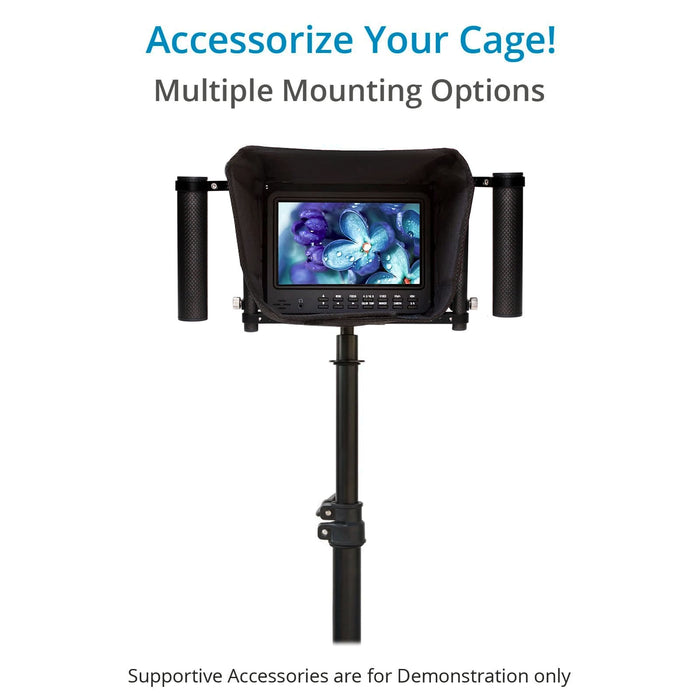

Sun Shade
The included sun shade with a velcro bottom adapts most monitors and snaps directly to the cage frame. It can be repurposed to act as a protective cover when packing the camera cage to avoid any dings or scratches.

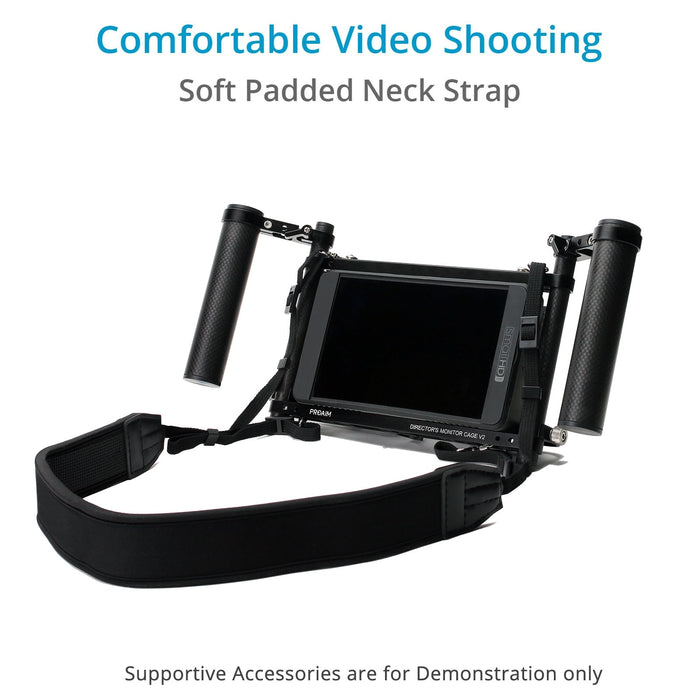

Neck Strap
Soft padded neck strap has four attachment points which is great for added security. It also lets you go hands-free & facilitates comfortable carrying without losing sight of your LCD.

Mounting Points
Numerous 1/4"-20 & 3/8"-16 mounting points throughout the cage to easily mount accessories like sun hood, wireless receiver etc. Teradek mounting areas allow up to two wireless receivers to be mounted side by side.

 4inch Monitor Cage

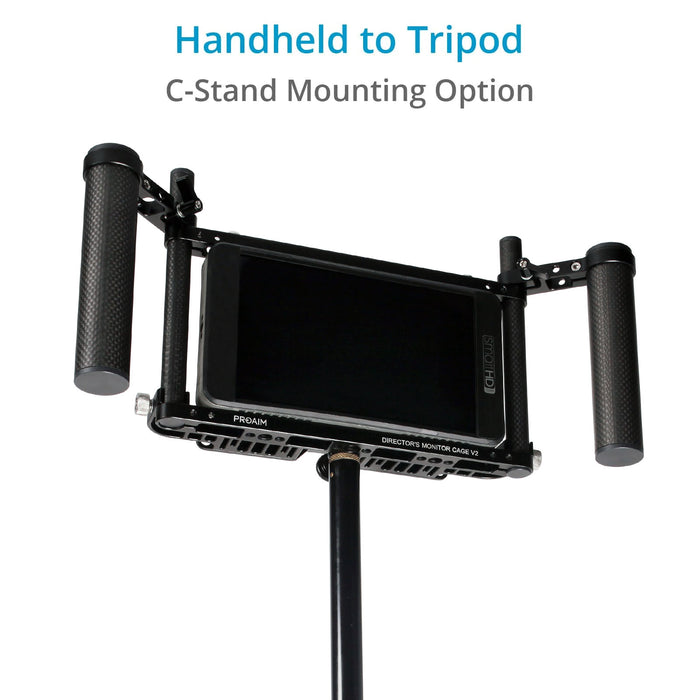

C- Stand Compatibility
The bottom cage bracket includes a built in baby pin option with a locking thumb screw to mount it on any C-stand.

 Universal Monitor Cage

Construction:
- Cage: High-grade Aluminum
- Handles, Rods: High-grade Carbon Fiber
- Battery Plate: High-grade Plastic
- LCD Monitor mounting: up to 9inches (measured diagonally)
Compatible Monitors:
- SmallHD DP4, DP6, AC7, DP7, 500 Series, 700 Series, Cine 7, 702 Touch, FOCUS 5/7, and UltraBright
- TVLogic VFM-056W/WP, VFM-058W, VFM-055A, F-7H, F-5A
- Ikan D5, VK7i, VH8, VL5, VX9e, DH5e, DH7, D7C, S7H, S7C, S7P
- Odyssey 7, 7Q, 7Q+
- Blackmagic Video Assist
- Atomos Samurai, Ninja, Shogun, Shinobi and many more
Accessory mounting: 1/4"-20 & 3/8"-16
Stand Mounting: C-Stand
Carbon Fiber Rods - Length: 150mm Diameter: 15mm

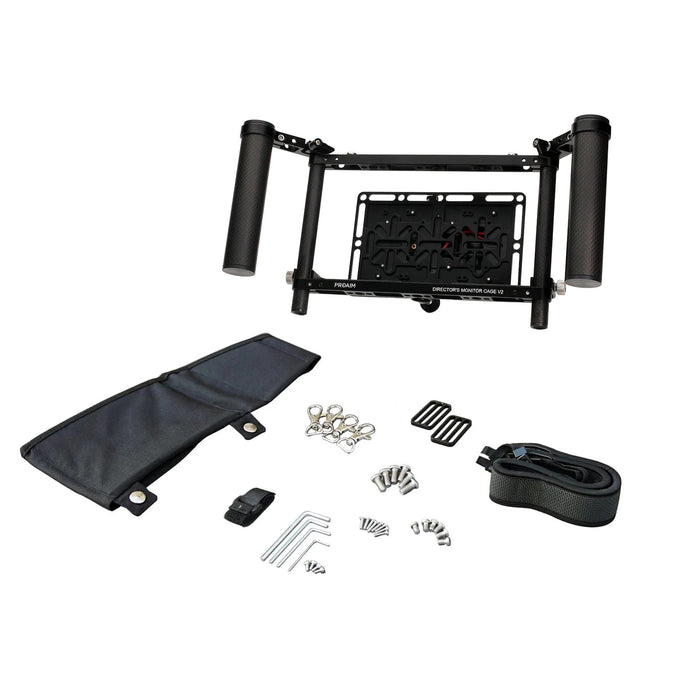

- Monitor Cage
- (6) ¼”-20 x 1/2" button head screws
- (6) ¼”-20 x 3/8" button head screws
- (2) Offset adapters
- (4) M3 x 12mm phillips screws (for optional Gold Mount plate)
- (4) M3 x 12mm pan head phillips screws (for Teradek XT/LT)
- (4) M3 x 6mm socket cap screws (for Odyssey 7Q)
- (1) Sun Shade
- (1) Neck Strap
- (1) Velcro Strap
- (4) Allen Keys

Proaim Universal 9” Camera Monitor Director Cage
