PROFESSIONAL. STRONG. LIGHT. SMOOTH.

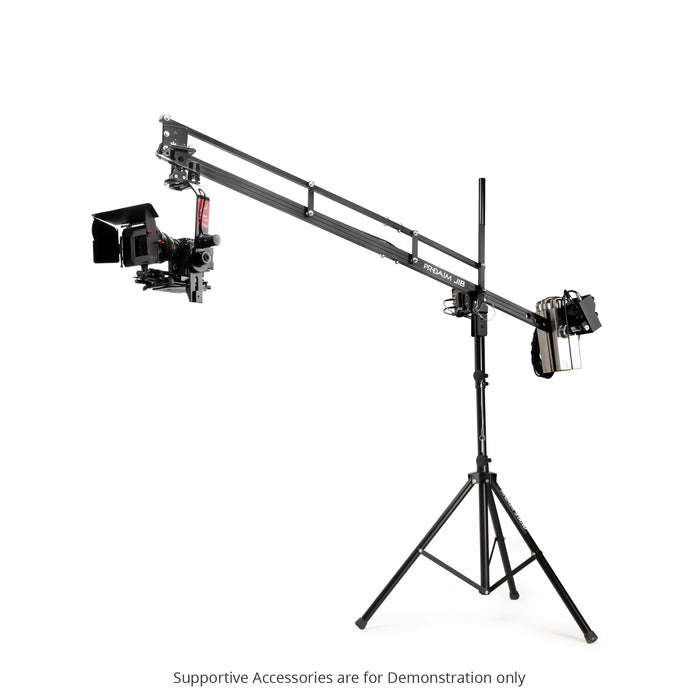

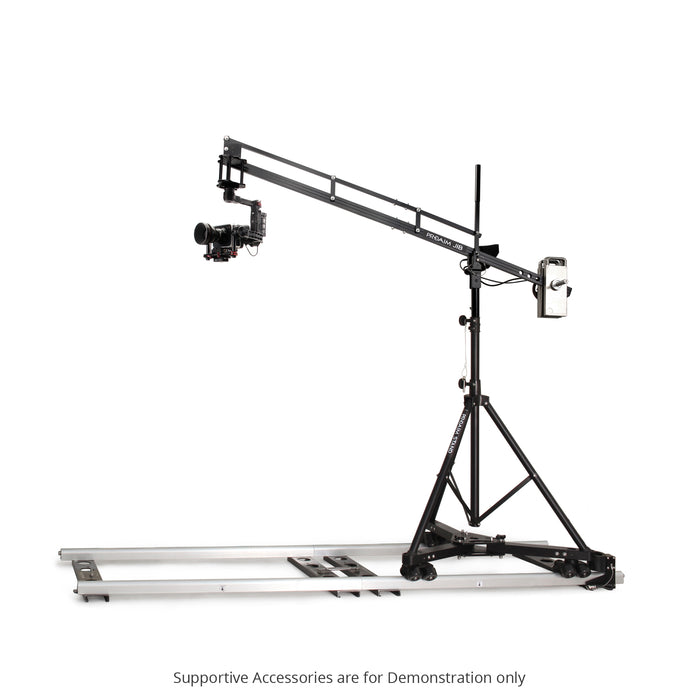

Proaim 9ft Camera Jib Arm is designed for videographers and filmmakers who need a lightweight and ultra-portable Crane system.

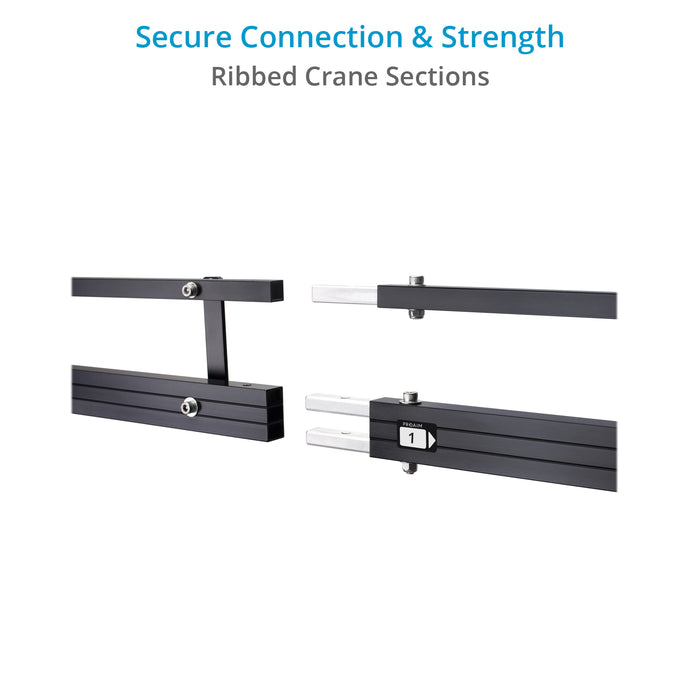

The Jib has many great features such as a two-arm design, camera mount tilt control, ribbed jib sections & monitor mounting - making it one of the most value for money jib.
It allows capturing smooth, dynamic sweeping pans and camera rise.
High strength Aluminum construction with unbeatable stability holds camera setups up to 8kg / 17.6lb.
EXPERTLY CRAFTED JIB

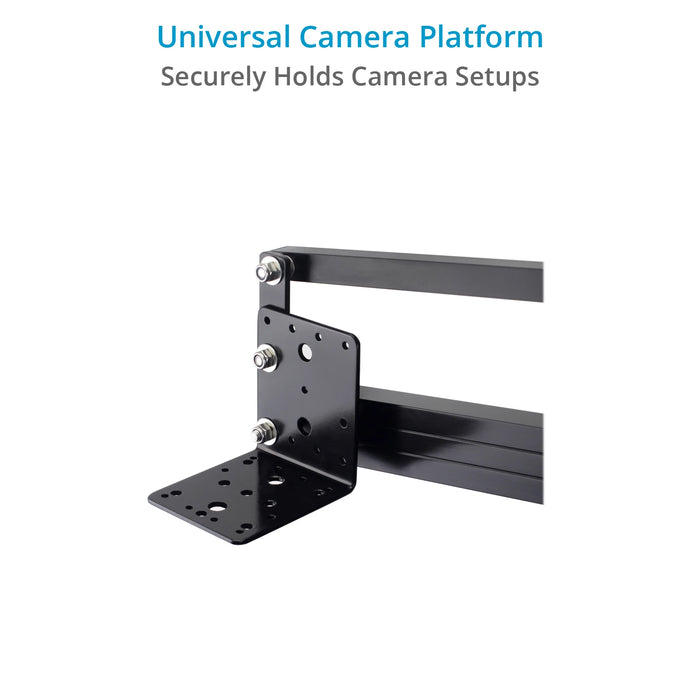

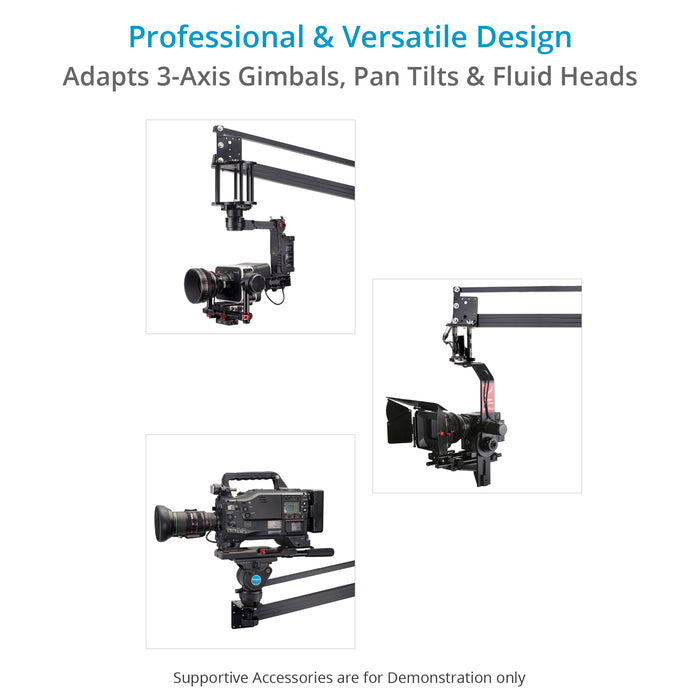

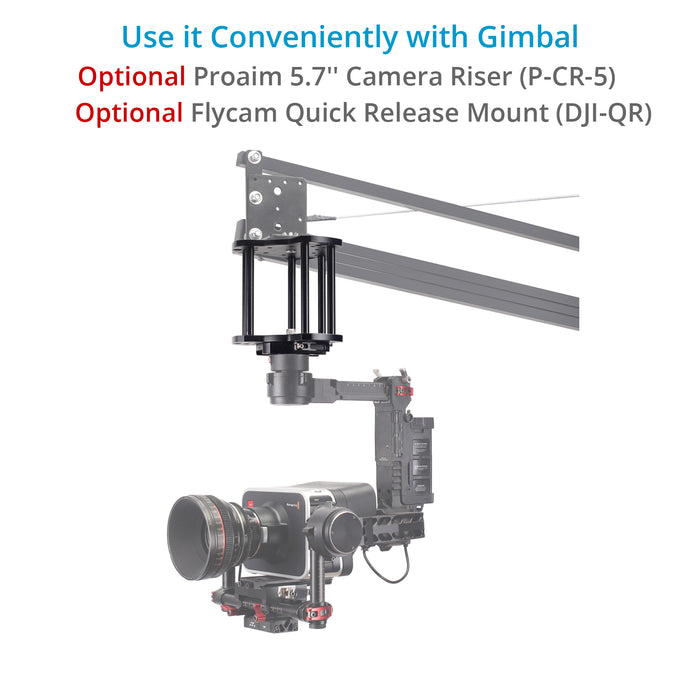

The Jib has Universal front mounting to adapt Pan Tilt Heads and 3-Axis Gimbal Stabilizers.
Two Arm Design offers enhanced strength & stability to the entire jib setup.
The Jib comes with a 1/4"-20 hole allowing for Quick LCD monitor attachment.
Camera Mount Tilt Control offers both Auto tilt mode and a Manual tilt mode with a control handle.

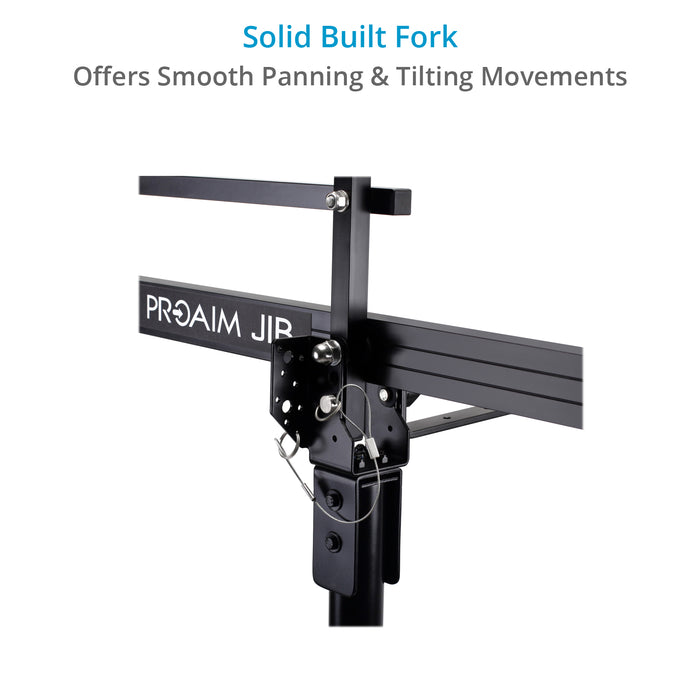

Central Fork with thrust roller bearings absorbs shock loads for smooth jerk free jib movements.
Hi-tensile weight closers keep the weight discs intact for perfect balance.
MOST AFFORDABLE JIB SOLUTION
For rigs under 8kg / 17.6lb, there isn't a better crane for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the Proaim 9ft Jib eliminates that concern by providing an excellent jib solution at an economical price.

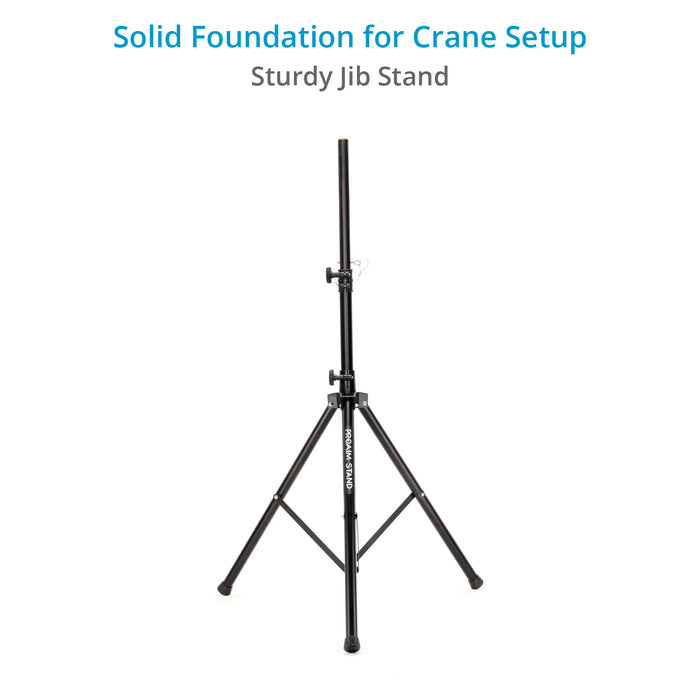

SOLID FOUNDATION FOR THE JIB
This excellent Jib Stand is sturdy enough to support the Crane when it's fully loaded and weighed.
It combines high-quality materials, technological expertise and superior design to provide the ideal support needed to take the perfect shots.
The Jib Stand supports an incredible payload of up to 90kg / 200lb and is highly stable in use.

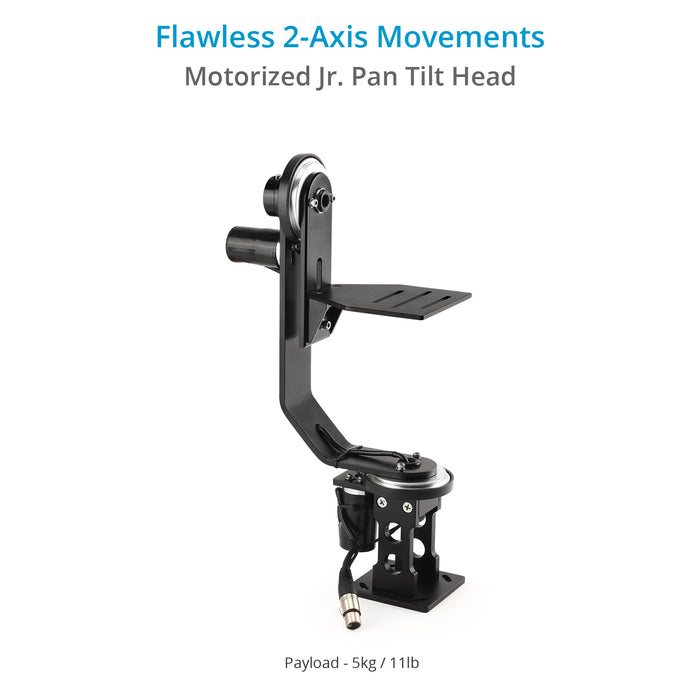

ENHANCE YOUR CREATIVE VISION
Proaim Jr. Pan tilt offers complete 360-degree pan & tilt inaudible movements while keeping your camera safe and secure. It is engineered to support cameras up to 5kg / 11lb with ease. Creative flexibility is a built-in feature as the Pan Tilt head can be used with jib crane arms, tripods and in other remote operating situations that dictate increased production value. Incredibly accurate and easily controllable, Proaim Jr. Pan tilt is a user-friendly Controller System.
PAN TILT FEATURES
Two Coreless Motors
Two coreless high torque motors provide inaudible movements along with a payload capacity of 5kg / 11lb, which is substantially higher than its counterparts.
The high strength brass gears are engineered to withstand long hours of functions and minimal wear and tear.

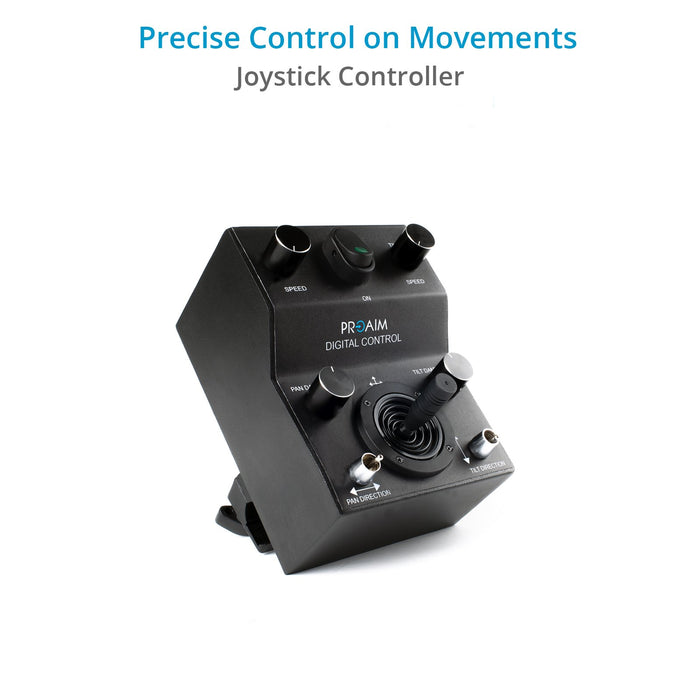

Speed Controller - Adjusts the speed of pan & tilt based on the requirement of the shot.
Damping Control - Prevents the head from stopping with a jerk enabling you to achieve smooth endings.
Dead Spot - Controls sensitivity of joystick on pan tilt head & prevents unwanted movements.
Pan-Tilt Direction - You can reverse the panning & tilting direction as & when required.

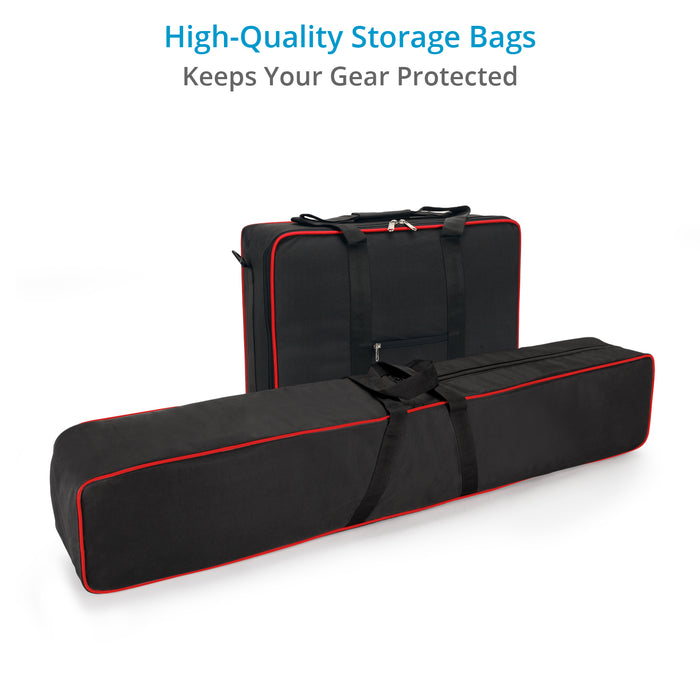

The Complete Jib System fits in a bag for easy storage. These compact bags are easy to carry with you to different sets and locations.
Jib Arm: High-grade CNC Aluminum
Cable System: Stainless Steel
Weight Holder Rod: Mild Steel
Weight Closures: Mild Steel
up to 8kg / 17.6lb
The Jib has a varying weight ratio depending on the length you have chosen.
The 9ft jib arm itself balances at about 3kg. Just multiply the weight, of the additional items you will put on the end of the arm, by 3 and you will know how much weight to buy.
Buy a few extras in case you add other accessories.
Total jib arm length: 7ft
Height Range from ground level: 8.75ft when stand height adjusted at 5ft
Length from tripod to camera mount: 10.3ft.
No. of Sections: 2
Length: 3.5' each
Jib Section Jointers: Silver Aluminum
Camera Mount Plate: Rectangle (10.5 x 9cm)
Levelling: By Stress Cable (with Adjustable Steel Hook)
Camera Tilt Angle
Up to 180 degree
Weight Holder Rod
Weight Closures: 2 pieces
10kg / 22.04lb
JUNIOR PAN TILT HEAD
Material of Construction
High-grade CNC Aluminum
5kg / 11lb
Minimum: 6°/sec Maximum: 51°/sec
Covers 360° at Slowest Speed in : 2 minutes
Covers 360° at Highest Speed in : 7 seconds
Two high torque, coreless DC motors that rotate the Head 360° (Pan/Tilt)
2 Small: ⌀ 13.5mm (Brass)
2 Large: ⌀ 88mm (Aluminum)
Minimum Height of Head: 18.5" / 46.99 cm
Maximum Height of Head: 22" / 56cm
Connectors: 2x 4-Pin XLR Male Connectors
Pan/Tilt Direction: Yes
Upgraded with: Damping Knob
AC Adapter input
AC 100-240V ; Output 12V DC-2A
Cable Length: 15 meter (Can be extended up to 50 meter)
Cable Connector: 4-Pin XLR
Battery Cable: 3 meter Long
Pan/Tilt Head: 2.7 kg / 5.9 lb
Joystick: 800 gram / 28.22 oz
Bag Dimensions: 50 x 35 x 19 cm
High-grade Mild Steel, Powder-coated
up to 90kg / 198lb
Diameter of Stand Tubes
4.5kg / 10lb
