Proaim 10' Wave-2 Jib Crane, Dolly Stand for Camera / Gimbals / Pan Tilt Heads

Proaim 10' Wave-2 Jib Crane, Dolly Stand for Camera / Gimbals / Pan Tilt Heads

For DSLR Video Camera Setups up to 25kg / 55lb

Save 5% Save 5%
US $1,199.00
US $1,199.00 - US $1,199.00
US $1,199.00
US $1,136.00
US $1,136.00 - US $1,136.00
US $1,136.00
SKU : P-WV-2PL-SD
Also Available in Warehouses:      Canada   Europe

Powerful, Simple & Affordable

A 10 ft telescopic jib crane supporting up to 25kg (55lb), designed for smooth cinematic shots and compatible with tripods, dollies, and gimbal setups.

01.

PROFESSIONAL. STRONG. LIGHT. SMOOTH.

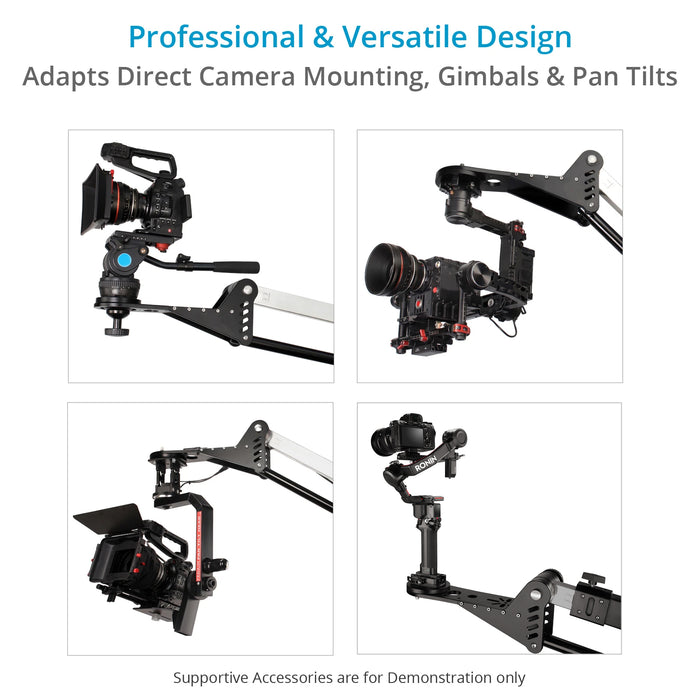

Proaim 10' Wave-2 Plus Video Jib Crane, specifically designed for indoor & outdoor video productions, is a portable filming solution for videographers and cinematographers who need a lightweight and ultra-portable Crane system.
The Jib has many great features such as telescopic design, versatile camera mount, sturdy assembly hub, panning knobs, making it one of the most value for money jib.
It allows capturing smooth, dynamic sweeping pans and camera rise.
High strength Aluminum construction with unbeatable stability holds camera setups up to 25kg / 55lb payload.

Proaim 10' Wave-2 Jib Crane, Dolly Stand for Camera / Gimbals / Pan Tilt Heads
Proaim 10' Wave-2 Jib Crane, Dolly Stand for Camera / Gimbals / Pan Tilt Heads

02.

EXPERTLY CRAFTED JIB

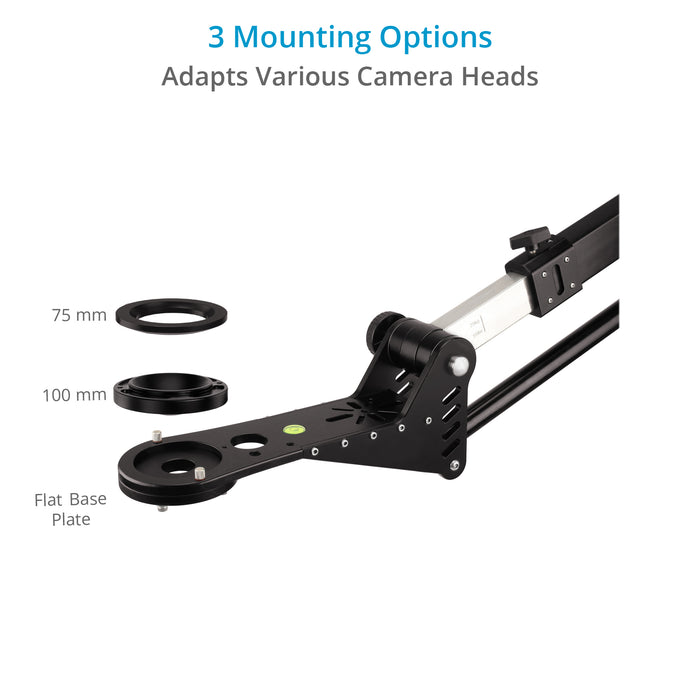

The Jib has a camera head mount that accepts 75mm/100mm fluid heads.

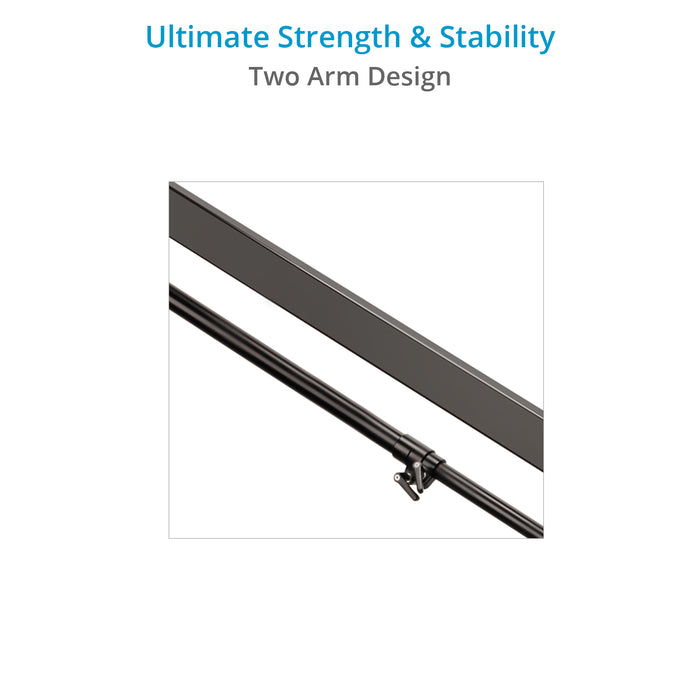

Two Arm Design offers enhanced strength & stability to the entire jib setup.

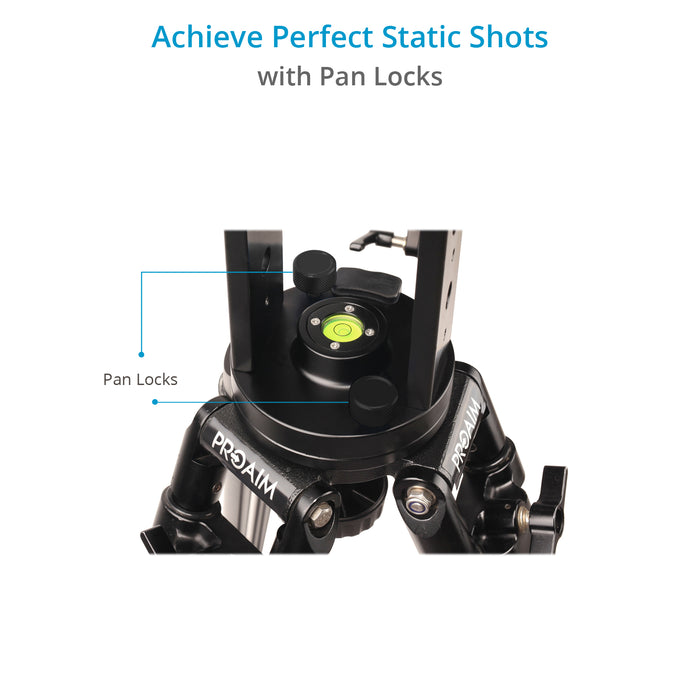

The Jib comes with pan knobs to control the panning of Jib.
Built-in bubble leveler offers fast, accurate set up on uneven surfaces.

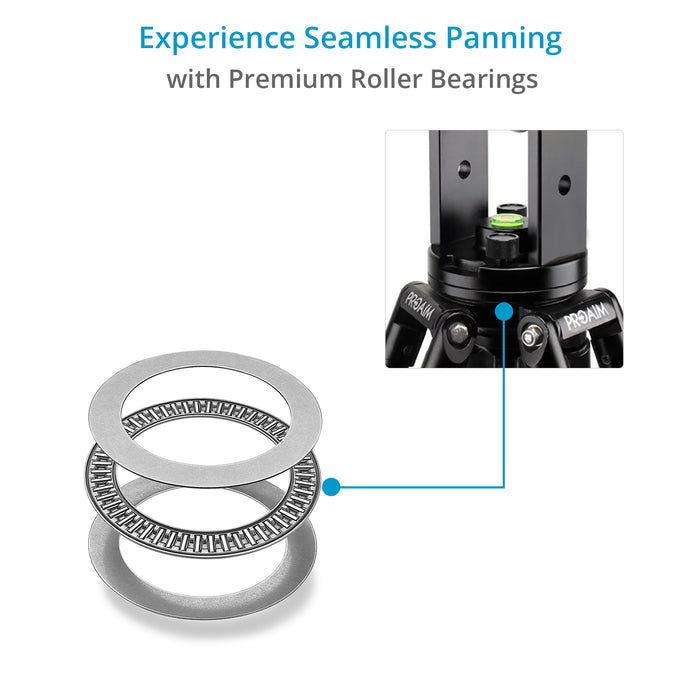

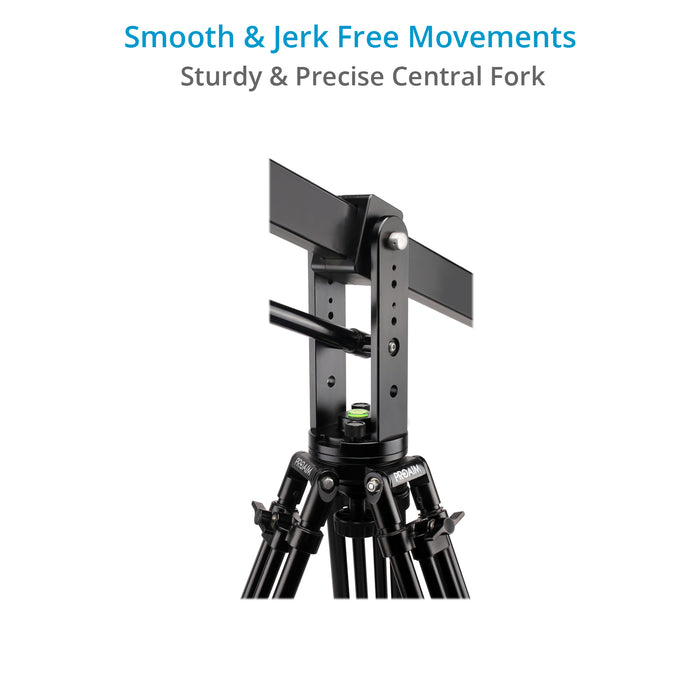

Assembly hub provides the perfect drag for smooth panning of the jib arm and absorbs unwanted vibration or movement from the operator.

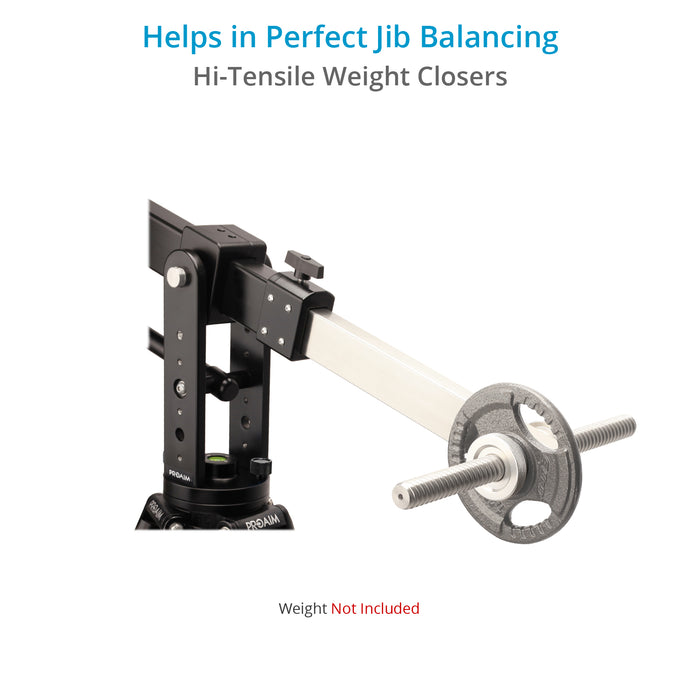

Hi-tensile weight closers keep the weight discs intact for perfect balance.

03.

ADAPTABLE LENGTHS

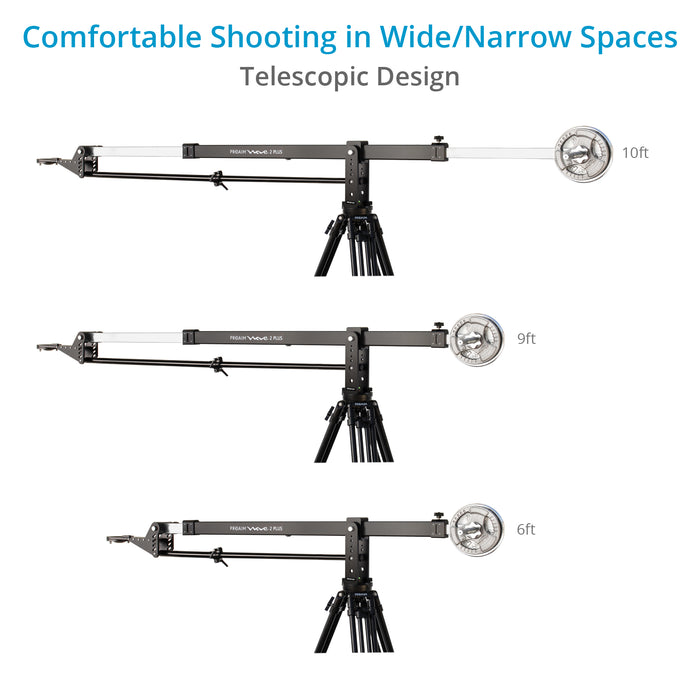

This travel-friendly Jib telescopes from the backside, which helps in the balancing of Jib. You can adjust the arm length from 6 feet to 10 feet.
The ability to change the length allows you to use the Crane in various scenarios.

Proaim 10' Wave-2 Jib Crane, Dolly Stand for Camera / Gimbals / Pan Tilt Heads
Proaim 10' Wave-2 Jib Crane, Dolly Stand for Camera / Gimbals / Pan Tilt Heads

04.

SOLID FOUNDATION FOR WAVE 10' CRANE

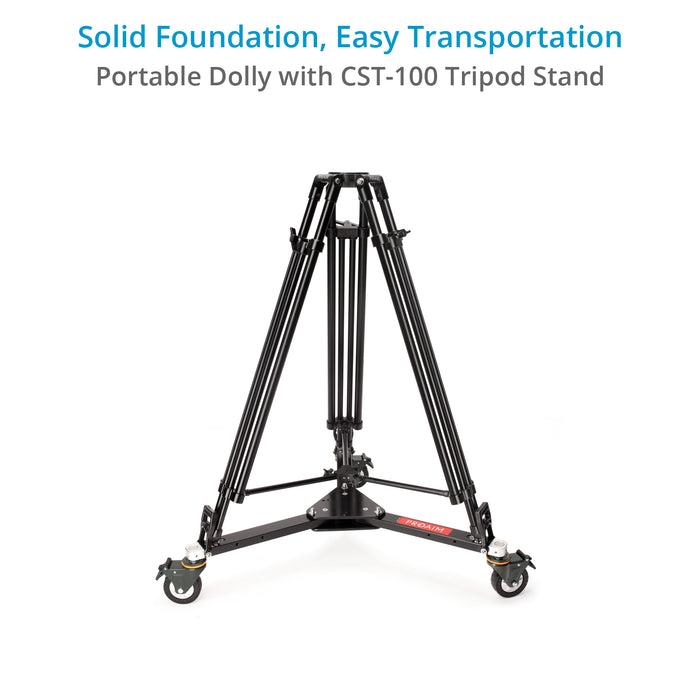

This excellent combination of CST 100mm Tripod Stand and Portable Camera Dolly is sturdy enough to support the Crane when it's fully loaded and weighed.
The Tripod with spreader gives immense support with an incredible payload of up to 80kg/176lb and is highly stable in use.
Heavy-duty Dolly gives movement to the Crane mounted on the Tripod and quickly takes payloads up to 500kg/1100lb.
The main features of Dolly are – Secure Tripod feet holders, locking brakes, high-quality wheels and foldable design.

05.

MOST AFFORDABLE JIB SOLUTION
For camera rigs under 25kg / 55lb, there isn't a better crane system for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the Proaim 10' Wave-2 Plus Jib package eliminates that concern by providing an excellent jib solution at an economical price..

Proaim 10' Wave-2 Jib Crane, Dolly Stand for Camera / Gimbals / Pan Tilt Heads
Proaim 10' Wave-2 Jib Crane, Dolly Stand for Camera / Gimbals / Pan Tilt Heads

06.

SIMPLIFIED TRANSPORT
The Crane System comes in high-quality bags for easy storage. These compact bags are easy to carry with you to different sets and locations.

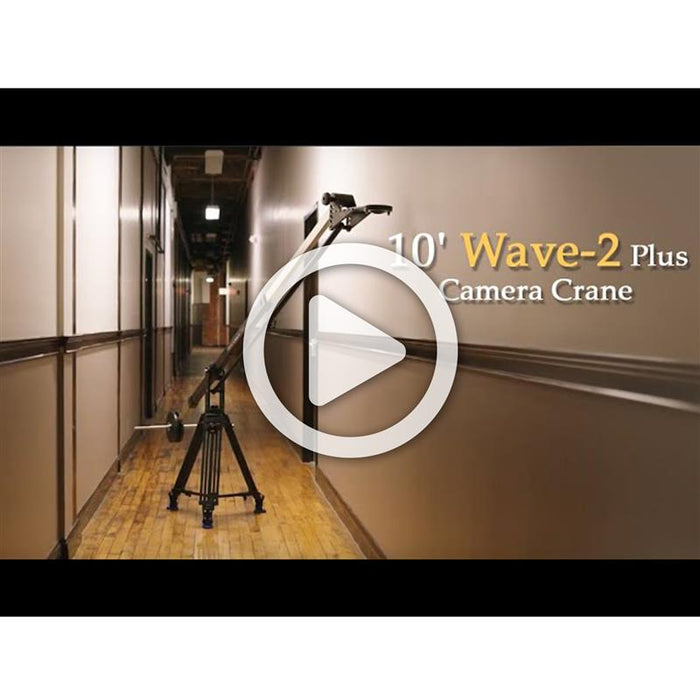

IN-ACTION VIDEOS

SPECIFICATIONS

10' WAVE-2 JIB

Construction

  High-grade Aluminum & Stainless Steel

Load Capacity

  up to 25 kg / 55 lb

Tripod mount

  100mm diameter

Camera Mount

  Flat base plate for Pan tilts heads
  100mm and 75mm Bowl head (with ring)

Telescopic Range

  6 feet to 10 feet

Pan Radius

  360 Degrees

Jib Pan Lock

  Yes (via pan friction knobs on U-Hub)

Jib Tilt Lock

  No

Camera Plate Tilt Lock

  Yes (via adjusting the camera head plate knob and ratchet knobs on jib arm)

Self balance

  7 kg/15 lb

Balancing Chart

 Camera Weight

15kg

20kg

25kg

 Counter Balance

30kg

40kg

50kg

 Measured Length

305cm

259cm

208cm

 Length from U Fork to Camera Plate

201cm

172cm

143cm

Note : The counterweight required to balance the jib will be approximately twice the weight of the camera setup. However, if the jib sections are collapsed, it may require fewer counterweights than is usually needed to balance the jib.

CST-100 TRIPOD STAND

Construction

  High-grade CNC Aluminum

Load Capacity

  up to 80 kg /176lb

Diameter of Tripod Tubes

  20mm and 14mm

Length

  Maximum - 60 inches
  Minimum - 34 inches

Collapsible Height

  6.50 kg / 14.33 lb

Package Weight

  11.4 kg / 25 lb

Box Dimensions (LxWxH)

  39.7 x 10.2 x 9.5”

ALUMINUM SPREADER

Construction

  High-grade CNC Aluminum

Compatibility

  All Tripods with Twin Spiked Feet

Load Capacity

  up to 400kg / 880lb

Spreader Height

  50mm / 2inches

Build-up Radius

  41 – 66cm / 16 – 26inches

Weight

  2.47kg / 5.44lb

Package Weight

  3kg / 6.61lb

Box Dimensions (LxWxH)

  55 x 18 x 14"

PORTABLE DOLLY

Construction

  High-grade Steel

Weighing capacity

  up to 500kg/ 1100 lb

Tripod Foot Compatibility

  Spiked Feet

Locking Wheels

  Yes

Weight of Product

  10.7kg / 23.5lb

Package Weight

  11.65 kg / 25.68 lb

Box Dimensions (LxWxH)

  23.4 x 10.7 x 9.4"

IN THE BOX

  Proaim10' Wave-2 Video Camera Crane Jib
  Proaim CST-100mm Bowl Tripod stand with Aluminumn   Spreader (CST-100-01)
  Proaim Portable Dolly (P-PRT-D)
  75mm Conversion Ring
  100mm Bowl Adapter
  Flat base plate
  Storage Bags

USER MANUAL

  Proaim 10' Wave-2 Plus Telescopic Jib Arm Crane with CST-100 Stand & Portable Dolly

delivery

Guaranteed Fast Delivery
For all orders
customer service

Quick and Efficient
Customer service
easy returns

Easy Returns
Up to 30 days
warranty

1-Year Warranty
On All Products
Customer Reviews
5.0 Based on 1 Reviews
5 ?
100%
1
4 ?
0%
0
3 ?
0%
0
2 ?
0%
0
1 ?
0%
0
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
TF
09/13/2017
The f.

EXCELLENT!!

Hey, only one word to describe this jib and the company that makes it. EXCELLENT!!! To say they take care of their customers is an understatement. I had a mix up with my shipment and as soon as I reached out to them and told them my issue, in less than 3 days, they rectified the matter and I received a new shipment. Wow! And I used this Jib on a short film the very next day. Beautiful product and well made. Solid and feel good when you handle it. Steady and smooth movement. I have no complaints here. This company has a new fanboy. Thank you, I TOTALLY recommend this jib for any cinematographer looking for a mini crane. STRONGLY recommend it...

Proaim 10' Wave-2 Jib Crane, Dolly Stand for Camera / Gimbals / Pan Tilt Heads
Was this helpful?  0    0



  • Does it include counterweights?

    No — counterweights are NOT included

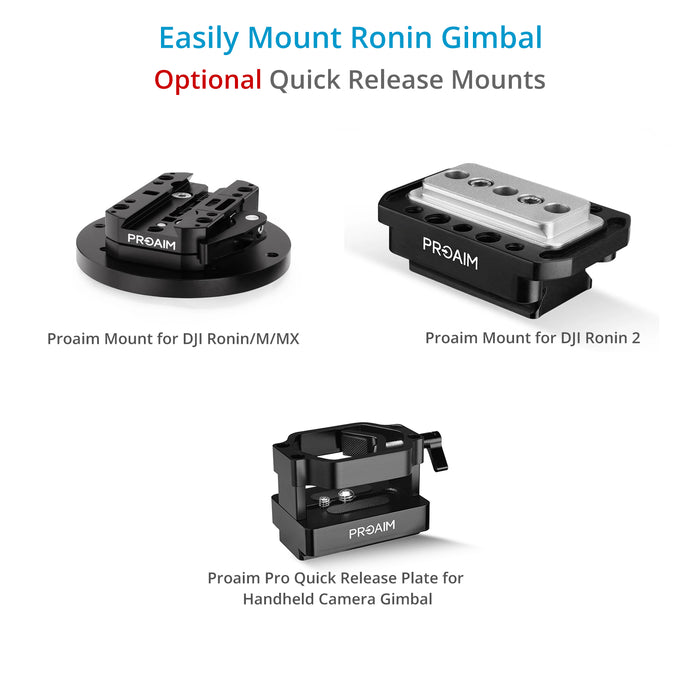

  • Is this compatible with DJI Ronin / gimbals?

    Yes, compatible with gimbals like DJI Ronin.

  • What camera weight can this jib support?

    This jib support Max payload: 25 kg (55 lbs)

  • What's the ratio for counterweight? Say an 11lb camera and a Proaim Gold Pan/Tilt Head sitting at 8.6lb.

    The counterweight required to balance the Proaim 10' Wave-2 Video Jib/Crane Arm is approximately twice the weight of the camera setup with the arm fully extended. If the jib arms are collapsed, it may require less counterweight than double the camera rig.

  • How to install a FREEFLY Toad (Male Adapter), what parts are needed?

    You will need the QR-WV-710 adapter, it has the required threaded holes for mounting the FREEFLY Toad (Male Adapter). You can attach it directly using those mounting points.

  • Can this mount to a mitchell tripod?

    Yes, the Proaim 7' Wave-2 Video Jib/Crane Arm can work with Mitchell tripods. We recommend the following adapter kit to attach the Jib to tripods with Mitchell mounting.
    Proaim Multi-Adapter Kit for Camera Rigging (Mitchell, Euro/Elemac, Bowl) P-MLAK-01.

  • Will the "502AH Pro Video Head with Flat Base" attach to this jib?

    Yes, the 502AH Pro Video Head can be mounted on the Proaim 10' Wave-2 Jib using the BA-100 adapter.

  • Does the counterweight bar accept standard one-inch barbell weights?

    Yes, the counterweight bar accept standard one-inch barbell weights.

  • Can the telescopic arm be extend whilst filming, in a similar fashion to a sliding rail?

    No, the telescopic arm cannot be extended whilst filming.

  • What is the difference between the proaim 10' wave 2 and the proaim 10' wave 2 plus ?

    In P-WV-2PL only Jib is included whereas P-WV-2PL-PP (10' wave-2 plus) is a complete package that includes 10' wave-2 Jib, Pan-Tilt Head, CST-100 Tripod stand, Spreader, and Portable Dolly.

  • Does the explorer pro pan tilt head work with the wave-2 jib?

    No, the Explorer pro pan tilt head is not compatible with the wave-2 jib. But you can buy the PT-SR pan tilt head which will be compatible with the wave-2 Jib.

  • What is the size of the central screw used to attach this jib with the tripod stand

    The size of the central screw used to attach this jib with the tripod stand is M10.

  • In this Lineo portable tripod dolly are the wheels replaceable with track wheels?

    Yes, the wheels of Proaim Lineo Portable Video Camera Floor Dolly P-PRT-D are replaceable with Track wheels.
