Proaim introduces its new Alphabet 21ft Jib Crane with 100mm CST-100 stand, fully loaded with features like fastest tool less setup capability, high strength build and enhanced stability. Considering the need of film productions, this travel friendly jib crane with unbeatable high-end quality and technicalities offers promising performance and reliability. Take a deeper look at Proaim Alphabet 21ft Jib Crane with 100mm CST-100 stand, and you’ll find innovation on every level.
"WHAT YOU SEE IS WHAT YOU GET"
(Revised on 12-March-2020)
Video is for demonstration only Actual Product may vary due to Product Improvements
Camera plate for Quick Remote Head Connectivity Complete CNC constructed robust camera plate can be fixed in any position whether upright or upside down for quick pan tilt connectivity.
Stress Cables for Better Stability The high strength stainless steel stress cables keep the crane setup completely rigid & straight providing an extra measure of stability and balance to the camera jib crane.
Fork Allows Smooth Movements The Fork provides a wide degree of panning and tilting and has a solid build which enables nice smooth shots. The disc lock on tilting axis enables the operator to move the crane on one axis when required or take completely static shots.
Manual Control over Camera Tilt
You can manually control the camera tilts using the controlling bar, when the camera is directly attached without remote head. Moreover, this controlling bar leads to jerk free tilts.
Tripod Stand with Aluminum Spreader (CST-100-01) Revised on 12-March-2020
The PROAIM Two-Stage 100mm Tripod Stand with spreader is an extremely powerful combination used for video and photography applications. This system gives you versatility and stability you need for fast and efficient workflow.Two stage tripod with built in mid-level spreader is a stable platform with an incredible height range of 60".Aluminum Tripod Spreader is a very lightweight, portable & unique support system ideal for indoor & outdoor applications.
Quickly Convertible Design
Compatible With Ronin Gimbal With the help of this adapter, you can also mount DJI Ronin M/MX Gimbals, to add more variety to your shots.
IMAGE GALLERY
Think of Possibilities… Think of Alphabet jib crane
The Supportive accessories are for demonstration purpose only.

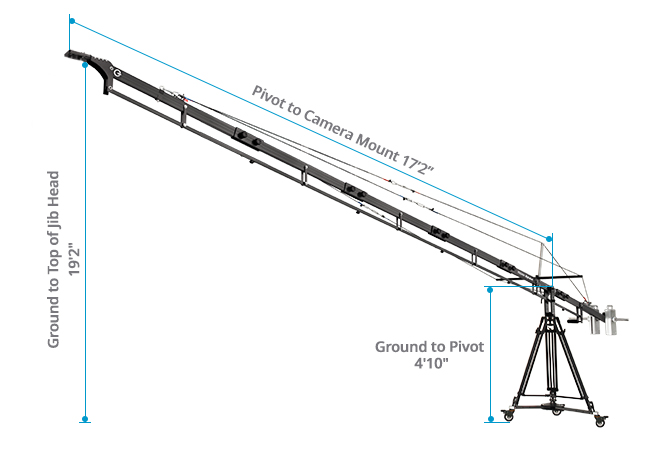

- CNC Made Aluminum Construction - Length of camera Jib - 21ft - Load capacity - 15 kg/33 lb - Self balance - 27 kg/59 lb - Crane Pan Lock - No - Crane Tilt Lock - Yes
BALANCING CHART
CAMERA WEIGHT
1kg
2kg
3kg
4kg
5kg
COUNTER BALANCE
3kg
6kg
9kg
12kg
15kg
CST-100 STAND
- Max length of tripod: 60 inch- Minimum length of tripod: 34 inch - Collapsible height: 36 inch - Tripod tubes made of Aluminum - Diameter of tripod tubes: 20mm and 14mm - Load capacity: 80kgs /176lbs - Tripod Weight: 6.50 kg
SPECIFICATIONS OF SPREADER - Payload upto: 400kg / 880lb - Spreader height: 50mm/2inch - Build up radius Minimum: 41 - 66cm / 16 - 26inch - Compatible with All Tripods with Twin Spiked Feet - Product weight (without packing): 2.47kg / 5.44lb
