Proaim 10' Wave-2 Jib Crane for Camera / Gimbals / Pan Tilt Heads

Proaim 10' Wave-2 Jib Crane for Camera / Gimbals / Pan Tilt Heads

For DSLR Video Camera Setups up to 25kg / 55lb

Save 13% Save 13%
US $605.00
US $605.00 - US $605.00
US $605.00
US $525.00
US $525.00 - US $525.00
US $525.00
SKU : P-WV-2PL
Also Available in Warehouses:    USA   Canada   Europe

Powerful, Simple & Affordable

Best Travel Crane for Outdoor Extremes & Indoor Studio Shots!!!

01.

PROFESSIONAL & WELL-DESIGNED JIB CRANE

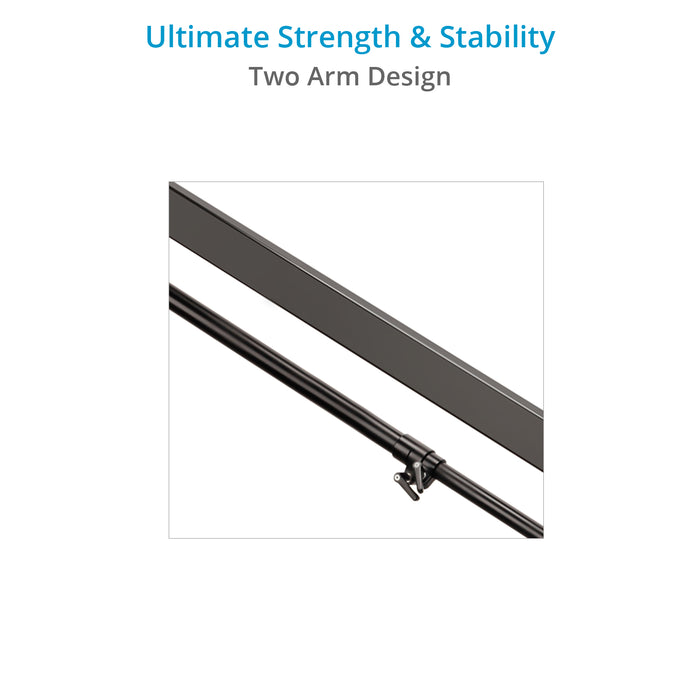

Proaim 10' Wave-2 with dual-rail design offers enhanced strength & stability for creating sweeping cinematic movements, expanding your creative flexibility.
Ease of packing and a quick no-tool setup system maximizes its versatility.
This travel-friendly Jib extends backward as per operator convenience for better control.

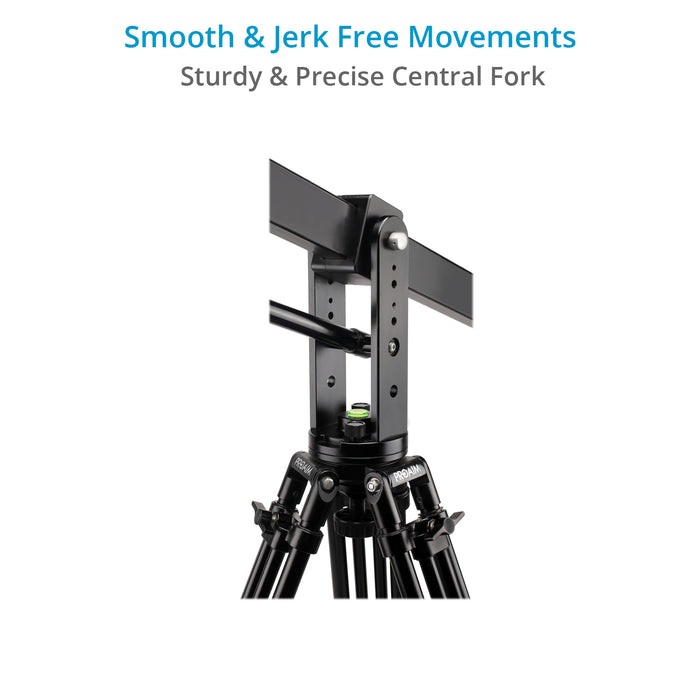

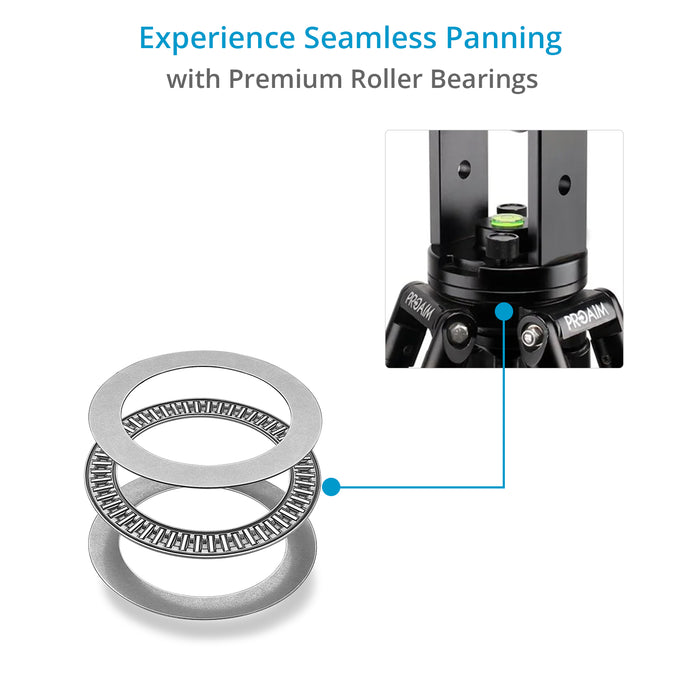

Assembly Hub Provides the perfect drag for smooth panning of the arm.

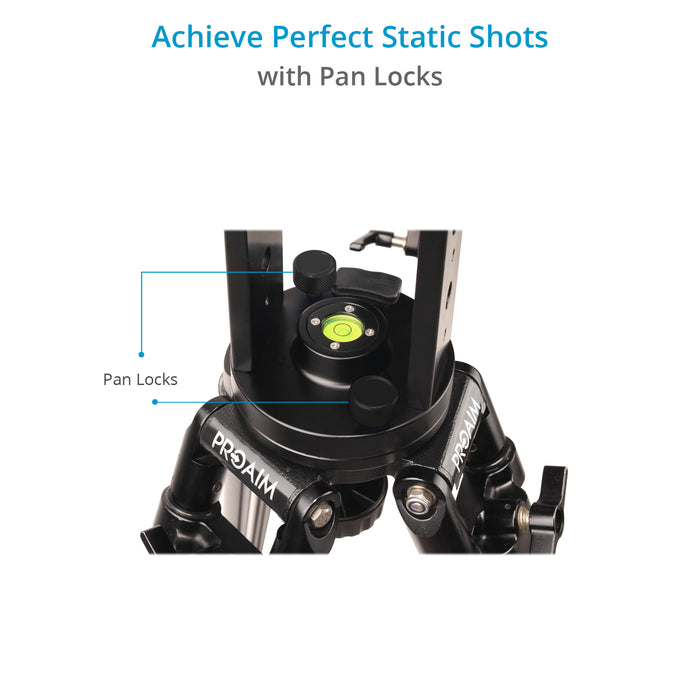

The well-built pan knobs control the panning of the Jib. Built-in bubble leveler allows for fast, accurate set up on uneven surfaces.

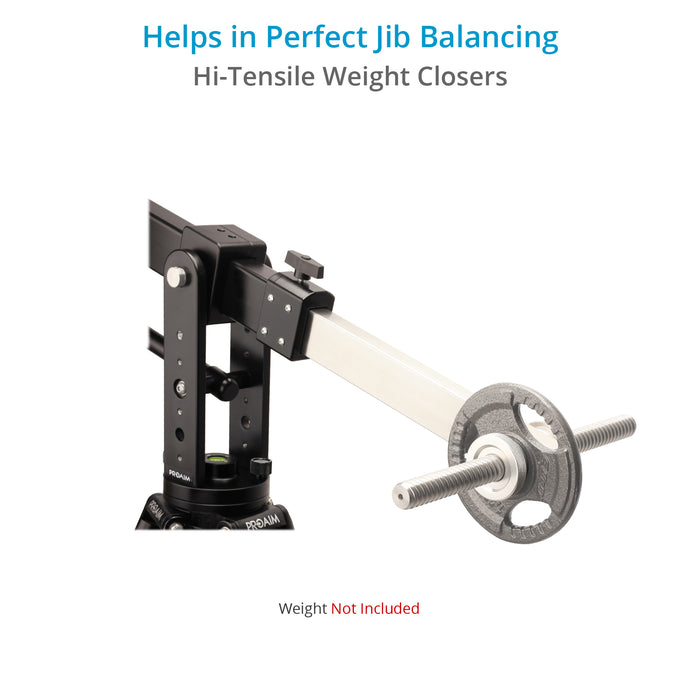

Stronger weight closers keep the weight discs intact for perfect balance.

Proaim 10' Wave-2 Jib Crane for Camera / Gimbals / Pan Tilt Heads
Proaim 10' Wave-2 Jib Crane for Camera / Gimbals / Pan Tilt Heads

02.

COMPATIBILITY

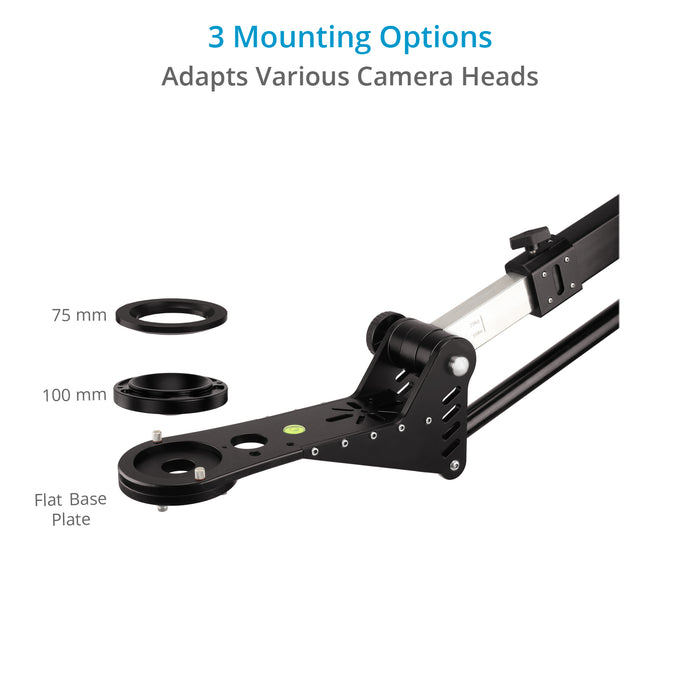

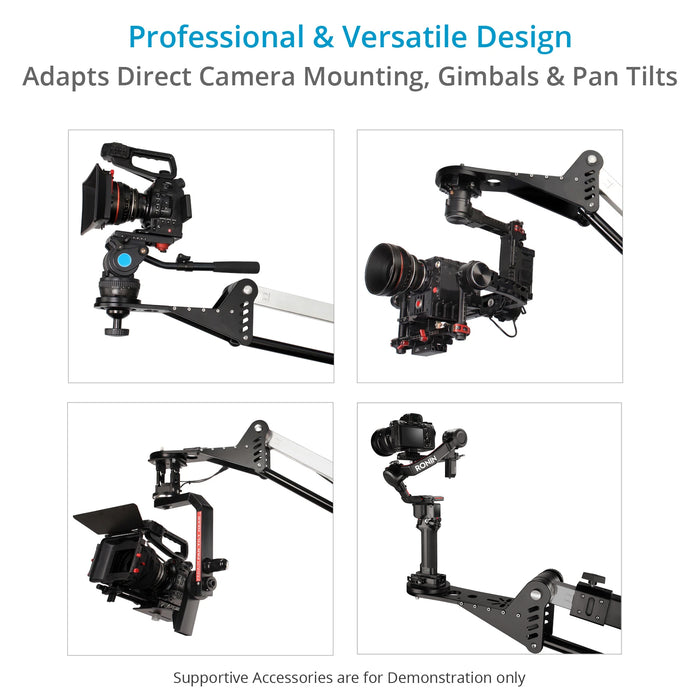

The robust camera mount confidently accepts 75mm/100mm fluid heads.
The Jib is designed to mount a camera of practically any size, weighing up to 25kg / 55lb.

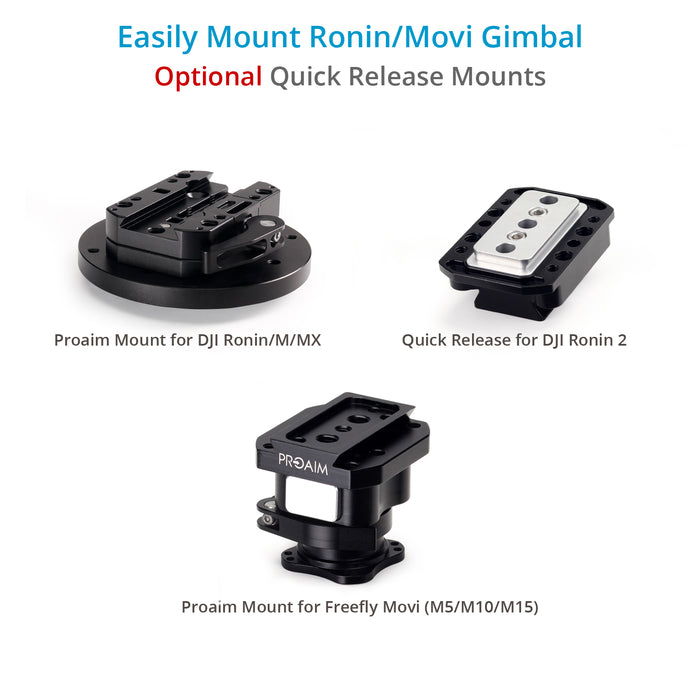

The Jib adapts Pan Tilt Remote Heads & 3-Axis Ronin/Movi Gimbals using separately available compatible adapters.

03.

ADAPTABLE LENGTHS

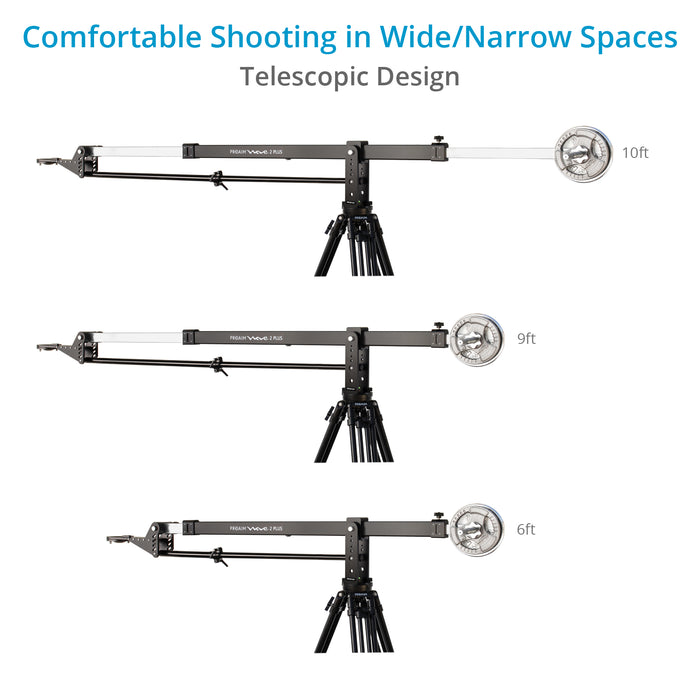

This travel-friendly Jib telescopes from the backside, which helps in the balancing of Jib. You can adjust the arm length from 6 feet to 10 feet.
The ability to change the length allows you to use the Crane in various scenarios.

Proaim 10' Wave-2 Jib Crane for Camera / Gimbals / Pan Tilt Heads
Proaim 10' Wave-2 Jib Crane for Camera / Gimbals / Pan Tilt Heads

04.

AFFORDABLE JIB SOLUTION
For rigs under 55lb, there isn't a better crane for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the 10' Wave-2 eliminates that concern by providing an excellent jib solution at an economical price.

05.

SIMPLIFIED TRANSPORT

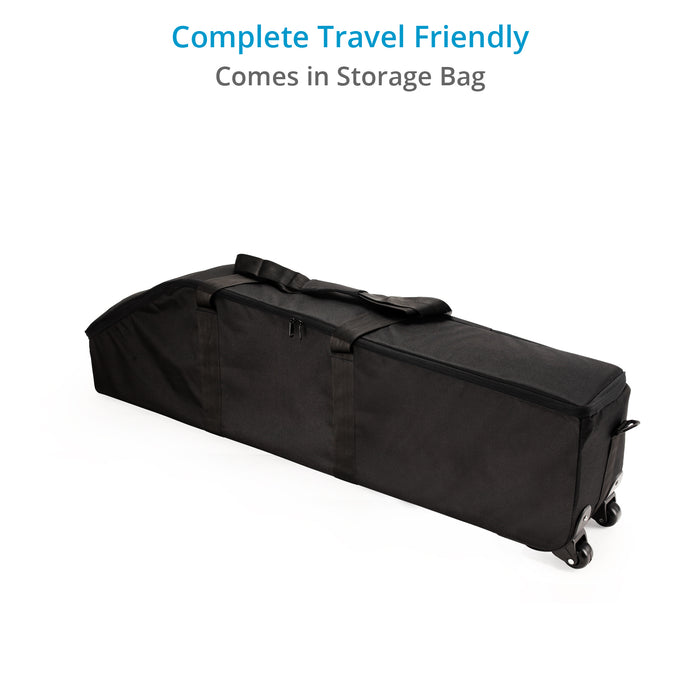

The 10' Wave- 2 comes in a foam padded storage bag to ensure full protection. This travel-friendly compact bag is easy to carry with you to different sets and locations.

Proaim 10' Wave-2 Jib Crane for Camera / Gimbals / Pan Tilt Heads

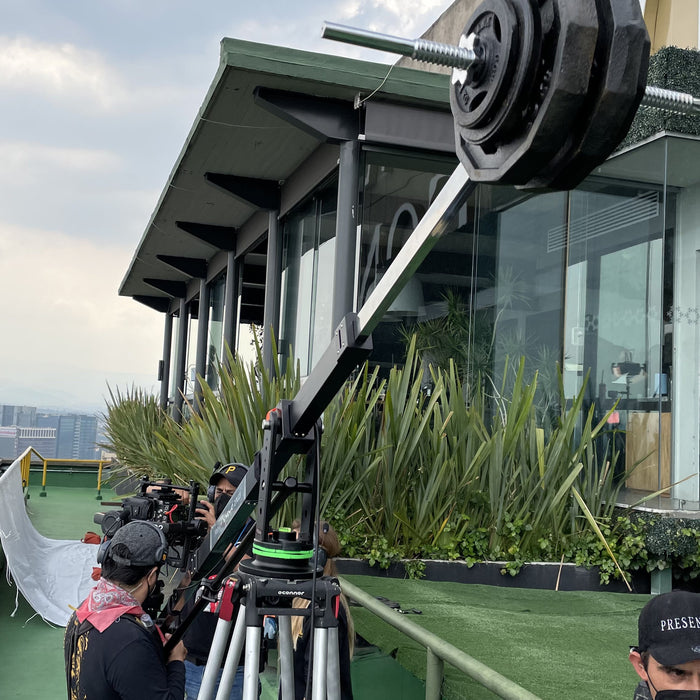

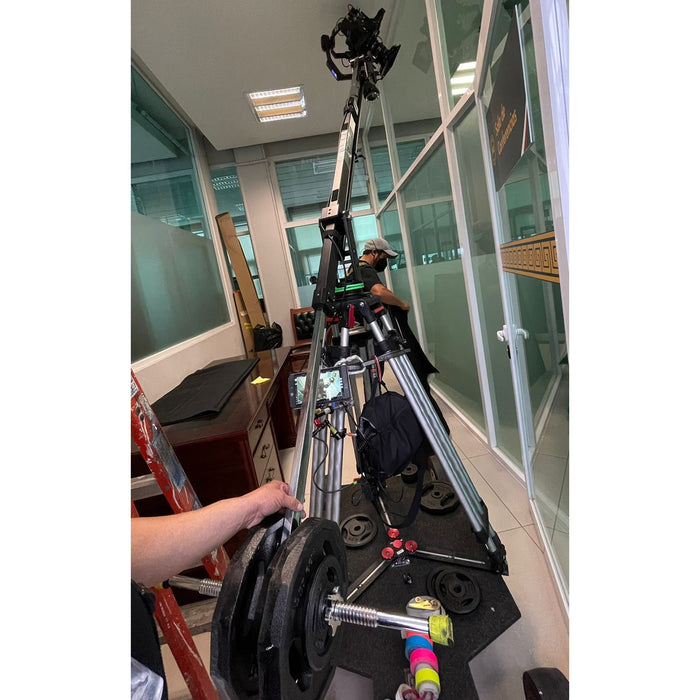

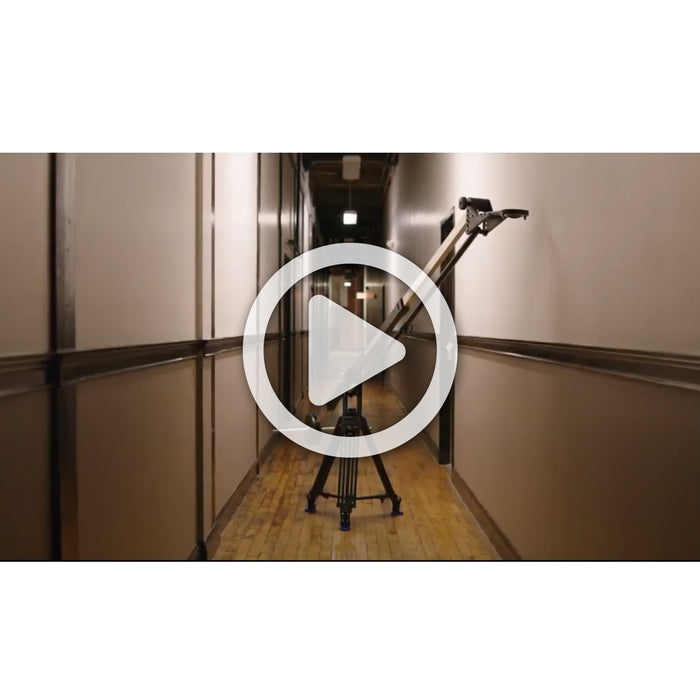

IN-ACTION VIDEOS

CAMERA JIB ARM SPECIFICATIONS

Construction

  High-grade Aluminum & Stainless Steel

Load Capacity

  up to 25 kg / 55 lb

Tripod mount

  100mm diameter

Camera Mount

  Flat base plate for Pan tilts heads
  100mm and 75mm Bowl head (with ring)

Telescopic Range

  6 feet to 10 feet

Pan Radius

  360 Degrees

Jib Pan Lock

  Yes (via pan friction knobs on U-Hub)

Jib Tilt Lock

  No

Camera Plate Tilt Lock

  Yes (via adjusting the camera head plate knob and ratchet knobs on jib arm)

Self balance

  7 kg / 15 lb

Balancing Chart

 Camera Weight

15kg

20kg

25kg

 Counter Balance

30kg

40kg

50kg

 Measured Length

305cm

259cm

208cm

 Length from U Fork to Camera Plate

201cm

172cm

143cm

Note : The counterweight required to balance the jib will be approximately twice the weight of the camera setup. However, if the jib sections are collapsed, it may require fewer counterweights than is usually needed to balance the jib.

IN THE BOX

  Proaim 10' Wave-2 Video Crane Jib
  75mm Conversion Ring
  100mm Bowl Adapter
  Flat base plate
  Assemble Hub
  Storage Bag

USER MANUAL

Proaim-10-Wave-2-Jib-Crane

  Proaim 10' Wave-2 Jib Crane

delivery

Guaranteed Fast Delivery
For all orders
customer service

Quick and Efficient
Customer service
easy returns

Easy Returns
Up to 30 days
warranty

1-Year Warranty
On All Products
Customer Reviews
5.0 Based on 2 Reviews
5 ★
100%
2
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
CS
03/29/2022
Christopher S.
United States United States

Great Jib

I can't say enough for the customer service at Proaim. My first review mentioned that the bag wheels fell apart on me on my first shoot. Proaim reached out and sent me an entire new bag. And did I mention the quality of the jib. Very well built and very smooth. I see this jib following me through the rest of my video career. Don't hesitate if you are considering this jib or this company. Buy one today!

Proaim 10' Wave-2 Jib Crane for Camera / Gimbals / Pan Tilt Heads
Was this helpful?  0    0
DK
11/06/2021
Daniel K.
United States United States

Very Well Made.

Shipping was timely, Packed well, Works well with most professional Cameras

Proaim 10' Wave-2 Jib Crane for Camera / Gimbals / Pan Tilt Heads
Was this helpful?  0    0

Q&A

Ask a Question



  • Can the jib be transported easily between locations?

    Yes. It breaks down into compact sections and fits inside the storage bag.

  • Can the jib be adjusted for different shot lengths?

    Yes. The telescoping arm allows adjustment from 6ft to 10ft.

  • Can I use the jib without a remote pan-tilt head?

    Yes. A standard fluid head can be used, though a pan-tilt head or gimbal offers better camera control.

  • Does the jib require counterweights for operation?

    Yes. Counterweights are needed to balance the camera

  • Can the jib be used with DSLR cameras?

    Yes. It supports DSLR cameras.

  • How to install a FREEFLY Toad (Male Adapter), what parts are needed?

    You can use the QR-WV-710, it has the required threaded holes for mounting the Freefly Toad (Male Adapter). You can attach it directly using those mounting points.

  • This looks like a great item. I have a few questions. What tripods would you recommend. What other items do i need. How does one attach the camera to this. Does this unit have any control for the camera orientation (or should you always use it w/a gimbal?

    We recommend using the CST-100-01 stand for the Wave-2 Jib.
    For mounting your camera, the jib supports multiple options including 75mm or 100mm bowl mounts, flat-base mounting, gimbal mounting, fluid-head mounting, and pan–tilt head mounting.

    For camera orientation control, you can use either a dedicated pan–tilt head or a gimbal—both will allow smooth movement and positioning of the camera.

  • "Does the counterweight bar accept standard one-inch barbell weights?"

    Yes the weight bar included with the Proaim Wave-2 is designed to work with standard barbell weights. It will work with 1" + weight sizes.

  • "What is the difference between the proaim 10' wave 2 and the proaim 10' wave 2 plus ?"

    In P-WV-2PL only Jib is included whereas P-WV-2PL-PP (10' wave-2 plus) is a complete package that includes 10' wave-2 Jib, Pan-Tilt Head, CST-100 Tripod stand, Spreader, and Portable Dolly.

  • Does the explorer pro pan tilt head work with the wave-2 jib?

    No, the Explorer pro pan tilt head is not compatible with the wave-2 jib. But you can buy the PT-SR pan tilt head which will be compatible with the wave-2 Jib.

  • Will P-JS work with my Jib?

    The Proaim Heavy-Duty Stand for Camera Jib Crane P-JS will not work with the Proaim 10' Wave-2 Jib Crane P-WV-2PL. The Proaim 100mm Camera Tripod Stand (CST-100-01) will perfectly work with the Proaim 10' Wave-2 Jib Crane P-WV-2PL.

  • What is the size of the central screw used to attach this jib with the tripod stand

    The size of the central screw used to attach this jib with the tripod stand is M10.
