- User Manual

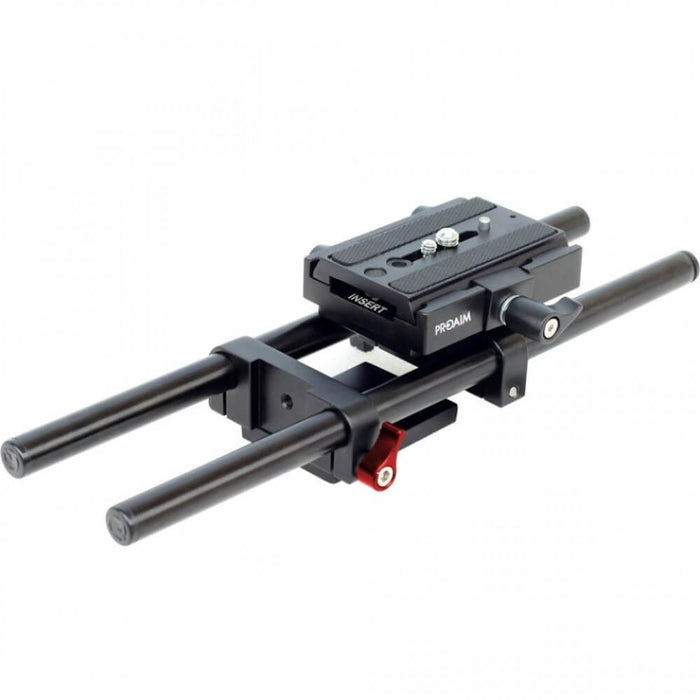

A small, light setup solution expandable to a more elaborate setup enables you to mount multiple photo/video accessories for use with your camera system. Its design prevents the camera from "twisting" on the rail support and raises the camera to the standard height. Proaim Rail System is specifically designed to work for Follow Focus and long lenses. This Rail System comes with standard 15mm rods which are compatible with Arri and other accessories such as Follow Focus, Matte Box, etc.
"WHAT YOU SEE IS WHAT YOU GET"
Revised on 11-SEP-2017

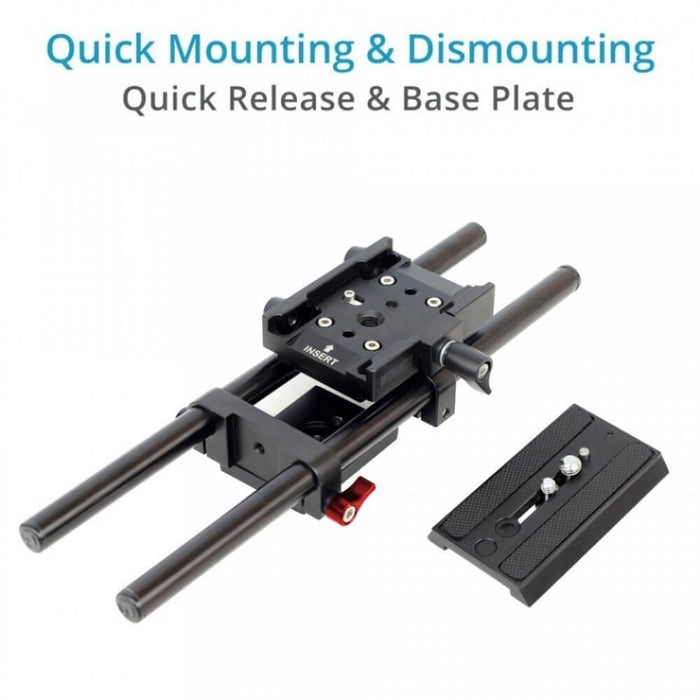

The Manfrotto 357 compatible Quick Release Plate fits almost every camera and prevents your camera from rotating or moving on the plate. It is designed to allow access to all camera controls and functions without removing the plate.

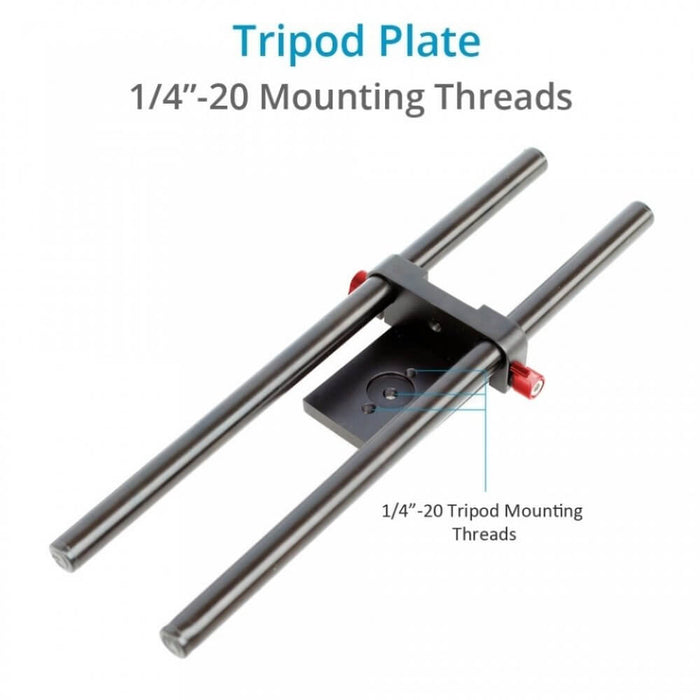

Base Plate is designed to support the rail system from the bottom. It allows easy tripod mounting using ¼”-20 threads, thus ensuring a secure mounting of the setup.

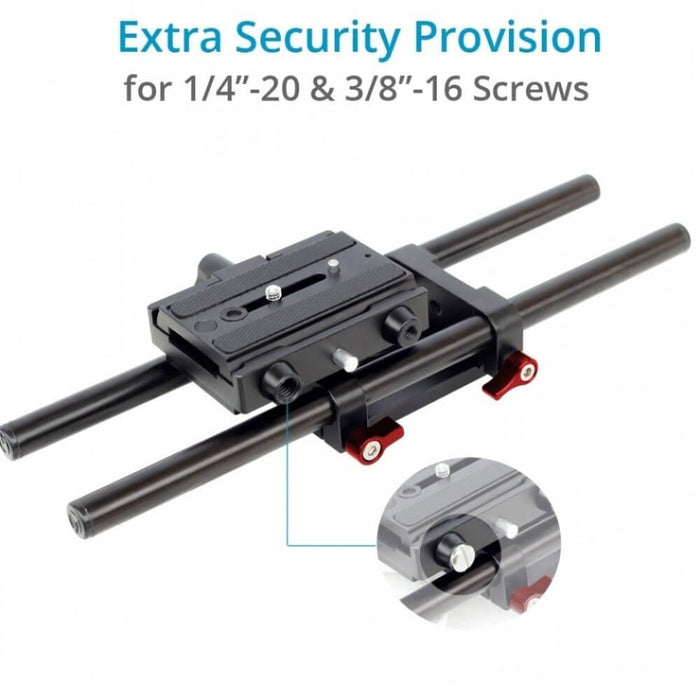

Security for Screws
The provision of locking the small screws of ¼”-20 and 3/8”-16 on the side of the base plate is an added feature. It safeguards the screws to remain in place.

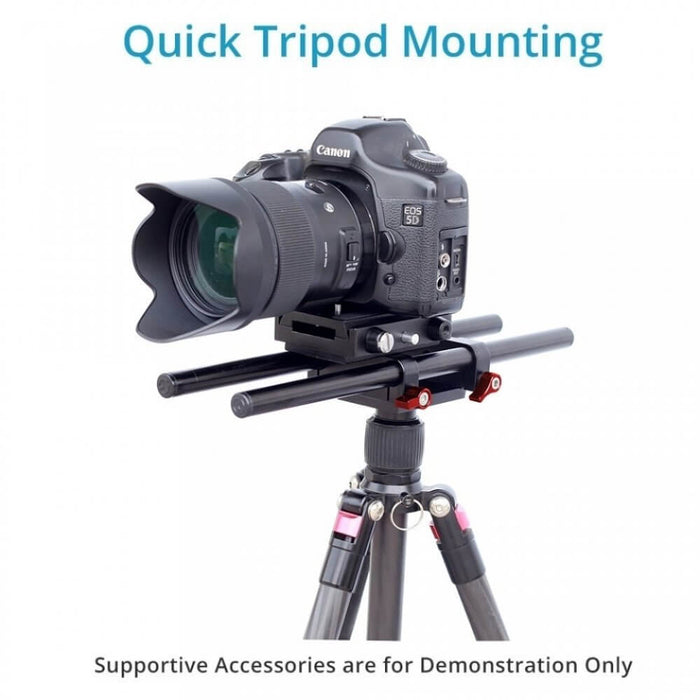

The Supportive accessories are for demonstration purpose only
- Construction (Rods): Aluminum
- Rail Diameter : 15 mm
- Rail Distance : 60 mm
- Camera Mounting : 1/4"-20 & 3/8"-16 Screw
- Tripod Mounting : 1/4"-20
- Length of Rails : 300mm (30cm)
- Weight with packing : 1.5 kgs
- 2 x 300mm Aluminum Rods
- Quick Release Plate (FLCM-QR)
- Tripod Mounting Plate
