Proaim Pro Vibration Isolator for 3-Axis Camera Gimbals

For DJI Ronin, Freefly MOVI & Other Remote Heads

$757.00
SKU : VI-PP-01

Capture Naturally Smooth Shots

Proaim Pro Vibration Isolator for 3-Axis Camera Gimbals

Super-Smooth Shots

Cut Down Vibrations and other Noise from your Shot!

Proaim Pro Vibration Isolator for 3-Axis Camera Gimbals

Calibrate to Your Needs

Adapt it to any Camera + Gimbal Setup ranging from 5kg/11lb - 30kg/66lb, and it'll function precisely the way you need it.

Proaim Pro Vibration Isolator for 3-Axis Camera Gimbals

Quickest Setup Time

One-Man Assembly! It is ready for your Gimbal in the shortest time possible.

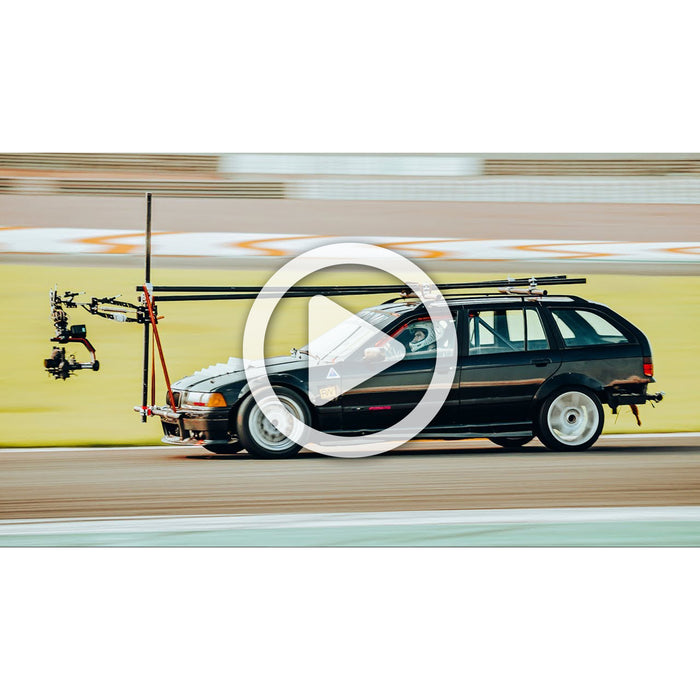

See how the Vibration Isolator Works

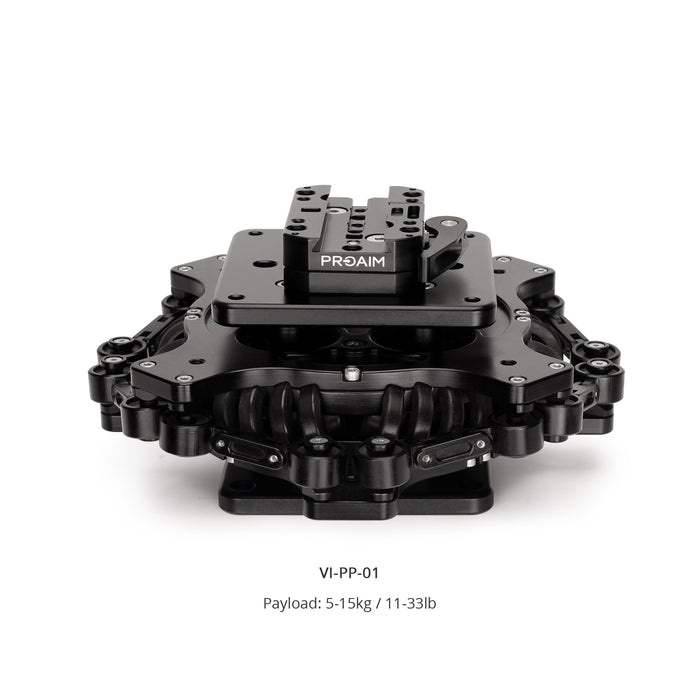

  Specifications of VI-PP-01

Construction

  High-grade Aluminum

Load Capacity

  5-15kg / 11-33lb

Mounting Threads

  1/4"-20, 3/8"-16, M4 & M3

Mounting Plate

  DJI Ronin Quick Mount

Temperature Range

  -20° to +50°

Mount Diameter

  9.8" / 25 cm

Height

  4.3" / 11 cm

Product Dimension

Proaim Pro Vibration Isolator for 3-Axis Camera Gimbals

Product Weight (Without Packing)

  3.12kg / 6.87lb

  Specifications of VI-PP-02

Construction

  High-grade Aluminum

Load Capacity

  15-30kg / 33-66lb

Mounting Threads

  1/4"-20, 3/8"-16, M4 & M3

Mounting Plate

  DJI Ronin Quick Mount

Temperature Range

  -20° to +50°

Mount Diameter

  9.8" / 25 cm

Height

  4.3" / 11 cm

Product Dimension

Proaim Pro Vibration Isolator for 3-Axis Camera Gimbals

Product Weight (Without Packing)

  3.12kg / 6.87lb

  In the Box

  Proaim Pro Vibration Isolator
  Ronin Mounting Plate

Robust, Smart & Reliable

Made by using High-grade Aluminum Alloys, this smart, reliable and robust design is capable of holding a payload from 5kg/11lb - 30kg/66lb.

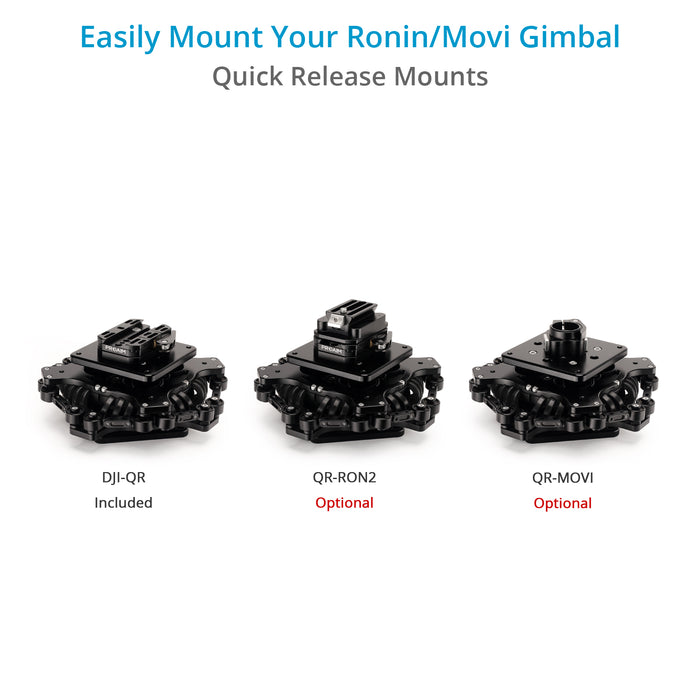

The Isolator system is compatible with Ronin, Movi and all other major gimbal systems available today giving you the freedom to use numerous different setups depending on the need of the shot.

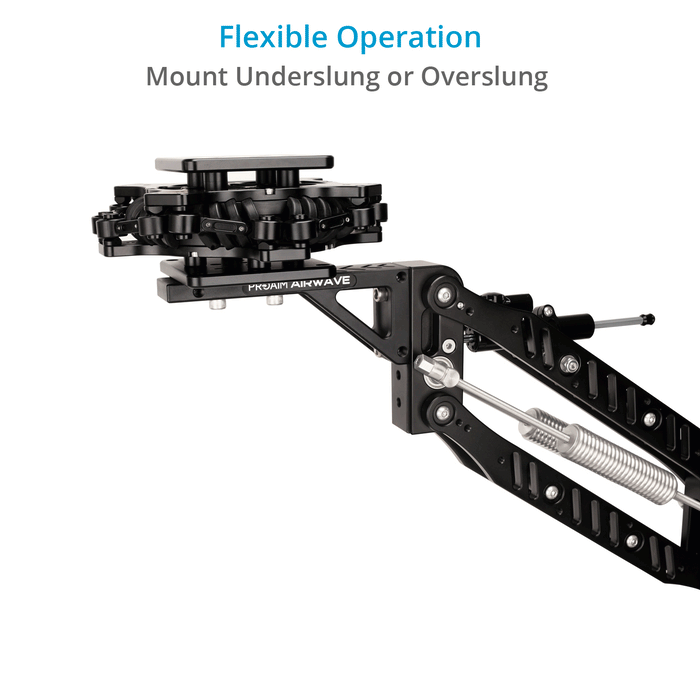

It has over-slung & under-slung ability in shooting with shock absorber arm, camera crane or car mount scaffold system. .

Proaim Pro Vibration Isolator for 3-Axis Camera Gimbals
Proaim Pro Vibration Isolator for 3-Axis Camera Gimbals

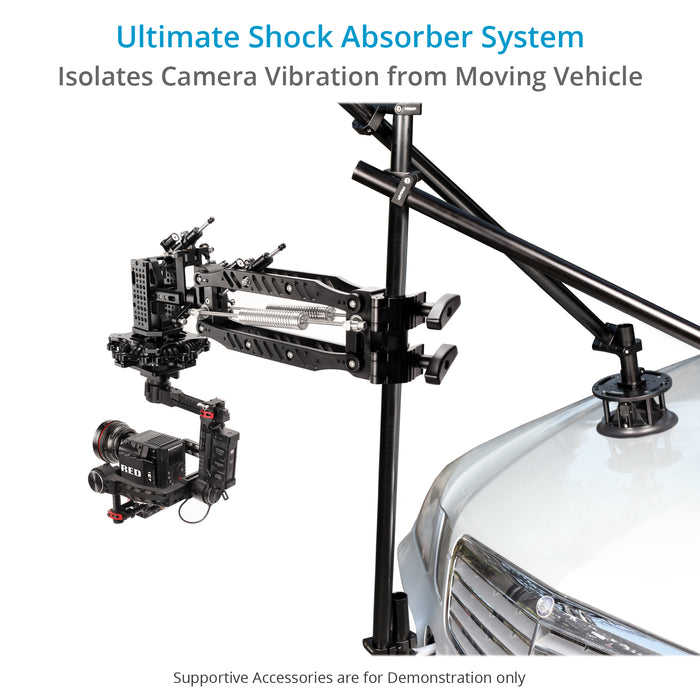

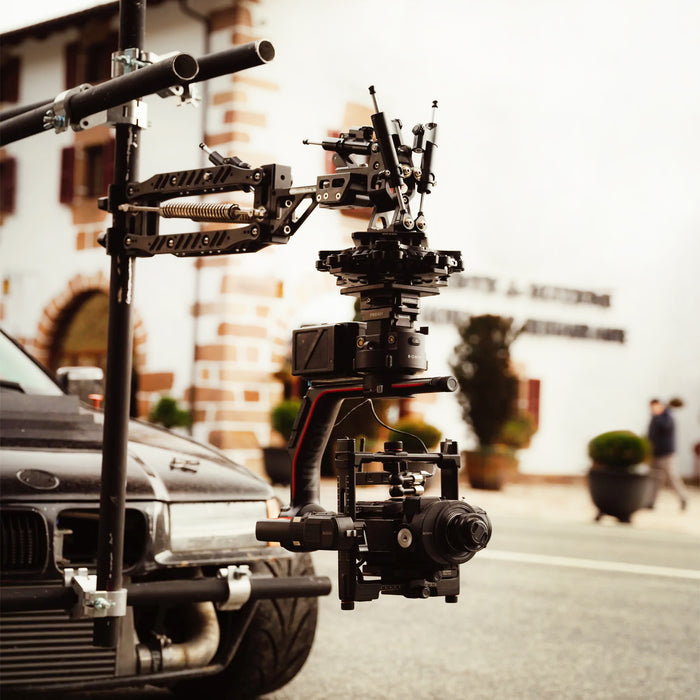

Get Stable Shots from any Moving Platform

The Pro Isolator system absorbs the shocks, bumps and jerky movements of the vehicle by utilizing custom polymers instead of wire rope to support the Gimbal and allow it to absorb inertial movements.

The isolator in conjunction with the camera Gimbal makes sure you get incredibly smooth shots even on rough terrains.

Polymer modules are customizable according to the weight of your camera setups and the shot desired.

Protect Your Gimbal

If you hard-mount a Gimbal setup to a moving platform, any Jerky movement creates an enormous amount of stress on the Motors and Bearings of the Gimbal as it tries to stabilize the camera. High-Frequency Vibrations created by moving parts such as motors, rotor blades or propellers and Low-Frequency Oscillations such as the sudden changes in direction are all absorbed by the Pro Isolator. It reduces the stress on your Gimbal motors that now have to work only to stabilize a softened range of vibrations which in turn increases the life of your Gimbal.
