Proaim Powermatic Scissor 17ft Telescopic Camera Jib Crane

For 3-Axis Ronin, Movi Gimbals | For Video Film Productions

US $3,030.00 - US $3,030.00

US $3,030.00

US $3,030.00 - US $3,030.00

US $3,030.00

SKU : JB-SCSR-00

Qty

Also Available in Warehouses:

Next Step in the Evolution of Camera Jib!

Quickly Moves In/Out of a Shot. Manoeuvres into Inaccessible Areas – Smoothly & Silently.

01.

Thoughtful Engineering

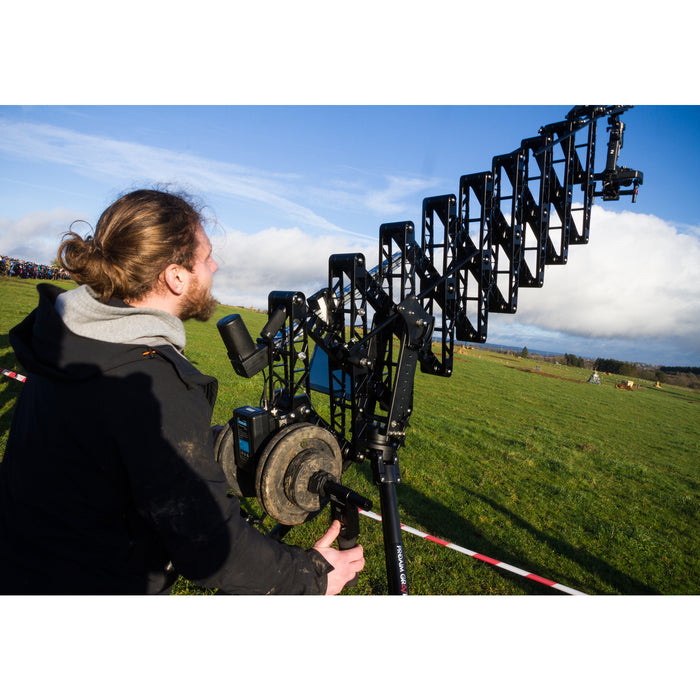

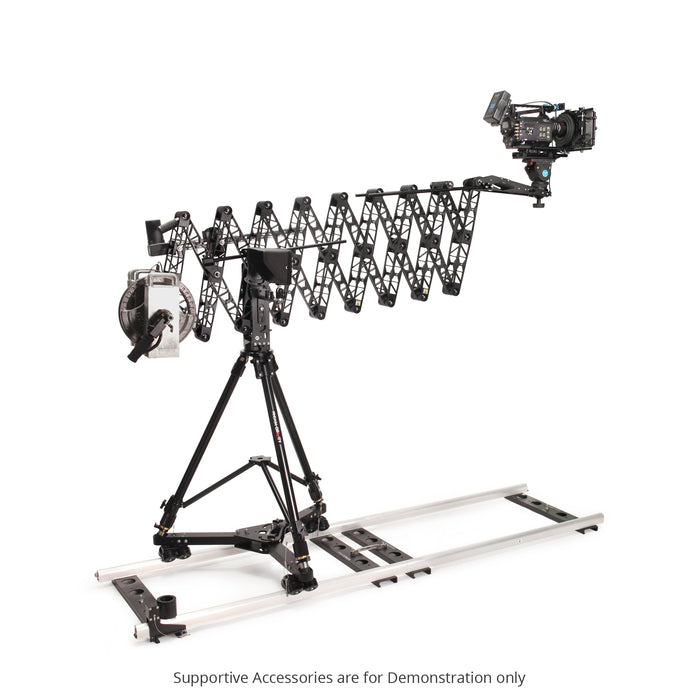

Proaim Powermatic Scissor telescopic camera crane lets you easily capture creative shots usually done with high-end and expensive Technocranes.

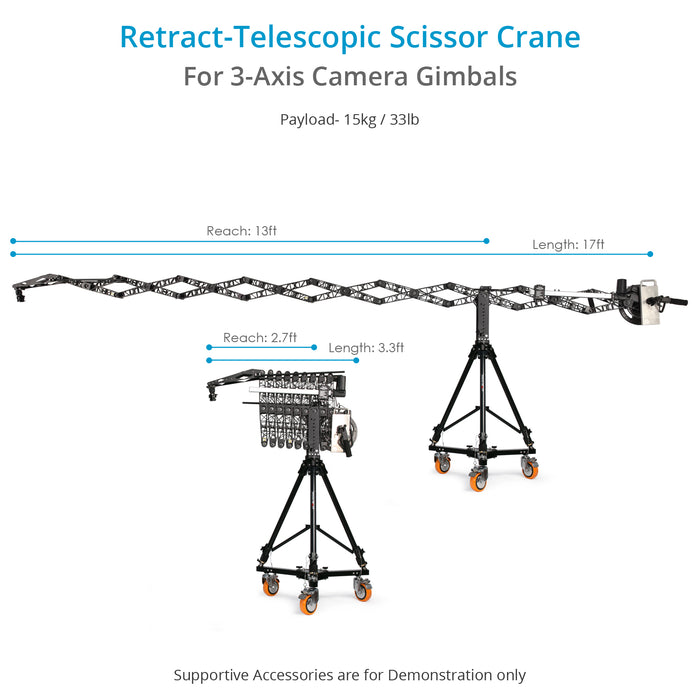

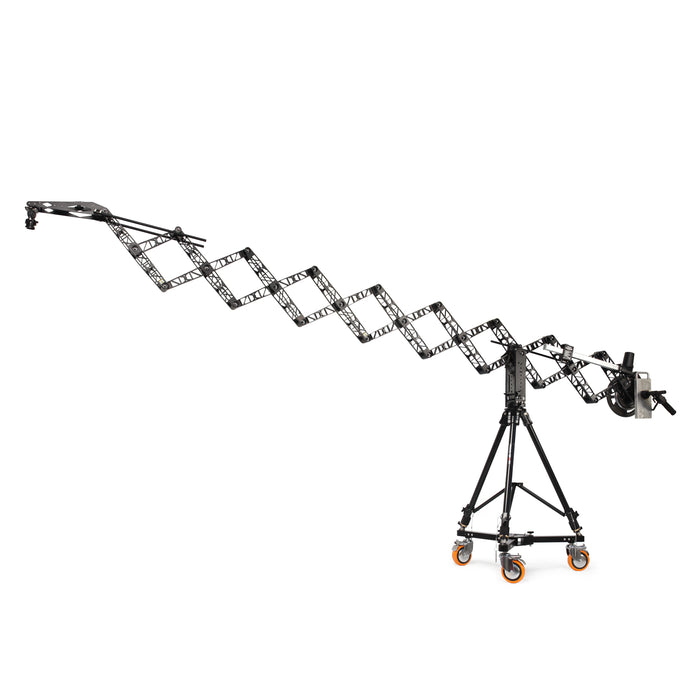

Extending the scissor arm puts the camera right where you need it. The flexible motion allows the arm to open 17’ out and then retract back in.

High-grade Aluminum Crane Frame is lightweight & durable enough to hold 3-Axis Camera Gimbals with a maximum payload of 15kg / 33lb.

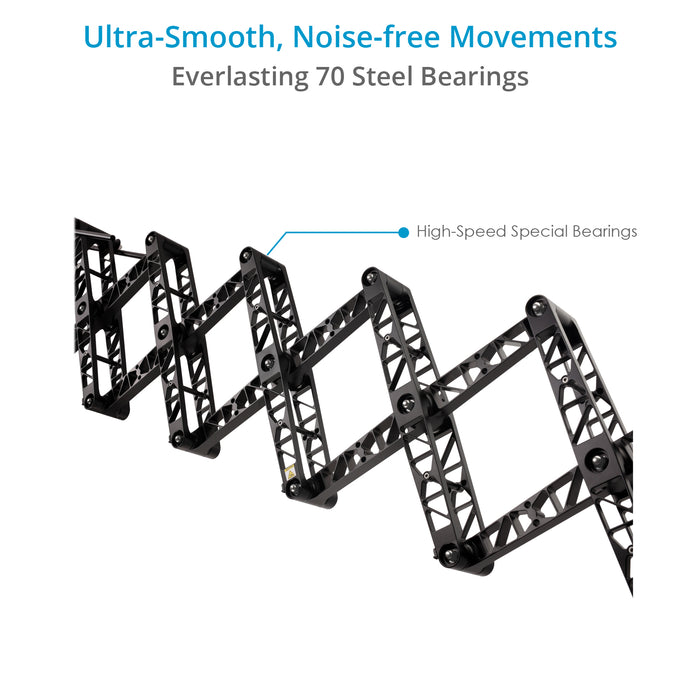

The high-speed special 70 steel bearings ensure outstanding durability & strength while providing smooth soundless movement every time you extend or retract.

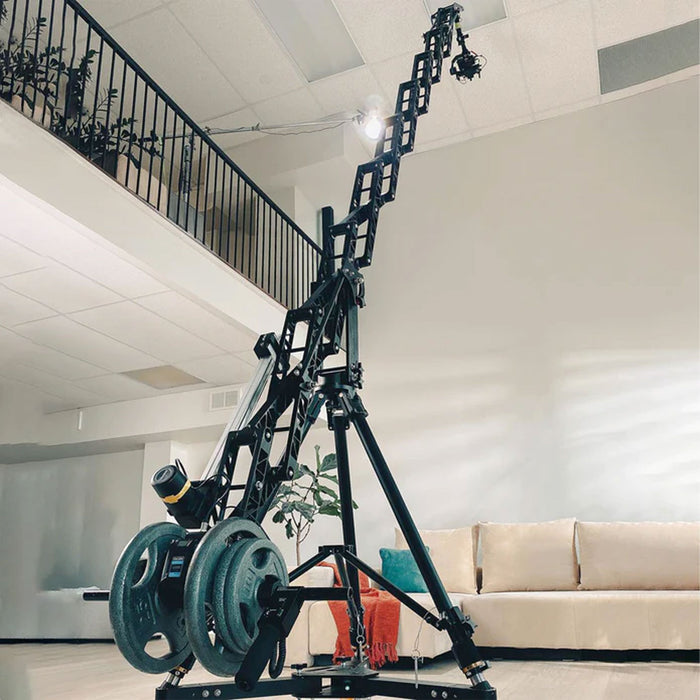

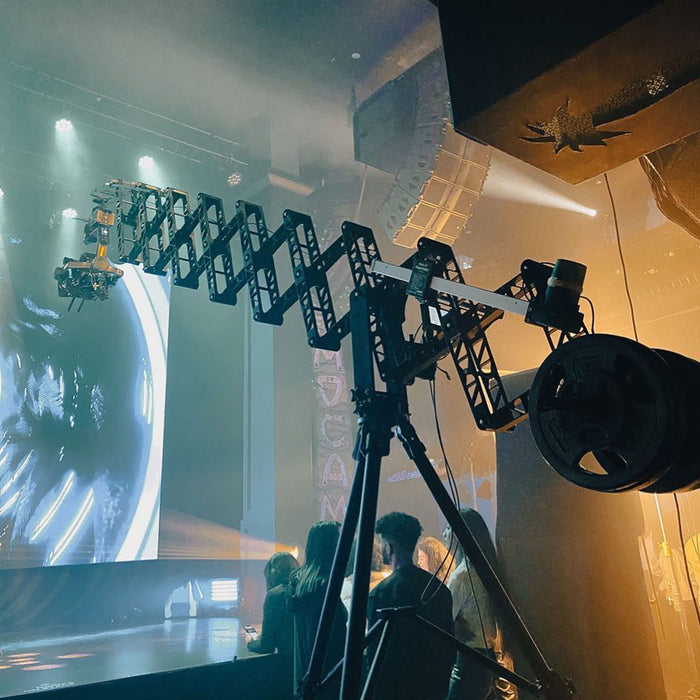

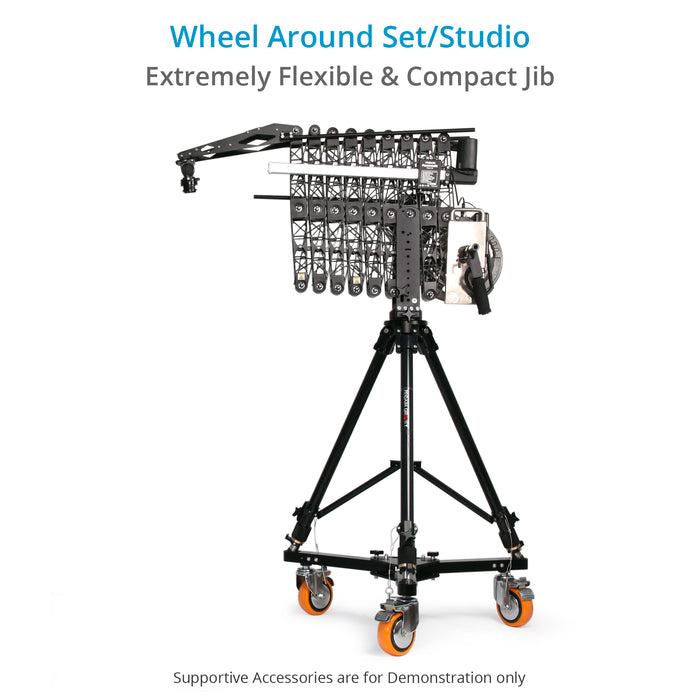

It is perfect for tight indoor spaces as well as on-location shoots. It even fits into a private vehicle.

02.

Effortless Operation

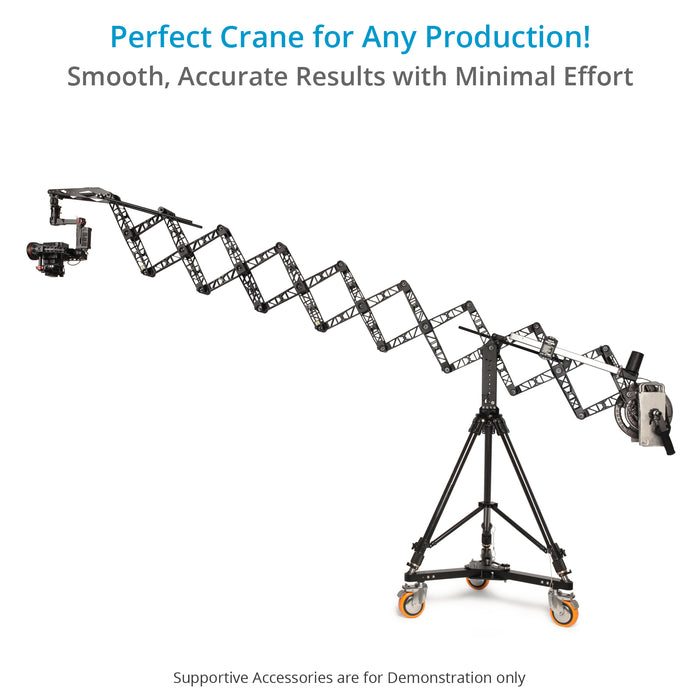

The Powermatic Scissor allows you to achieve fluid movements of extreme precision without any difficulty.

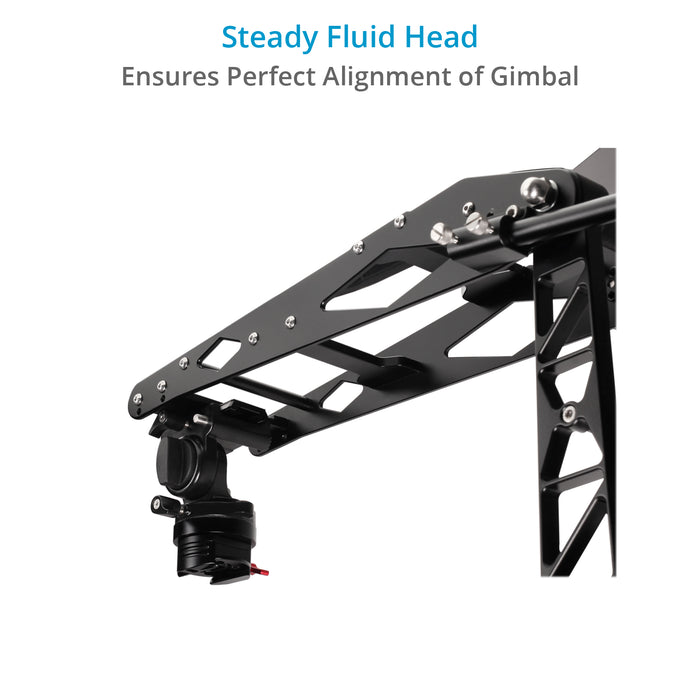

Steady Fluid Head ensures perfect alignment of your 3-Axis Gimbal on Scissor Crane.

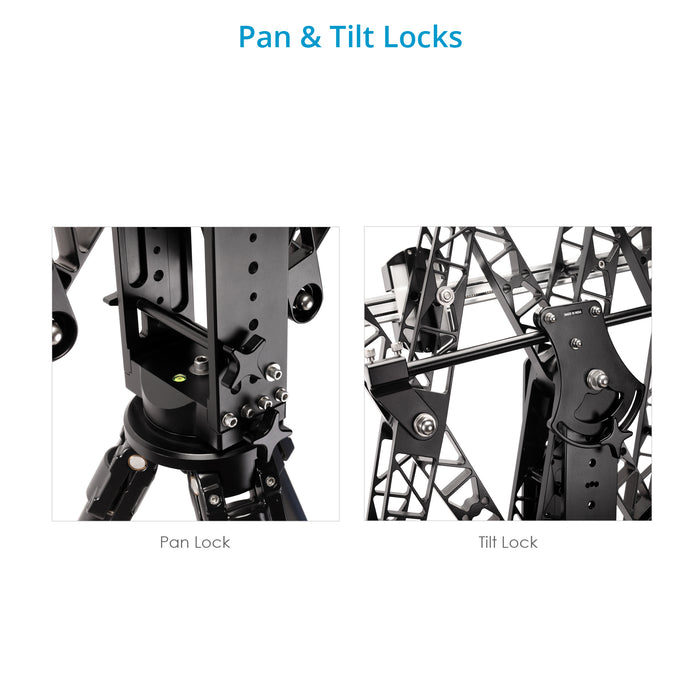

Tilt Lock allows you to fix the jib’s tilt angle to get linear tracking shots.

Pan Lock enables locking the jib’s pan movement for achieving high/low angle shots.

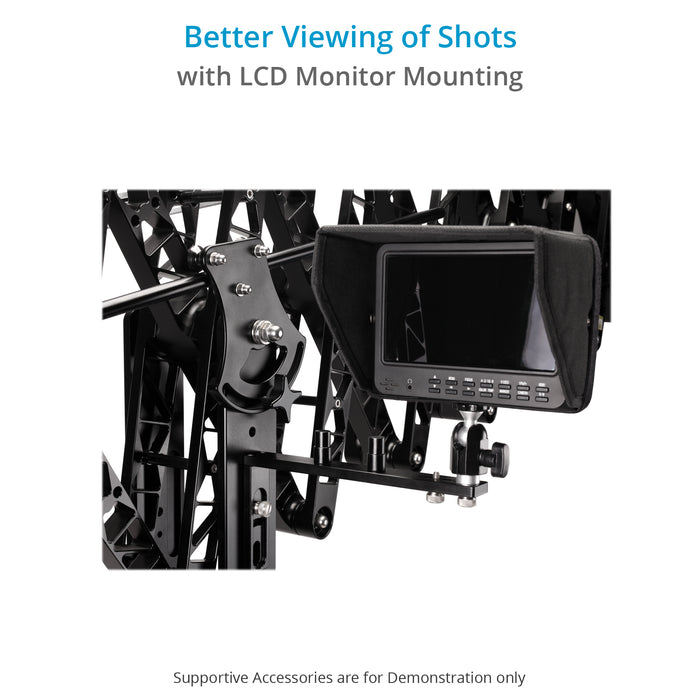

LCD Mounting Arm helps in attaching an LCD monitor for better viewing of shots; the arm can be mounted left/right as per your requirement.

03.

Precisely Controlled Movements

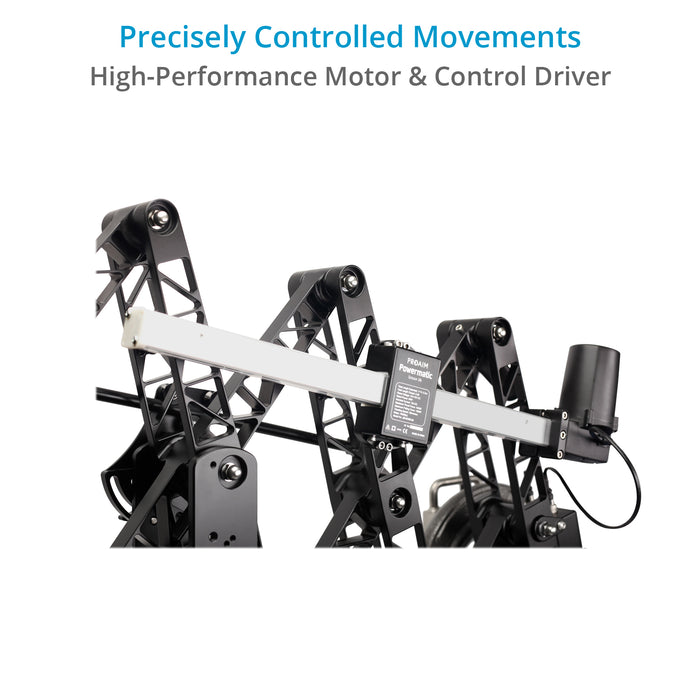

High-Performance 12V DC motor ensures silent operation and drives the jib smoothly.

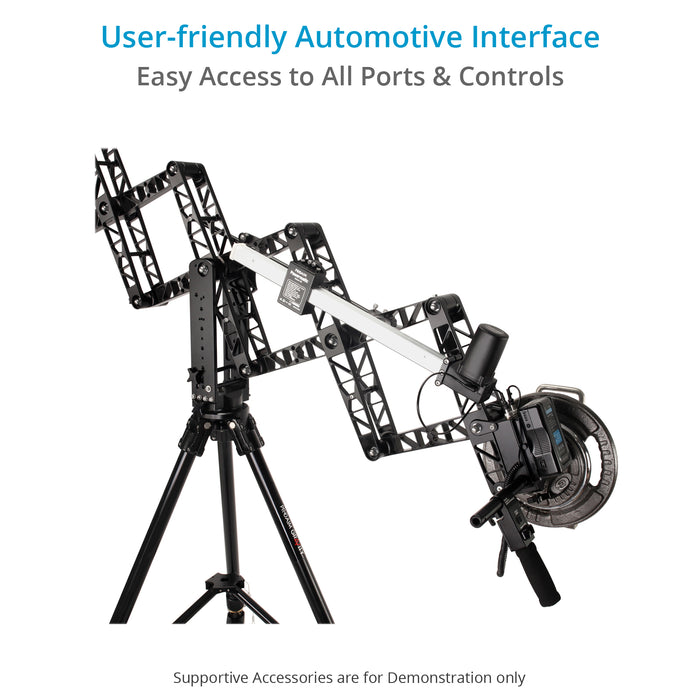

The Precise Controller very conveniently push-out / pull-in the jib length and control the movements.

The system is integrated with a V-Mount Battery Plate, which adapts a 14.8V V-Mount battery to power the drive system.

04.

Simplified Transport

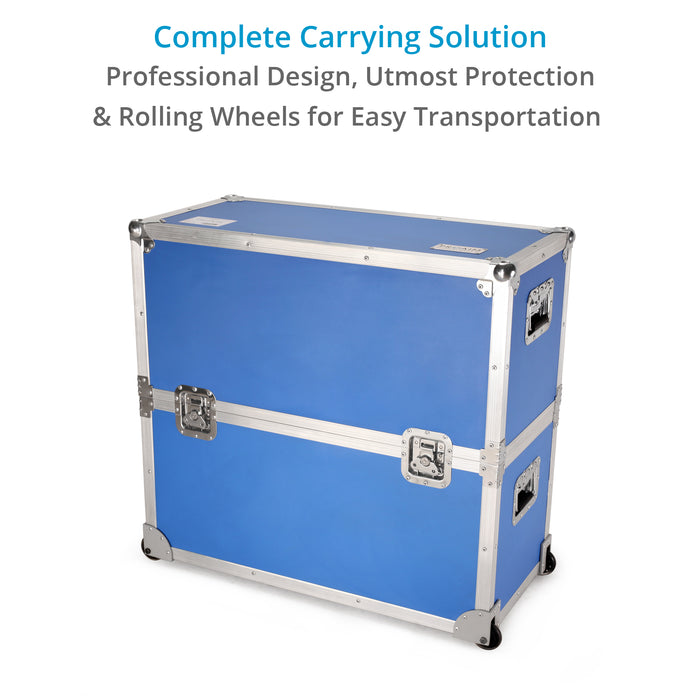

The Complete Crane System fits in a Flight Case for easy storage. This storage case is easy to carry with you to different sets and locations.

See how the Scissor Crane Works

Scissor Crane Specifications

Construction

High-grade CNC Aluminum

Total No. of High-Speed Steel Bearings

Total Length Extended

17ft / 5.2m

Total Length Closed

3.3ft

Extended Height from Ground

17.4ft / 5.3m

Closed Height from Ground

6.3ft

Load Capacity

15kg / 33lb

Crane Pan Lock

Yes

Crane Tilt Lock

Yes

Self-balance Weight (Extended/Collapsed)

24kg / 53lb

Power Source

V-Mount Battery (Not Included)

Battery Runtime

1 ½ - 2 hours

Weight of Scissor Jib

33kg / 73lb

Motor Specifications

IP44 Protection

Certified

Rated Voltage

12V -15V DC

Rated Power

60W

Nominal Current

10A DC

Maximum Thrust Force

1000N

Maximum Pulling Force

1000N

Travelling Speed

36mm/sec

Noise

<55dB

Vibration

Not Noticeable

Jib Packing Info

Product Weight with Flight Case

71kg / 157lb

Flight Case Dimensions (L x W x H)

85cm x 40cm x 80cm

In the Box

17ft Powermatic Scissor Jib
Jib Controller & Monitor Bracket
Ronin Controller Bracket
Female to Female Connector
2 x Weight Ends
15V AC Adapter
Weight Rod & Cable Guide Rods
HDMI Male to Male Wire & BNC Wire
Flight Case

User Manual

Proaim Powermatic Scissor 17ft Retract - Telescopic Camera Crane

Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 30 days

1-Year Warranty
On All Products

Q&A

Ask a Question

Can I mount Ipad with Scissor Jib with the help of provided Monitor Bracket?

Yes, Ipad can be mounted on Scissor Jib.Either with the help of Proaim SnapRig 13inch Articulating Magic Arm or with Proaim Universal iPad/Tablet Mounting Bracket

Link - https://www.proaim.com/products/proaim-universal-tablet-mounting-bracket

Link :- https://www.proaim.com/products/proaim-snaprig-13inch-articulating-double-arm-for-monitor-accessories-ma220"
Hi Which gimbals would you recommend if one wants the option of being able to zoom the lens in and out using a Nucleus M motor. Or a gimbal with remote zooming capability. Thanks

The gimbals like DJI Ronin 2 (R2), Zhiyun Crane 2 & 3S / DJI Ronin S, RS 2 & 4D / Moza Air Gimbal & MōVI (M5/M10/M15/PRO) can be attached to the Proaim Powermatic Scissor 17ft Telescopic Camera Jib Crane with the help of suitable mounting adapters.
Scissor Crane. Is the controller compatible with Freefly?

Yes, it is compatible but for this, you need another accessory (QR-MOVI).
Hi, Will the Proaim Powermatic Scissor work with your motorized pan/tilt heads? What does the package come with vs. no package?

Yes, the Scissor jib works with our pan-tilt head. In order to attach the head to the jib, you would need a customized mounting plate shown in this: https://prnt.sc/1tsjeza image. Please reach out to us at sales@proaim.com for this customization.

The JB-SCSR-00 version includes:
17ft Powermatic Scissor Jib

Whereas, the JB-SCSR-01 package comes with:
17ft Powermatic Scissor Jib
Anchor Dolly (DL-ANCR-02)
Gravity Stand (Flat Base) (TP-GVTY-01)
Storage Bag for Gravity Stand
I purchase a scissor crane. Do you have an instructional video on how to put it together?

Below is the video of how to assemble Proaim Powermatic Scissor 17ft Telescopic Camera Jib Crane JB-SCSR-00:
https://www.youtube.com/watch?v=cbURj6fWOK8
Hello, is screen includes in the crane packages ?

The Proaim Camera Crane Packages does not include the monitors or screens.
Can I mount Proaim Scissor 17ft Jib Crane on GFM/bazooka Dolly ?

Yes, you can mount Scissor Crane with GFM/bazooka Dolly with the help of Proaim Mitchell Base adapter (AP-MTCL-SCSR)
How can you mount a proaim pan tilt head on this crane? https://prnt.sc/iVoiuLJlt0aY

You can mount the Proaim Sr. Pan Tilt Head (PT-SR) on the Proaim Powermatic Scissor 17ft Crane (JB-SCSR-00) with the help of the Proaim Mounting Plate (AP-PTP-SCSR). Here is the link for your reference:
https://www.proaim.com/products/proaim-mounting-plate-for-scissor-crane-to-mount-pan-tilt-head
