Proaim Curve-N-Line 2-way Camera Video Slider | Available Sizes: 2ft, 3ft & 4ft

Original price US $307.00 - Original price US $453.00
Original price
US $307.00
US $307.00 - US $453.00
Current price US $307.00
SKU : SL-CNL-2

STRAIGHT & PARABOLIC MOVES IN ONE SLIDER WITH DUO TRACK!

DELIVERING RELIABLE & CONSISTENT MOTION ON EVERY SHOT!

01.

DUO TRACK SLIDER

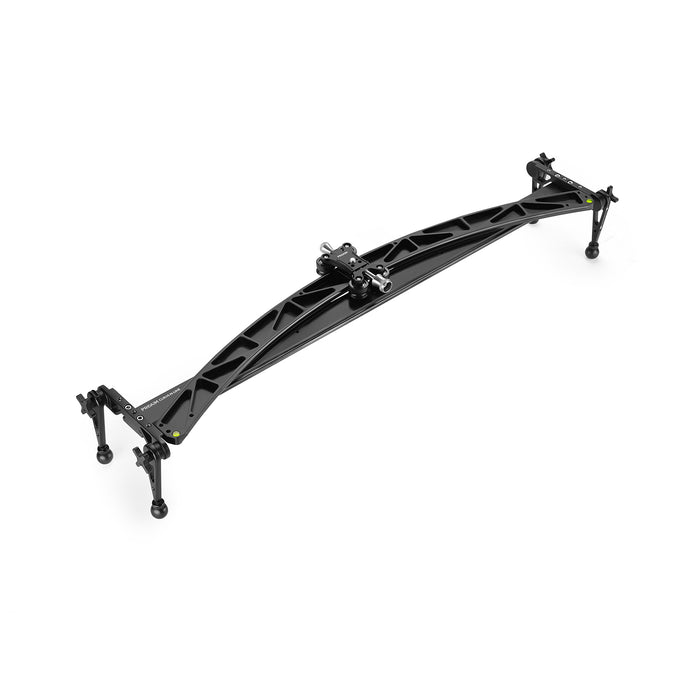

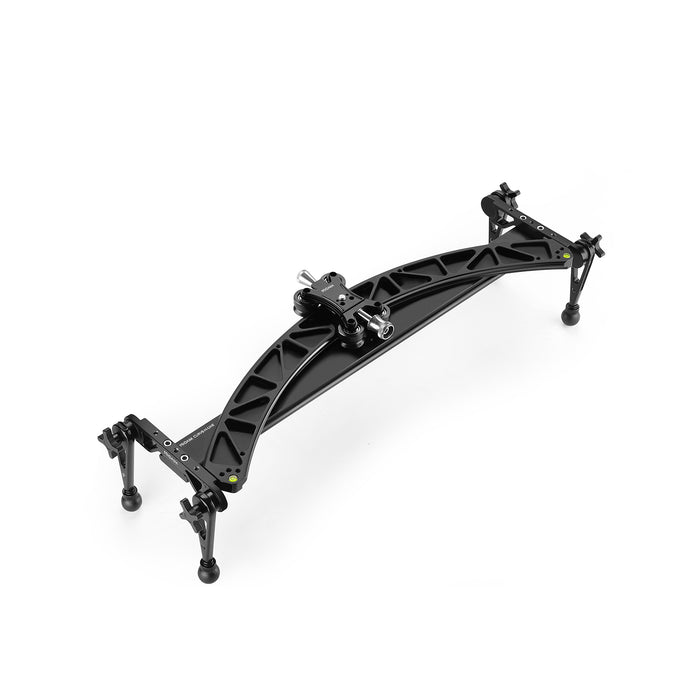

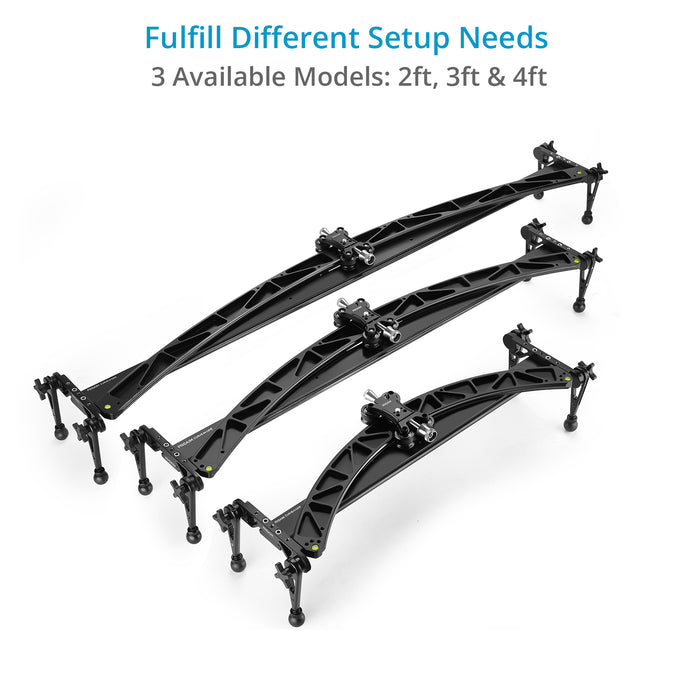

Now refine the elaborate art of capturing an extensive range of professional parabolic & linear shots with Proaim Curve-N-Line Camera Video Slider, which is available in 3 different lengths-2ft, 3ft, and 4ft.

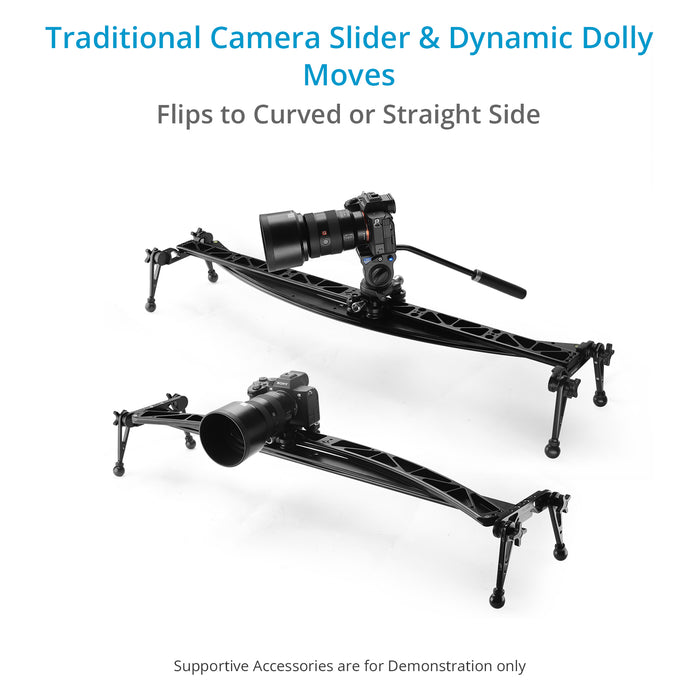

It is a dual track that combines straight and curved tracks in a single design, letting you achieve traditional camera slider moves as well as dynamic dolly moves by quickly flipping the slider.
Furthermore, it successfully lets you maintain the camera’s direction at the desired focal point, plus helps achieve optimally stable & highly consistent shots.
Meticulous high-grade CNC Aluminum build renders optimal support to heavy-duty cameras without compromising stability.

Proaim-Curve-N-Line-2-way-Camera-Video-Slider
Proaim-Curve-N-Line-2-way-Camera-Video-Slider

02.

SMOOTH FUNCTIONING
Precisely designed, the wheely Slider carriage with a quick release mechanism provides a stable base to the camera and gets easily attached to straight and curved modes of the slider without removing the end feet.
The dual ball bearings on each wheel facilitate smooth and steady dolly & traditional movement when you manually slide your camera across.
The slider carriage has 1/4"-20 and 3/8"-16 mounting screws for attaching a camera, ball head, or tripod head.
Additionally, you can incorporate the setup with the Proaim Motion Control System to power the Camera Video slider with automation, thus saving you an awful amount of time.

03.

ADAPTABLE DESIGN
The Camera Video Slider comes equipped with rotatory legs, which can seamlessly make a rotation of 360°, thus allowing you to switch between the duo sliders desirably.
Easy and independent adjustment of each leg comes in handy while shooting on uneven surfaces.
Besides this, they are also removable in case you only plan on using the slider tripod-mounted and want to travel lighter.
You can directly mount a tripod via 1/4"-20 and 3/8"-16 tripod mount threads on the bottom center of the slider.
And the Four bubble levels are at different locations for easily and precisely checking the balance.

Proaim-Curve-N-Line-2-way-Camera-Video-Slider

IN-ACTION VIDEOS

SPECIFICATIONS


SL-CNL-2

Construction

  High-Grade CNC Aluminum

Payload

  30kg / 66lb

Track Length

  3’/ 0.9m

Travel Angle

  58°

Weighing Capacity on Ground

  30kg / 66lb

Product Weight (Without Packing)

  1.96kg / 4.31lb

Product Volumetric Weight (With Packing)

  5.27kg / 11.57lb

SL-CNL-3

Construction

  High-grade CNC Aluminum

Payload

  25kg / 55lb

Track Length

  3’/ 0.9m

Travel Angle

  58°

Weighing Capacity on Ground

  25kg /55lb

Product Weight (Without Packing)

  1.96kg / 4.31lb

Product Volumetric Weight (With Packing)

  5.23kg / 11.53lb

SL-CNL-4

Construction

  High-Grade CNC Aluminum

Payload

  25kg / 55lb

Track Length

  3’/ 0.9m

Travel Angle

  58°

Weighing Capacity on Ground

  25kg /55lb

Product Weight (Without Packing)

  4kg / 8.8lb

Product Volumetric Weight (With Packing)

  8.62kg / 19.00lb

IN THE BOX

Proaim Curve-N-Line 2-way Camera Video Slider
Proaim Curve-N-Line 3-way Camera Video Slider
Proaim Curve-N-Line 4-way Camera Video Slider

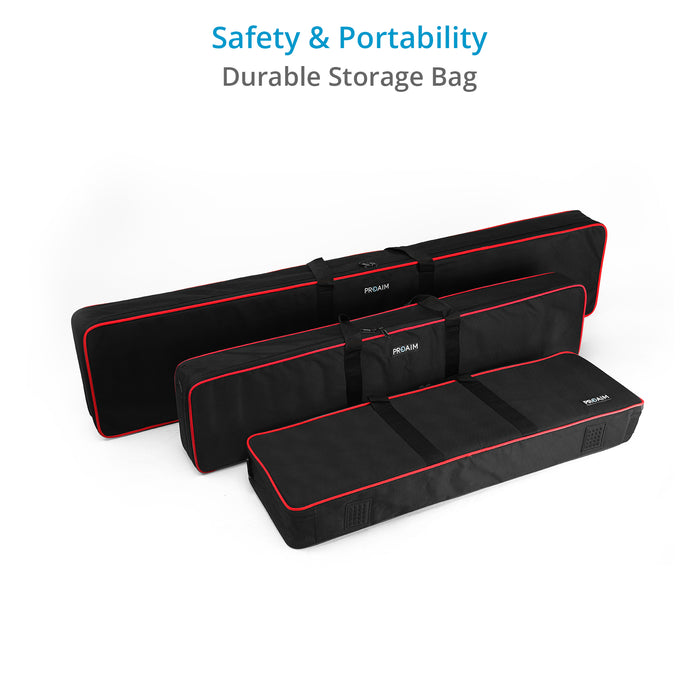

Storage Bag


Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 30 days

1-Year Warranty
On All Products





  • What are the radius of the circles made with the curved side? TIA

    We are selling Slider with different lengths i.e 2ft, 3ft, and 4ft

    - Curve-N-Line Camera Video 2ft Slider(SL-CNL-2)
    The outer radius of the curve slider is 17.67 inches
    The inner radius of the curve slider is 16.05 inches

    -Curve-N-Line Camera Video 3ft Slider(SL-CNL-3):
    The outer radius of the curve slider is 38.32 inches
    The inner radius of the curve slider is 36.33 inches

    -Curve-N-Line Camera Video 4ft Slider(SL-CNL-4):
    The outer radius of the curve slider is 67.32 inches
    The inner radius of the curve slider is 65.35 inches

  • Will the Proaim Curve-N-Line Camera Video Slider and Proaim Advanced Motion Control work with Canon XF400? Also, suggest which Tripod is compatible for the equipment above?

    The weighing capacity of the slider on ground for manual operation is 25kg. However, while operating with a motion control system, the weighing depends upon the motor of the control system. So, the weighing capacity of the combination of slider and motion control system is 5kg. So, any camera can be used with this combination that weighs under 5kg.

    It can be mounted on a tripod that has 1/4"-20 & 3/8"-16 Mounting thread. It can also be mounted on a bowl tripod stand using the tripod head.
