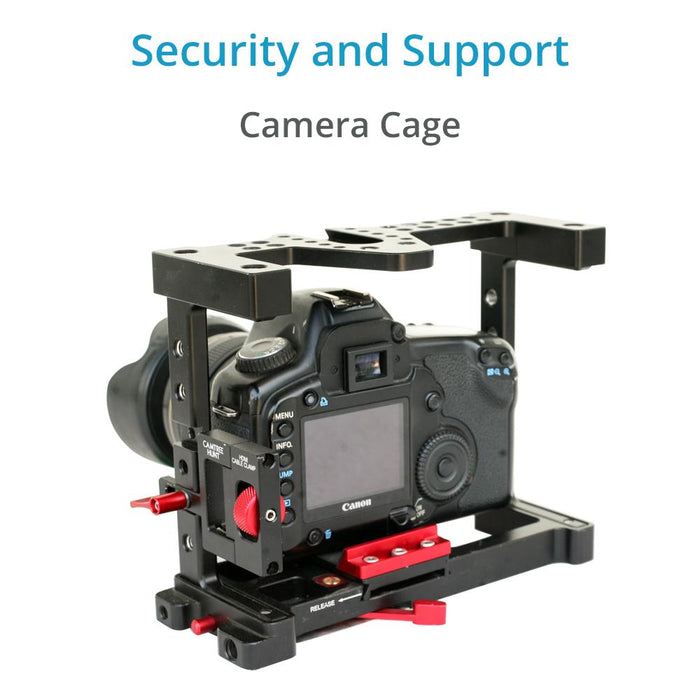

Camtree Hunt launches it’s fully functional cage that guarantees videomakers to capture stable shots without any trouble. The Robust cage features a quick release system with a back stop that provides anti twisting and is dovetailed for a secure fit. Incorporated into the cage is a push button safety pin that prevents accidental release of the base plate. This allow for quick and secure mounting and dismounting of your camera to the cage. This cage provides easy access to the battery allowing you to replace it without removing the camera from the cage (Note: you can not change the GH4 battery as it is 0.20mm short!). It adds full functionality with top and bottom multifunctional rod support for accessory mounting options and a super tough top handle makes it easy to carry around & enables easy handheld shots. The threaded mounting holes are lined with stainless steel helicoils which prevents threads from stripping out which can happen quite easily on purely aluminum threads.
"WHAT YOU SEE IS WHAT YOU GET"

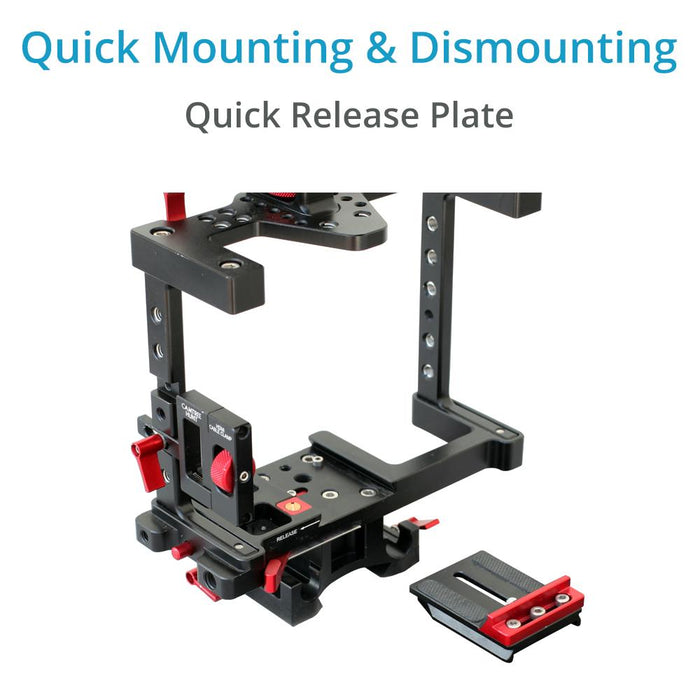

The multi-functional Rod support features 15mm rod holes for easy insertion of rods that saves production time & provides wider variety of options for mounting your other accessories. The well-engineered quick release plate with a back stop provides anti twisting and is dovetailed for a secure fit. It allows to easily switch your camera from tripod to handheld.
- Robust Cage to fit your shooting style.
- Removable top handle .
- Provides easy access to battery without removing the cage.
- Prevent accidental cable disconnects.

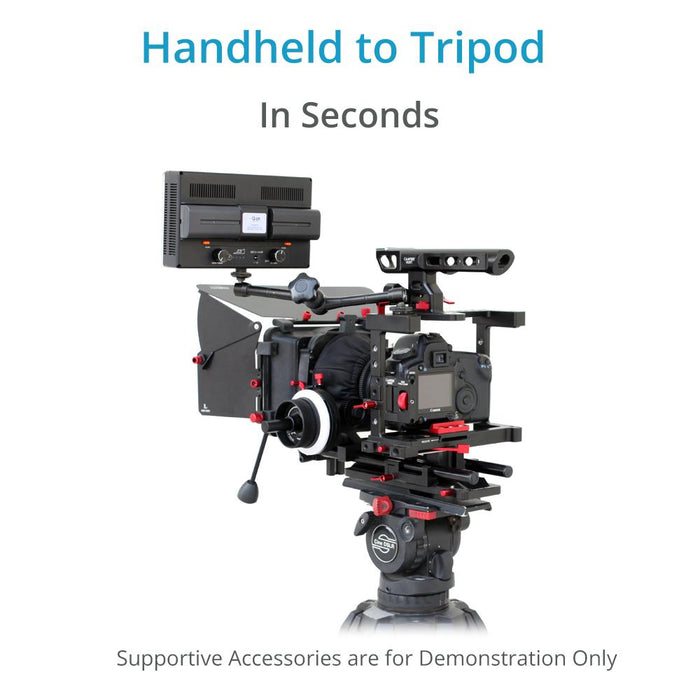

- Quickly switches from handheld to tripod mount.
- Efficient, reliable, solid-state mounting solution.
- Ultimate cage for studio style productions.
- Suitable for DSLR like CANON 5D3/2, 7D GH4, SONY A7s

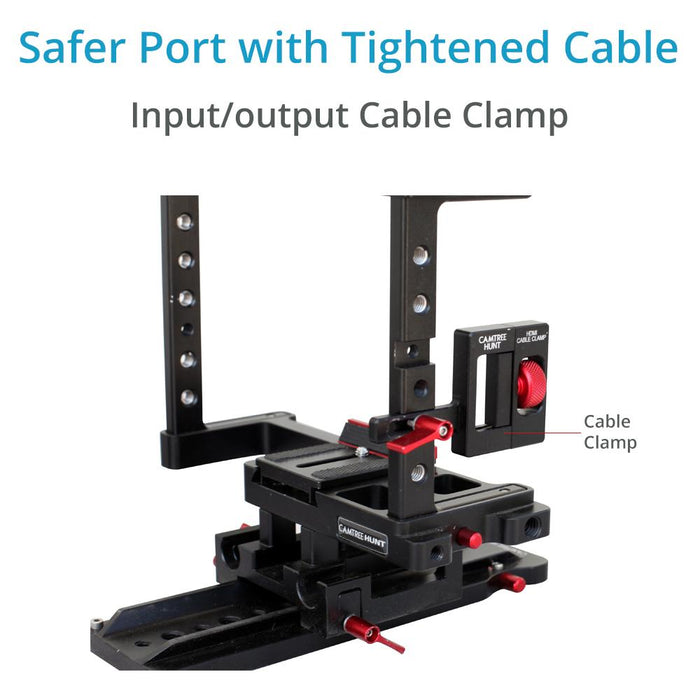

Cable clamp can provide strain relief for power, and other cables where frequent tugging could cause damage to the camera.

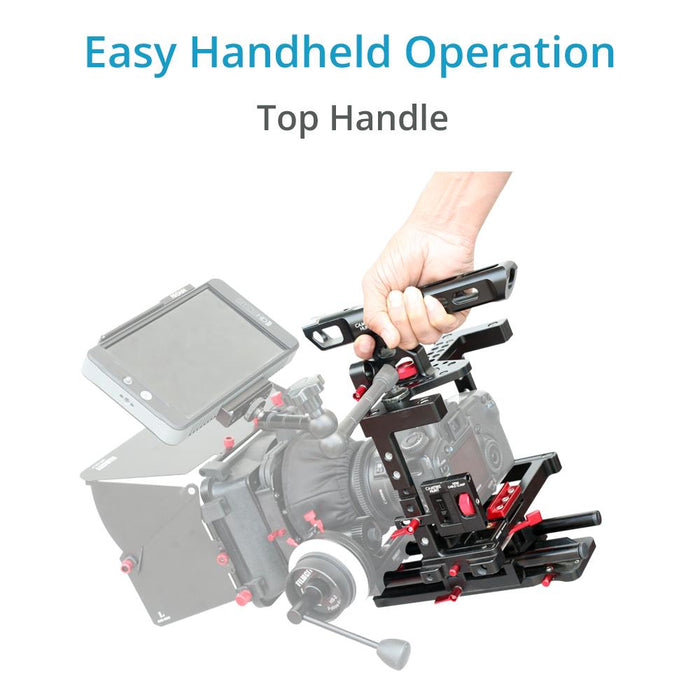

The Sturdy handle makes the cage easy to carry around & enables easy handheld shots. It also features 15mm rod holes for various accessory mounting options.

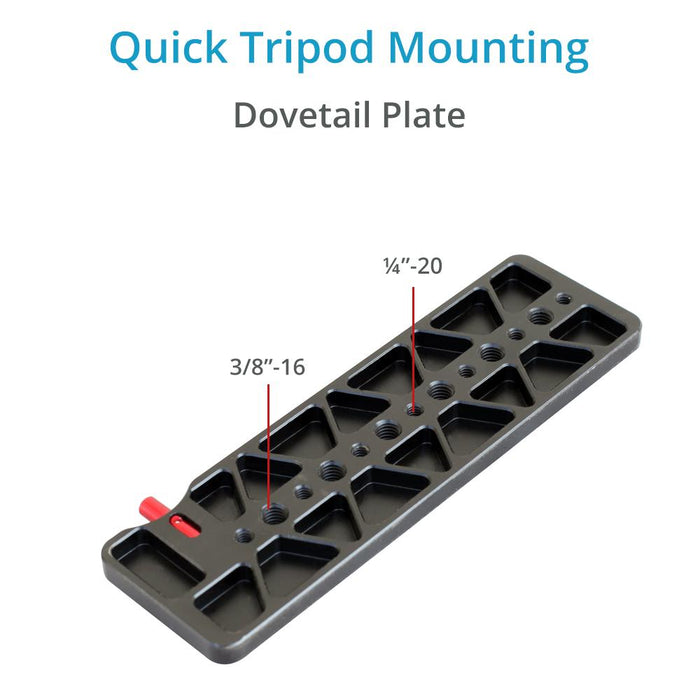

Dovetail Plate mounts directly onto the tripod and works best with heavy-duty tripod heads.
The Supportive accessories are for demonstration purpose only.
- Construction : Aluminum
- Compatible : CANON 5D3/2, 7D GH4, SONY A7s
- Accessories mounting : 1/4"-20 and 3/8"-16
- Rod Adapter : 15mm
- Camera mounting : 1/4"-20
- Tripod mounting (Dovetail) : 1/4"-20 and 3/8"-16
- Product weight: 2.1kg/4.6lb
- Inner Dimention: W x H : 165mm x 30mm

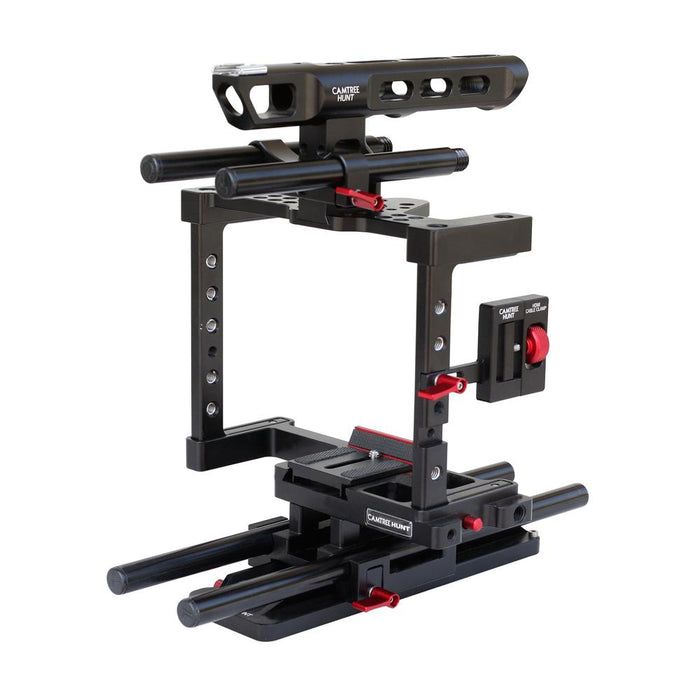

- Camtree Hunt Grand DSLR CAMERA Cage
- Top handle
- Dovetail plate
- 2 x 150mm Male threaded Rods
- 2 x 300mm Female threaded Rods
